ECG_UDP_Sender.h File Reference

#include "orbsvcs/RtecUDPAdminS.h"
#include "orbsvcs/RtecEventChannelAdminS.h"
#include "orbsvcs/Event/EC_Lifetime_Utils.h"
#include "orbsvcs/Event/EC_Lifetime_Utils_T.h"
#include "orbsvcs/Event/ECG_CDR_Message_Sender.h"
#include "orbsvcs/Event/ECG_UDP_Sender.inl"

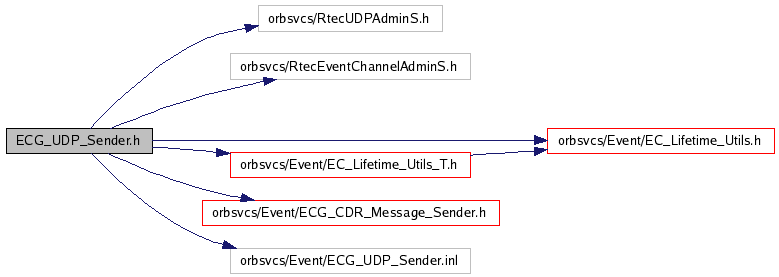

Include dependency graph for ECG_UDP_Sender.h:

This graph shows which files directly or indirectly include this file:


class  TAO_ECG_UDP_Sender_Disconnect_Command
 Disconnects consumer represented by proxy from the Event Channel. More...
class  TAO_ECG_UDP_Sender
 Send events received from a "local" EC using UDP. NOT THREAD-SAFE. This class connect as a consumer to an EventChannel and forwards the events it receives from that EC using UDP. More...

Detailed Description

ECG_UDP_Sender.h 71541 2006-03-15 07:52:22Z jtc

Carlos O'Ryan (

Marina Spivak (

Based on previous work by Tim Harrison ( and other members of the DOC group. More details can be found in:

Define helper classes to propagate events between ECs using either UDP or multicast. The architecture is a bit complicated and deserves some explanation: sending the events over UDP (or mcast) is easy, a Consumer (TAO_ECG_UDP_Sender) subscribes for a certain set of events, its push() method marshalls the event set into a CDR stream that is sent using an ACE_SOCK_Dgram. The subscription set and IP address can be configured. Another helper class (TAO_ECG_UDP_Receiver) acts as a supplier of events; it receives a callback when an event is available on an ACE_SOCK_Dgram, it demarshalls the event and pushes it to the EC. Two ACE_Event_Handler classes are provided that can forward the events to this Supplier: TAO_ECG_Mcast_EH can receive events from a multicast group; TAO_ECG_UDP_EH can receive events from a regular UDP socket.

The class makes an extra copy of the events, we need to investigate if closer collaboration with its collocated EC could be used to remove that copy.
