TAO_EC_MT_Dispatching Class Reference

Dispatching strategy that minimizes mt inversion. More...

#include <EC_MT_Dispatching.h>

Inheritance diagram for TAO_EC_MT_Dispatching:

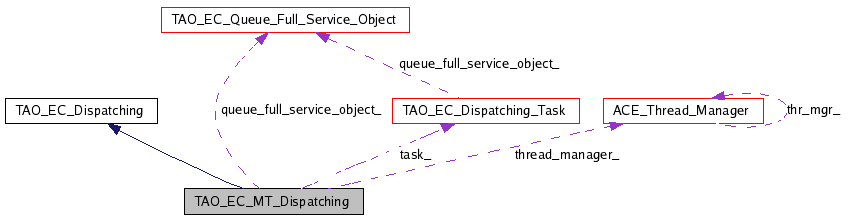

[legend]Collaboration diagram for TAO_EC_MT_Dispatching:

[legend]List of all members.

Public Member Functions
	TAO_EC_MT_Dispatching (int nthreads, int thread_creation_flags, int thread_priority, int force_activate, TAO_EC_Queue_Full_Service_Object *queue_full_service_object_name)
virtual void	activate (void)
virtual void	shutdown (void)
virtual void	push (TAO_EC_ProxyPushSupplier *proxy, RtecEventComm::PushConsumer_ptr consumer, const RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info ACE_ENV_ARG_DECL)
virtual void	push_nocopy (TAO_EC_ProxyPushSupplier *proxy, RtecEventComm::PushConsumer_ptr consumer, RtecEventComm::EventSet &event, TAO_EC_QOS_Info &qos_info ACE_ENV_ARG_DECL)
Private Attributes
ACE_Thread_Manager	thread_manager_
	Use our own thread manager.
int	nthreads_
	The number of active tasks.
int	thread_creation_flags_
int	thread_priority_
	The priority of the dispatching threads.
int	force_activate_
TAO_EC_Dispatching_Task	task_
	The dispatching task.
TAO_SYNCH_MUTEX	lock_
	Synchronize access to internal data.
int	active_
	Are the threads running?
TAO_EC_Queue_Full_Service_Object *	queue_full_service_object_
	Service Object information.

---

Detailed Description

Dispatching strategy that minimizes mt inversion.

This strategy uses a single queue, serviced by one or more threads. It's main purpose is to decouple the suppliers from the client execution time, specially in the collocated case.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_EC_MT_Dispatching::TAO_EC_MT_Dispatching	(	int	nthreads,
		int	thread_creation_flags,
		int	thread_priority,
		int	force_activate,
		TAO_EC_Queue_Full_Service_Object *	queue_full_service_object_name
	)

Constructor It will create nthreads servicing threads...

---

Member Function Documentation

void TAO_EC_MT_Dispatching::activate

(

void

)

[virtual]

Initialize all the data structures, activate any internal threads, etc.

Implements TAO_EC_Dispatching.

void TAO_EC_MT_Dispatching::push	(	TAO_EC_ProxyPushSupplier *	proxy,
		RtecEventComm::PushConsumer_ptr	consumer,
		const RtecEventComm::EventSet &	event,
		TAO_EC_QOS_Info &qos_info	ACE_ENV_ARG_DECL
	)			[virtual]

The consumer represented by proxy should receive event. It can use the information in qos_info to determine the event priority (among other things).

Implements TAO_EC_Dispatching.

virtual void TAO_EC_MT_Dispatching::push_nocopy	(	TAO_EC_ProxyPushSupplier *	proxy,
		RtecEventComm::PushConsumer_ptr	consumer,
		RtecEventComm::EventSet &	event,
		TAO_EC_QOS_Info &qos_info	ACE_ENV_ARG_DECL
	)			[virtual]

Implements TAO_EC_Dispatching.

void TAO_EC_MT_Dispatching::shutdown

(

void

)

[virtual]

Deactivate any internal threads and cleanup internal data structures, it should only return once the threads have finished their jobs.

Implements TAO_EC_Dispatching.

---

Member Data Documentation

int TAO_EC_MT_Dispatching::active_ [private]

Are the threads running?

int TAO_EC_MT_Dispatching::force_activate_ [private]

If activation at the requested priority fails then we fallback on the defaults for thread activation.

TAO_SYNCH_MUTEX TAO_EC_MT_Dispatching::lock_ [private]

Synchronize access to internal data.

int TAO_EC_MT_Dispatching::nthreads_ [private]

The number of active tasks.

TAO_EC_Queue_Full_Service_Object* TAO_EC_MT_Dispatching::queue_full_service_object_ [private]

Service Object information.

TAO_EC_Dispatching_Task TAO_EC_MT_Dispatching::task_ [private]

The dispatching task.

int TAO_EC_MT_Dispatching::thread_creation_flags_ [private]

The flags (THR_BOUND, THR_NEW_LWP, etc.) used to create the dispatching threads.

ACE_Thread_Manager TAO_EC_MT_Dispatching::thread_manager_ [private]

Use our own thread manager.

int TAO_EC_MT_Dispatching::thread_priority_ [private]

The priority of the dispatching threads.

---

The documentation for this class was generated from the following files:

• EC_MT_Dispatching.h
• EC_MT_Dispatching.cpp

---
