ACE_NonBlocking_Connect_Handler< SVC_HANDLER > Class Template Reference

Performs non-blocking connects on behalf of the Connector. More...

#include <Connector.h>

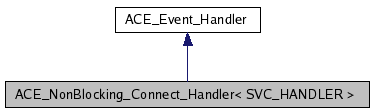

Inheritance diagram for ACE_NonBlocking_Connect_Handler< SVC_HANDLER >:

Inheritance graph
[legend]

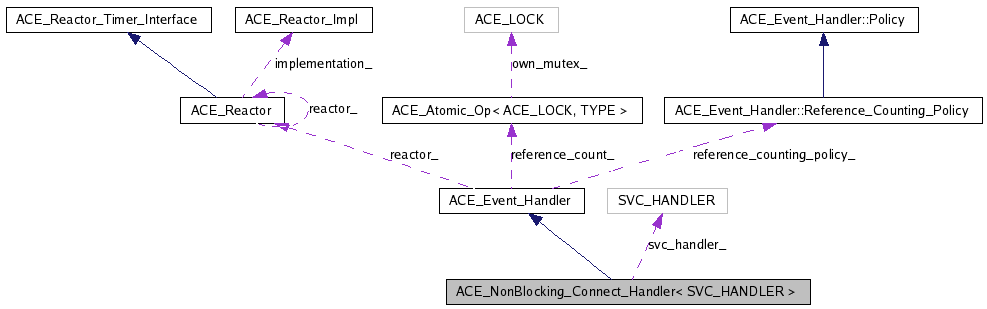

Collaboration diagram for ACE_NonBlocking_Connect_Handler< SVC_HANDLER >:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_NonBlocking_Connect_Handler (ACE_Connector_Base< SVC_HANDLER > &connector, SVC_HANDLER *, long timer_id)
bool close (SVC_HANDLER *&sh)
 Close up and return underlying SVC_HANDLER through sh.
SVC_HANDLER * svc_handler (void)
 Get SVC_HANDLER.
ACE_HANDLE handle (void)
 Get handle.
void handle (ACE_HANDLE)
 Set handle.
long timer_id (void)
 Get timer id.
void timer_id (long timer_id)
 Set timer id.
virtual int handle_input (ACE_HANDLE)
 Called by ACE_Reactor when asynchronous connections fail.
virtual int handle_output (ACE_HANDLE)
 Called by ACE_Reactor when asynchronous connections succeed.
virtual int handle_exception (ACE_HANDLE fd)
virtual int handle_timeout (const ACE_Time_Value &tv, const void *arg)
virtual int resume_handler (void)
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Private Attributes

ACE_Connector_Base< SVC_HANDLER > & connector_
 Connector base.
SVC_HANDLER * svc_handler_
 Associated SVC_HANDLER.
long timer_id_
 Associated timer id.

Detailed Description

template<class SVC_HANDLER>
class ACE_NonBlocking_Connect_Handler< SVC_HANDLER >

Performs non-blocking connects on behalf of the Connector.


Constructor & Destructor Documentation

template<class SVC_HANDLER>
ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::ACE_NonBlocking_Connect_Handler ( ACE_Connector_Base< SVC_HANDLER > &  connector,
SVC_HANDLER *  ,
long  timer_id
)


Member Function Documentation

template<class SVC_HANDLER>
bool ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::close ( SVC_HANDLER *&  sh  )

Close up and return underlying SVC_HANDLER through sh.

If the return value is true the close was performed succesfully, implying that this object was removed from the reactor and thereby (by means of reference counting decremented to 0) deleted. If the return value is false, the close was not successful. The sh does not have any connection to the return value. The argument will return a valid svc_handler object if a valid one exists within the object. Returning a valid svc_handler pointer also invalidates the svc_handler contained in this object.

template<class SVC_HANDLER>
void ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::dump ( void   )  const

Dump the state of an object.

template<class SVC_HANDLER>
void ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::handle ( ACE_HANDLE   )

Set handle.

template<class SVC_HANDLER>
ACE_HANDLE ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::handle ( void   )

Get handle.

template<class SVC_HANDLER>
int ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::handle_exception ( ACE_HANDLE  fd  )  [virtual]

Called by ACE_Reactor when asynchronous connections suceeds (on some platforms only).

Reimplemented from ACE_Event_Handler.

template<class SVC_HANDLER>
int ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::handle_input ( ACE_HANDLE   )  [virtual]

Called by ACE_Reactor when asynchronous connections fail.

Reimplemented from ACE_Event_Handler.

template<class SVC_HANDLER>
int ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::handle_output ( ACE_HANDLE   )  [virtual]

Called by ACE_Reactor when asynchronous connections succeed.

Reimplemented from ACE_Event_Handler.

template<class SVC_HANDLER>
int ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::handle_timeout ( const ACE_Time_Value tv,
const void *  arg
) [virtual]

This method is called if a connection times out before completing.

Reimplemented from ACE_Event_Handler.

template<class SVC_HANDLER>
int ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::resume_handler ( void   )  [virtual]

Should Reactor resume us if we have been suspended before the upcall?

Reimplemented from ACE_Event_Handler.

template<class SVC_HANDLER>
SVC_HANDLER * ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::svc_handler ( void   )

Get SVC_HANDLER.

template<class SVC_HANDLER>
void ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::timer_id ( long  timer_id  )

Set timer id.

template<class SVC_HANDLER>
long ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::timer_id ( void   )

Get timer id.


Member Data Documentation

template<class SVC_HANDLER>
ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

template<class SVC_HANDLER>
ACE_Connector_Base<SVC_HANDLER>& ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::connector_ [private]

Connector base.

template<class SVC_HANDLER>
SVC_HANDLER* ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::svc_handler_ [private]

Associated SVC_HANDLER.

template<class SVC_HANDLER>
long ACE_NonBlocking_Connect_Handler< SVC_HANDLER >::timer_id_ [private]

Associated timer id.


The documentation for this class was generated from the following files:
