ACE_Logging_Strategy Class Reference

This class provides the hooks to control the output produced by any of the network services. More...

#include <Logging_Strategy.h>

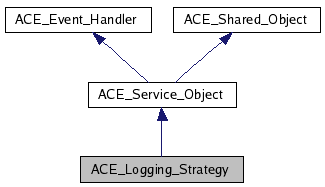

Inheritance diagram for ACE_Logging_Strategy:

Inheritance graph
[legend]

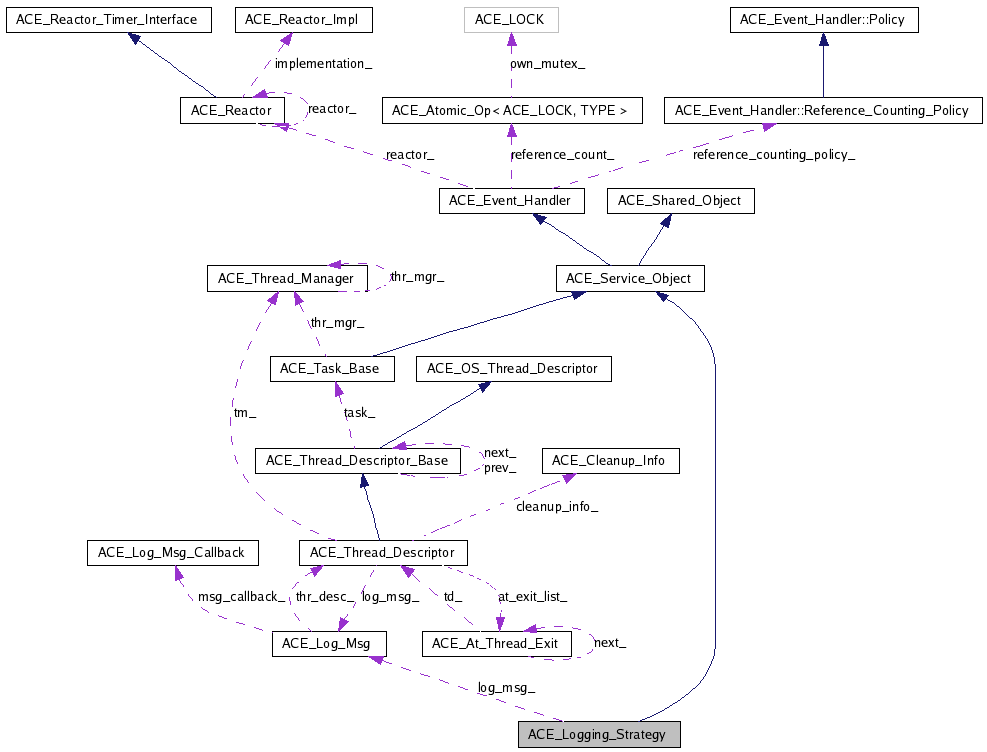

Collaboration diagram for ACE_Logging_Strategy:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Logging_Strategy (void)
 Constructor.
virtual int init (int argc, ACE_TCHAR *argv[])
 Dynamic linking initialization hook.
virtual int fini (void)
 Dynamic linking termination hook.
virtual int handle_timeout (const ACE_Time_Value &tv, const void *arg)
int parse_args (int argc, ACE_TCHAR *argv[])
void log_msg (ACE_Log_Msg *log_msg)

Protected Member Functions

void tokenize (ACE_TCHAR *flag_string)
 Tokenize to set all the flags.
void priorities (ACE_TCHAR *priority_string, ACE_Log_Msg::MASK_TYPE mask)
 Tokenize to set priorities (either process or thread one).

Protected Attributes

u_long thread_priority_mask_
 Current thread's priority mask set by <priorities>.
u_long process_priority_mask_
 Process-wide priority mask set by <priorities>.
u_long flags_
 Flags we keep track of.
ACE_TCHARfilename_
 File name we're logging to.
ACE_TCHARlogger_key_
 Logger key for distributed logging.
ACE_TCHARprogram_name_
 Program name to be used for n format specifier.
bool wipeout_logfile_
bool fixed_number_
bool order_files_
int count_
int max_file_number_
u_long interval_
u_long max_size_
ACE_Log_Msglog_msg_
 ACE_Log_Msg instance to work with.

Detailed Description

This class provides the hooks to control the output produced by any of the network services.

Depending upon when this service is invoked and with what flags, the output of other network services can be controlled. The output can be streamed to stderr, to a file, to a logging daemon, or it can be set to be "silent". If logging records are output to a file, the file can be set to a maximum size and repeatedly split into new files. The log file size can be limited at any logging point (i.e., application, client logging daemon, or server logging daemon) by specifying the -i

Parameters:
sample_interval_in_secs and -m
max_size_in_KB options for the Logging_Strategy class in a svc.conf file.
By default, two logfiles are generated. It's possible, however, to generate as many logfiles as necessary to store all the information. To achieve this, it is only necessary to indicate the maximum size of the logfiles via the -m option and the process will generate automatically the logfiles. You can control the total number of logfiles created via the -n option.

By using the -o option we can also choose the mode of organization of the files, e.g., the first one is the normal used in Unix systems (when cron rotates the logs it keeps the lowest number the most recent one), the second is for increasing speed (we only create a new log file, and don't rotate the others (fewer accesses to disk)).

By default, the ACE_Logging_Strategy uses the singleton reactor, i.e., what's returned by ACE_Reactor::instance(). If you want to set the reactor used by ACE_Logging_Strategy to something other than the singleton reactor you'll need to get a pointer to the ACE_Logging_Strategy instance and do this

ACE_Reactor my_reactor; ACE_Logging_Strategy *logging_strategy = ...... // Get instance.

logging_strategy->reactor (&my_reactor);

and then logging_strategy will use your reactor. If you're dynamically linking the ACE_Logging_Strategy then you can use the ACE_Dynamic_Service template to get a pointer to the ACE_Logging_Strategy.


Constructor & Destructor Documentation

ACE_Logging_Strategy::ACE_Logging_Strategy ( void   )

Constructor.


Member Function Documentation

int ACE_Logging_Strategy::fini ( void   )  [virtual]

Dynamic linking termination hook.

Reimplemented from ACE_Shared_Object.

int ACE_Logging_Strategy::handle_timeout ( const ACE_Time_Value tv,
const void *  arg
) [virtual]

Timeout handler which tests logfile size. If the current logfile size exceeds <max_size_>, the current logfile is closed, saved to logfile.old, and a new logfile is reopened.

Reimplemented from ACE_Event_Handler.

int ACE_Logging_Strategy::init ( int  argc,
ACE_TCHAR argv[]
) [virtual]

Dynamic linking initialization hook.

Reimplemented from ACE_Shared_Object.

void ACE_Logging_Strategy::log_msg ( ACE_Log_Msg log_msg  )

int ACE_Logging_Strategy::parse_args ( int  argc,
ACE_TCHAR argv[]
)

Parse arguments provided in svc.conf file.

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_Logging_Strategy::priorities ( ACE_TCHAR priority_string,
ACE_Log_Msg::MASK_TYPE  mask
) [protected]

Tokenize to set priorities (either process or thread one).

void ACE_Logging_Strategy::tokenize ( ACE_TCHAR flag_string  )  [protected]

Tokenize to set all the flags.


Member Data Documentation

int ACE_Logging_Strategy::count_ [protected]

This tells us in what file we last wrote. It will be increased to enable multiple log files

ACE_TCHAR* ACE_Logging_Strategy::filename_ [protected]

File name we're logging to.

bool ACE_Logging_Strategy::fixed_number_ [protected]

If non-0 we have a maximum number of log files we can write. Default value is 0, i.e., no maximum number.

u_long ACE_Logging_Strategy::flags_ [protected]

Flags we keep track of.

u_long ACE_Logging_Strategy::interval_ [protected]

If non-zero, sampling interval (in secs) at which maximum logfile size is checked, otherwise logfile size can grow indefinitely. Default value is 0.

ACE_Log_Msg* ACE_Logging_Strategy::log_msg_ [protected]

ACE_Log_Msg instance to work with.

ACE_TCHAR* ACE_Logging_Strategy::logger_key_ [protected]

Logger key for distributed logging.

int ACE_Logging_Strategy::max_file_number_ [protected]

Tells us what is the maximum log file to write. We will write <max_file_number_> + 1 files (includes the current log file). Default value is 1, i.e., 2 files by default.

u_long ACE_Logging_Strategy::max_size_ [protected]

Maximum logfile size (in KB). Default value is <ACE_DEFAULT_MAX_LOGFILE_SIZE>.

bool ACE_Logging_Strategy::order_files_ [protected]

If non-0 we order the files as we rotate them. Default value is 0, i.e., we do not rotate files by default.

u_long ACE_Logging_Strategy::process_priority_mask_ [protected]

Process-wide priority mask set by <priorities>.

ACE_TCHAR* ACE_Logging_Strategy::program_name_ [protected]

Program name to be used for n format specifier.

u_long ACE_Logging_Strategy::thread_priority_mask_ [protected]

Current thread's priority mask set by <priorities>.

bool ACE_Logging_Strategy::wipeout_logfile_ [protected]

If non-0 then wipeout the logfile, otherwise append to it. Default value is 0.


The documentation for this class was generated from the following files:
