TAO_CEC_ConsumerAdmin Class Reference

ConsumerAdmin. More...

#include <CEC_ConsumerAdmin.h>

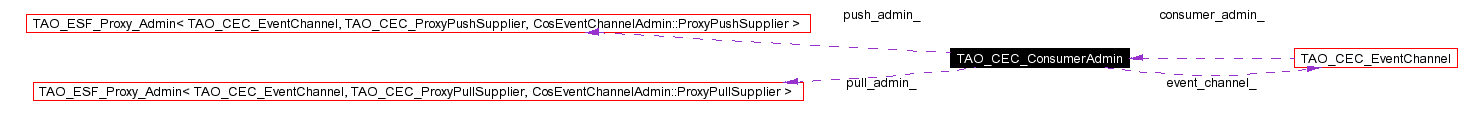

Collaboration diagram for TAO_CEC_ConsumerAdmin:

Collaboration graph
[legend]
List of all members.

Public Methods

 TAO_CEC_ConsumerAdmin (TAO_CEC_EventChannel *event_channel)
virtual ~TAO_CEC_ConsumerAdmin (void)
 destructor...

void for_each (TAO_ESF_Worker< TAO_CEC_ProxyPushSupplier > *worker ACE_ENV_ARG_DECL)
 For each elements call <worker->work()>.

void for_each (TAO_ESF_Worker< TAO_CEC_ProxyPullSupplier > *worker ACE_ENV_ARG_DECL)
void push (const CORBA::Any &event ACE_ENV_ARG_DECL)
 Push the event to all the consumers.

virtual void connected (TAO_CEC_ProxyPushSupplier *ACE_ENV_ARG_DECL_NOT_USED)
virtual void reconnected (TAO_CEC_ProxyPushSupplier *ACE_ENV_ARG_DECL_NOT_USED)
virtual void disconnected (TAO_CEC_ProxyPushSupplier *ACE_ENV_ARG_DECL_NOT_USED)
virtual void connected (TAO_CEC_ProxyPullSupplier *ACE_ENV_ARG_DECL_NOT_USED)
virtual void reconnected (TAO_CEC_ProxyPullSupplier *ACE_ENV_ARG_DECL_NOT_USED)
virtual void disconnected (TAO_CEC_ProxyPullSupplier *ACE_ENV_ARG_DECL_NOT_USED)
virtual void shutdown (ACE_ENV_SINGLE_ARG_DECL_NOT_USED)
virtual CosEventChannelAdmin::ProxyPushSupplier_ptr obtain_push_supplier (ACE_ENV_SINGLE_ARG_DECL_NOT_USED) throw (CORBA::SystemException)
virtual CosEventChannelAdmin::ProxyPullSupplier_ptr obtain_pull_supplier (ACE_ENV_SINGLE_ARG_DECL_NOT_USED) throw (CORBA::SystemException)
virtual PortableServer::POA_ptr _default_POA (ACE_ENV_SINGLE_ARG_DECL)

Private Attributes

TAO_CEC_EventChannel * event_channel_
 The Event Channel we belong to.

PortableServer::POA_var default_POA_
 Store the default POA.

TAO_ESF_Proxy_Admin< TAO_CEC_EventChannel,
TAO_CEC_ProxyPushSupplier,
CosEventChannelAdmin::ProxyPushSupplier > 		push_admin_
 Implement the push side of this class.

TAO_ESF_Proxy_Admin< TAO_CEC_EventChannel,
TAO_CEC_ProxyPullSupplier,
CosEventChannelAdmin::ProxyPullSupplier > 		pull_admin_
 Implement the pull side of this class.

Detailed Description

ConsumerAdmin.

Implements the ConsumerAdmin interface, i.e. the factory for ProxyPushSupplier objects. = MEMORY MANAGMENT It does not assume ownership of the TAO_CEC_EventChannel object; but it *does* assume ownership of the TAO_CEC_ProxyPushSupplier_Set object. = LOCKING No provisions for locking, access must be serialized externally. = TODO

Constructor & Destructor Documentation

TAO_CEC_ConsumerAdmin::TAO_CEC_ConsumerAdmin (  TAO_CEC_EventChannel *    event_channel )


constructor. If <supplier_set> is nil then it builds one using the <event_channel> argument. In any case it assumes ownership.

TAO_CEC_ConsumerAdmin::~TAO_CEC_ConsumerAdmin (  void    )  [virtual]


destructor...

Member Function Documentation

PortableServer::POA_ptr TAO_CEC_ConsumerAdmin::_default_POA (  ACE_ENV_SINGLE_ARG_DECL    )  [virtual]


virtual void TAO_CEC_ConsumerAdmin::connected (  TAO_CEC_ProxyPullSupplier *    ACE_ENV_ARG_DECL_NOT_USED )  [virtual]


virtual void TAO_CEC_ConsumerAdmin::connected (  TAO_CEC_ProxyPushSupplier *    ACE_ENV_ARG_DECL_NOT_USED )  [virtual]


Used to inform the EC that a Supplier has connected or disconnected from it.

virtual void TAO_CEC_ConsumerAdmin::disconnected (  TAO_CEC_ProxyPullSupplier *    ACE_ENV_ARG_DECL_NOT_USED )  [virtual]


virtual void TAO_CEC_ConsumerAdmin::disconnected (  TAO_CEC_ProxyPushSupplier *    ACE_ENV_ARG_DECL_NOT_USED )  [virtual]


ACE_INLINE void TAO_CEC_ConsumerAdmin::for_each (  TAO_ESF_Worker< TAO_CEC_ProxyPullSupplier > *worker    ACE_ENV_ARG_DECL )


ACE_INLINE void TAO_CEC_ConsumerAdmin::for_each (  TAO_ESF_Worker< TAO_CEC_ProxyPushSupplier > *worker    ACE_ENV_ARG_DECL )


For each elements call <worker->work()>.

CosEventChannelAdmin::ProxyPullSupplier_ptr TAO_CEC_ConsumerAdmin::obtain_pull_supplier (  ACE_ENV_SINGLE_ARG_DECL_NOT_USED    )  throw (CORBA::SystemException) [virtual]


CosEventChannelAdmin::ProxyPushSupplier_ptr TAO_CEC_ConsumerAdmin::obtain_push_supplier (  ACE_ENV_SINGLE_ARG_DECL_NOT_USED    )  throw (CORBA::SystemException) [virtual]


void TAO_CEC_ConsumerAdmin::push (  const CORBA::Any &event    ACE_ENV_ARG_DECL )


Push the event to all the consumers.

virtual void TAO_CEC_ConsumerAdmin::reconnected (  TAO_CEC_ProxyPullSupplier *    ACE_ENV_ARG_DECL_NOT_USED )  [virtual]


virtual void TAO_CEC_ConsumerAdmin::reconnected (  TAO_CEC_ProxyPushSupplier *    ACE_ENV_ARG_DECL_NOT_USED )  [virtual]


void TAO_CEC_ConsumerAdmin::shutdown (  ACE_ENV_SINGLE_ARG_DECL_NOT_USED    )  [virtual]


The event channel is shutting down, inform all the consumers of this

Member Data Documentation

PortableServer::POA_var TAO_CEC_ConsumerAdmin::default_POA_ [private]


Store the default POA.

TAO_CEC_EventChannel* TAO_CEC_ConsumerAdmin::event_channel_ [private]


The Event Channel we belong to.

TAO_ESF_Proxy_Admin<TAO_CEC_EventChannel,TAO_CEC_ProxyPullSupplier,CosEventChannelAdmin::ProxyPullSupplier> TAO_CEC_ConsumerAdmin::pull_admin_ [private]


Implement the pull side of this class.

TAO_ESF_Proxy_Admin<TAO_CEC_EventChannel,TAO_CEC_ProxyPushSupplier,CosEventChannelAdmin::ProxyPushSupplier> TAO_CEC_ConsumerAdmin::push_admin_ [private]


Implement the push side of this class.

The documentation for this class was generated from the following files:
Generated on Thu Jan 15 00:30:17 2004 for TAO_CosEvent by doxygen1.2.18
