TAO_CEC_ProxyPullSupplier Class Reference

ProxyPullSupplier. More...

#include <CEC_ProxyPullSupplier.h>

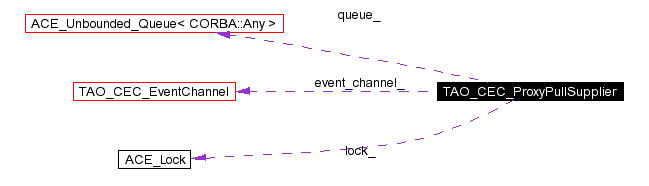

Collaboration diagram for TAO_CEC_ProxyPullSupplier:

Collaboration graph
[legend]
List of all members.

Public Types

typedef CosEventChannelAdmin::ProxyPullSupplier_ptr _ptr_type
typedef CosEventChannelAdmin::ProxyPullSupplier_var _var_type

Public Methods

 TAO_CEC_ProxyPullSupplier (TAO_CEC_EventChannel *event_channel)
 constructor...

virtual ~TAO_CEC_ProxyPullSupplier (void)
 destructor...

virtual void activate (CosEventChannelAdmin::ProxyPullSupplier_ptr &activated_proxy ACE_ENV_ARG_DECL) throw (CORBA::SystemException)
 Activate in the POA.

virtual void deactivate (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException)
 Deactivate from the POA.

CORBA::Boolean is_connected (void) const
 Return 0 if no consumer is connected...

CosEventComm::PullConsumer_ptr consumer (void) const
virtual void shutdown (ACE_ENV_SINGLE_ARG_DECL)
 The event channel is shutting down.

CORBA::Boolean consumer_non_existent (CORBA::Boolean_out disconnected ACE_ENV_ARG_DECL)
void push (const CORBA::Any &event ACE_ENV_ARG_DECL)
 Push an event into the queue.

virtual void connect_pull_consumer (CosEventComm::PullConsumer_ptr pull_consumer ACE_ENV_ARG_DECL_NOT_USED) throw (CORBA::SystemException, CosEventChannelAdmin::AlreadyConnected)
virtual CORBA::Anypull (ACE_ENV_SINGLE_ARG_DECL_NOT_USED) throw (CORBA::SystemException,CosEventComm::Disconnected)
virtual CORBA::Anytry_pull (CORBA::Boolean_out has_event ACE_ENV_ARG_DECL_NOT_USED) throw (CORBA::SystemException,CosEventComm::Disconnected)
virtual void disconnect_pull_supplier (ACE_ENV_SINGLE_ARG_DECL_NOT_USED) throw (CORBA::SystemException)
CORBA::ULong _incr_refcnt (void)
 Increment and decrement the reference count.

CORBA::ULong _decr_refcnt (void)
virtual PortableServer::POA_ptr _default_POA (ACE_ENV_SINGLE_ARG_DECL)
virtual void _add_ref (ACE_ENV_SINGLE_ARG_DECL)
virtual void _remove_ref (ACE_ENV_SINGLE_ARG_DECL)

Protected Methods

void consumer (CosEventComm::PullConsumer_ptr consumer)
void consumer_i (CosEventComm::PullConsumer_ptr consumer)
CORBA::Boolean is_connected_i (void) const
 The private version (without locking) of is_connected().

void cleanup_i (void)
 Release the child and the consumer.


Private Attributes

TAO_CEC_EventChannelevent_channel_
 The Event Channel that owns this object.

ACE_Locklock_
 The locking strategy.

CORBA::ULong refcount_
 The reference count.

CosEventComm::PullConsumer_var consumer_
 The consumer....

int connected_
PortableServer::POA_var default_POA_
 Store the default POA.

TAO_SYNCH_MUTEX queue_lock_
 Use a message queue to pass the.

TAO_SYNCH_CONDITION wait_not_empty_
ACE_Unbounded_Queue< CORBA::Anyqueue_

Detailed Description

ProxyPullSupplier.

Implement the CosEventChannelAdmin::ProxyPullSupplier interface, remember that this class is used to communicate with a PullConsumer, so, in effect, this is the ambassador for a consumer inside the event channel. = MEMORY MANAGMENT It does not assume ownership of the TAO_CEC_Dispatching object. It makes a copy of the ConsumerQOS and the consumer object reference. = LOCKING Locking is strategized, the event channel acts as a factory for the locking strategies.


Member Typedef Documentation

typedef CosEventChannelAdmin::ProxyPullSupplier_ptr TAO_CEC_ProxyPullSupplier::_ptr_type


typedef CosEventChannelAdmin::ProxyPullSupplier_var TAO_CEC_ProxyPullSupplier::_var_type



Constructor & Destructor Documentation

TAO_CEC_ProxyPullSupplier::TAO_CEC_ProxyPullSupplier TAO_CEC_EventChannel   event_channel


constructor...

TAO_CEC_ProxyPullSupplier::~TAO_CEC_ProxyPullSupplier void    [virtual]


destructor...


Member Function Documentation

void TAO_CEC_ProxyPullSupplier::_add_ref ACE_ENV_SINGLE_ARG_DECL    [virtual]


CORBA::ULong TAO_CEC_ProxyPullSupplier::_decr_refcnt void


PortableServer::POA_ptr TAO_CEC_ProxyPullSupplier::_default_POA ACE_ENV_SINGLE_ARG_DECL    [virtual]


CORBA::ULong TAO_CEC_ProxyPullSupplier::_incr_refcnt void


Increment and decrement the reference count.

void TAO_CEC_ProxyPullSupplier::_remove_ref ACE_ENV_SINGLE_ARG_DECL    [virtual]


void TAO_CEC_ProxyPullSupplier::activate CosEventChannelAdmin::ProxyPullSupplier_ptr &activated_proxy    ACE_ENV_ARG_DECL throw (CORBA::SystemException) [virtual]


Activate in the POA.

void TAO_CEC_ProxyPullSupplier::cleanup_i void    [protected]


Release the child and the consumer.

void TAO_CEC_ProxyPullSupplier::connect_pull_consumer CosEventComm::PullConsumer_ptr pull_consumer    ACE_ENV_ARG_DECL_NOT_USED throw (CORBA::SystemException, CosEventChannelAdmin::AlreadyConnected) [virtual]


ACE_INLINE void TAO_CEC_ProxyPullSupplier::consumer CosEventComm::PullConsumer_ptr    consumer [protected]


Set the consumer, used by some implementations to change the policies used when invoking operations on the consumer.

ACE_INLINE CosEventComm::PullConsumer_ptr TAO_CEC_ProxyPullSupplier::consumer void    const


Return the consumer object reference. It returns nil() if it has not connected yet. NOTE: This method does not return a new reference!!! Doing so will increase the locking overhead on the critical path.

ACE_INLINE void TAO_CEC_ProxyPullSupplier::consumer_i CosEventComm::PullConsumer_ptr    consumer [protected]


CORBA::Boolean TAO_CEC_ProxyPullSupplier::consumer_non_existent CORBA::Boolean_out disconnected    ACE_ENV_ARG_DECL


Invoke the _non_existent() pseudo-operation on the consumer. If it is disconnected then it returns true and sets the <disconnected> flag.

void TAO_CEC_ProxyPullSupplier::deactivate ACE_ENV_SINGLE_ARG_DECL    throw (CORBA::SystemException) [virtual]


Deactivate from the POA.

void TAO_CEC_ProxyPullSupplier::disconnect_pull_supplier ACE_ENV_SINGLE_ARG_DECL_NOT_USED    throw (CORBA::SystemException) [virtual]


ACE_INLINE CORBA::Boolean TAO_CEC_ProxyPullSupplier::is_connected void    const


Return 0 if no consumer is connected...

ACE_INLINE CORBA::Boolean TAO_CEC_ProxyPullSupplier::is_connected_i void    const [protected]


The private version (without locking) of is_connected().

CORBA::Any * TAO_CEC_ProxyPullSupplier::pull ACE_ENV_SINGLE_ARG_DECL_NOT_USED    throw (CORBA::SystemException,CosEventComm::Disconnected) [virtual]


void TAO_CEC_ProxyPullSupplier::push const CORBA::Any &event    ACE_ENV_ARG_DECL


Push an event into the queue.

void TAO_CEC_ProxyPullSupplier::shutdown ACE_ENV_SINGLE_ARG_DECL    [virtual]


The event channel is shutting down.

CORBA::Any * TAO_CEC_ProxyPullSupplier::try_pull CORBA::Boolean_out has_event    ACE_ENV_ARG_DECL_NOT_USED throw (CORBA::SystemException,CosEventComm::Disconnected) [virtual]



Member Data Documentation

int TAO_CEC_ProxyPullSupplier::connected_ [private]


If the flag is not zero then we are connected, notice that the consumer can be nil.

CosEventComm::PullConsumer_var TAO_CEC_ProxyPullSupplier::consumer_ [private]


The consumer....

PortableServer::POA_var TAO_CEC_ProxyPullSupplier::default_POA_ [private]


Store the default POA.

TAO_CEC_EventChannel* TAO_CEC_ProxyPullSupplier::event_channel_ [private]


The Event Channel that owns this object.

ACE_Lock* TAO_CEC_ProxyPullSupplier::lock_ [private]


The locking strategy.

ACE_Unbounded_Queue<CORBA::Any> TAO_CEC_ProxyPullSupplier::queue_ [private]


TAO_SYNCH_MUTEX TAO_CEC_ProxyPullSupplier::queue_lock_ [private]


Use a message queue to pass the.

CORBA::ULong TAO_CEC_ProxyPullSupplier::refcount_ [private]


The reference count.

TAO_SYNCH_CONDITION TAO_CEC_ProxyPullSupplier::wait_not_empty_ [private]



The documentation for this class was generated from the following files:
