ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK > Class Template Reference

Provides an interface to timers. More...

#include <Timer_Queue_T.h>

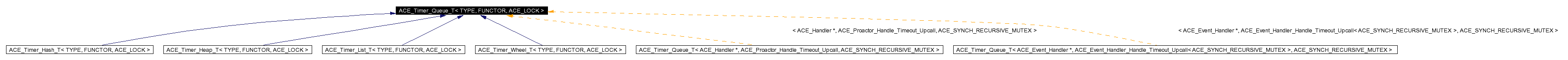

Inheritance diagram for ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >:

Inheritance graph
[legend]

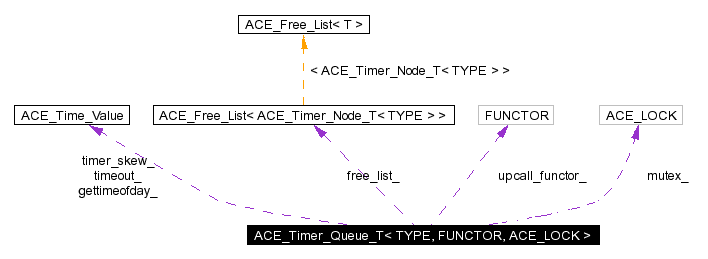

Collaboration diagram for ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Timer_Queue_Iterator_T<
TYPE, FUNCTOR, ACE_LOCK >
ITERATOR
 Type of Iterator.


Public Methods

 ACE_Timer_Queue_T (FUNCTOR *upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > *freelist=0)
virtual ~ACE_Timer_Queue_T (void)
virtual int is_empty (void) const=0
 True if queue is empty, else false.

virtual const ACE_Time_Valueearliest_time (void) const=0
virtual long schedule (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval=ACE_Time_Value::zero)
virtual int reset_interval (long timer_id, const ACE_Time_Value &interval)=0
virtual int cancel (const TYPE &type, int dont_call_handle_close=1)=0
virtual int cancel (long timer_id, const void **act=0, int dont_call_handle_close=1)=0
virtual int expire (const ACE_Time_Value &current_time)
virtual int dispatch_info (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)
int expire (void)
ACE_Time_Value gettimeofday (void)
void gettimeofday (ACE_Time_Value(*gettimeofday)(void))
virtual ACE_Time_Valuecalculate_timeout (ACE_Time_Value *max)
virtual ACE_Time_Valuecalculate_timeout (ACE_Time_Value *max, ACE_Time_Value *the_timeout)
void timer_skew (const ACE_Time_Value &skew)
 Set the timer skew for the Timer_Queue.

const ACE_Time_Valuetimer_skew (void) const
 Get the timer skew for the Timer_Queue.

ACE_LOCK & mutex (void)
 Synchronization variable used by the queue.

FUNCTOR & upcall_functor (void)
 Accessor to the upcall functor.

virtual ITERATORiter (void)=0
 Returns a pointer to this <ACE_Timer_Queue>'s iterator.

virtual ACE_Timer_Node_T<
TYPE > *
remove_first (void)=0
 Removes the earliest node from the queue and returns it.

virtual void dump (void) const
 Dump the state of a object.

virtual ACE_Timer_Node_T<
TYPE > *
get_first (void)=0
 Reads the earliest node from the queue and returns it.

virtual void return_node (ACE_Timer_Node_T< TYPE > *)
void preinvoke (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time, const void *&upcall_act)
 This method will call the preinvoke() on <functor>.

void upcall (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time)
 This method will call the timeout() on <functor>.

void postinvoke (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time, const void *upcall_act)
 This method will call the postinvoke() on <functor>.


Protected Methods

virtual long schedule_i (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval)=0
 Schedule a timer.

virtual void reschedule (ACE_Timer_Node_T< TYPE > *)=0
 Reschedule an "interval" <ACE_Timer_Node>.

virtual ACE_Timer_Node_T<
TYPE > *
alloc_node (void)
 Factory method that allocates a new node.

virtual void free_node (ACE_Timer_Node_T< TYPE > *)
 Factory method that frees a previously allocated node.

virtual int dispatch_info_i (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)
 Non-locking version of dispatch_info ().


Protected Attributes

ACE_LOCK mutex_
ACE_Free_List< ACE_Timer_Node_T<
TYPE > > *
free_list_
 Class that implements a free list.

ACE_Time_Value(* gettimeofday_ )(void)
 Pointer to function that returns the current time of day.

FUNCTOR * upcall_functor_
 Upcall functor.

int delete_upcall_functor_
 To delete or not to delete is the question?

int delete_free_list_
 Flag to delete only if the class created the <free_list_>.


Private Methods

 ACE_Timer_Queue_T (const ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK > &)
void operator= (const ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK > &)

Private Attributes

ACE_Time_Value timeout_
 Returned by <calculate_timeout>.

ACE_Time_Value timer_skew_
 Adjusts for timer skew in various clocks.


Detailed Description

template<class TYPE, class FUNCTOR, class ACE_LOCK>
class ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >

Provides an interface to timers.

This is an abstract base class that provides hook for implementing specialized policies such as <ACE_Timer_List> and <ACE_Timer_Heap>.


Member Typedef Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>
typedef ACE_Timer_Queue_Iterator_T<TYPE, FUNCTOR, ACE_LOCK> ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::ITERATOR


Type of Iterator.


Constructor & Destructor Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::ACE_Timer_Queue_T FUNCTOR *    upcall_functor = 0,
ACE_Free_List< ACE_Timer_Node_T< TYPE > > *    freelist = 0


Default constructor. <upcall_functor> is the instance of the FUNCTOR to be used by the queue. If <upcall_functor> is 0, Timer Queue will create a default FUNCTOR. <freelist> the freelist of timer nodes. If 0, then a default freelist will be created.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::~ACE_Timer_Queue_T void    [virtual]


Destructor - make virtual for proper destruction of inherited classes.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::ACE_Timer_Queue_T const ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK > &    [private]



Member Function Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Node_T< TYPE > * ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::alloc_node void    [protected, virtual]


Factory method that allocates a new node.

Reimplemented in ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Time_Value * ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::calculate_timeout ACE_Time_Value   max,
ACE_Time_Value   the_timeout
[virtual]


Determine the next event to timeout. Returns <max> if there are no pending timers or if all pending timers are longer than max. <the_timeout> should be a pointer to storage for the timeout value, and this value is also returned. This method does not acquire a lock internally since it doesn't modify internal state. If you need to call this method when the queue is being modified concurrently, however, you should make sure to acquire the <mutex()> externally before making the call.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Time_Value * ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::calculate_timeout ACE_Time_Value   max [virtual]


Determine the next event to timeout. Returns <max> if there are no pending timers or if all pending timers are longer than max. This method acquires a lock internally since it modifies internal state.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::cancel long    timer_id,
const void **    act = 0,
int    dont_call_handle_close = 1
[pure virtual]


Cancel the single timer that matches the <timer_id> value (which was returned from the <schedule> method). If act is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the timer was registered. This makes it possible to free up the memory and avoid memory leaks. If <dont_call_handle_close> is 0 then the <functor> will be invoked, which typically calls the <handle_close> hook. Returns 1 if cancellation succeeded and 0 if the <timer_id> wasn't found.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::cancel const TYPE &    type,
int    dont_call_handle_close = 1
[pure virtual]


Cancel all timer associated with <type>. If <dont_call_handle_close> is 0 then the <functor> will be invoked, which typically invokes the <handle_close> hook. Returns number of timers cancelled.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::dispatch_info const ACE_Time_Value   current_time,
ACE_Timer_Node_Dispatch_Info_T< TYPE > &    info
[virtual]


Get the dispatch information for a timer whose value is <= <cur_time>. This does not account for <timer_skew>. Returns 1 if there is a node whose value <= <cur_time> else returns a 0.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::dispatch_info_i const ACE_Time_Value   current_time,
ACE_Timer_Node_Dispatch_Info_T< TYPE > &    info
[protected, virtual]


Non-locking version of dispatch_info ().

Reimplemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::dump void    const [virtual]


Dump the state of a object.

Reimplemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual const ACE_Time_Value& ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::earliest_time void    const [pure virtual]


Returns the time of the earlier node in the Timer_Queue. Must be called on a non-empty queue.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::expire void


Run the <functor> for all timers whose values are <= <ACE_OS::gettimeofday>. Also accounts for <timer_skew>.

Depending on the resolution of the underlying OS the system calls like select()/poll() might return at time different than that is specified in the timeout. Suppose the OS guarantees a resolution of t ms. The timeline will look like

A B | | V V |-------------|-------------|-------------|-------------| t t t t t

If you specify a timeout value of A, then the timeout will not occur at A but at the next interval of the timer, which is later than that is expected. Similarly, if your timeout value is equal to B, then the timeout will occur at interval after B. Now depending upon the resolution of your timeouts and the accuracy of the timeouts needed for your application, you should set the value of <timer_skew>. In the above case, if you want the timeout A to fire no later than A, then you should specify your <timer_skew> to be A % t.

The timeout value should be specified via the macro ACE_TIMER_SKEW in your config.h file. The default value is zero.

Things get interesting if the t before the timeout value B is zero i.e your timeout is less than the interval. In that case, you are almost sure of not getting the desired timeout behaviour. Maybe you should look for a better OS :-)

Returns the number of timers canceled.

Reimplemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::expire const ACE_Time_Value   current_time [virtual]


Run the <functor> for all timers whose values are <= <cur_time>. This does not account for <timer_skew>. Returns the number of timers canceled.

Reimplemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::free_node ACE_Timer_Node_T< TYPE > *    [protected, virtual]


Factory method that frees a previously allocated node.

Reimplemented in ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual ACE_Timer_Node_T<TYPE>* ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::get_first void    [pure virtual]


Reads the earliest node from the queue and returns it.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::gettimeofday ACE_Time_Value(*    gettimeofday)(void)


Allows applications to control how the timer queue gets the time of day.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE ACE_Time_Value ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::gettimeofday void


Returns the current time of day. This method allows different implementations of the timer queue to use special high resolution timers.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::is_empty void    const [pure virtual]


True if queue is empty, else false.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual ITERATOR& ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::iter void    [pure virtual]


Returns a pointer to this <ACE_Timer_Queue>'s iterator.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_LOCK & ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::mutex void


Synchronization variable used by the queue.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::operator= const ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK > &    [private]


template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::postinvoke ACE_Timer_Node_Dispatch_Info_T< TYPE > &    info,
const ACE_Time_Value   cur_time,
const void *    upcall_act


This method will call the postinvoke() on <functor>.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::preinvoke ACE_Timer_Node_Dispatch_Info_T< TYPE > &    info,
const ACE_Time_Value   cur_time,
const void *&    upcall_act


This method will call the preinvoke() on <functor>.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual ACE_Timer_Node_T<TYPE>* ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::remove_first void    [pure virtual]


Removes the earliest node from the queue and returns it.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::reschedule ACE_Timer_Node_T< TYPE > *    [protected, pure virtual]


Reschedule an "interval" <ACE_Timer_Node>.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::reset_interval long    timer_id,
const ACE_Time_Value   interval
[pure virtual]


Resets the interval of the timer represented by <timer_id> to <interval>, which is specified in relative time to the current <gettimeofday>. If <interval> is equal to <ACE_Time_Value::zero>, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::return_node ACE_Timer_Node_T< TYPE > *    [virtual]


Method used to return a timer node to the queue's ownership after it is returned by a method like <remove_first>.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
long ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::schedule const TYPE &    type,
const void *    act,
const ACE_Time_Value   future_time,
const ACE_Time_Value   interval = ACE_Time_Value::zero
[virtual]


Schedule <type> that will expire at <future_time>, which is specified in absolute time. If it expires then <act> is passed in as the value to the <functor>. If <interval> is != to <ACE_Time_Value::zero> then it is used to reschedule the <type> automatically, using relative time to the current <gettimeofday>. This method returns a <timer_id> that uniquely identifies the the <type> entry in an internal list. This <timer_id> can be used to cancel the timer before it expires. The cancellation ensures that <timer_ids> are unique up to values of greater than 2 billion timers. As long as timers don't stay around longer than this there should be no problems with accidentally deleting the wrong timer. Returns -1 on failure (which is guaranteed never to be a valid <timer_id>).

template<class TYPE, class FUNCTOR, class ACE_LOCK>
virtual long ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::schedule_i const TYPE &    type,
const void *    act,
const ACE_Time_Value   future_time,
const ACE_Time_Value   interval
[protected, pure virtual]


Schedule a timer.

Implemented in ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >, ACE_Timer_Heap_T< TYPE, FUNCTOR, ACE_LOCK >, ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >, and ACE_Timer_Wheel_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE const ACE_Time_Value & ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::timer_skew void    const


Get the timer skew for the Timer_Queue.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::timer_skew const ACE_Time_Value   skew


Set the timer skew for the Timer_Queue.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE void ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall ACE_Timer_Node_Dispatch_Info_T< TYPE > &    info,
const ACE_Time_Value   cur_time


This method will call the timeout() on <functor>.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_INLINE FUNCTOR & ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall_functor void


Accessor to the upcall functor.


Member Data Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>
int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::delete_free_list_ [protected]


Flag to delete only if the class created the <free_list_>.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
int ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::delete_upcall_functor_ [protected]


To delete or not to delete is the question?

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Free_List<ACE_Timer_Node_T<TYPE> >* ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::free_list_ [protected]


Class that implements a free list.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Time_Value(* ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::gettimeofday_)(void) [protected]


Pointer to function that returns the current time of day.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_LOCK ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::mutex_ [protected]


Synchronization variable for <ACE_Timer_Queue>. NOTE: the right name would be lock_, but HP/C++ will choke on that!

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Time_Value ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::timeout_ [private]


Returned by <calculate_timeout>.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Time_Value ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::timer_skew_ [private]


Adjusts for timer skew in various clocks.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
FUNCTOR* ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >::upcall_functor_ [protected]


Upcall functor.


The documentation for this class was generated from the following files:
Generated on Wed Jan 14 22:49:08 2004 for ACE by doxygen1.2.18
