ACE_Thread_Timer_Queue_Adapter< TQ > Class Template Reference

Adapts a Timer_Queue using a separate thread for dispatching. More...

#include <Timer_Queue_Adapters.h>

Inheritance diagram for ACE_Thread_Timer_Queue_Adapter< TQ >:

Inheritance graph
[legend]

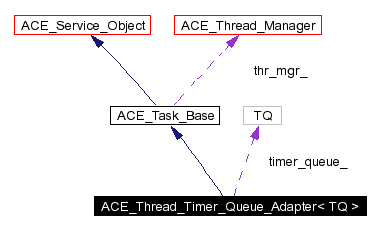

Collaboration diagram for ACE_Thread_Timer_Queue_Adapter< TQ >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef TQ TIMER_QUEUE
 Trait for the underlying queue type.


Public Methods

 ACE_Thread_Timer_Queue_Adapter (ACE_Thread_Manager *=ACE_Thread_Manager::instance(), TQ *timer_queue=0)
virtual ~ACE_Thread_Timer_Queue_Adapter (void)
 Destructor.

long schedule (ACE_Event_Handler *handler, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval=ACE_Time_Value::zero)
int cancel (long timer_id, const void **act=0)
virtual int svc (void)
 Runs the dispatching thread.

virtual void deactivate (void)
 Inform the dispatching thread that it should terminate.

ACE_SYNCH_RECURSIVE_MUTEX & mutex (void)
 Access the locking mechanism, useful for iteration.

TQ & timer_queue (void)
int timer_queue (TQ *tq)
 Set a user-specified timer queue.

TQ * timer_queue (void) const
 Return the current <TQ>.

ACE_thread_t thr_id (void) const
 Return the thread id of our active object.

virtual int activate (long flags=THR_NEW_LWP|THR_JOINABLE, int n_threads=1, int force_active=0, long priority=ACE_DEFAULT_THREAD_PRIORITY, int grp_id=-1, ACE_Task_Base *task=0, ACE_hthread_t thread_handles[]=0, void *stack[]=0, size_t stack_size[]=0, ACE_thread_t thread_names[]=0)

Private Attributes

TQ * timer_queue_
 The underlying Timer_Queue.

int delete_timer_queue_
ACE_SYNCH_RECURSIVE_MUTEX mutex_
ACE_SYNCH_RECURSIVE_CONDITION condition_
int active_
ACE_thread_t thr_id_
 Thread id of our active object task.


Detailed Description

template<class TQ>
class ACE_Thread_Timer_Queue_Adapter< TQ >

Adapts a Timer_Queue using a separate thread for dispatching.

This implementation of a Timer_Queue uses a separate thread to dispatch the timers. The base queue need not be thread safe, this class takes all the necessary locks.

Note:
This is a case where template parameters will be useful, but (IMHO) the effort and portability problems discourage their use.


Member Typedef Documentation

template<class TQ>
typedef TQ ACE_Thread_Timer_Queue_Adapter< TQ >::TIMER_QUEUE


Trait for the underlying queue type.


Constructor & Destructor Documentation

template<class TQ>
ACE_Thread_Timer_Queue_Adapter< TQ >::ACE_Thread_Timer_Queue_Adapter ACE_Thread_Manager   = ACE_Thread_Manager::instance(),
TQ *    timer_queue = 0


Creates the timer queue. Activation of the task is the user's responsibility. Optionally a pointer to a timer queue can be passed, when no pointer is passed, a TQ is dynamically created

template<class TQ>
ACE_Thread_Timer_Queue_Adapter< TQ >::~ACE_Thread_Timer_Queue_Adapter void    [virtual]


Destructor.


Member Function Documentation

template<class TQ>
ACE_INLINE int ACE_Thread_Timer_Queue_Adapter< TQ >::activate long    flags = THR_NEW_LWP|THR_JOINABLE,
int    n_threads = 1,
int    force_active = 0,
long    priority = ACE_DEFAULT_THREAD_PRIORITY,
int    grp_id = -1,
ACE_Task_Base   task = 0,
ACE_hthread_t    thread_handles[] = 0,
void *    stack[] = 0,
size_t    stack_size[] = 0,
ACE_thread_t    thread_names[] = 0
[virtual]


We override the default activate() method so that we can ensure that only a single thread is ever spawned. Otherwise, too many weird things can happen...

Reimplemented from ACE_Task_Base.

template<class TQ>
int ACE_Thread_Timer_Queue_Adapter< TQ >::cancel long    timer_id,
const void **    act = 0


Cancel the <timer_id> and return the <act> parameter if an address is passed in. Also wakes up the dispatching thread.

template<class TQ>
void ACE_Thread_Timer_Queue_Adapter< TQ >::deactivate void    [virtual]


Inform the dispatching thread that it should terminate.

template<class TQ>
ACE_SYNCH_RECURSIVE_MUTEX & ACE_Thread_Timer_Queue_Adapter< TQ >::mutex void


Access the locking mechanism, useful for iteration.

template<class TQ>
long ACE_Thread_Timer_Queue_Adapter< TQ >::schedule ACE_Event_Handler   handler,
const void *    act,
const ACE_Time_Value   future_time,
const ACE_Time_Value   interval = ACE_Time_Value::zero


Schedule the timer according to the semantics of the <TQ>; wakes up the dispatching thread.

template<class TQ>
int ACE_Thread_Timer_Queue_Adapter< TQ >::svc void    [virtual]


Runs the dispatching thread.

Reimplemented from ACE_Task_Base.

template<class TQ>
ACE_INLINE ACE_thread_t ACE_Thread_Timer_Queue_Adapter< TQ >::thr_id void    const


Return the thread id of our active object.

template<class TQ>
ACE_INLINE TQ * ACE_Thread_Timer_Queue_Adapter< TQ >::timer_queue void    const


Return the current <TQ>.

template<class TQ>
ACE_INLINE int ACE_Thread_Timer_Queue_Adapter< TQ >::timer_queue TQ *    tq


Set a user-specified timer queue.

template<class TQ>
ACE_INLINE TQ & ACE_Thread_Timer_Queue_Adapter< TQ >::timer_queue void


Deprecated:
Access the implementation queue, useful for iteration. Use the method that returns a pointer instead


Member Data Documentation

template<class TQ>
int ACE_Thread_Timer_Queue_Adapter< TQ >::active_ [private]


When deactivate is called this variable turns to false and the dispatching thread is signalled, to terminate its main loop.

template<class TQ>
ACE_SYNCH_RECURSIVE_CONDITION ACE_Thread_Timer_Queue_Adapter< TQ >::condition_ [private]


The dispatching thread sleeps on this condition while waiting to dispatch the next timer; it is used to wake it up if there is a change on the timer queue.

template<class TQ>
int ACE_Thread_Timer_Queue_Adapter< TQ >::delete_timer_queue_ [private]


Keeps track of whether we should delete the timer queue (if we didn't create it, then we don't delete it).

template<class TQ>
ACE_SYNCH_RECURSIVE_MUTEX ACE_Thread_Timer_Queue_Adapter< TQ >::mutex_ [private]


The mutual exclusion mechanism that is required to use the <condition_>.

template<class TQ>
ACE_thread_t ACE_Thread_Timer_Queue_Adapter< TQ >::thr_id_ [private]


Thread id of our active object task.

template<class TQ>
TQ* ACE_Thread_Timer_Queue_Adapter< TQ >::timer_queue_ [private]


The underlying Timer_Queue.


The documentation for this class was generated from the following files:
Generated on Wed Jan 14 22:48:56 2004 for ACE by doxygen1.2.18
