ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > Class Template Reference

Implements a common base class for iterators for a Red-Black Tree ADT. More...

#include <RB_Tree.h>

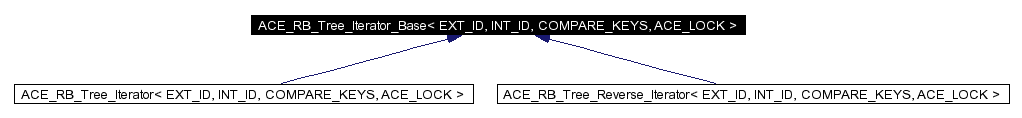

Inheritance diagram for ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >:

[legend]List of all members.

Public Methods
void	operator= (const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &iter)
	Assignment operator: copies both the tree reference and the position in the tree.
int	done (void) const
	Returns 1 when the iteration has completed, otherwise 0.
ACE_RB_Tree_Node< EXT_ID, INT_ID > &	operator * (void) const
const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &	tree (void)
	Returns a const reference to the tree over which we're iterating.
int	operator== (const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &) const
	Comparison operator: returns 1 if both iterators point to the same position, otherwise 0.
int	operator!= (const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &) const
	Comparison operator: returns 1 if the iterators point to different positions, otherwise 0.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Methods
	ACE_RB_Tree_Iterator_Base (void)
	ACE_RB_Tree_Iterator_Base (const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &tree, int set_first)
	ACE_RB_Tree_Iterator_Base (const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &tree, ACE_RB_Tree_Node< EXT_ID, INT_ID > *entry)
	ACE_RB_Tree_Iterator_Base (const EXT_ID &key, ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &tree)
	ACE_RB_Tree_Iterator_Base (const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &iter)
	Copy constructor.
	~ACE_RB_Tree_Iterator_Base (void)
	Destructor.
int	forward_i (void)
int	reverse_i (void)
void	dump_i (void) const
	Dump the state of an object.
Protected Attributes
const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > *	tree_
	Reference to the ACE_RB_Tree over which we're iterating.
ACE_RB_Tree_Node< EXT_ID, INT_ID > *	node_
	Pointer to the node currently under the iterator.

---

Detailed Description

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>
class ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >

Implements a common base class for iterators for a Red-Black Tree ADT.

---

Constructor & Destructor Documentation

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> ACE_INLINE ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_RB_Tree_Iterator_Base (  void    )  [protected]

Create the singular iterator. No valid iterator can be equal to it, it is illegal to dereference a singular iterator, etc. etc.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_RB_Tree_Iterator_Base (  const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &    tree, int    set_first )  [protected]

Constructor. Takes an ACE_RB_Tree over which to iterate, and an integer indicating (if non-zero) to position the iterator at the first element in the tree (if this integer is 0, the iterator is positioned at the last element in the tree).

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_RB_Tree_Iterator_Base (  const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &    tree, ACE_RB_Tree_Node< EXT_ID, INT_ID > *    entry )  [protected]

Constructor. Takes an ACE_RB_Tree over which to iterate, and a pointer to a node in the tree.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_RB_Tree_Iterator_Base (  const EXT_ID &    key, ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &    tree )  [protected]

Constructor. Takes an ACE_RB_Tree over which to iterate, and a key. The key must come first to distinguish the case of EXT_ID == int.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_RB_Tree_Iterator_Base (  const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &    iter )  [protected]

Copy constructor.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::~ACE_RB_Tree_Iterator_Base (  void    )  [protected]

Destructor.

---

Member Function Documentation

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> ACE_INLINE int ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::done (  void    )  const

Returns 1 when the iteration has completed, otherwise 0.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> void ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::dump_i (  void    )  const [protected]

Dump the state of an object.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> ACE_INLINE int ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::forward_i (  void    )  [protected]

Move forward by one element in the tree. Returns 0 when there are no more elements in the tree, otherwise 1.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> ACE_INLINE ACE_RB_Tree_Node< EXT_ID, INT_ID > & ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::operator * (  void    )  const

STL-like iterator dereference operator: returns a reference to the node underneath the iterator.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> ACE_INLINE int ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::operator!= (  const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &    )  const

Comparison operator: returns 1 if the iterators point to different positions, otherwise 0.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> void ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::operator= (  const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &    iter )

Assignment operator: copies both the tree reference and the position in the tree.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> ACE_INLINE int ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::operator== (  const ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &    )  const

Comparison operator: returns 1 if both iterators point to the same position, otherwise 0.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> ACE_INLINE int ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::reverse_i (  void    )  [protected]

Move back by one element in the tree. Returns 0 when there are no more elements in the tree, otherwise 1.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> ACE_INLINE const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > & ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::tree (  void    )

Returns a const reference to the tree over which we're iterating.

---

Member Data Documentation

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks. Reimplemented in ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >, and ACE_RB_Tree_Reverse_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> ACE_RB_Tree_Node<EXT_ID, INT_ID>* ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::node_ [protected]

Pointer to the node currently under the iterator.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> const ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>* ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::tree_ [protected]

Reference to the ACE_RB_Tree over which we're iterating.

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/RB_Tree.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/RB_Tree.cpp
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/RB_Tree.i

---
