ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > Class Template Reference

Implements a Red-Black Tree ADT, according to T. H. Corman, C. E. Leiserson, and R. L. Rivest, "Introduction to Algorithms" 1990, MIT, chapter 14. More...

#include <RB_Tree.h>

Inheritance diagram for ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >:

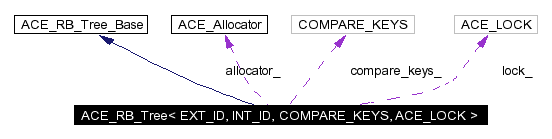

[legend]Collaboration diagram for ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >:

[legend]List of all members.


Public Types
typedef EXT_ID	KEY
typedef INT_ID	VALUE
typedef ACE_RB_Tree_Node< EXT_ID, INT_ID >	ENTRY
typedef ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	ITERATOR
typedef ACE_RB_Tree_Reverse_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	REVERSE_ITERATOR
typedef ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	iterator
typedef ACE_RB_Tree_Reverse_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	reverse_iterator
Public Methods
	ACE_RB_Tree (ACE_Allocator *alloc=0)
	Constructor.
	ACE_RB_Tree (const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &rbt)
	Copy constructor.
int	open (ACE_Allocator *alloc=0)
	Initialize an RB Tree.
int	close (void)
virtual	~ACE_RB_Tree (void)
	Destructor.
int	bind (const EXT_ID &item, const INT_ID &int_id)
int	bind (const EXT_ID &ext_id, const INT_ID &int_id, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry)
int	trybind (const EXT_ID &ext_id, INT_ID &int_id)
int	trybind (const EXT_ID &ext_id, INT_ID &int_id, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry)
int	rebind (const EXT_ID &ext_id, const INT_ID &int_id)
int	rebind (const EXT_ID &ext_id, const INT_ID &int_id, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry)
int	rebind (const EXT_ID &ext_id, const INT_ID &int_id, INT_ID &old_int_id)
int	rebind (const EXT_ID &ext_id, const INT_ID &int_id, INT_ID &old_int_id, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry)
int	rebind (const EXT_ID &ext_id, const INT_ID &int_id, EXT_ID &old_ext_id, INT_ID &old_int_id)
int	rebind (const EXT_ID &ext_id, const INT_ID &int_id, EXT_ID &old_ext_id, INT_ID &old_int_id, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry)
int	find (const EXT_ID &ext_id, INT_ID &int_id)
int	find (const EXT_ID &ext_id, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry)
int	unbind (const EXT_ID &ext_id)
int	unbind (const EXT_ID &ext_id, INT_ID &int_id)
int	unbind (ACE_RB_Tree_Node< EXT_ID, INT_ID > *entry)
size_t	current_size (void) const
	Returns the current number of nodes in the tree.
void	operator= (const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &rbt)
	Assignment operator.
virtual int	lessthan (const EXT_ID &k1, const EXT_ID &k2)
	Less than comparison function for keys, using comparison functor.
ACE_LOCK &	mutex (void)
void	dump (void) const
	Dump the state of an object.
ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	begin (void)
	Return forward iterator positioned at first node in tree.
ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	end (void)
	Return forward iterator positioned at last node in tree.
ACE_RB_Tree_Reverse_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	rbegin (void)
	Return reverse iterator positioned at last node in tree.
ACE_RB_Tree_Reverse_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	rend (void)
	Return reverse iterator positioned at first node in tree.
int	test_invariant (void)
	Tests the red-black invariant(s) throughout the whole tree.
INT_ID *	find (const EXT_ID &k)
INT_ID *	insert (const EXT_ID &k, const INT_ID &t)
int	remove (const EXT_ID &k)
void	clear (void)
Protected Methods
int	test_invariant_recurse (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x, int &expected_black_height, int measured_black_height)
	Recursive function to test the red-black invariant(s) at all nodes in a subtree.
void	RB_rotate_right (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x)
	Method for right rotation of the tree about a given node.
void	RB_rotate_left (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x)
	Method for left rotation of the tree about a given node.
void	RB_delete_fixup (ACE_RB_Tree_Node< EXT_ID, INT_ID > x, ACE_RB_Tree_Node< EXT_ID, INT_ID > parent)
	Method for restoring Red-Black properties after deletion.
ACE_RB_Tree_Node< EXT_ID, INT_ID > *	RB_tree_successor (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x) const
	Method to find the successor node of the given node in the tree.
ACE_RB_Tree_Node< EXT_ID, INT_ID > *	RB_tree_predecessor (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x) const
ACE_RB_Tree_Node< EXT_ID, INT_ID > *	RB_tree_minimum (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x) const
ACE_RB_Tree_Node< EXT_ID, INT_ID > *	RB_tree_maximum (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x) const
ACE_RB_Tree_Node< EXT_ID, INT_ID > *	find_node (const EXT_ID &k, ACE_RB_Tree_Base::RB_SearchResult &result)
void	RB_rebalance (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x)
	Rebalance the tree after insertion of a node.
int	close_i (void)
int	find_i (const EXT_ID &ext_id, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry, int find_exact=1)
INT_ID *	insert_i (const EXT_ID &k, const INT_ID &t)
int	insert_i (const EXT_ID &k, const INT_ID &t, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry)
int	remove_i (const EXT_ID &k, INT_ID &i)
int	remove_i (ACE_RB_Tree_Node< EXT_ID, INT_ID > *z)
void	dump_i (ACE_RB_Tree_Node< EXT_ID, INT_ID > *node) const
	Recursive function to dump the state of an object.
void	dump_node_i (ACE_RB_Tree_Node< EXT_ID, INT_ID > &node) const
Private Attributes
ACE_Allocator *	allocator_
	Pointer to a memory allocator.
ACE_LOCK	lock_
	Synchronization variable for the MT_SAFE <ACE_RB_Tree>.
ACE_RB_Tree_Node< EXT_ID, INT_ID > *	root_
	The root of the tree.
COMPARE_KEYS	compare_keys_
	Comparison functor for comparing nodes in the tree.
size_t	current_size_
	The current number of nodes in the tree.
Friends
class	ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >
class	ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >
class	ACE_RB_Tree_Reverse_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >

Detailed Description

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>
class ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >

Implements a Red-Black Tree ADT, according to T. H. Corman, C. E. Leiserson, and R. L. Rivest, "Introduction to Algorithms" 1990, MIT, chapter 14.

A number of Changes have been made to this class template in order to conform to the ACE_Hash_Map_Manager_Ex interface. All previously supported public methods are still part of this class. However, these are marked as DEPRECATED and will be removed from this class in a future version of ACE. Please migrate your code to the appropriate public methods indicated in the method deprecation comments. This class uses an <ACE_Allocator> to allocate memory. The user can make this a persistent class by providing an <ACE_Allocator> with a persistable memory pool.

Requirements and Performance Characteristics

Internal Structure: Binary tree
Duplicates allowed? No
Random access allowed? No
Search speed: Log(n)
Insert/replace speed: Log(n)
Iterator still valid after change to container? Yes, except if the iterated-over element is removed.
Frees memory for removed elements? Yes
Items inserted by: Value
Requirements for contained type
1. Default constructor
2. Copy constructor
3. operator=
4. operator==
5. operator<

Member Typedef Documentation

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

typedef ACE_RB_Tree_Node<EXT_ID, INT_ID> ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ENTRY

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

typedef ACE_RB_Tree_Iterator<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK> ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::iterator

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

typedef EXT_ID ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::KEY

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

typedef ACE_RB_Tree_Reverse_Iterator<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK> ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::reverse_iterator

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

typedef INT_ID ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::VALUE

Constructor & Destructor Documentation

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_RB_Tree ( ACE_Allocator * alloc = 0 )

Constructor.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_RB_Tree ( const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > & rbt )

Copy constructor.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::~ACE_RB_Tree ( void ) [virtual]

Destructor.

Member Function Documentation

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::begin ( void )

Return forward iterator positioned at first node in tree.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::bind ( const EXT_ID & ext_id,

const INT_ID & int_id,

ACE_RB_Tree_Node< EXT_ID, INT_ID > *& entry

)

Same as a normal bind, except the tree entry is also passed back to the caller. The entry in this case will either be the newly created entry, or the existing one.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::bind ( const EXT_ID & item,

const INT_ID & int_id

)

Associate <ext_id> with <int_id>. If <ext_id> is already in the tree then the <ACE_RB_Tree_Node> is not changed. Returns 0 if a new entry is bound successfully, returns 1 if an attempt is made to bind an existing entry, and returns -1 if failures occur.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::clear ( void )

Deprecated:
Destroys all nodes and sets the root pointer null.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::close ( void )

Close down an RB_Tree and release dynamically allocated resources.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::close_i ( void ) [protected]

Close down an RB_Tree. this method should only be called with locks already held.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE size_t ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::current_size ( void ) const

Returns the current number of nodes in the tree.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::dump ( void ) const

Dump the state of an object.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::dump_i ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * node ) const [protected]

Recursive function to dump the state of an object.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::dump_node_i ( ACE_RB_Tree_Node< EXT_ID, INT_ID > & node ) const [protected]

Function to dump node contents. Does nothing in its basic form, but template specialization can be used to provide definitions for various EXT_ID and INT_ID types.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::end ( void )

Return forward iterator positioned at last node in tree.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE INT_ID * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::find ( const EXT_ID & k )

Returns a pointer to the item corresponding to the given key, or 0 if it cannot find the key in the tree.

Deprecated:
signature will change to become int find (const EXT_ID &ext_id); which will return 0 if the <ext_id> is in the tree, otherwise -1.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::find ( const EXT_ID & ext_id,

ACE_RB_Tree_Node< EXT_ID, INT_ID > *& entry

)

Locate <ext_id> and pass out parameter via <entry>. If found, return 0, returns -1 if not found.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::find ( const EXT_ID & ext_id,

INT_ID & int_id

)

Locate <ext_id> and pass out parameter via <int_id>. If found, return 0, returns -1 if not found.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::find_i ( const EXT_ID & ext_id,

ACE_RB_Tree_Node< EXT_ID, INT_ID > *& entry,

int find_exact = 1

) [protected]

Retrieves a pointer to the item corresponding to the given key. If find_exact==1, find the exact match node. Otherwise just find a match node returns 0 for success, or -1 if it cannot find the key in the tree.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_RB_Tree_Node< EXT_ID, INT_ID > * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::find_node ( const EXT_ID & k,

ACE_RB_Tree_Base::RB_SearchResult & result

) [protected]

Returns a pointer to a matching node if there is one, a pointer to the node under which to insert the item if the tree is not empty and there is no such match, or 0 if the tree is empty. It stores the result of the search in the result argument: LEFT if the node is to the left of the node to be inserted, RIGHT if the node is to the right of the node to be inserted, or EXACT if an exactly matching node already exists.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE INT_ID * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::insert ( const EXT_ID & k,

const INT_ID & t

)

Inserts a *copy* of the key and the item into the tree: both the key type EXT_ID and the item type INT_ID must have well defined semantics for copy construction. The default implementation also requires that the key type support well defined < semantics. This method returns a pointer to the inserted item copy, or 0 if an error occurred. NOTE: if an identical key already exists in the tree, no new item is created, and the returned pointer addresses the existing item associated with the existing key.
Deprecated:

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::insert_i ( const EXT_ID & k,

const INT_ID & t,

ACE_RB_Tree_Node< EXT_ID, INT_ID > *& entry

) [protected]

Inserts a *copy* of the key and the item into the tree: both the key type EXT_ID and the item type INT_ID must have well defined semantics for copy construction. The default implementation also requires that the key type support well defined < semantics. This method passes back a pointer to the inserted (or existing) node, and the search status. If the node already exists, the method returns 1. If the node does not exist, and a new one is successfully created, and the method returns 0. If there was an error, the method returns -1.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

INT_ID * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::insert_i ( const EXT_ID & k,

const INT_ID & t

) [protected]

Inserts a *copy* of the key and the item into the tree: both the key type EXT_ID and the item type INT_ID must have well defined semantics for copy construction. The default implementation also requires that the key type support well defined < semantics. This method returns a pointer to the inserted item copy, or 0 if an error occurred. NOTE: if an identical key already exists in the tree, no new item is created, and the returned pointer addresses the existing item associated with the existing key.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::lessthan ( const EXT_ID & k1,

const EXT_ID & k2

) [virtual]

Less than comparison function for keys, using comparison functor.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE ACE_LOCK & ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::mutex ( void )

Returns a reference to the underlying <ACE_LOCK>. This makes it possible to acquire the lock explicitly, which can be useful in some cases if you instantiate the <ACE_Atomic_Op> with an <ACE_Recursive_Mutex> or <ACE_Process_Mutex>, or if you need to guard the state of an iterator. NOTE: the right name would be <lock>, but HP/C++ will choke on that!

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::open ( ACE_Allocator * alloc = 0 )

Initialize an RB Tree.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::operator= ( const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > & rbt )

Assignment operator.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_delete_fixup ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x,

ACE_RB_Tree_Node< EXT_ID, INT_ID > * parent

) [protected]

Method for restoring Red-Black properties after deletion.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_rebalance ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x ) [protected]

Rebalance the tree after insertion of a node.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_rotate_left ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x ) [protected]

Method for left rotation of the tree about a given node.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_rotate_right ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x ) [protected]

Method for right rotation of the tree about a given node.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_RB_Tree_Node< EXT_ID, INT_ID > * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_tree_maximum ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x ) const [protected]

Method to find the maximum node of the subtree rooted at the given node.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_RB_Tree_Node< EXT_ID, INT_ID > * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_tree_minimum ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x ) const [protected]

Method to find the minimum node of the subtree rooted at the given node.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_RB_Tree_Node< EXT_ID, INT_ID > * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_tree_predecessor ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x ) const [protected]

Method to find the predecessor node of the given node in the tree.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_RB_Tree_Node< EXT_ID, INT_ID > * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_tree_successor ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x ) const [protected]

Method to find the successor node of the given node in the tree.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE ACE_RB_Tree_Reverse_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rbegin ( void )

Return reverse iterator positioned at last node in tree.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rebind ( const EXT_ID & ext_id,

const INT_ID & int_id,

EXT_ID & old_ext_id,

INT_ID & old_int_id,

ACE_RB_Tree_Node< EXT_ID, INT_ID > *& entry

)

Same as a normal rebind, except the tree entry is also passed back to the caller. The entry in this case will either be the newly created entry, or the existing one.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rebind ( const EXT_ID & ext_id,

const INT_ID & int_id,

EXT_ID & old_ext_id,

INT_ID & old_int_id

)

Associate <ext_id> with <int_id>. If <ext_id> is not in the tree then behaves just like <bind>. Otherwise, store the old values of <ext_id> and <int_id> into the "out" parameters and rebind the new parameters. This is very useful if you need to have an atomic way of updating <ACE_RB_Tree_Nodes> and you also need full control over memory allocation. Returns 0 if a new entry is bound successfully, returns 1 if an existing entry was rebound, and returns -1 if failures occur.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rebind ( const EXT_ID & ext_id,

const INT_ID & int_id,

INT_ID & old_int_id,

ACE_RB_Tree_Node< EXT_ID, INT_ID > *& entry

)

Same as a normal rebind, except the tree entry is also passed back to the caller. The entry in this case will either be the newly created entry, or the existing one.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rebind ( const EXT_ID & ext_id,

const INT_ID & int_id,

INT_ID & old_int_id

)

Associate <ext_id> with <int_id>. If <ext_id> is not in the tree then behaves just like <bind>. Otherwise, store the old value of <int_id> into the "out" parameter and rebind the new parameters. Returns 0 if a new entry is bound successfully, returns 1 if an existing entry was rebound, and returns -1 if failures occur.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rebind ( const EXT_ID & ext_id,

const INT_ID & int_id,

ACE_RB_Tree_Node< EXT_ID, INT_ID > *& entry

)

Same as a normal rebind, except the tree entry is also passed back to the caller. The entry in this case will either be the newly created entry, or the existing one.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rebind ( const EXT_ID & ext_id,

const INT_ID & int_id

)

Reassociate <ext_id> with <int_id>. If <ext_id> is not in the tree then behaves just like <bind>. Returns 0 if a new entry is bound successfully, returns 1 if an existing entry was rebound, and returns -1 if failures occur.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::remove ( const EXT_ID & k )

Removes the item associated with the given key from the tree and destroys it. Returns 1 if it found the item and successfully destroyed it, 0 if it did not find the item, or -1 if an error occurred.
Deprecated:

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::remove_i ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * z ) [protected]

Removes the item associated with the given key from the tree and destroys it.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::remove_i ( const EXT_ID & k,

INT_ID & i

) [protected]

Removes the item associated with the given key from the tree and destroys it. Returns 1 if it found the item and successfully destroyed it, 0 if it did not find the item, or -1 if an error occurred. Returns the stored internal id in the second argument.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE ACE_RB_Tree_Reverse_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rend ( void )

Return reverse iterator positioned at first node in tree.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::test_invariant ( void )

Tests the red-black invariant(s) throughout the whole tree.
Recursively tests the invariant red-black properties at each node of the tree. Returns 0 if invariant holds, else -1. This method is computationally expensive, and should only be called for testing purposes, and not in code that depends on the algorithmic complexity bounds provided by the other methods.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::test_invariant_recurse ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x,

int & expected_black_height,

int measured_black_height

) [protected]

Recursive function to test the red-black invariant(s) at all nodes in a subtree.
Recursively tests the invariant red-black properties at each node of the tree. Returns 0 if invariant holds, else -1.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::trybind ( const EXT_ID & ext_id,

INT_ID & int_id,

ACE_RB_Tree_Node< EXT_ID, INT_ID > *& entry

)

Same as a normal trybind, except the tree entry is also passed back to the caller. The entry in this case will either be the newly created entry, or the existing one.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::trybind ( const EXT_ID & ext_id,

INT_ID & int_id

)

Associate <ext_id> with <int_id> if and only if <ext_id> is not in the tree. If <ext_id> is already in the tree then the <int_id> parameter is assigned the existing value in the tree. Returns 0 if a new entry is bound successfully, returns 1 if an attempt is made to bind an existing entry, and returns -1 if failures occur.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::unbind ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * entry )

Remove entry from tree. This method should be used with *extreme* caution, and only for optimization purposes. The node being passed in had better have been allocated by the tree that is unbinding it.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::unbind ( const EXT_ID & ext_id,

INT_ID & int_id

)

Break any association of <ext_id>. Returns the value of <int_id> in case the caller needs to deallocate memory.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_INLINE int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::unbind ( const EXT_ID & ext_id )

Unbind (remove) the <ext_id> from the tree. Don't return the <int_id> to the caller (this is useful for collections where the <int_id>s are *not* dynamically allocated...)

Friends And Related Function Documentation

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

friend class ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > [friend]

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

friend class ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > [friend]

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

friend class ACE_RB_Tree_Reverse_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > [friend]

Member Data Documentation

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_Allocator* ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::allocator_ [private]

Pointer to a memory allocator.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

COMPARE_KEYS ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::compare_keys_ [private]

Comparison functor for comparing nodes in the tree.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

size_t ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::current_size_ [private]

The current number of nodes in the tree.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_LOCK ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::lock_ [private]

Synchronization variable for the MT_SAFE <ACE_RB_Tree>.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_RB_Tree_Node<EXT_ID, INT_ID>* ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::root_ [private]

The root of the tree.

The documentation for this class was generated from the following files:

/export2/deucetmp/bala/release_try/ACE_wrappers/ace/RB_Tree.h
/export2/deucetmp/bala/release_try/ACE_wrappers/ace/RB_Tree.cpp
/export2/deucetmp/bala/release_try/ACE_wrappers/ace/RB_Tree.i

Generated on Wed Jan 14 22:46:51 2004 for ACE by

1.2.18

ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > Class Template Reference

Public Types

Public Methods

Protected Methods

Private Attributes

Friends
