ACE_Future_Set< T > Class Template Reference

This class implements a mechanism which allows the values of a collection of ACE_Future objects to be accessed by reader threads as they become available. The caller(s) provide the ACE_Future_Set (i.e. the observer...) with the collection of ACE_Future objects (i.e. the subjects...) that are to be observed using the the ACE_Future_Set::insert() method. The caller(s) may then iterate over the collection in the order in which they become readable using the ACE_Future_Set::next_readable() method. More...

#include <Future_Set.h>

Inheritance diagram for ACE_Future_Set< T >:

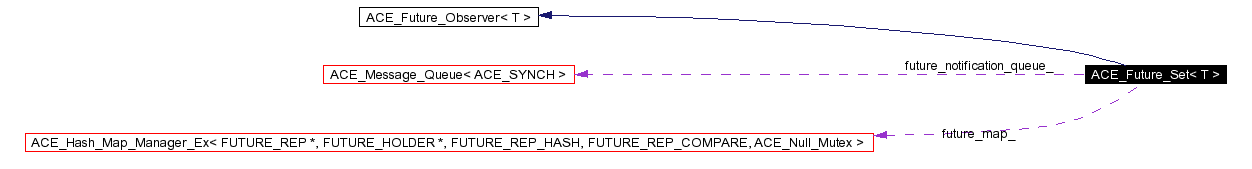

[legend]Collaboration diagram for ACE_Future_Set< T >:

[legend]List of all members.

Public Methods
	ACE_Future_Set (ACE_Message_Queue< ACE_SYNCH > *future_notification_queue_=0)
	Constructor.
	~ACE_Future_Set (void)
	Destructor.
int	is_empty (void) const
int	insert (ACE_Future< T > &future)
int	next_readable (ACE_Future< T > &result, ACE_Time_Value *tv=0)
virtual void	update (const ACE_Future< T > &future)
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Private Types
typedef ACE_Future< T >	FUTURE
typedef ACE_Future_Rep< T >	FUTURE_REP
typedef ACE_Future_Holder< T >	FUTURE_HOLDER
typedef ACE_Pointer_Hash< FUTURE_REP * >	FUTURE_REP_HASH
typedef ACE_Equal_To< FUTURE_REP * >	FUTURE_REP_COMPARE
typedef ACE_Hash_Map_Manager_Ex< FUTURE_REP *, FUTURE_HOLDER *, FUTURE_REP_HASH, FUTURE_REP_COMPARE, ACE_Null_Mutex >	FUTURE_HASH_MAP
Private Methods
void	operator= (const ACE_Future_Set< T > &)
	ACE_Future_Set (const ACE_Future_Set< T > &)
Private Attributes
FUTURE_HASH_MAP	future_map_
ACE_Message_Queue< ACE_SYNCH > *	future_notification_queue_
int	delete_queue_
	Keeps track of whether we need to delete the message queue.

---

Detailed Description

template<class T>
class ACE_Future_Set< T >

This class implements a mechanism which allows the values of a collection of ACE_Future objects to be accessed by reader threads as they become available. The caller(s) provide the ACE_Future_Set (i.e. the observer...) with the collection of ACE_Future objects (i.e. the subjects...) that are to be observed using the the ACE_Future_Set::insert() method. The caller(s) may then iterate over the collection in the order in which they become readable using the ACE_Future_Set::next_readable() method.

---

Member Typedef Documentation

template<class T> typedef ACE_Future<T> ACE_Future_Set< T >::FUTURE [private]

template<class T> typedef ACE_Hash_Map_Manager_Ex<FUTURE_REP *, FUTURE_HOLDER *, FUTURE_REP_HASH, FUTURE_REP_COMPARE, ACE_Null_Mutex> ACE_Future_Set< T >::FUTURE_HASH_MAP [private]

template<class T> typedef ACE_Future_Holder<T> ACE_Future_Set< T >::FUTURE_HOLDER [private]

template<class T> typedef ACE_Future_Rep<T> ACE_Future_Set< T >::FUTURE_REP [private]

template<class T> typedef ACE_Equal_To<FUTURE_REP *> ACE_Future_Set< T >::FUTURE_REP_COMPARE [private]

template<class T> typedef ACE_Pointer_Hash<FUTURE_REP *> ACE_Future_Set< T >::FUTURE_REP_HASH [private]

---

Constructor & Destructor Documentation

template<class T> ACE_Future_Set< T >::ACE_Future_Set (  ACE_Message_Queue< ACE_SYNCH > *    future_notification_queue_ = 0 )

Constructor.

template<class T> ACE_Future_Set< T >::~ACE_Future_Set (  void    )

Destructor.

template<class T> ACE_Future_Set< T >::ACE_Future_Set (  const ACE_Future_Set< T > &    )  [private]

---

Member Function Documentation

template<class T> int ACE_Future_Set< T >::insert (  ACE_Future< T > &    future )

Enqueus the given ACE_Future into this objects queue when it is readable. Returns 0 if the future is successfully inserted, 1 if the future is already inserted, and -1 if failures occur.

template<class T> int ACE_Future_Set< T >::is_empty (  void    )  const

Return 1 if their are no ACE_Future objects left on its queue and 0 otherwise. When an ACE_Future_Set has no ACE_Future>subjects to observe it is empty. The ACE_Future_Set is in the empty state when either the caller(s) have retrieved every readable ACE_Future subject assigned the ACE_Future_Set via the ACE_Future_Set::next_readable() method, or when the ACE_Future_Set has not been assigned any subjects.

template<class T> int ACE_Future_Set< T >::next_readable (  ACE_Future< T > &    result, ACE_Time_Value *    tv = 0 )

Wait up to <tv> time to get the <value>. Note that <tv> must be specified in absolute time rather than relative time.); get the next <ACE_Future> that is readable. If <tv> = 0, the will block forever. If a readable future becomes available, then the input <ACE_Future> object param will be assigned with it and 1 will be returned. If the <ACE_Future_Set> is empty (i.e. see definition of <ACE_Future_Set::is_empty>), then 0 is returned. When a readable <ACE_Future> object is retrieved via the <ACE_Future_Set::next_readable> method, the <ACE_Future_Set> will remove that <ACE_Future> object from its list of subjects.

template<class T> void ACE_Future_Set< T >::operator= (  const ACE_Future_Set< T > &    )  [private]

template<class T> void ACE_Future_Set< T >::update (  const ACE_Future< T > &    future )  [virtual]

Called by the ACE_Future subject in which we are subscribed to when its value is written to. Implements ACE_Future_Observer< T >.

---

Member Data Documentation

template<class T> ACE_Future_Set< T >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks. Reimplemented from ACE_Future_Observer< T >.

template<class T> int ACE_Future_Set< T >::delete_queue_ [private]

Keeps track of whether we need to delete the message queue.

template<class T> FUTURE_HASH_MAP ACE_Future_Set< T >::future_map_ [private]

Map of <ACE_Futures>, subjects, which have not been written to by client's writer thread.

template<class T> ACE_Message_Queue<ACE_SYNCH>* ACE_Future_Set< T >::future_notification_queue_ [private]

Message queue for notifying the reader thread of <ACE_Futures> which have been written to by client's writer thread.

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Future_Set.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Future_Set.cpp

---
