ACE_Future_Rep< T > Class Template Reference

#include <Future.h>

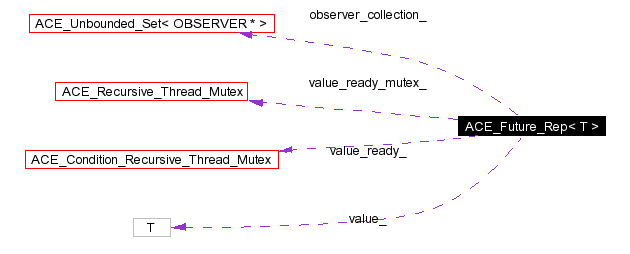

Collaboration diagram for ACE_Future_Rep< T >:

[legend]List of all members.

Private Types
typedef ACE_Future_Observer< T >	OBSERVER
typedef ACE_Unbounded_Set< OBSERVER * >	OBSERVER_COLLECTION
Private Methods
int	set (const T &r, ACE_Future< T > &caller)
int	get (T &value, ACE_Time_Value *tv) const
int	attach (ACE_Future_Observer< T > *observer, ACE_Future< T > &caller)
int	detach (ACE_Future_Observer< T > *observer)
	operator T ()
void	dump (void) const
	Dump the state of an object.
int	ready (void) const
	Is result available?
	ACE_Future_Rep (void)
	~ACE_Future_Rep (void)
Static Private Methods
ACE_Future_Rep< T > *	internal_create (void)
ACE_Future_Rep< T > *	create (void)
	Create a ACE_Future_Rep<T> and initialize the reference count.
ACE_Future_Rep< T > *	attach (ACE_Future_Rep< T > *&rep)
void	detach (ACE_Future_Rep< T > *&rep)
void	assign (ACE_Future_Rep< T > *&rep, ACE_Future_Rep< T > *new_rep)
Private Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
T *	value_
	Pointer to the result.
int	ref_count_
	Reference count.
OBSERVER_COLLECTION	observer_collection_
	Keep a list of ACE_Future_Observers unread by client's reader thread.
ACE_Recursive_Thread_Mutex	value_ready_mutex_
ACE_Condition_Recursive_Thread_Mutex	value_ready_
Friends
class	ACE_Future< T >

template<class T>
class ACE_Future_Rep< T >

---

Member Typedef Documentation

template<class T> typedef ACE_Future_Observer<T> ACE_Future_Rep< T >::OBSERVER [private]

template<class T> typedef ACE_Unbounded_Set<OBSERVER *> ACE_Future_Rep< T >::OBSERVER_COLLECTION [private]

---

Constructor & Destructor Documentation

template<class T> ACE_Future_Rep< T >::ACE_Future_Rep (  void    )  [private]

template<class T> ACE_Future_Rep< T >::~ACE_Future_Rep (  void    )  [private]

---

Member Function Documentation

template<class T> void ACE_Future_Rep< T >::assign (  ACE_Future_Rep< T > *&    rep, ACE_Future_Rep< T > *    new_rep )  [static, private]

Decreases the rep's reference count and deletes rep if there are no more references to rep. Then assigns new_rep to rep. Precondition (rep != 0 && new_rep != 0)

template<class T> ACE_Future_Rep< T > * ACE_Future_Rep< T >::attach (  ACE_Future_Rep< T > *&    rep )  [static, private]

Increase the reference count and return argument. Uses the attribute "value_ready_mutex_" to synchronize reference count updating. Precondition (rep != 0).

template<class T> int ACE_Future_Rep< T >::attach (  ACE_Future_Observer< T > *    observer, ACE_Future< T > &    caller )  [private]

Attaches the specified observer to a subject (i.e., the <ACE_Future_Rep>). The update method of the specified subject will be invoked with a copy of the written-to <ACE_Future> as input when the result gets set. Returns 0 if the observer is successfully attached, 1 if the observer is already attached, and -1 if failures occur.

template<class T> ACE_Future_Rep< T > * ACE_Future_Rep< T >::create (  void    )  [static, private]

Create a ACE_Future_Rep<T> and initialize the reference count.

template<class T> void ACE_Future_Rep< T >::detach (  ACE_Future_Rep< T > *&    rep )  [static, private]

Decreases the reference count and deletes rep if there are no more references to rep. Precondition (rep != 0)

template<class T> int ACE_Future_Rep< T >::detach (  ACE_Future_Observer< T > *    observer )  [private]

Detaches the specified observer from a subject (i.e., the <ACE_Future_Rep>). The update method of the specified subject will not be invoked when the <ACE_Future_Rep>s result gets set. Returns 1 if the specified observer was actually attached to the subject prior to this call and 0 if was not. Returns 0 if the observer was successfully detached, and -1 if the observer was not attached in the first place.

template<class T> void ACE_Future_Rep< T >::dump (  void    )  const [private]

Dump the state of an object.

template<class T> int ACE_Future_Rep< T >::get (  T &    value, ACE_Time_Value *    tv )  const [private]

Wait up to <tv> time to get the <value>. Note that <tv> must be specified in absolute time rather than relative time.

template<class T> ACE_Future_Rep< T > * ACE_Future_Rep< T >::internal_create (  void    )  [static, private]

Allocate a new ACE_Future_Rep<T> instance, returning NULL if it cannot be created.

template<class T> ACE_Future_Rep< T >::operator T (    )  [private]

Type conversion. will block forever until the result is available. Note that this method is going away in a subsequent release since it doesn't distinguish between failure results and success results (exceptions should be used, but they aren't portable...). The <get> method should be used instead since it separates the error value from the result, and also permits timeouts.

template<class T> int ACE_Future_Rep< T >::ready (  void    )  const [private]

Is result available?

template<class T> int ACE_Future_Rep< T >::set (  const T &    r, ACE_Future< T > &    caller )  [private]

Set the result value. The specified <caller> represents the future that invoked this <set> method, which is used to notify the list of future observers. Returns 0 for success, -1 on error. This function only has an effect the first time it is called for the object. Subsequent calls return 0 (success) but have no effect.

---

Friends And Related Function Documentation

template<class T> friend class ACE_Future< T > [friend]

---

Member Data Documentation

template<class T> ACE_Future_Rep< T >::ACE_ALLOC_HOOK_DECLARE [private]

Declare the dynamic allocation hooks.

template<class T> OBSERVER_COLLECTION ACE_Future_Rep< T >::observer_collection_ [private]

Keep a list of ACE_Future_Observers unread by client's reader thread.

template<class T> int ACE_Future_Rep< T >::ref_count_ [private]

Reference count.

template<class T> T* ACE_Future_Rep< T >::value_ [private]

Pointer to the result.

template<class T> ACE_Condition_Recursive_Thread_Mutex ACE_Future_Rep< T >::value_ready_ [private]

template<class T> ACE_Recursive_Thread_Mutex ACE_Future_Rep< T >::value_ready_mutex_ [private]

---

The documentation for this class was generated from the following files:

• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Future.h
• /export2/deucetmp/bala/release_try/ACE_wrappers/ace/Future.cpp

---
