ACE_Asynch_Read_Dgram Class Reference

This class is a factory for starting off asynchronous reads on a UDP socket. This class forwards all methods to its implementation class. More...

#include <Asynch_IO.h>

Inheritance diagram for ACE_Asynch_Read_Dgram:

Inheritance graph

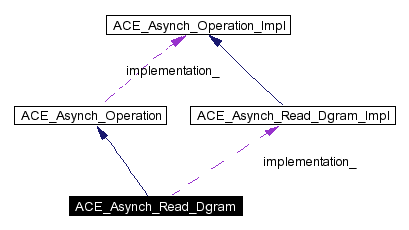

Collaboration diagram for ACE_Asynch_Read_Dgram:

Collaboration graph
List of all members.

Public Methods

 ACE_Asynch_Read_Dgram (void)
 A do nothing constructor.

virtual ~ACE_Asynch_Read_Dgram (void)

int open (ACE_Handler &handler, ACE_HANDLE handle=ACE_INVALID_HANDLE, const void *completion_key=0, ACE_Proactor *proactor=0)
ssize_t recv (ACE_Message_Block *message_block, size_t &number_of_bytes_recvd, int flags, int protocol_family=PF_INET, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)
ACE_Asynch_Read_Dgram_Implimplementation (void) const
 Return the underlying implementation class.

Protected Methods

void implementation (ACE_Asynch_Read_Dgram_Impl *implementation)
 Set the implementation class.

Protected Attributes

 Implementation class that all methods will be forwarded to.

Detailed Description

This class is a factory for starting off asynchronous reads on a UDP socket. This class forwards all methods to its implementation class.

Once <open> is called, multiple asynchronous <read>s can be started using this class. An ACE_Asynch_Read_Dgram::Result will be passed back to the <handler> when the asynchronous reads completes through the <ACE_Handler::handle_read_dgram> callback.

Constructor & Destructor Documentation

ACE_Asynch_Read_Dgram::ACE_Asynch_Read_Dgram void

A do nothing constructor.

ACE_Asynch_Read_Dgram::~ACE_Asynch_Read_Dgram void    [virtual]


Member Function Documentation

void ACE_Asynch_Read_Dgram::implementation ACE_Asynch_Read_Dgram_Impl   implementation [protected]

Set the implementation class.

ACE_Asynch_Read_Dgram_Impl * ACE_Asynch_Read_Dgram::implementation void    const

Return the underlying implementation class.

Reimplemented from ACE_Asynch_Operation.

int ACE_Asynch_Read_Dgram::open ACE_Handler   handler,
const void *    completion_key = 0,
ACE_Proactor   proactor = 0

Initializes the factory with information which will be used with each asynchronous call. If (<handle> == ACE_INVALID_HANDLE), <ACE_Handler::handle> will be called on the <handler> to get the correct handle.

Reimplemented from ACE_Asynch_Operation.

ssize_t ACE_Asynch_Read_Dgram::recv ACE_Message_Block   message_block,
size_t &    number_of_bytes_recvd,
int    flags,
int    protocol_family = PF_INET,
const void *    act = 0,
int    priority = 0,
int    signal_number = ACE_SIGRTMIN

This starts off an asynchronous read. Upto <message_block->total_size()> will be read and stored in the <message_block>. <message_block>'s <wr_ptr> will be updated to reflect the added bytes if the read operation is successfully completed. Return code of 1 means immediate success and <number_of_bytes_recvd> will contain number of bytes read. The <ACE_Handler::handle_read_dgram> method will still be called. Return code of 0 means the IO will complete proactively. Return code of -1 means there was an error, use errno to get the error code.

Scatter/gather is supported on WIN32 by using the <message_block->cont()> method. Up to ACE_IOV_MAX <message_block>'s are supported. Upto <message_block->size()> bytes will be read into each <message block> for a total of <message_block->total_size()> bytes. All <message_block>'s <wr_ptr>'s will be updated to reflect the added bytes for each <message_block>

Priority of the operation is specified by <priority>. On POSIX4-Unix, this is supported. Works like <nice> in Unix. Negative values are not allowed. 0 means priority of the operation same as the process priority. 1 means priority of the operation is one less than process. And so forth. On Win32, <priority> is a no-op. <signal_number> is the POSIX4 real-time signal number to be used for the operation. <signal_number> ranges from ACE_SIGRTMIN to ACE_SIGRTMAX. This argument is a no-op on non-POSIX4 systems.

Member Data Documentation

ACE_Asynch_Read_Dgram_Impl* ACE_Asynch_Read_Dgram::implementation_ [protected]

Implementation class that all methods will be forwarded to.

Reimplemented from ACE_Asynch_Operation.

The documentation for this class was generated from the following files:
