TAO_Pluggable_Messaging Class Reference

Generic definitions Messaging class. More...

#include <Pluggable_Messaging.h>

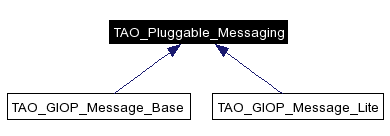

Inheritance diagram for TAO_Pluggable_Messaging:

Inheritance graph
[legend]
List of all members.

Public Member Functions

virtual ~TAO_Pluggable_Messaging (void)
 Dtor.
virtual int generate_request_header (TAO_Operation_Details &op, TAO_Target_Specification &spec, TAO_OutputCDR &cdr)=0
virtual int generate_locate_request_header (TAO_Operation_Details &op, TAO_Target_Specification &spec, TAO_OutputCDR &cdr)=0
 Write the RequestHeader in to the cdr stream.
virtual int generate_reply_header (TAO_OutputCDR &cdr, TAO_Pluggable_Reply_Params_Base &params)=0
virtual int generate_locate_reply_header (TAO_OutputCDR &cdr, TAO_Pluggable_Reply_Params_Base &params)=0
virtual int read_message (TAO_Transport *transport, int block=0, ACE_Time_Value *max_wait_time=0)=0
virtual int format_message (TAO_OutputCDR &cdr)=0
virtual void init (CORBA::Octet major, CORBA::Octet minor)=0
 Do any initialisations that may be needed.
virtual int parse_incoming_messages (ACE_Message_Block &message_block)=0
 Parse the incoming messages..
virtual ssize_t missing_data (ACE_Message_Block &incoming)=0
virtual void get_message_data (TAO_Queued_Data *qd)=0
 Get the details of the message parsed through the qd.
virtual int extract_next_message (ACE_Message_Block &incoming, TAO_Queued_Data *&qd)=0
virtual int consolidate_node (TAO_Queued_Data *qd, ACE_Message_Block &incoming)=0
 Check whether the node qd needs consolidation from incoming.
virtual int process_request_message (TAO_Transport *transport, TAO_Queued_Data *qd)=0
virtual int process_reply_message (TAO_Pluggable_Reply_Params &reply_info, TAO_Queued_Data *qd)=0
virtual int generate_exception_reply (TAO_OutputCDR &cdr, TAO_Pluggable_Reply_Params_Base &params, CORBA::Exception &ex)=0
 Generate a reply message with the exception ex.
virtual int is_ready_for_bidirectional (TAO_OutputCDR &msg)=0
virtual void reset (void)=0
 Reset the messaging the object.
virtual size_t header_length (void) const =0
 Header length.
virtual size_t fragment_header_length (CORBA::Octet major, CORBA::Octet minor) const =0
 Fragment header length.
virtual TAO_OutputCDRout_stream (void)=0
 Accessor for the output CDR stream.

Detailed Description

Generic definitions Messaging class.

This interface tries to define generic methods that could be different messaging protocols


Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Pluggable_Messaging::~TAO_Pluggable_Messaging void   )  [virtual]


Dtor.


Member Function Documentation

virtual int TAO_Pluggable_Messaging::consolidate_node TAO_Queued_Data qd,
ACE_Message_Block incoming
[pure virtual]


Check whether the node qd needs consolidation from incoming.

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual int TAO_Pluggable_Messaging::extract_next_message ACE_Message_Block incoming,
TAO_Queued_Data *&  qd
[pure virtual]


Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual int TAO_Pluggable_Messaging::format_message TAO_OutputCDR cdr  )  [pure virtual]


Format the message in the cdr. May not be needed in general.

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual size_t TAO_Pluggable_Messaging::fragment_header_length CORBA::Octet  major,
CORBA::Octet  minor
const [pure virtual]


Fragment header length.

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual int TAO_Pluggable_Messaging::generate_exception_reply TAO_OutputCDR cdr,
TAO_Pluggable_Reply_Params_Base params,
CORBA::Exception ex
[pure virtual]


Generate a reply message with the exception ex.

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual int TAO_Pluggable_Messaging::generate_locate_reply_header TAO_OutputCDR cdr,
TAO_Pluggable_Reply_Params_Base params
[pure virtual]


Write the locate reply header The locate reply header is a part of any messaging protocol. The messaging protocol implementation would implement the way the locate reply header is written.

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual int TAO_Pluggable_Messaging::generate_locate_request_header TAO_Operation_Details op,
TAO_Target_Specification spec,
TAO_OutputCDR cdr
[pure virtual]


Write the RequestHeader in to the cdr stream.

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual int TAO_Pluggable_Messaging::generate_reply_header TAO_OutputCDR cdr,
TAO_Pluggable_Reply_Params_Base params
[pure virtual]


Write the reply header The reply header is a part of any messaging protocol. The messaging protocol implementation would implement the way the reply header is written.

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual int TAO_Pluggable_Messaging::generate_request_header TAO_Operation_Details op,
TAO_Target_Specification spec,
TAO_OutputCDR cdr
[pure virtual]


Write the RequestHeader in to the cdr stream. The underlying implementation of the mesaging should do the right thing.

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual void TAO_Pluggable_Messaging::get_message_data TAO_Queued_Data qd  )  [pure virtual]


Get the details of the message parsed through the qd.

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual size_t TAO_Pluggable_Messaging::header_length void   )  const [pure virtual]


Header length.

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual void TAO_Pluggable_Messaging::init CORBA::Octet  major,
CORBA::Octet  minor
[pure virtual]


Do any initialisations that may be needed.

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual int TAO_Pluggable_Messaging::is_ready_for_bidirectional TAO_OutputCDR msg  )  [pure virtual]


Is the messaging object ready for processing BiDirectional request/response?

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual ssize_t TAO_Pluggable_Messaging::missing_data ACE_Message_Block incoming  )  [pure virtual]


Calculate the amount of data that is missing in the incoming message block.

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual TAO_OutputCDR& TAO_Pluggable_Messaging::out_stream void   )  [pure virtual]


Accessor for the output CDR stream.

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual int TAO_Pluggable_Messaging::parse_incoming_messages ACE_Message_Block message_block  )  [pure virtual]


Parse the incoming messages..

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual int TAO_Pluggable_Messaging::process_reply_message TAO_Pluggable_Reply_Params reply_info,
TAO_Queued_Data qd
[pure virtual]


Parse the reply message that we received and return the reply information through reply_info

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual int TAO_Pluggable_Messaging::process_request_message TAO_Transport transport,
TAO_Queued_Data qd
[pure virtual]


Parse the request message, make an upcall and send the reply back to the "request initiator"

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual int TAO_Pluggable_Messaging::read_message TAO_Transport transport,
int  block = 0,
ACE_Time_Value max_wait_time = 0
[pure virtual]


This method reads the message on the connection. Returns 0 when there is short read on the connection. Returns 1 when the full message is read and handled. Returns -1 on errors. If block is 1, then reply is read in a blocking manner.

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.

virtual void TAO_Pluggable_Messaging::reset void   )  [pure virtual]


Reset the messaging the object.

Implemented in TAO_GIOP_Message_Base, and TAO_GIOP_Message_Lite.


The documentation for this class was generated from the following files:
