CORBA::Exception Class Reference

Exception. More...

#include <Exception.h>

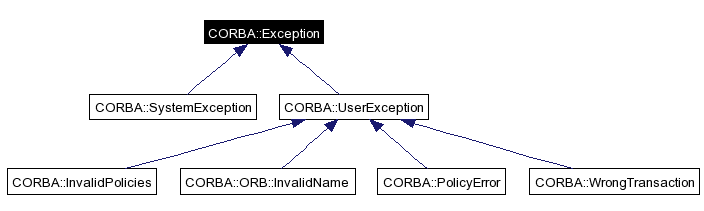

Inheritance diagram for CORBA::Exception:

[legend]Collaboration diagram for CORBA::Exception:

[legend]List of all members.

Public Member Functions
	Exception (const Exception &src)
	Copy constructor.
Exception &	operator= (const Exception &src)
	Assignment operator.
	Exception (const char *repository_id, const char *local_name)
	Construct from a respository id.
virtual	~Exception (void)
	Destructor.
virtual void	_raise (void) const =0
virtual const char *	_rep_id (void) const
	Return the repository ID of the Exception.
virtual const char *	_name (void) const
	Return the name of the Exception.
virtual CORBA::TypeCode_ptr	_tao_type (void) const =0
	Will be overridden in the concrete derived classes.
void	_tao_print_exception (const char *info, FILE *f=stdout) const
	Print the exception to output determined by f.
virtual ACE_CString	_info (void) const =0
virtual void	_tao_encode (TAO_OutputCDR &cdr ACE_ENV_ARG_DECL) const =0
virtual void	_tao_decode (TAO_InputCDR &cdr ACE_ENV_ARG_DECL)=0
virtual CORBA::Exception *	_tao_duplicate (void) const =0
	Deep copy.
Static Public Member Functions
Exception *	_downcast (Exception *x)
Exception const *	_downcast (Exception const *x)
void	_tao_any_destructor (void *)
	Used in the non-copying Any insertion operator.
Protected Member Functions
	Exception (void)
	Default constructor.
Private Attributes
CORBA::String_var	id_
	Repository Id.
CORBA::String_var	name_
	Local name.

---

Detailed Description

Exception.

CORBA2-specified exception hierarchy. All exceptions have a type (represented by a TypeCode) and a widely scoped type ID (in the TypeCode) that are generated by any OMG-IDL compiler and available through the Interface Repository. Think of it as a "globally scoped" name distinguishing each exception.

Todo:

According to the OMG CORBA C++ Mapping version 1.1, all constructors, copy constructors and assignment operators should be moved to "protected" section in class declarations. Since the current MS Visual C++ 6.0 compiler will cause some problems to TAO's exception mechanism, we defer doing this until we drop support for MSVC++ 6.

---

Constructor & Destructor Documentation

CORBA::Exception::Exception (  const Exception &  src  )

Copy constructor.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL CORBA::Exception::Exception (  const char *  repository_id, const char *  local_name )

Construct from a respository id.

CORBA::Exception::~Exception (  void   )  [virtual]

Destructor.

CORBA::Exception::Exception (  void   )  [protected]

Default constructor.

---

Member Function Documentation

ACE_INLINE CORBA::Exception const * CORBA::Exception::_downcast (  Exception const *  x  )  [static]

Reimplemented in CORBA::PolicyError, CORBA::InvalidPolicies, CORBA::SystemException, CORBA::UserException, and CORBA::WrongTransaction.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE CORBA::Exception * CORBA::Exception::_downcast (  Exception *  x  )  [static]

Reimplemented in CORBA::ORB::InvalidName, CORBA::PolicyError, CORBA::InvalidPolicies, CORBA::SystemException, CORBA::UserException, and CORBA::WrongTransaction.

virtual ACE_CString CORBA::Exception::_info (  void   )  const [pure virtual]

Returns a string containing information about the exception. This function is not CORBA compliant. Implemented in CORBA::SystemException, and CORBA::UserException.

const char * CORBA::Exception::_name (  void   )  const [virtual]

Return the name of the Exception.

virtual void CORBA::Exception::_raise (  void   )  const [pure virtual]

Implemented in CORBA::ORB::InvalidName, CORBA::PolicyError, CORBA::InvalidPolicies, CORBA::SystemException, CORBA::UserException, and CORBA::WrongTransaction.

const char * CORBA::Exception::_rep_id (  void   )  const [virtual]

Return the repository ID of the Exception.

void CORBA::Exception::_tao_any_destructor (  void *   )  [static]

Used in the non-copying Any insertion operator. Reimplemented in CORBA::PolicyError, CORBA::InvalidPolicies, and CORBA::WrongTransaction.

virtual void CORBA::Exception::_tao_decode (  TAO_InputCDR &cdr  ACE_ENV_ARG_DECL  )  [pure virtual]

Implemented in CORBA::SystemException.

virtual CORBA::Exception* CORBA::Exception::_tao_duplicate (  void   )  const [pure virtual]

Deep copy. The following operation is used in the implementation of it performs a deep copy of the exception, normally it is implemented as: class SomeException : public // Derives from CORBA::Exception { public: virtual CORBA::Exception *_tao_duplicate (void) const { CORBA::Exception *result = 0; ACE_NEW_RETURN ( result, SomeException (*this), 0 ); return result; } }; Implemented in CORBA::ORB::InvalidName, CORBA::PolicyError, CORBA::InvalidPolicies, CORBA::SystemException, and CORBA::WrongTransaction.

virtual void CORBA::Exception::_tao_encode (  TAO_OutputCDR &cdr  ACE_ENV_ARG_DECL  )  const [pure virtual]

Implemented in CORBA::SystemException.

void CORBA::Exception::_tao_print_exception (  const char *  info, FILE *  f = stdout )  const

Print the exception to output determined by f. Note: This method is TAO-specific.

virtual CORBA::TypeCode_ptr CORBA::Exception::_tao_type (  void   )  const [pure virtual]

Will be overridden in the concrete derived classes. Implemented in CORBA::PolicyError, CORBA::InvalidPolicies, CORBA::UserException, and CORBA::WrongTransaction.

CORBA::Exception & CORBA::Exception::operator= (  const Exception &  src  )

Assignment operator.

---

Member Data Documentation

CORBA::String_var CORBA::Exception::id_ [private]

Repository Id.

CORBA::String_var CORBA::Exception::name_ [private]

Local name.

---

The documentation for this class was generated from the following files:

• Exception.h
• Exception.cpp
• Exception.i

---
