TAO_ORB_Core Class Reference

Encapsulates the state of an ORB. More...

#include <ORB_Core.h>

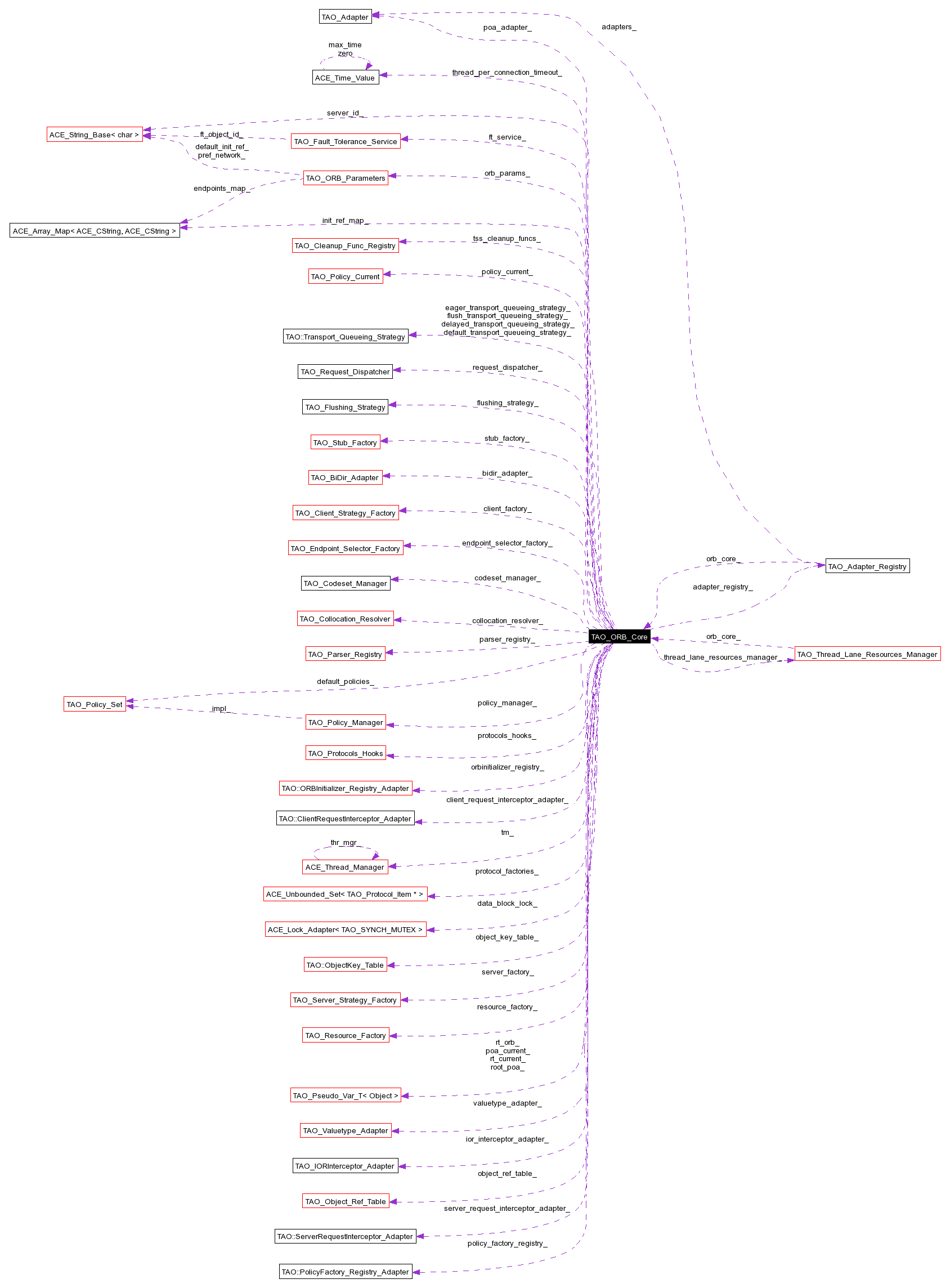

Collaboration diagram for TAO_ORB_Core:

[legend]List of all members.

Collocation Strategies
enum	{ ORB_CONTROL, THRU_POA, DIRECT }
TAO::Collocation_Strategy	collocation_strategy (CORBA::Object_ptr object ACE_ENV_ARG_DECL)
Public Types
typedef void(*	Timeout_Hook )(TAO_ORB_Core *, TAO_Stub *, bool &, ACE_Time_Value &)
	Define the Timeout_Hook signature.
typedef void(*	Sync_Scope_Hook )(TAO_ORB_Core *, TAO_Stub *, bool &, Messaging::SyncScope &)
typedef ACE_Array_Map< ACE_CString, ACE_CString >	InitRefMap
Public Member Functions
	TAO_ORB_Core (const char *id)
	Constructor.
TAO_ORB_Parameters *	orb_params (void)
	Accessor for the ORB parameters.
TAO_Connector_Registry *	connector_registry (ACE_ENV_SINGLE_ARG_DECL)
	Get the connector registry.
TAO_Parser_Registry *	parser_registry (void)
	Get the IOR parser registry.
TAO::PolicyFactory_Registry_Adapter *	policy_factory_registry (void)
TAO::ORBInitializer_Registry_Adapter *	orbinitializer_registry (void)
TAO_ProtocolFactorySet *	protocol_factories (void)
	Get the protocol factories.
CORBA::ORB_ptr	orb (void)
	Get pointer to the ORB.
ACE_Reactor *	reactor (void)
	Wrappers that forward the request to the concurrency strategy.
ACE_Thread_Manager *	thr_mgr (void)
	Get the ACE_Thread_Manager.
CORBA::Object_ptr	root_poa (ACE_ENV_SINGLE_ARG_DECL)
	Return the RootPOA, or try to load it if not initialized already.
TAO_Adapter_Registry *	adapter_registry (void)
	Get the adapter registry.
TAO_Adapter *	poa_adapter (void)
TAO_Protocols_Hooks *	get_protocols_hooks (void)
	Gets the value of TAO_ORB_Core::protocols_hooks__.
int	is_collocated (const TAO_MProfile &mprofile)
ACE_Allocator *	output_cdr_dblock_allocator (void)
ACE_Allocator *	output_cdr_buffer_allocator (void)
ACE_Allocator *	output_cdr_msgblock_allocator (void)
ACE_Allocator *	input_cdr_dblock_allocator (void)
ACE_Allocator *	input_cdr_buffer_allocator (void)
ACE_Allocator *	input_cdr_msgblock_allocator (void)
ACE_Allocator *	transport_message_buffer_allocator (void)
ACE_Data_Block *	create_input_cdr_data_block (size_t size)
ACE_Lock *	locking_strategy (void)
	Return the locking strategy used for the data blocks.
TAO_Policy_Set *	get_default_policies (void)
	Accessor method for the default_policies_.
CORBA::Policy_ptr	get_policy (CORBA::PolicyType type ACE_ENV_ARG_DECL)
CORBA::Policy_ptr	get_policy_including_current (CORBA::PolicyType type ACE_ENV_ARG_DECL)
CORBA::Policy_ptr	get_cached_policy (TAO_Cached_Policy_Type type ACE_ENV_ARG_DECL)
CORBA::Policy_ptr	get_cached_policy_including_current (TAO_Cached_Policy_Type type ACE_ENV_ARG_DECL)
TAO_Policy_Manager *	policy_manager (void)
	Return the Policy_Manager for this ORB.
TAO_Policy_Current &	policy_current (void)
void	call_timeout_hook (TAO_Stub *stub, bool &has_timeout, ACE_Time_Value &time_value)
	Invoke the timeout hook if present.
void	connection_timeout (TAO_Stub *stub, bool &has_timeout, ACE_Time_Value &time_value)
	Invoke the timeout hook if present.
void	call_sync_scope_hook (TAO_Stub *stub, bool &has_synchronization, Messaging::SyncScope &scope)
TAO::Transport_Queueing_Strategy &	get_transport_queueing_strategy (TAO_Stub *stub, Messaging::SyncScope &scope)
TAO_ORB_Core_TSS_Resources *	get_tss_resources (void)
	Obtain the TSS resources of this orb.
void *	get_tss_resource (size_t slot_id)
	Obtain the TSS resource in the given slot.
int	set_tss_resource (size_t slot_id, void *)
int	add_tss_cleanup_func (ACE_CLEANUP_FUNC cleanup, size_t &slot_id)
TAO_Cleanup_Func_Registry *	tss_cleanup_funcs (void)
	Return the underlying TSS cleanup function registry.
TAO_Leader_Follower &	leader_follower (void)
	Get access to the leader_follower class.
TAO_LF_Strategy &	lf_strategy (void)
	Get access to the leader follower strategy.
TAO_Thread_Lane_Resources &	lane_resources (void)
	Get access to the thread lane resources.
int	run (ACE_Time_Value *tv, int perform_work ACE_ENV_ARG_DECL)
	Run the event loop.
void	shutdown (CORBA::Boolean wait_for_completion ACE_ENV_ARG_DECL) throw ()
	End the event loop.
int	has_shutdown (void)
	Get the shutdown flag value.
void	destroy (ACE_ENV_SINGLE_ARG_DECL)
	Shutdown the ORB and free resources.
void	check_shutdown (ACE_ENV_SINGLE_ARG_DECL)
	Check if ORB has shutdown. If it has, throw an exception.
int	thread_per_connection_timeout (ACE_Time_Value &timeout) const
TAO_Stub *	create_stub_object (TAO_MProfile &mprofile, const char *type_id, CORBA::PolicyList *policy_list ACE_ENV_ARG_DECL)
TAO_Stub *	create_stub (const char *repository_id, const TAO_MProfile &profiles ACE_ENV_ARG_DECL)
CORBA::Object_ptr	create_object (TAO_Stub *the_stub)
CORBA::Long	initialize_object (TAO_Stub *the_stub, CORBA::Object_ptr obj)
const char *	orbid (void) const
	Return ORBid string.
CORBA::Boolean	use_implrepo (void)
	Do we attempt to register with the Implementation Repository.
CORBA::Boolean	imr_endpoints_in_ior (void)
	Do we put the ImR's endpoints into persistent object references we create.
CORBA::Object_ptr	resolve_typecodefactory (ACE_ENV_SINGLE_ARG_DECL)
	Resolve the TypeCodeFactory DLL.
CORBA::Object_ptr	resolve_picurrent (ACE_ENV_SINGLE_ARG_DECL)
	Resolve the PICurrent.
CORBA::Object_ptr	resolve_poa_current (ACE_ENV_SINGLE_ARG_DECL)
	Resolve POA Current.
CORBA::Object_ptr	resolve_codecfactory (ACE_ENV_SINGLE_ARG_DECL)
	Resolve the CodecFactory DLL.
CORBA::Object_ptr	resolve_dynanyfactory (ACE_ENV_SINGLE_ARG_DECL)
	Resolve the Dynamic Any Factory.
CORBA::Object_ptr	resolve_ior_manipulation (ACE_ENV_SINGLE_ARG_DECL)
	Resolve the IOR Manipulation reference for this ORB.
CORBA::Object_ptr	resolve_ior_table (ACE_ENV_SINGLE_ARG_DECL)
	Resolve the IOR Table reference for this ORB.
CORBA::Object_ptr	resolve_rir (const char *name ACE_ENV_ARG_DECL)
	Resolve an initial reference via the -ORBInitRef and.
CORBA::Object_ptr	resolve_rt_orb (void)
	Resolve the RT ORB reference for this ORB.
const char *	server_id (void) const
CORBA::ORB_ObjectIdList *	list_initial_references (ACE_ENV_SINGLE_ARG_DECL_NOT_USED)
	List all the service known by the ORB.
CORBA::ULong	_incr_refcnt (void)
	Reference counting...
CORBA::ULong	_decr_refcnt (void)
int	register_handle (ACE_HANDLE handle)
int	remove_handle (ACE_HANDLE handle)
TAO_Valuetype_Adapter *&	valuetype_adapter (void)
	Return the valuetype adapter.
TAO_IORInterceptor_Adapter *	ior_interceptor_adapter (void)
CORBA::Boolean	bidir_giop_policy (void)
void	bidir_giop_policy (CORBA::Boolean)
TAO_Object_Ref_Table &	object_ref_table (void)
TAO::ObjectKey_Table &	object_key_table (void)
	Acceessor to the table that stores the object_keys.
TAO_Request_Dispatcher *	request_dispatcher (void)
	Return the current request dispatcher strategy.
void	request_dispatcher (TAO_Request_Dispatcher *rd)
void	load_policy_validators (TAO_Policy_Validator &validator ACE_ENV_ARG_DECL)
TAO_Flushing_Strategy *	flushing_strategy (void)
	Return the flushing strategy.
TAO_Codeset_Manager *	codeset_manager (void)
	Get Code Set Manager.
InitRefMap *	init_ref_map (void)
	Return a pointer to the -ORBInitRef map.
void	set_default (const char *orb_id)
void	not_default (const char *orb_id)
	Choose to be not a default ORB when there is more than one ORB.
TAO::Transport_Queueing_Strategy &	default_transport_queueing_strategy (void)
Helper methods used by the Invocation classes.
CORBA::Object_ptr	poa_current (void)
void	optimize_collocation_objects (CORBA::Boolean opt)
CORBA::Boolean	optimize_collocation_objects (void) const
void	use_global_collocation (CORBA::Boolean opt)
CORBA::Boolean	use_global_collocation (void) const
CORBA::ULong	get_collocation_strategy (void) const
Access to Factories
These factories are not thread-specific, and are presented here in order to have one place to get useful information. Often, the instances to which the return pointers are stored in the Service Repository.
TAO_Resource_Factory *	resource_factory (void)
	Returns pointer to the resource factory.
TAO::GUIResource_Factory *	gui_resource_factory (void)
	Returns pointer to the factory for creating gui resources.
TAO_Client_Strategy_Factory *	client_factory (void)
	Returns pointer to the client factory.
TAO_Server_Strategy_Factory *	server_factory (void)
	Returns pointer to the server factory.
TAO_Protocols_Hooks *	protocols_hooks (void)
	Returns pointer to the Protocols_Hooks.
TAO_Thread_Lane_Resources_Manager &	thread_lane_resources_manager (void)
	Returns a pointer to the Thread Lane Resources Manager.
TAO_Collocation_Resolver &	collocation_resolver (void)
	Returns a pointer to the Collocation Resolver.
TAO_Stub_Factory *	stub_factory (void)
	Returns a pointer to the Stub factory.
TAO_Endpoint_Selector_Factory *	endpoint_selector_factory (void)
	Returns a pointer to the endpoint selector factory.
CORBA::Environment *	default_environment (void) const
void	default_environment (CORBA::Environment *)
CORBA::Object_ptr	implrepo_service (void)
void	implrepo_service (const CORBA::Object_ptr ir)
ORB Core Service Hooks
These methods would represent the hooks in the ORB Core. These hooks would be used to call back on the services or other features that are dynamically loaded.
CORBA::Boolean	service_profile_selection (TAO_MProfile &mprofile, TAO_Profile *&profile)
CORBA::Boolean	service_profile_reselection (TAO_Stub *stub, TAO_Profile *&profile)
void	reset_service_profile_flags (void)
	Reset the flags in the loaded services.
CORBA::Boolean	object_is_nil (CORBA::Object_ptr object)
TAO_Service_Callbacks::Profile_Equivalence	is_profile_equivalent (const TAO_Profile *this_p, const TAO_Profile *that_p)
CORBA::ULong	hash_service (TAO_Profile *this_p, CORBA::ULong max)
void	service_context_list (TAO_Stub *stub, TAO_Service_Context &service_context, CORBA::Boolean retstart ACE_ENV_ARG_DECL)
TAO_Fault_Tolerance_Service &	fault_tolerance_service (void)
	Return a reference to the Fault Tolerant service object.
TAO::Invocation_Status	service_raise_comm_failure (IOP::ServiceContextList &clist, TAO_Profile *profile ACE_ENV_ARG_DECL)
TAO::Invocation_Status	service_raise_transient_failure (IOP::ServiceContextList &clist, TAO_Profile *profile ACE_ENV_ARG_DECL)
Portable Interceptor Related Methods
These are support methods for interceptor registration and interceptor set (an array) access, in addition to PICurrent access.
CORBA::Object_ptr	pi_current (void)
	Return a pointer to the cached TAO::PICurrent object.
void	pi_current (CORBA::Object_ptr current)
	Set the pointer to the cached TAO::PICurrent object.
void	add_interceptor (PortableInterceptor::ClientRequestInterceptor_ptr interceptor ACE_ENV_ARG_DECL)
	Register a client request interceptor.
void	add_interceptor (PortableInterceptor::ServerRequestInterceptor_ptr interceptor ACE_ENV_ARG_DECL)
	Register a server request interceptor.
TAO::ClientRequestInterceptor_Adapter *	clientrequestinterceptor_adapter (void)
TAO::ServerRequestInterceptor_Adapter *	serverrequestinterceptor_adapter (void)
void	add_interceptor (PortableInterceptor::IORInterceptor_ptr interceptor ACE_ENV_ARG_DECL)
	Register an IOR interceptor.
Static Public Member Functions
void	set_thread_lane_resources_manager_factory (const char *thread_lane_resources_manager_factory_name)
void	set_collocation_resolver (const char *collocation_resolver_name)
	Sets the value of TAO_ORB_Core::collocation_resolver_name_.
void	set_stub_factory (const char *stub_factory_name)
	Sets the value of TAO_ORB_Core::stub_factory_name_.
void	set_resource_factory (const char *resource_factory_name)
	Sets the value of TAO_ORB_Core::resource_factory_.
void	set_gui_resource_factory (TAO::GUIResource_Factory *gui_resource_factory)
void	set_protocols_hooks (const char *protocols_hooks_name)
	Sets the value of TAO_ORB_Core::protocols_hooks_.
void	set_endpoint_selector_factory (const char *endpoint_selector_factory_name)
	Sets the value of TAO_ORB_Core::endpoint_selector_factory_.
void	set_poa_factory (const char *poa_factory_name, const char *poa_factory_directive)
const ACE_CString &	poa_factory_name (void)
	Access the POA factory name.
void	dynamic_adapter_name (const char *name)
	Sets the value of TAO_ORB_Core::dynamic_adapter_name_.
const char *	dynamic_adapter_name (void)
	Gets the value of TAO_ORB_Core::dynamic_adapter_name_.
void	ifr_client_adapter_name (const char *name)
	Sets the value of TAO_ORB_Core::ifr_client_adapter_name_.
const char *	ifr_client_adapter_name (void)
	Gets the value of TAO_ORB_Core::ifr_client_adapter_name_.
void	typecodefactory_adapter_name (const char *name)
	Sets the value of TAO_ORB_Core::typecodefactory_adapter_name_.
const char *	typecodefactory_adapter_name (void)
	Gets the value of TAO_ORB_Core::typecodefactory_adapter_name_.
void	iorinterceptor_adapter_factory_name (const char *name)
	Sets the value of TAO_ORB_Core::iorinterceptor_adapter_factory_name_.
const char *	iorinterceptor_adapter_factory_name (void)
	Gets the value of TAO_ORB_Core::iorinterceptor_adapter_factory_name_.
void	valuetype_adapter_name (const char *name)
	Sets the value of TAO_ORB_Core::valuetype_adapter_name.
const char *	valuetype_adapter_name (void)
	Gets the value of TAO_ORB_Core::valuetype_adapter_name.
void	set_timeout_hook (Timeout_Hook hook)
void	connection_timeout_hook (Timeout_Hook hook)
	Define the Timeout_Hook signature.
void	set_sync_scope_hook (Sync_Scope_Hook hook)
Public Attributes
TAO_Protocols_Hooks *	protocols_hooks_
	Handle to the factory for protocols_hooks_..
Protected Member Functions
	~TAO_ORB_Core (void)
int	init (int &argc, char **argv ACE_ENV_ARG_DECL)
int	fini (void)
ACE_Data_Block *	create_data_block_i (size_t size, ACE_Allocator *buffer_allocator, ACE_Allocator *dblock_allocator, ACE_Lock *lock)
	Routine that creates a ACE_Data_Block given the lock and allocators.
void	resolve_typecodefactory_i (ACE_ENV_SINGLE_ARG_DECL)
	Obtain and cache the typecode factory object reference.
void	resolve_poa_current_i (ACE_ENV_SINGLE_ARG_DECL)
	Obtain and cache the poa current.
void	resolve_picurrent_i (ACE_ENV_SINGLE_ARG_DECL)
	Obtain and cache the picurrent factory object reference.
TAO::ClientRequestInterceptor_Adapter *	clientrequestinterceptor_adapter_i (void)
TAO::ServerRequestInterceptor_Adapter *	serverrequestinterceptor_adapter_i (void)
void	resolve_codecfactory_i (ACE_ENV_SINGLE_ARG_DECL)
	Obtain and cache the codec factory object reference.
void	resolve_dynanyfactory_i (ACE_ENV_SINGLE_ARG_DECL)
	Obtain and cache the dynamic any factory object reference.
void	resolve_iormanipulation_i (ACE_ENV_SINGLE_ARG_DECL)
	Obtain and cache the IORManipulation factory object reference.
void	services_callbacks_init (void)
void	destroy_interceptors (ACE_ENV_SINGLE_ARG_DECL)
int	set_endpoint_helper (const ACE_CString &lane, const ACE_CString &endpoints ACE_ENV_ARG_DECL)
TAO::PolicyFactory_Registry_Adapter *	policy_factory_registry_i (void)
TAO::ORBInitializer_Registry_Adapter *	orbinitializer_registry_i (void)
	ACE_TSS_TYPE (TAO_ORB_Core_TSS_Resources) tss_resources_
	This is where the tss resources for this ORB are stored.
Protected Attributes
TAO_SYNCH_MUTEX	lock_
	Synchronize internal state...
TAO_Thread_Lane_Resources_Manager *	thread_lane_resources_manager_
TAO_Collocation_Resolver *	collocation_resolver_
TAO_Stub_Factory *	stub_factory_
TAO_ProtocolFactorySet *	protocol_factories_
CORBA::Object_ptr	implrepo_service_
	The cached IOR for the Implementation Repository.
int	use_implrepo_
	Flag for whether the implrepo support is enabled or not.
int	imr_endpoints_in_ior_
	Flag for whether to put the ImR endpoints into our object refs.
CORBA::Object_ptr	typecode_factory_
	The cached IOR for the TypeCodeFactory DLL.
CORBA::Object_ptr	codec_factory_
	The cached IOR for the CodecFactory DLL.
CORBA::Object_ptr	dynany_factory_
	The cached object reference for the DynAnyFactory.
CORBA::Object_ptr	ior_manip_factory_
	The cached object reference for the IORManipulataion.
CORBA::Object_ptr	ior_table_
	The cached object reference for the IORTable.
CORBA::Object_var	rt_orb_
	The cached object reference for the RTCORBA::RTORB.
CORBA::Object_var	rt_current_
	The cached object reference for the RTCORBA::Current interface.
CORBA::ORB_ptr	orb_
CORBA::Object_var	root_poa_
TAO_ORB_Parameters	orb_params_
	Parameters used by the ORB.
InitRefMap	init_ref_map_
	Return InitRefMap to find if a particular object id is present.
TAO_Object_Ref_Table	object_ref_table_
TAO::ObjectKey_Table	object_key_table_
	Table that stores the object key instead of caching one per-profile.
char *	orbid_
	The ORBid for this ORB.
TAO_Resource_Factory *	resource_factory_
	Handle to the factory for resource information..
ACE_CString	server_id_
	The server_id_ that was passed via -ORBServerId option.
TAO_Client_Strategy_Factory *	client_factory_
	Handle to the factory for Client-side strategies.
TAO_Server_Strategy_Factory *	server_factory_
	Handle to the factory for Server-side strategies.
CORBA::Boolean	opt_for_collocation_
CORBA::Boolean	use_global_collocation_
CORBA::ULong	collocation_strategy_
	Default collocation policy. This should never be ORB_CONTROL.
TAO_Policy_Manager *	policy_manager_
	The Policy_Manager for this ORB.
TAO_Policy_Set *	default_policies_
	The default policies.
TAO_Policy_Current *	policy_current_
	Policy current.
TAO_Request_Dispatcher *	request_dispatcher_
	The request dispatching strategy.
CORBA::Object_var	poa_current_
TAO_Adapter_Registry	adapter_registry_
	The list of Adapters used in this ORB.
TAO_Adapter *	poa_adapter_
	An optimization for the POA.
ACE_Thread_Manager	tm_
	The Thread Manager.
ACE_Lock_Adapter< TAO_SYNCH_MUTEX >	data_block_lock_
	The data block reference counts are locked using this mutex.
TAO_Cleanup_Func_Registry	tss_cleanup_funcs_
int	has_shutdown_
	Flag which denotes that the ORB has been shutdown.
TAO_SYNCH_MUTEX	open_lock_
	Mutual exclusion for calling open.
int	open_called_
	Flag which denotes that the open method was called.
TAO_Endpoint_Selector_Factory *	endpoint_selector_factory_
TAO::Transport_Queueing_Strategy *	eager_transport_queueing_strategy_
	This strategy will buffer messages.
TAO::Transport_Queueing_Strategy *	delayed_transport_queueing_strategy_
	This strategy will buffer messages.
TAO::Transport_Queueing_Strategy *	flush_transport_queueing_strategy_
TAO::Transport_Queueing_Strategy *	default_transport_queueing_strategy_
	This strategy will not queue by default and not flush.
CORBA::ULong	refcount_
	Number of outstanding references to this object.
TAO::PolicyFactory_Registry_Adapter *	policy_factory_registry_
	Registry containing all registered policy factories.
TAO::ORBInitializer_Registry_Adapter *	orbinitializer_registry_
	Registry containing all orb initializers.
CORBA::Object_ptr	pi_current_
	Cached pointer/reference to the PICurrent object.
TAO::ClientRequestInterceptor_Adapter *	client_request_interceptor_adapter_
	The adapter for handling client request interceptors.
TAO::ServerRequestInterceptor_Adapter *	server_request_interceptor_adapter_
	The adapter for handling server request interceptors.
TAO_IORInterceptor_Adapter *	ior_interceptor_adapter_
	IORInterceptor adapter.
TAO_Valuetype_Adapter *	valuetype_adapter_
	Pointer to the valuetype adapter.
TAO_Parser_Registry	parser_registry_
	The IOR parser registry.
TAO_BiDir_Adapter *	bidir_adapter_
	BiDirectional GIOP factory.
CORBA::Boolean	bidir_giop_policy_
	Bir Dir GIOP policy value.
TAO_Flushing_Strategy *	flushing_strategy_
	Hold the flushing strategy.
TAO_Codeset_Manager *	codeset_manager_
	Code Set Manager - points to service object in the service repo.
Service Level Hooks
TAO_Fault_Tolerance_Service	ft_service_
	Fault Tolerant service hook.
int	thread_per_connection_use_timeout_
ACE_Time_Value	thread_per_connection_timeout_
Private Member Functions
void	resolve_ior_table_i (ACE_ENV_SINGLE_ARG_DECL)
	Obtain and cache the dynamic any factory object reference.
CORBA::Boolean	is_collocation_enabled (TAO_ORB_Core *other_orb, const TAO_MProfile &mp)
	TAO_ORB_Core (const TAO_ORB_Core &)
void	operator= (const TAO_ORB_Core &)
TAO::Transport_Queueing_Strategy &	eager_transport_queueing_strategy (void)
TAO::Transport_Queueing_Strategy &	delayed_transport_queueing_strategy (void)
TAO::Transport_Queueing_Strategy &	flush_transport_queueing_strategy (void)
Friends
class	TAO_ORB_Core_Auto_Ptr
CORBA::ORB_ptr	CORBA::ORB_init (int &, char *argv[], const char *, CORBA::Environment &)

---

Detailed Description

Encapsulates the state of an ORB.

This is the implementation class for the CORBA::ORB interface. The class also encapsulates the access to the ORB resources and its state.

Some resources can be TSS or global, those resources are always accessed through a TSS interface, but are allocated using the Resource_Factory. If the resource is really global the Resource_Factory will simply return a pointer to the global instance.

---

Member Typedef Documentation

typedef ACE_Array_Map<ACE_CString, ACE_CString> TAO_ORB_Core::InitRefMap

typedef void(* TAO_ORB_Core::Sync_Scope_Hook)(TAO_ORB_Core *, TAO_Stub *, bool &, Messaging::SyncScope &)

typedef void(* TAO_ORB_Core::Timeout_Hook)(TAO_ORB_Core *, TAO_Stub *, bool &, ACE_Time_Value &)

Define the Timeout_Hook signature.

---

Member Enumeration Documentation

anonymous enum

Enumeration values: ORB_CONTROL  Indicate object should refer to ORB for either one of the following strategies. THRU_POA  Collocated calls will go thru POA. DIRECT  Collocated calls invoke operation on Servant directly.

---

Constructor & Destructor Documentation

TAO_ORB_Core::TAO_ORB_Core (  const char *  id  )

Constructor.

TAO_ORB_Core::~TAO_ORB_Core (  void   )  [protected]

Destructor is protected since the ORB Core is a reference counted object.

TAO_ORB_Core::TAO_ORB_Core (  const TAO_ORB_Core &   )  [private]

---

Member Function Documentation

ACE_INLINE CORBA::ULong TAO_ORB_Core::_decr_refcnt (  void   )

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE CORBA::ULong TAO_ORB_Core::_incr_refcnt (  void   )

Reference counting...

TAO_ORB_Core::ACE_TSS_TYPE (  TAO_ORB_Core_TSS_Resources   )  [protected]

This is where the tss resources for this ORB are stored.

ACE_INLINE TAO_Adapter_Registry * TAO_ORB_Core::adapter_registry (  void   )

Get the adapter registry.

void TAO_ORB_Core::add_interceptor (  PortableInterceptor::IORInterceptor_ptr interceptor  ACE_ENV_ARG_DECL  )

Register an IOR interceptor.

void TAO_ORB_Core::add_interceptor (  PortableInterceptor::ServerRequestInterceptor_ptr interceptor  ACE_ENV_ARG_DECL  )

Register a server request interceptor.

void TAO_ORB_Core::add_interceptor (  PortableInterceptor::ClientRequestInterceptor_ptr interceptor  ACE_ENV_ARG_DECL  )

Register a client request interceptor.

int TAO_ORB_Core::add_tss_cleanup_func (  ACE_CLEANUP_FUNC  cleanup, size_t &  slot_id )

Register a TSS cleanup function. The slot ID for the corresponding ORB core TSS resource is returned by the reference argument. This method return 0 on success, and -1 on failure.

ACE_INLINE void TAO_ORB_Core::bidir_giop_policy (  CORBA::Boolean   )

ACE_INLINE CORBA::Boolean TAO_ORB_Core::bidir_giop_policy (  void   )

Set and Get methods to indicate whether a BiDir IIOP policy has been set in the POA. Note: At present, the value will be true even if one of the POA's is set with the Bi Dir GIOP policy.

void TAO_ORB_Core::call_sync_scope_hook (  TAO_Stub *  stub, bool &  has_synchronization, Messaging::SyncScope &  scope )

void TAO_ORB_Core::call_timeout_hook (  TAO_Stub *  stub, bool &  has_timeout, ACE_Time_Value &  time_value )

Invoke the timeout hook if present. The timeout hook is used to determine if the timeout policy is set and with what value. If the ORB is compiled without support for Messaging this feature does not take effect Parameters: has_timeout  returns 0 if there is no timeout policy set. time_value  returns the timeout value in effect for the object, thread and current ORB.

void TAO_ORB_Core::check_shutdown (  ACE_ENV_SINGLE_ARG_DECL   )

Check if ORB has shutdown. If it has, throw an exception.

TAO_Client_Strategy_Factory * TAO_ORB_Core::client_factory (  void   )

Returns pointer to the client factory.

ACE_INLINE TAO::ClientRequestInterceptor_Adapter * TAO_ORB_Core::clientrequestinterceptor_adapter (  void   )

Get the Client Request Interceptor adapter. Will not create a new one if not available yet.

TAO::ClientRequestInterceptor_Adapter * TAO_ORB_Core::clientrequestinterceptor_adapter_i (  void   )  [protected]

Get the Client Request Interceptor adapter. If not created, this method will try to create one if needed.

ACE_INLINE TAO_Codeset_Manager * TAO_ORB_Core::codeset_manager (  void   )

Get Code Set Manager.

TAO_Collocation_Resolver & TAO_ORB_Core::collocation_resolver (  void   )

Returns a pointer to the Collocation Resolver.

TAO::Collocation_Strategy TAO_ORB_Core::collocation_strategy (  CORBA::Object_ptr object  ACE_ENV_ARG_DECL  )  [static]

This method returns the right collocation strategy, if any, to be used to perform a method invocation on the given object. Note: No-Collocation is a special case of collocation.

void TAO_ORB_Core::connection_timeout (  TAO_Stub *  stub, bool &  has_timeout, ACE_Time_Value &  time_value )

Invoke the timeout hook if present. The timeout hook is used to determine if the timeout policy is set and with what value. If the ORB is compiled without support for Messaging this feature does not take effect Parameters: has_timeout  returns 0 if there is no timeout policy set. time_value  returns the timeout value in effect for the object, thread and current ORB.

void TAO_ORB_Core::connection_timeout_hook (  Timeout_Hook  hook  )  [static]

Define the Timeout_Hook signature.

TAO_Connector_Registry * TAO_ORB_Core::connector_registry (  ACE_ENV_SINGLE_ARG_DECL   )

Get the connector registry.

ACE_Data_Block * TAO_ORB_Core::create_data_block_i (  size_t  size, ACE_Allocator *  buffer_allocator, ACE_Allocator *  dblock_allocator, ACE_Lock *  lock )  [protected]

Routine that creates a ACE_Data_Block given the lock and allocators.

ACE_Data_Block * TAO_ORB_Core::create_input_cdr_data_block (  size_t  size  )

The Message Blocks used for input CDRs must have appropiate locking strategies.

CORBA::Object_ptr TAO_ORB_Core::create_object (  TAO_Stub *  the_stub  )

Create a new object, use the adapter registry to create a collocated object, if not possible then create a regular object.

TAO_Stub * TAO_ORB_Core::create_stub (  const char *  repository_id, const TAO_MProfile &profiles  ACE_ENV_ARG_DECL )

Factory method that create the "right" Stub depending on wheather RTCORBA is loaded or not. The factory used to create the stub, is loaded at ORB initialization, and its type depends on the fact that RTCORBA is being used or not.

TAO_Stub * TAO_ORB_Core::create_stub_object (  TAO_MProfile &  mprofile, const char *  type_id, CORBA::PolicyList *policy_list  ACE_ENV_ARG_DECL )

Makes sure that the ORB is open and then creates a TAO_Stub based on the endpoint.

void TAO_ORB_Core::default_environment (  CORBA::Environment *   )

The thread has a default environment to simplify porting between platforms that support native C++ exceptions and those that don't. This is a TSS resource (always), but with a twist: if the user creates a new environment the old one is "pushed" (actually the new one remembers it), eventually the new environment destructor pops itself from the stack and we recover the old environment. This means that if the user create a new environment and somebody calls a function using the default one the exception will still be received in the environment created by the user. The only drawback is that environments life time must nest properly, this shouldn't be a problem because environments are usually created on the stack, but, the spec allows their creation on the heap and/or as class members; we need to investigate the tradeoffs and take a decision.

CORBA::Environment * TAO_ORB_Core::default_environment (  void   )  const

The thread has a default environment to simplify porting between platforms that support native C++ exceptions and those that don't. This is a TSS resource (always), but with a twist: if the user creates a new environment the old one is "pushed" (actually the new one remembers it), eventually the new environment destructor pops itself from the stack and we recover the old environment. This means that if the user create a new environment and somebody calls a function using the default one the exception will still be received in the environment created by the user. The only drawback is that environments life time must nest properly, this shouldn't be a problem because environments are usually created on the stack, but, the spec allows their creation on the heap and/or as class members; we need to investigate the tradeoffs and take a decision.

ACE_INLINE TAO::Transport_Queueing_Strategy & TAO_ORB_Core::default_transport_queueing_strategy (  void   )

This strategy is the default, no explicit queueing and no explicit flush

ACE_INLINE TAO::Transport_Queueing_Strategy & TAO_ORB_Core::delayed_transport_queueing_strategy (  void   )  [private]

void TAO_ORB_Core::destroy (  ACE_ENV_SINGLE_ARG_DECL   )

Shutdown the ORB and free resources.

void TAO_ORB_Core::destroy_interceptors (  ACE_ENV_SINGLE_ARG_DECL   )  [protected]

Helper method that invokes Interceptor::destroy() on all registered interceptors when ORB::destroy() is called. Prevents exceptions from propagating up the call chain.

const char * TAO_ORB_Core::dynamic_adapter_name (  void   )  [static]

Gets the value of TAO_ORB_Core::dynamic_adapter_name_.

void TAO_ORB_Core::dynamic_adapter_name (  const char *  name  )  [static]

Sets the value of TAO_ORB_Core::dynamic_adapter_name_.

ACE_INLINE TAO::Transport_Queueing_Strategy & TAO_ORB_Core::eager_transport_queueing_strategy (  void   )  [private]

TAO_Endpoint_Selector_Factory * TAO_ORB_Core::endpoint_selector_factory (  void   )

Returns a pointer to the endpoint selector factory.

ACE_INLINE TAO_Fault_Tolerance_Service & TAO_ORB_Core::fault_tolerance_service (  void   )

Return a reference to the Fault Tolerant service object.

int TAO_ORB_Core::fini (  void   )  [protected]

Final termination hook, typically called by CORBA::ORB's destructor.

ACE_INLINE TAO::Transport_Queueing_Strategy & TAO_ORB_Core::flush_transport_queueing_strategy (  void   )  [private]

ACE_INLINE TAO_Flushing_Strategy * TAO_ORB_Core::flushing_strategy (  void   )

Return the flushing strategy. The flushing strategy is created by the resource factory, and it is used by the ORB to control the mechanism used to flush the outgoing data queues. The flushing strategies are stateless, therefore, there is only one per ORB.

CORBA::Policy_ptr TAO_ORB_Core::get_cached_policy (  TAO_Cached_Policy_Type type  ACE_ENV_ARG_DECL  )

Get a cached policy. First, check the ORB-level Policy Manager, then check the ORB defaults.

CORBA::Policy_ptr TAO_ORB_Core::get_cached_policy_including_current (  TAO_Cached_Policy_Type type  ACE_ENV_ARG_DECL  )

Get a cached policy. First, check the thread current, then check the ORB-level Policy Manager, then check the ORB defaults.

ACE_INLINE CORBA::ULong TAO_ORB_Core::get_collocation_strategy (  void   )  const

ACE_INLINE TAO_Policy_Set * TAO_ORB_Core::get_default_policies (  void   )

Accessor method for the default_policies_.

CORBA::Policy_ptr TAO_ORB_Core::get_policy (  CORBA::PolicyType type  ACE_ENV_ARG_DECL  )

Get a policy. First, check the ORB-level Policy Manager, then check the ORB defaults.

CORBA::Policy_ptr TAO_ORB_Core::get_policy_including_current (  CORBA::PolicyType type  ACE_ENV_ARG_DECL  )

Get a policy. First, check the thread current, then check the ORB-level Policy Manager, then check the ORB defaults.

ACE_INLINE TAO_Protocols_Hooks * TAO_ORB_Core::get_protocols_hooks (  void   )

Gets the value of TAO_ORB_Core::protocols_hooks__.

TAO::Transport_Queueing_Strategy & TAO_ORB_Core::get_transport_queueing_strategy (  TAO_Stub *  stub, Messaging::SyncScope &  scope )

ACE_INLINE void * TAO_ORB_Core::get_tss_resource (  size_t  slot_id  )

Obtain the TSS resource in the given slot.

ACE_INLINE TAO_ORB_Core_TSS_Resources * TAO_ORB_Core::get_tss_resources (  void   )

Obtain the TSS resources of this orb.

TAO::GUIResource_Factory * TAO_ORB_Core::gui_resource_factory (  void   )

Returns pointer to the factory for creating gui resources.

ACE_INLINE int TAO_ORB_Core::has_shutdown (  void   )

Get the shutdown flag value.

ACE_INLINE CORBA::ULong TAO_ORB_Core::hash_service (  TAO_Profile *  this_p, CORBA::ULong  max )

For details on how this is used please see the FT service

const char * TAO_ORB_Core::ifr_client_adapter_name (  void   )  [static]

Gets the value of TAO_ORB_Core::ifr_client_adapter_name_.

void TAO_ORB_Core::ifr_client_adapter_name (  const char *  name  )  [static]

Sets the value of TAO_ORB_Core::ifr_client_adapter_name_.

ACE_INLINE void TAO_ORB_Core::implrepo_service (  const CORBA::Object_ptr  ir  )

CORBA::Object_ptr TAO_ORB_Core::implrepo_service (  void   )

ACE_INLINE CORBA::Boolean TAO_ORB_Core::imr_endpoints_in_ior (  void   )

Do we put the ImR's endpoints into persistent object references we create.

int TAO_ORB_Core::init (  int &  argc, char **argv  ACE_ENV_ARG_DECL )  [protected]

Initialize the guts of the ORB Core. It is intended that this be called by <CORBA::ORB_init>.

ACE_INLINE TAO_ORB_Core::InitRefMap * TAO_ORB_Core::init_ref_map (  void   )

Return a pointer to the -ORBInitRef map.

CORBA::Long TAO_ORB_Core::initialize_object (  TAO_Stub *  the_stub, CORBA::Object_ptr  obj )

Initialize a new object, use the adapter registry to initialize a collocated object, if not possible then initialize a regular object. NOTE: Why would this method be required? The answer is if the user decides to use lazy initialization of CORBA object, then this is the route that we have to take to do the initialization.

ACE_Allocator * TAO_ORB_Core::input_cdr_buffer_allocator (  void   )

This allocator is always global and has no locks. It is intended for allocating the buffers used in *incoming* CDR streams.

ACE_Allocator * TAO_ORB_Core::input_cdr_dblock_allocator (  void   )

This allocator is global, may or may not have locks. It is intended for allocating the ACE_Data_Blocks used in *incoming* CDR streams.

ACE_Allocator * TAO_ORB_Core::input_cdr_msgblock_allocator (  void   )

This allocator is always global and has no locks. It is intended for allocating the buffers used in *incoming* CDR streams.

TAO_IORInterceptor_Adapter * TAO_ORB_Core::ior_interceptor_adapter (  void   )

Get the IOR Interceptor adapter. If not created, this method will try to create one.

const char * TAO_ORB_Core::iorinterceptor_adapter_factory_name (  void   )  [static]

Gets the value of TAO_ORB_Core::iorinterceptor_adapter_factory_name_.

void TAO_ORB_Core::iorinterceptor_adapter_factory_name (  const char *  name  )  [static]

Sets the value of TAO_ORB_Core::iorinterceptor_adapter_factory_name_.

int TAO_ORB_Core::is_collocated (  const TAO_MProfile &  mprofile  )

See if we have a collocated address, if yes, return the POA associated with the address.

CORBA::Boolean TAO_ORB_Core::is_collocation_enabled (  TAO_ORB_Core *  other_orb, const TAO_MProfile &  mp )  [private]

Checks to see whether collocation optimizations have to be applied on objects in the other_orb

ACE_INLINE TAO_Service_Callbacks::Profile_Equivalence TAO_ORB_Core::is_profile_equivalent (  const TAO_Profile *  this_p, const TAO_Profile *  that_p )

For details on how this is used please see the FT service

TAO_Thread_Lane_Resources & TAO_ORB_Core::lane_resources (  void   )

Get access to the thread lane resources.

TAO_Leader_Follower & TAO_ORB_Core::leader_follower (  void   )

Get access to the leader_follower class.

TAO_LF_Strategy & TAO_ORB_Core::lf_strategy (  void   )

Get access to the leader follower strategy.

CORBA::ORB::ObjectIdList * TAO_ORB_Core::list_initial_references (  ACE_ENV_SINGLE_ARG_DECL_NOT_USED   )

List all the service known by the ORB.

void TAO_ORB_Core::load_policy_validators (  TAO_Policy_Validator &validator  ACE_ENV_ARG_DECL  )

Call the libraries to handover the validators if they havent registered yet with the list of validators.

ACE_INLINE ACE_Lock * TAO_ORB_Core::locking_strategy (  void   )

Return the locking strategy used for the data blocks.

ACE_INLINE void TAO_ORB_Core::not_default (  const char *  orb_id  )

Choose to be not a default ORB when there is more than one ORB.

ACE_INLINE CORBA::Boolean TAO_ORB_Core::object_is_nil (  CORBA::Object_ptr  object  )

The loaded service would determine if the CORBA::Object_ptr is actually nil or not. This would be useful to accomodate new enhanced definitions as defined by the service specification.

ACE_INLINE TAO::ObjectKey_Table & TAO_ORB_Core::object_key_table (  void   )

Acceessor to the table that stores the object_keys.

ACE_INLINE TAO_Object_Ref_Table & TAO_ORB_Core::object_ref_table (  void   )

Return the table that maps object key/name to de-stringified object reference. It is needed for supporting local objects in the resolve_initial_references() mechanism.

void TAO_ORB_Core::operator= (  const TAO_ORB_Core &   )  [private]

ACE_INLINE CORBA::Boolean TAO_ORB_Core::optimize_collocation_objects (  void   )  const

ACE_INLINE void TAO_ORB_Core::optimize_collocation_objects (  CORBA::Boolean  opt  )

ACE_INLINE CORBA::ORB_ptr TAO_ORB_Core::orb (  void   )

Get pointer to the ORB.

ACE_INLINE TAO_ORB_Parameters * TAO_ORB_Core::orb_params (  void   )

Accessor for the ORB parameters.

ACE_INLINE const char * TAO_ORB_Core::orbid (  void   )  const

Return ORBid string.

ACE_INLINE TAO::ORBInitializer_Registry_Adapter * TAO_ORB_Core::orbinitializer_registry (  void   )

Return pointer to the orb initializer registry associated with this ORB core. Tries to load the PI library if it is not loaded yet

TAO::ORBInitializer_Registry_Adapter * TAO_ORB_Core::orbinitializer_registry_i (  void   )  [protected]

Return pointer to the orb initializer registry associated with this ORB core.

ACE_Allocator * TAO_ORB_Core::output_cdr_buffer_allocator (  void   )

This allocator is always TSS and has no locks. It is intended for allocating the buffers used in *outgoing* CDR streams.

ACE_Allocator * TAO_ORB_Core::output_cdr_dblock_allocator (  void   )

This allocator is always TSS and has no locks. It is intended for allocating the ACE_Data_Blocks used in *outgoing* CDR streams.

ACE_Allocator * TAO_ORB_Core::output_cdr_msgblock_allocator (  void   )

This allocator is always TSS and has no locks. It is intended for allocating the ACE_Data_Blocks used in *outgoing* CDR streams.

ACE_INLINE TAO_Parser_Registry * TAO_ORB_Core::parser_registry (  void   )

Get the IOR parser registry.

ACE_INLINE void TAO_ORB_Core::pi_current (  CORBA::Object_ptr  current  )

Set the pointer to the cached TAO::PICurrent object.

ACE_INLINE CORBA::Object_ptr TAO_ORB_Core::pi_current (  void   )

Return a pointer to the cached TAO::PICurrent object.

TAO_Adapter * TAO_ORB_Core::poa_adapter (  void   )

Get the adapter named "RootPOA" and cache the result, this is an optimization for the POA.

CORBA::Object_ptr TAO_ORB_Core::poa_current (  void   )

Todo: In the future this hook should change, instead of hardcoding the object we should add a "Resolver" to the ORB, so the "POACurrent" object returns a per-ORB object. Similarly, each ORB should implement the TSS pattern to put the POA_Current_Impl in a void* slot. The current approach *does* decouple the POA from the ORB, but it cannot add new adapters or other components transparently.

const ACE_CString & TAO_ORB_Core::poa_factory_name (  void   )  [static]

Access the POA factory name.

ACE_INLINE TAO_Policy_Current & TAO_ORB_Core::policy_current (  void   )

Accesors to the policy current, this object should be kept in TSS storage. The POA has to reset the policy current object on every upcall.

ACE_INLINE TAO::PolicyFactory_Registry_Adapter * TAO_ORB_Core::policy_factory_registry (  void   )

Return pointer to the policy factory registry associated with this ORB core.

TAO::PolicyFactory_Registry_Adapter * TAO_ORB_Core::policy_factory_registry_i (  void   )  [protected]

Return pointer to the policy factory registry associated with this ORB core.

ACE_INLINE TAO_Policy_Manager * TAO_ORB_Core::policy_manager (  void   )

Return the Policy_Manager for this ORB.

ACE_INLINE TAO_ProtocolFactorySet * TAO_ORB_Core::protocol_factories (  void   )

Get the protocol factories.

TAO_Protocols_Hooks* TAO_ORB_Core::protocols_hooks (  void   )

Returns pointer to the Protocols_Hooks.

ACE_Reactor * TAO_ORB_Core::reactor (  void   )

Wrappers that forward the request to the concurrency strategy.

int TAO_ORB_Core::register_handle (  ACE_HANDLE  handle  )

Register the handle of an open connection with the ORB Core handle set. This handle set will be used to explicitly remove corresponding event handlers from the reactor.

int TAO_ORB_Core::remove_handle (  ACE_HANDLE  handle  )

Remove <handle> from the ORB Core's handle set so that it isn't included in the set that is passed to the reactor upon ORB destruction.

void TAO_ORB_Core::request_dispatcher (  TAO_Request_Dispatcher *  rd  )

Set a new request dispatcher. The ORB Core retains ownership of the request dispatcher once it gets it. Currently, this only gets called at initialization.

ACE_INLINE TAO_Request_Dispatcher * TAO_ORB_Core::request_dispatcher (  void   )

Return the current request dispatcher strategy.

ACE_INLINE void TAO_ORB_Core::reset_service_profile_flags (  void   )

Reset the flags in the loaded services.

ACE_INLINE CORBA::Object_ptr TAO_ORB_Core::resolve_codecfactory (  ACE_ENV_SINGLE_ARG_DECL   )

Resolve the CodecFactory DLL.

void TAO_ORB_Core::resolve_codecfactory_i (  ACE_ENV_SINGLE_ARG_DECL   )  [protected]

Obtain and cache the codec factory object reference.

ACE_INLINE CORBA::Object_ptr TAO_ORB_Core::resolve_dynanyfactory (  ACE_ENV_SINGLE_ARG_DECL   )

Resolve the Dynamic Any Factory.

void TAO_ORB_Core::resolve_dynanyfactory_i (  ACE_ENV_SINGLE_ARG_DECL   )  [protected]

Obtain and cache the dynamic any factory object reference.

ACE_INLINE CORBA::Object_ptr TAO_ORB_Core::resolve_ior_manipulation (  ACE_ENV_SINGLE_ARG_DECL   )

Resolve the IOR Manipulation reference for this ORB.

ACE_INLINE CORBA::Object_ptr TAO_ORB_Core::resolve_ior_table (  ACE_ENV_SINGLE_ARG_DECL   )

Resolve the IOR Table reference for this ORB.

void TAO_ORB_Core::resolve_ior_table_i (  ACE_ENV_SINGLE_ARG_DECL   )  [private]

Obtain and cache the dynamic any factory object reference.

void TAO_ORB_Core::resolve_iormanipulation_i (  ACE_ENV_SINGLE_ARG_DECL   )  [protected]

Obtain and cache the IORManipulation factory object reference.

ACE_INLINE CORBA::Object_ptr TAO_ORB_Core::resolve_picurrent (  ACE_ENV_SINGLE_ARG_DECL   )

Resolve the PICurrent.

void TAO_ORB_Core::resolve_picurrent_i (  ACE_ENV_SINGLE_ARG_DECL   )  [protected]

Obtain and cache the picurrent factory object reference.

ACE_INLINE CORBA::Object_ptr TAO_ORB_Core::resolve_poa_current (  ACE_ENV_SINGLE_ARG_DECL   )

Resolve POA Current.

void TAO_ORB_Core::resolve_poa_current_i (  ACE_ENV_SINGLE_ARG_DECL   )  [protected]

Obtain and cache the poa current.

CORBA::Object_ptr TAO_ORB_Core::resolve_rir (  const char *name  ACE_ENV_ARG_DECL  )

Resolve an initial reference via the -ORBInitRef and.

ACE_INLINE CORBA::Object_ptr TAO_ORB_Core::resolve_rt_orb (  void   )

Resolve the RT ORB reference for this ORB.

ACE_INLINE CORBA::Object_ptr TAO_ORB_Core::resolve_typecodefactory (  ACE_ENV_SINGLE_ARG_DECL   )

Resolve the TypeCodeFactory DLL.

void TAO_ORB_Core::resolve_typecodefactory_i (  ACE_ENV_SINGLE_ARG_DECL   )  [protected]

Obtain and cache the typecode factory object reference.

TAO_Resource_Factory * TAO_ORB_Core::resource_factory (  void   )

Returns pointer to the resource factory.

CORBA::Object_ptr TAO_ORB_Core::root_poa (  ACE_ENV_SINGLE_ARG_DECL   )

Return the RootPOA, or try to load it if not initialized already.

int TAO_ORB_Core::run (  ACE_Time_Value *  tv, int perform_work  ACE_ENV_ARG_DECL )

Run the event loop.

TAO_Server_Strategy_Factory * TAO_ORB_Core::server_factory (  void   )

Returns pointer to the server factory.

ACE_INLINE const char * TAO_ORB_Core::server_id (  void   )  const

Resolve the RT Current flyweight for this ORB. Return server_id string.

ACE_INLINE TAO::ServerRequestInterceptor_Adapter * TAO_ORB_Core::serverrequestinterceptor_adapter (  void   )

Get the Server Request Interceptor adapter. Will not create a new one if not available yet.

TAO::ServerRequestInterceptor_Adapter * TAO_ORB_Core::serverrequestinterceptor_adapter_i (  void   )  [protected]

Get the Server Request Interceptor adapter. If not created, this method will try to create one if needed.

void TAO_ORB_Core::service_context_list (  TAO_Stub *  stub, TAO_Service_Context &  service_context, CORBA::Boolean retstart  ACE_ENV_ARG_DECL )

Call the service layers with the Service Context to check whether they would like to add something to the list.

ACE_INLINE CORBA::Boolean TAO_ORB_Core::service_profile_reselection (  TAO_Stub *  stub, TAO_Profile *&  profile )

The loaded service in the ORB_Core would determine if the profile reselection is going to be made by the services or not. If the services do make the reselection they would return the selected profile through <profile>. The reselction is for the multi-profile IORS.

ACE_INLINE CORBA::Boolean TAO_ORB_Core::service_profile_selection (  TAO_MProfile &  mprofile, TAO_Profile *&  profile )

The loaded service in the ORB_Core would determine if the profile selection is going to be made by the services or not. If the services do make the selection they would return the selected profile through <profile>.

TAO::Invocation_Status TAO_ORB_Core::service_raise_comm_failure (  IOP::ServiceContextList &  clist, TAO_Profile *profile  ACE_ENV_ARG_DECL )

Raise a comm failure exception if a service is not loaded, else delegate to the service to see what the service has to do for this case.

TAO::Invocation_Status TAO_ORB_Core::service_raise_transient_failure (  IOP::ServiceContextList &  clist, TAO_Profile *profile  ACE_ENV_ARG_DECL )

Raise a transient failure exception if a service is not loaded, else delegate to the service to see what the service has to do for this case.

void TAO_ORB_Core::services_callbacks_init (  void   )  [protected]

Search the Dynamic service list for well known services that has callbacks which can be dynamically loaded.

void TAO_ORB_Core::set_collocation_resolver (  const char *  collocation_resolver_name  )  [static]

Sets the value of TAO_ORB_Core::collocation_resolver_name_.

ACE_INLINE void TAO_ORB_Core::set_default (  const char *  orb_id  )

Set the ORB related to the orb_id as the default ORB and not the ORB that is first binded in the ORB Table

int TAO_ORB_Core::set_endpoint_helper (  const ACE_CString &  lane, const ACE_CString &endpoints  ACE_ENV_ARG_DECL )  [protected]

Pointer to the list of protocol loaded into this ORB instance. Helper method to hold the common code part for -ORBEndpoint and -ORBListenEndpoint options.

void TAO_ORB_Core::set_endpoint_selector_factory (  const char *  endpoint_selector_factory_name  )  [static]

Sets the value of TAO_ORB_Core::endpoint_selector_factory_.

void TAO_ORB_Core::set_gui_resource_factory (  TAO::GUIResource_Factory *  gui_resource_factory  )  [static]

Sets the value of TAO_ORB_Core::gui_resource_factory_. Sets the value of gui_resource_factory in TSS. ORB_Core is responsible for releasing this factory if needed.

void TAO_ORB_Core::set_poa_factory (  const char *  poa_factory_name, const char *  poa_factory_directive )  [static]

Sets the name of the POA factory and the dynamic service configurator directive to load it if needed.

void TAO_ORB_Core::set_protocols_hooks (  const char *  protocols_hooks_name  )  [static]

Sets the value of TAO_ORB_Core::protocols_hooks_.

void TAO_ORB_Core::set_resource_factory (  const char *  resource_factory_name  )  [static]

Sets the value of TAO_ORB_Core::resource_factory_.

void TAO_ORB_Core::set_stub_factory (  const char *  stub_factory_name  )  [static]

Sets the value of TAO_ORB_Core::stub_factory_name_.

void TAO_ORB_Core::set_sync_scope_hook (  Sync_Scope_Hook  hook  )  [static]

void TAO_ORB_Core::set_thread_lane_resources_manager_factory (  const char *  thread_lane_resources_manager_factory_name  )  [static]

Sets the value of TAO_ORB_Core::thread_lane_resources_manager_factory_name_

void TAO_ORB_Core::set_timeout_hook (  Timeout_Hook  hook  )  [static]

ACE_INLINE int TAO_ORB_Core::set_tss_resource (  size_t  slot_id, void *  )

Set the TSS resource at the given slot. Returns 0 on success, and -1 on failure.

void TAO_ORB_Core::shutdown (  CORBA::Boolean wait_for_completion  ACE_ENV_ARG_DECL  )  throw ()

End the event loop.

TAO_Stub_Factory * TAO_ORB_Core::stub_factory (  void   )

Returns a pointer to the Stub factory.

ACE_INLINE ACE_Thread_Manager * TAO_ORB_Core::thr_mgr (  void   )

Get the ACE_Thread_Manager.

TAO_Thread_Lane_Resources_Manager & TAO_ORB_Core::thread_lane_resources_manager (  void   )

Returns a pointer to the Thread Lane Resources Manager.

ACE_INLINE int TAO_ORB_Core::thread_per_connection_timeout (  ACE_Time_Value &  timeout  )  const

Returns the <timeout> value used by the server threads to poll the shutdown flag. If the return value is zero then the server threads block forever.

ACE_Allocator * TAO_ORB_Core::transport_message_buffer_allocator (  void   )

This allocator is always global and has no locks. It is intended for allocating the buffers used to queue messages in transports.

ACE_INLINE TAO_Cleanup_Func_Registry * TAO_ORB_Core::tss_cleanup_funcs (  void   )

Return the underlying TSS cleanup function registry.

const char * TAO_ORB_Core::typecodefactory_adapter_name (  void   )  [static]

Gets the value of TAO_ORB_Core::typecodefactory_adapter_name_.

void TAO_ORB_Core::typecodefactory_adapter_name (  const char *  name  )  [static]

Sets the value of TAO_ORB_Core::typecodefactory_adapter_name_.

ACE_INLINE CORBA::Boolean TAO_ORB_Core::use_global_collocation (  void   )  const

ACE_INLINE void TAO_ORB_Core::use_global_collocation (  CORBA::Boolean  opt  )

ACE_INLINE CORBA::Boolean TAO_ORB_Core::use_implrepo (  void   )

Do we attempt to register with the Implementation Repository.

ACE_INLINE TAO_Valuetype_Adapter *& TAO_ORB_Core::valuetype_adapter (  void   )

Return the valuetype adapter.

const char * TAO_ORB_Core::valuetype_adapter_name (  void   )  [static]

Gets the value of TAO_ORB_Core::valuetype_adapter_name.

void TAO_ORB_Core::valuetype_adapter_name (  const char *  name  )  [static]

Sets the value of TAO_ORB_Core::valuetype_adapter_name.

---

Friends And Related Function Documentation

CORBA::ORB_ptr CORBA::ORB_init (  int &  , char *  argv[], const char *  , CORBA::Environment &  )  [friend]

friend class TAO_ORB_Core_Auto_Ptr [friend]

---

Member Data Documentation

TAO_Adapter_Registry TAO_ORB_Core::adapter_registry_ [protected]

The list of Adapters used in this ORB.

TAO_BiDir_Adapter* TAO_ORB_Core::bidir_adapter_ [protected]

BiDirectional GIOP factory.

CORBA::Boolean TAO_ORB_Core::bidir_giop_policy_ [protected]

Bir Dir GIOP policy value.

TAO_Client_Strategy_Factory* TAO_ORB_Core::client_factory_ [protected]

Handle to the factory for Client-side strategies.

TAO::ClientRequestInterceptor_Adapter* TAO_ORB_Core::client_request_interceptor_adapter_ [protected]

The adapter for handling client request interceptors.

CORBA::Object_ptr TAO_ORB_Core::codec_factory_ [protected]

The cached IOR for the CodecFactory DLL.

TAO_Codeset_Manager* TAO_ORB_Core::codeset_manager_ [protected]

Code Set Manager - points to service object in the service repo.

TAO_Collocation_Resolver* TAO_ORB_Core::collocation_resolver_ [protected]

CORBA::ULong TAO_ORB_Core::collocation_strategy_ [protected]

Default collocation policy. This should never be ORB_CONTROL.

ACE_Lock_Adapter<TAO_SYNCH_MUTEX> TAO_ORB_Core::data_block_lock_ [protected]

The data block reference counts are locked using this mutex.

TAO_Policy_Set* TAO_ORB_Core::default_policies_ [protected]

The default policies.

TAO::Transport_Queueing_Strategy* TAO_ORB_Core::default_transport_queueing_strategy_ [protected]

This strategy will not queue by default and not flush.

TAO::Transport_Queueing_Strategy* TAO_ORB_Core::delayed_transport_queueing_strategy_ [protected]

This strategy will buffer messages.

CORBA::Object_ptr TAO_ORB_Core::dynany_factory_ [protected]

The cached object reference for the DynAnyFactory.

TAO::Transport_Queueing_Strategy* TAO_ORB_Core::eager_transport_queueing_strategy_ [protected]

This strategy will buffer messages.

TAO_Endpoint_Selector_Factory* TAO_ORB_Core::endpoint_selector_factory_ [protected]

TAO::Transport_Queueing_Strategy* TAO_ORB_Core::flush_transport_queueing_strategy_ [protected]

This strategy will not queue by default, but will flush the queue each time

TAO_Flushing_Strategy* TAO_ORB_Core::flushing_strategy_ [protected]

Hold the flushing strategy.

TAO_Fault_Tolerance_Service TAO_ORB_Core::ft_service_ [protected]

Fault Tolerant service hook.

int TAO_ORB_Core::has_shutdown_ [protected]

Flag which denotes that the ORB has been shutdown.

CORBA::Object_ptr TAO_ORB_Core::implrepo_service_ [protected]

The cached IOR for the Implementation Repository.

int TAO_ORB_Core::imr_endpoints_in_ior_ [protected]

Flag for whether to put the ImR endpoints into our object refs.

InitRefMap TAO_ORB_Core::init_ref_map_ [protected]

Return InitRefMap to find if a particular object id is present.

TAO_IORInterceptor_Adapter* TAO_ORB_Core::ior_interceptor_adapter_ [protected]

IORInterceptor adapter.

CORBA::Object_ptr TAO_ORB_Core::ior_manip_factory_ [protected]

The cached object reference for the IORManipulataion.

CORBA::Object_ptr TAO_ORB_Core::ior_table_ [protected]

The cached object reference for the IORTable.

TAO_SYNCH_MUTEX TAO_ORB_Core::lock_ [protected]

Synchronize internal state...

TAO::ObjectKey_Table TAO_ORB_Core::object_key_table_ [protected]

Table that stores the object key instead of caching one per-profile.

TAO_Object_Ref_Table TAO_ORB_Core::object_ref_table_ [protected]

Table that maps object key/name to (de-stringified) object reference. It is needed for supporting local objects in the resolve_initial_references() mechanism.

int TAO_ORB_Core::open_called_ [protected]

Flag which denotes that the open method was called.

TAO_SYNCH_MUTEX TAO_ORB_Core::open_lock_ [protected]

Mutual exclusion for calling open.

CORBA::Boolean TAO_ORB_Core::opt_for_collocation_ [protected]

TRUE if we want to take advantage of collocation optimization in this ORB.

CORBA::ORB_ptr TAO_ORB_Core::orb_ [protected]

Note: Should we keep a single ORB pointer? This is good because multiple calls to ORB_init() with the same ORBid can use the same object, but maybe don't want so much coupling. Pointer to the ORB.

TAO_ORB_Parameters TAO_ORB_Core::orb_params_ [protected]

Parameters used by the ORB.

char* TAO_ORB_Core::orbid_ [protected]

The ORBid for this ORB.

TAO::ORBInitializer_Registry_Adapter* TAO_ORB_Core::orbinitializer_registry_ [protected]

Registry containing all orb initializers.

TAO_Parser_Registry TAO_ORB_Core::parser_registry_ [protected]

The IOR parser registry.

CORBA::Object_ptr TAO_ORB_Core::pi_current_ [protected]

Cached pointer/reference to the PICurrent object. A pointer/reference to the PICurrent object is cached in the ORB Core since it is accessed in the critical path (i.e. the request invocation path). Caching it prevents additional overhead to due object resolution from occurring.

TAO_Adapter* TAO_ORB_Core::poa_adapter_ [protected]

An optimization for the POA.

CORBA::Object_var TAO_ORB_Core::poa_current_ [protected]

POA current.

TAO_Policy_Current* TAO_ORB_Core::policy_current_ [protected]

Policy current.

TAO::PolicyFactory_Registry_Adapter* TAO_ORB_Core::policy_factory_registry_ [protected]

Registry containing all registered policy factories.

TAO_Policy_Manager* TAO_ORB_Core::policy_manager_ [protected]

The Policy_Manager for this ORB.

TAO_ProtocolFactorySet* TAO_ORB_Core::protocol_factories_ [protected]

TAO_Protocols_Hooks* TAO_ORB_Core::protocols_hooks_

Handle to the factory for protocols_hooks_..

CORBA::ULong TAO_ORB_Core::refcount_ [protected]

Number of outstanding references to this object.

TAO_Request_Dispatcher* TAO_ORB_Core::request_dispatcher_ [protected]

The request dispatching strategy.

TAO_Resource_Factory* TAO_ORB_Core::resource_factory_ [protected]

Handle to the factory for resource information..

CORBA::Object_var TAO_ORB_Core::root_poa_ [protected]

Object reference to the root POA. It will eventually be the object reference returned by calls to CORBA::ORB::resolve_initial_references ("RootPOA").

CORBA::Object_var TAO_ORB_Core::rt_current_ [protected]

The cached object reference for the RTCORBA::Current interface.

CORBA::Object_var TAO_ORB_Core::rt_orb_ [protected]

The cached object reference for the RTCORBA::RTORB.

TAO_Server_Strategy_Factory* TAO_ORB_Core::server_factory_ [protected]

Handle to the factory for Server-side strategies.

ACE_CString TAO_ORB_Core::server_id_ [protected]

The server_id_ that was passed via -ORBServerId option.

TAO::ServerRequestInterceptor_Adapter* TAO_ORB_Core::server_request_interceptor_adapter_ [protected]

The adapter for handling server request interceptors.

TAO_Stub_Factory* TAO_ORB_Core::stub_factory_ [protected]

TAO_Thread_Lane_Resources_Manager* TAO_ORB_Core::thread_lane_resources_manager_ [protected]

ACE_Time_Value TAO_ORB_Core::thread_per_connection_timeout_ [protected]

int TAO_ORB_Core::thread_per_connection_use_timeout_ [protected]

ACE_Thread_Manager TAO_ORB_Core::tm_ [protected]

The Thread Manager.

TAO_Cleanup_Func_Registry TAO_ORB_Core::tss_cleanup_funcs_ [protected]

TSS Object cleanup functions. These correspond to the TSS objects stored in TAO's TSS resources.

CORBA::Object_ptr TAO_ORB_Core::typecode_factory_ [protected]

The cached IOR for the TypeCodeFactory DLL.

CORBA::Boolean TAO_ORB_Core::use_global_collocation_ [protected]

TRUE if we want to consider all ORBs in this address space collocated.

int TAO_ORB_Core::use_implrepo_ [protected]

Flag for whether the implrepo support is enabled or not.

TAO_Valuetype_Adapter* TAO_ORB_Core::valuetype_adapter_ [protected]

Pointer to the valuetype adapter.

---

The documentation for this class was generated from the following files:

• ORB_Core.h
• ORB_Core.cpp
• ORB_Core.i

---
