TAO::GUIResource_Factory Class Reference

#include <GUIResource_Factory.h>

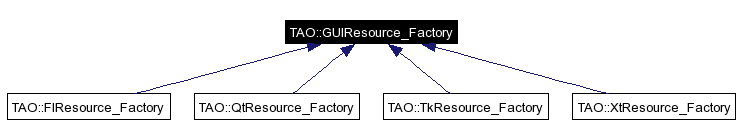

Inheritance diagram for TAO::GUIResource_Factory:

Inheritance graph
List of all members.

Public Member Functions

 GUIResource_Factory ()
virtual ~GUIResource_Factory ()
virtual ACE_Reactorget_reactor (void)
virtual void reclaim_reactor (ACE_Reactor *)

Protected Member Functions

virtual ACE_Reactor_Implreactor_impl (void)=0

Private Attributes

int dynamically_allocated_reactor_
 for internal locking.

Detailed Description

Abstract base class for the GUI resource factory.

This base class for resource factories which provide GUIReactors integrated with specific GUI event loop. In general, children of this class reimplement reactor_impl method where specific GUIReactor is created. GUIResource_Factory are usually created by GUIResource_Loader subclasses. Children of this class will be held in TSS by the ORB Core.

Constructor & Destructor Documentation

TAO::GUIResource_Factory::GUIResource_Factory  )

TAO::GUIResource_Factory::~GUIResource_Factory  )  [virtual]

Member Function Documentation

ACE_Reactor * TAO::GUIResource_Factory::get_reactor void   )  [virtual]

Create ACE_Reactor using allocate_reactor_impl. Please note that this call is NOT synchronized. Left to the higher level versions to synchronize access.

virtual ACE_Reactor_Impl* TAO::GUIResource_Factory::reactor_impl void   )  [protected, pure virtual]

Create or return current reactor instance. Please note that this call is NOT synchronized. Left to the get_reactor to synchronize access.

Implemented in TAO::FlResource_Factory, TAO::QtResource_Factory, TAO::TkResource_Factory, and TAO::XtResource_Factory.

void TAO::GUIResource_Factory::reclaim_reactor ACE_Reactor  )  [virtual]

Reclaim the reactor if allocated by this factory. Please note that this call is NOT synchronized. Left to the higher level versions to synchronize access.

Member Data Documentation

int TAO::GUIResource_Factory::dynamically_allocated_reactor_ [private]

Flag that is set to 1 if the reactor obtained from the get_reactor() method is dynamically allocated. If this flag is set to 1, then the reclaim_reactor() method with call the delete operator on the given reactor. This flag is necessary to make sure that a reactor not allocated by the default resource factory is not reclaimed by the default resource factory. Such a situation can occur when a resource factory derived from the default one overrides the get_reactor() method but does not override the reclaim_reactor() method.

TAO_SYNCH_MUTEX TAO::GUIResource_Factory::lock_ [private]

for internal locking.

Reimplemented in TAO::QtResource_Factory, TAO::TkResource_Factory, and TAO::XtResource_Factory.

The documentation for this class was generated from the following files:
