CORBA::Object Class Reference

Implementation of a CORBA object reference. More...

#include <Object.h>

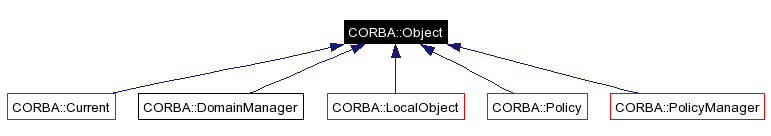

Inheritance diagram for CORBA::Object:

Inheritance graph
[legend]

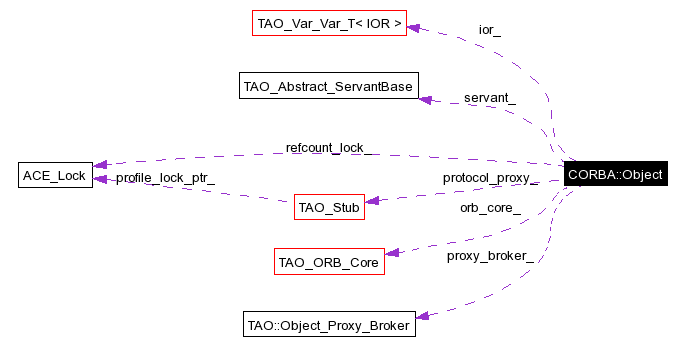

Collaboration diagram for CORBA::Object:

Collaboration graph
[legend]
List of all members.

Spec defined methods

virtual CORBA::Boolean _is_a (const char *logical_type_id ACE_ENV_ARG_DECL_WITH_DEFAULTS)
 Determine if we are of the type specified by the "logical_type_id".
virtual const char * _interface_repository_id (void) const
virtual CORBA::ULong _hash (CORBA::ULong maximum ACE_ENV_ARG_DECL_WITH_DEFAULTS)
virtual CORBA::Boolean _is_equivalent (CORBA::Object_ptr other_obj ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw ()
virtual CORBA::Boolean _non_existent (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
 Determine if we are of the type specified by the "logical_type_id".
virtual CORBA::ImplementationDef_ptr _get_implementation (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
virtual InterfaceDef_ptr _get_interface (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
 Get info about the object from the Interface Repository.
virtual CORBA::Object_ptr _get_component (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
 Get info about the object from the Interface Repository.
virtual char * _repository_id (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
 Get the repository id.
virtual void _create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::Request_ptr &request, CORBA::Flags req_flags ACE_ENV_ARG_DECL_WITH_DEFAULTS)
 Determine if we are of the type specified by the "logical_type_id".
virtual void _create_request (CORBA::Context_ptr ctx, const char *operation, CORBA::NVList_ptr arg_list, CORBA::NamedValue_ptr result, CORBA::ExceptionList_ptr exclist, CORBA::ContextList_ptr ctxtlist, CORBA::Request_ptr &request, CORBA::Flags req_flags ACE_ENV_ARG_DECL_WITH_DEFAULTS)
 Determine if we are of the type specified by the "logical_type_id".
virtual CORBA::Request_ptr _request (const char *operation ACE_ENV_ARG_DECL_WITH_DEFAULTS)
 DII operation to create a request.
CORBA::Policy_ptr _get_policy (CORBA::PolicyType type ACE_ENV_ARG_DECL_WITH_DEFAULTS)
 Determine if we are of the type specified by the "logical_type_id".
CORBA::Policy_ptr _get_cached_policy (TAO_Cached_Policy_Type type ACE_ENV_ARG_DECL_WITH_DEFAULTS)
 Determine if we are of the type specified by the "logical_type_id".
CORBA::Object_ptr _set_policy_overrides (const CORBA::PolicyList &policies, CORBA::SetOverrideType set_add ACE_ENV_ARG_DECL_WITH_DEFAULTS)
 Determine if we are of the type specified by the "logical_type_id".
CORBA::PolicyList_get_policy_overrides (const CORBA::PolicyTypeSeq &types ACE_ENV_ARG_DECL_WITH_DEFAULTS)
 Determine if we are of the type specified by the "logical_type_id".
CORBA::Boolean _validate_connection (CORBA::PolicyList_out inconsistent_policies ACE_ENV_ARG_DECL_WITH_DEFAULTS)
 Determine if we are of the type specified by the "logical_type_id".
virtual CORBA::ORB_ptr _get_orb (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
 Determine if we are of the type specified by the "logical_type_id".
CORBA::Object_ptr _duplicate (CORBA::Object_ptr obj)
 Increment the ref count.
CORBA::Object_ptr _nil (void)
 Return a NULL object.
CORBA::Object_ptr _narrow (CORBA::Object_ptr obj ACE_ENV_ARG_DECL_WITH_DEFAULTS)
 No-op it is just here to simplify some templates.

Methods that are TAO specific.

These methods are defined here as helper functions to be used by other parts of TAO. Theoretically they shold all start with tao_. But we have deviated from that principle.

virtual TAO_Abstract_ServantBase_servant (void) const
virtual CORBA::Boolean _is_collocated (void) const
 Is this object collocated with the servant?
virtual CORBA::Boolean _is_local (void) const
 Is this a local object?
virtual TAO::ObjectKey_key (ACE_ENV_SINGLE_ARG_DECL)
 Object (TAO_Stub *p, CORBA::Boolean collocated=0, TAO_Abstract_ServantBase *servant=0, TAO_ORB_Core *orb_core=0)
 Constructor.
 Object (IOP::IOR *ior, TAO_ORB_Core *orb_core=0)
virtual TAO_Stub_stubobj (void) const
 Get the underlying stub object.
virtual TAO_Stub_stubobj (void)
virtual void _proxy_broker (TAO::Object_Proxy_Broker *proxy_broker)
 Set the proxy broker.
virtual CORBA::Boolean marshal (TAO_OutputCDR &cdr)
 Allows us to forbid marshaling of local interfaces.
CORBA::Boolean is_evaluated (void) const
 Accessor to the flag..
void set_collocated_servant (TAO_Abstract_ServantBase *)
 Mutator for setting the servant in collocated cases.
TAO_ORB_Coreorb_core (void) const
 Accessor for the ORB_Core..
IOP::IORsteal_ior (void)
 Accessors for the underlying IOP::IOR's.
const IOP::IORior (void) const
CORBA::Boolean marshal (Object_ptr obj, TAO_OutputCDR &strm)
void _tao_any_destructor (void *)
 Used in the implementation of CORBA::Any.
CORBA::Boolean is_nil_i (CORBA::Object_ptr obj)
 Uninlined part of the now-inlined CORBA::is_nil().
void tao_object_initialize (Object *)
 Helper function for reading contents of an IOR.

Public Types

typedef Object_ptr _ptr_type
typedef Object_var _var_type

Public Member Functions

virtual ~Object (void)
 Destructor.
Reference Count Managment
These are the standard CORBA object reference count manipulations methods.

virtual void _add_ref (void)
 Increment the reference count.
virtual void _remove_ref (void)
 Decrement the reference count.

Protected Member Functions

 Object (int dummy=0)
 Initializing a local object.

Protected Attributes

TAO_Abstract_ServantBaseservant_
 Servant pointer. It is 0 except for collocated objects.

Private Member Functions

 Object (const Object &)
Objectoperator= (const Object &)

Private Attributes

TAO::Object_Proxy_Brokerproxy_broker_
 Pointer to the Proxy Broker.
CORBA::Boolean is_collocated_
CORBA::Boolean is_local_
 Specify whether this is a local object or not.
CORBA::Boolean is_evaluated_
 Flag to indicate whether the IOP::IOR has been evaluated fully.
IOP::IOR_var ior_
TAO_ORB_Coreorb_core_
 Cached pointer of our ORB_Core.
TAO_Stubprotocol_proxy_
CORBA::ULong refcount_
 Number of outstanding references to this object.
ACE_Lockrefcount_lock_
 Protect reference count manipulation from race conditions.

Detailed Description

Implementation of a CORBA object reference.

All CORBA objects, both unconstrained and locality-constrained, inherit from this class. The interface is defined in the CORBA specification and the C++ mapping.


Member Typedef Documentation

typedef Object_ptr CORBA::Object::_ptr_type


Reimplemented in CORBA::Current, CORBA::DomainManager, CORBA::ConstructionPolicy, CORBA::LocalObject, PortableInterceptor::Current, CORBA::Policy, CORBA::PolicyManager, CORBA::PolicyCurrent, and TAO::BufferingConstraintPolicy.

typedef Object_var CORBA::Object::_var_type


Reimplemented in CORBA::Current, CORBA::DomainManager, CORBA::ConstructionPolicy, CORBA::LocalObject, PortableInterceptor::Current, CORBA::Policy, CORBA::PolicyManager, CORBA::PolicyCurrent, and TAO::BufferingConstraintPolicy.


Constructor & Destructor Documentation

CORBA::Object::~Object void   )  [virtual]


Destructor.

CORBA::Object::Object TAO_Stub protocol_proxy,
CORBA::Boolean  collocated = 0,
TAO_Abstract_ServantBase servant = 0,
TAO_ORB_Core orb_core = 0


Constructor.

This constructor should not be called when the protocol proxy is null ie. when the object is a LocalObject. Assert that requirement.

CORBA::Object::Object IOP::IOR ior,
TAO_ORB_Core orb_core = 0


ACE_INLINE CORBA::Object::Object int  dummy = 0  )  [protected]


Initializing a local object.

CORBA::Object::Object const Object  )  [private]



Member Function Documentation

void CORBA::Object::_add_ref void   )  [virtual]


Increment the reference count.

Reimplemented in CORBA::LocalObject, and TAO_Local_RefCounted_Object.

void CORBA::Object::_create_request CORBA::Context_ptr  ctx,
const char *  operation,
CORBA::NVList_ptr  arg_list,
CORBA::NamedValue_ptr  result,
CORBA::ExceptionList_ptr  exclist,
CORBA::ContextList_ptr  ctxtlist,
CORBA::Request_ptr request,
CORBA::Flags req_flags  ACE_ENV_ARG_DECL_WITH_DEFAULTS
[virtual]


Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

void CORBA::Object::_create_request CORBA::Context_ptr  ctx,
const char *  operation,
CORBA::NVList_ptr  arg_list,
CORBA::NamedValue_ptr  result,
CORBA::Request_ptr request,
CORBA::Flags req_flags  ACE_ENV_ARG_DECL_WITH_DEFAULTS
[virtual]


Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

ACE_INLINE CORBA::Object_ptr CORBA::Object::_duplicate CORBA::Object_ptr  obj  )  [static]


Increment the ref count.

CORBA::Policy_ptr CORBA::Object::_get_cached_policy TAO_Cached_Policy_Type type  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )


Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

CORBA::Object_ptr CORBA::Object::_get_component ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  [virtual]


Get info about the object from the Interface Repository.

Reimplemented in CORBA::LocalObject.

virtual CORBA::ImplementationDef_ptr CORBA::Object::_get_implementation ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  [virtual]


This method is deprecated in the CORBA 2.2 spec, we just return 0 every time.

Reimplemented in CORBA::LocalObject.

CORBA::InterfaceDef_ptr CORBA::Object::_get_interface ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  [virtual]


Get info about the object from the Interface Repository.

Reimplemented in CORBA::LocalObject.

CORBA::ORB_ptr CORBA::Object::_get_orb ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  [virtual]


Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject, and TAO::PICurrent.

CORBA::Policy_ptr CORBA::Object::_get_policy CORBA::PolicyType type  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )


Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

CORBA::PolicyList * CORBA::Object::_get_policy_overrides const CORBA::PolicyTypeSeq &types  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )


Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

CORBA::ULong CORBA::Object::_hash CORBA::ULong maximum  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  [virtual]


Return a (potentially non-unique) hash value for this object. This method relies on the representation of the object reference's private state. Since that changes easily (when different ORB protocols are in use) there is no default implementation.

Reimplemented in CORBA::LocalObject.

const char * CORBA::Object::_interface_repository_id void   )  const [virtual]


The repository ID for the most derived class, this is an implementation method and does no remote invocations!

Reimplemented in CORBA::Current, CORBA::DomainManager, CORBA::ConstructionPolicy, PortableInterceptor::Current, CORBA::Policy, CORBA::PolicyManager, CORBA::PolicyCurrent, and TAO::BufferingConstraintPolicy.

virtual CORBA::Boolean CORBA::Object::_is_a const char *logical_type_id  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  [virtual]


Determine if we are of the type specified by the "logical_type_id".

CORBA::Boolean CORBA::Object::_is_collocated void   )  const [virtual]


Is this object collocated with the servant?

CORBA::Boolean CORBA::Object::_is_equivalent CORBA::Object_ptr other_obj  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw () [virtual]


Try to determine if this object is the same as other_obj. This method relies on the representation of the object reference's private state. Since that changes easily (when different ORB protocols are in use) there is no default implementation.

Reimplemented in CORBA::LocalObject.

CORBA::Boolean CORBA::Object::_is_local void   )  const [virtual]


Is this a local object?

TAO::ObjectKey * CORBA::Object::_key ACE_ENV_SINGLE_ARG_DECL   )  [virtual]


Return the object key as an out parameter. Caller should release return value when finished with it.

Reimplemented in CORBA::LocalObject.

ACE_INLINE CORBA::Object_ptr CORBA::Object::_narrow CORBA::Object_ptr obj  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  [static]


No-op it is just here to simplify some templates.

Reimplemented in CORBA::Current, CORBA::DomainManager, CORBA::ConstructionPolicy, CORBA::LocalObject, PortableInterceptor::Current, CORBA::Policy, CORBA::PolicyManager, CORBA::PolicyCurrent, and TAO::BufferingConstraintPolicy.

ACE_INLINE CORBA::Object_ptr CORBA::Object::_nil void   )  [static]


Return a NULL object.

Reimplemented in CORBA::Current, CORBA::DomainManager, CORBA::ConstructionPolicy, CORBA::LocalObject, PortableInterceptor::Current, CORBA::Policy, CORBA::PolicyManager, CORBA::PolicyCurrent, and TAO::BufferingConstraintPolicy.

CORBA::Boolean CORBA::Object::_non_existent ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  [virtual]


Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

void CORBA::Object::_proxy_broker TAO::Object_Proxy_Broker proxy_broker  )  [virtual]


Set the proxy broker.

void CORBA::Object::_remove_ref void   )  [virtual]


Decrement the reference count.

Reimplemented in CORBA::LocalObject, and TAO_Local_RefCounted_Object.

char * CORBA::Object::_repository_id ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  [virtual]


Get the repository id.

Reimplemented in CORBA::LocalObject.

CORBA::Request_ptr CORBA::Object::_request const char *operation  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  [virtual]


DII operation to create a request.

Reimplemented in CORBA::LocalObject.

TAO_Abstract_ServantBase * CORBA::Object::_servant void   )  const [virtual]


CORBA::Object_ptr CORBA::Object::_set_policy_overrides const CORBA::PolicyList policies,
CORBA::SetOverrideType set_add  ACE_ENV_ARG_DECL_WITH_DEFAULTS


Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

TAO_Stub * CORBA::Object::_stubobj void   )  [virtual]


TAO_Stub * CORBA::Object::_stubobj void   )  const [virtual]


Get the underlying stub object.

void CORBA::Object::_tao_any_destructor void *   )  [static]


Used in the implementation of CORBA::Any.

Reimplemented in CORBA::Current, CORBA::DomainManager, CORBA::ConstructionPolicy, PortableInterceptor::Current, CORBA::Policy, CORBA::PolicyManager, CORBA::PolicyCurrent, and TAO::BufferingConstraintPolicy.

CORBA::Boolean CORBA::Object::_validate_connection CORBA::PolicyList_out inconsistent_policies  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )


Determine if we are of the type specified by the "logical_type_id".

Reimplemented in CORBA::LocalObject.

ACE_INLINE const IOP::IOR & CORBA::Object::ior void   )  const


ACE_INLINE CORBA::Boolean CORBA::Object::is_evaluated void   )  const


Accessor to the flag..

CORBA::Boolean CORBA::Object::is_nil_i CORBA::Object_ptr  obj  )  [static]


Uninlined part of the now-inlined CORBA::is_nil().

CORBA::Boolean CORBA::Object::marshal TAO_OutputCDR cdr  )  [virtual]


Allows us to forbid marshaling of local interfaces.

Reimplemented in CORBA::Current, CORBA::DomainManager, CORBA::ConstructionPolicy, PortableInterceptor::Current, CORBA::Policy, CORBA::PolicyManager, CORBA::PolicyCurrent, and TAO::BufferingConstraintPolicy.

CORBA::Boolean CORBA::Object::marshal Object_ptr  obj,
TAO_OutputCDR strm
[static]


Marshalling operator used by the stub code. A long story why the stub code uses this, let us keep it short here.

Object& CORBA::Object::operator= const Object  )  [private]


ACE_INLINE TAO_ORB_Core * CORBA::Object::orb_core void   )  const


Accessor for the ORB_Core..

ACE_INLINE void CORBA::Object::set_collocated_servant TAO_Abstract_ServantBase  )


Mutator for setting the servant in collocated cases.

This is used by the Object_Adapter to set the servant for collocated cases and only when the object is initialized. The object initialization takes place when IOR's are lazily evaluated.

ACE_INLINE IOP::IOR * CORBA::Object::steal_ior void   )


Accessors for the underlying IOP::IOR's.

The steal_ior () call basically relinquishes the ownership of the IOR. This is useful for cases when one wants to initialize a new CORBA Object

void CORBA::Object::tao_object_initialize Object  )  [static]


Helper function for reading contents of an IOR.


Member Data Documentation

IOP::IOR_var CORBA::Object::ior_ [private]


If the IOR hasnt been evaluated fully, then the contents of the IOR that we received should be in here!

CORBA::Boolean CORBA::Object::is_collocated_ [private]


Flag to indicate collocation. It is 0 except for collocated objects.

CORBA::Boolean CORBA::Object::is_evaluated_ [private]


Flag to indicate whether the IOP::IOR has been evaluated fully.

CORBA::Boolean CORBA::Object::is_local_ [private]


Specify whether this is a local object or not.

TAO_ORB_Core* CORBA::Object::orb_core_ [private]


Cached pointer of our ORB_Core.

Be aware that this pointer can be zero or not. In fact there are two ways to get this pointer filled:

  • If CORBA::Object is constructed through one of the constructors with a stub and null ORB_Core, we use the orb_core from the stub to fill this pointer
  • If the other constructor, which uses IOP::IOR is used, a stub needs to be created first (i.e., the IOR needs to be evaluated first), in which case the ORB_Core would be null. The orb_core pointer then needs to be accessed from the stub and passed back as part of _get_orb().

Reimplemented in TAO::PICurrent.

TAO_Stub* CORBA::Object::protocol_proxy_ [private]


Pointer to the protocol-specific "object" containing important profiling information regarding this proxy. The protocol proxy is (potentially) shared among several Objects

TAO::Object_Proxy_Broker* CORBA::Object::proxy_broker_ [private]


Pointer to the Proxy Broker.

This cached pointer instance takes care of routing the call for standard calls in CORBA::Object like _is_a (), _get_component () etc.

CORBA::ULong CORBA::Object::refcount_ [private]


Number of outstanding references to this object.

Reimplemented in TAO_Local_RefCounted_Object.

ACE_Lock* CORBA::Object::refcount_lock_ [private]


Protect reference count manipulation from race conditions.

This lock is only instantiated for unconstrained objects. The reason for this is that locality-constrained objects that do not require reference counting (the default) may be instantiated in the critical path.

TAO_Abstract_ServantBase* CORBA::Object::servant_ [protected]


Servant pointer. It is 0 except for collocated objects.


The documentation for this class was generated from the following files:
Generated on Sat Aug 6 03:19:48 2005 for TAO by  doxygen 1.3.9.1
