ACE_Asynch_Read_Stream_Impl Class Reference

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Read_Stream. More...

#include <Asynch_IO_Impl.h>

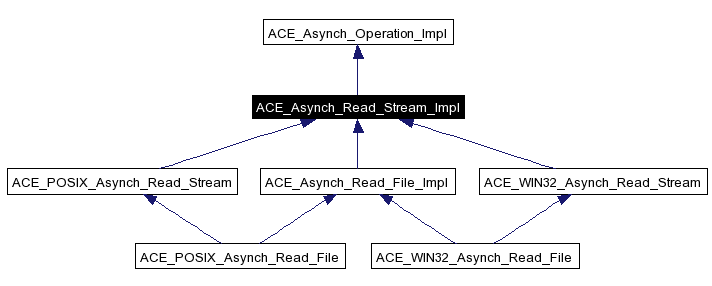

Inheritance diagram for ACE_Asynch_Read_Stream_Impl:

Inheritance graph
[legend]
Collaboration diagram for ACE_Asynch_Read_Stream_Impl:

Collaboration graph
[legend]
List of all members.

Public Member Functions

virtual ~ACE_Asynch_Read_Stream_Impl (void)
virtual int read (ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, int priority, int signal_number)=0
virtual int readv (ACE_Message_Block &message_block, size_t bytes_to_read, const void *act, int priority, int signal_number)=0

Protected Member Functions

 ACE_Asynch_Read_Stream_Impl (void)
 Do-nothing constructor.

Detailed Description

Abstract base class for all the concrete implementation classes that provide different implementations for the ACE_Asynch_Read_Stream.


Constructor & Destructor Documentation

ACE_Asynch_Read_Stream_Impl::~ACE_Asynch_Read_Stream_Impl void   )  [virtual]


ACE_INLINE ACE_Asynch_Read_Stream_Impl::ACE_Asynch_Read_Stream_Impl void   )  [protected]


Do-nothing constructor.


Member Function Documentation

virtual int ACE_Asynch_Read_Stream_Impl::read ACE_Message_Block message_block,
size_t  bytes_to_read,
const void *  act,
int  priority,
int  signal_number
[pure virtual]


This starts off an asynchronous read. Upto <bytes_to_read> will be read and stored in the <message_block>.

Implemented in ACE_Asynch_Read_File_Impl, ACE_POSIX_Asynch_Read_Stream, ACE_POSIX_Asynch_Read_File, ACE_WIN32_Asynch_Read_Stream, and ACE_WIN32_Asynch_Read_File.

virtual int ACE_Asynch_Read_Stream_Impl::readv ACE_Message_Block message_block,
size_t  bytes_to_read,
const void *  act,
int  priority,
int  signal_number
[pure virtual]


Same as above but with scatter support, through chaining of composite message blocks using the continuation field.

Implemented in ACE_Asynch_Read_File_Impl, ACE_WIN32_Asynch_Read_Stream, and ACE_WIN32_Asynch_Read_File.


The documentation for this class was generated from the following files:
