TAO_Notify_Buffering_Strategy Class Reference

Base Strategy to enqueue and dequeue items from a Message Queue. More...

#include <Buffering_Strategy.h>

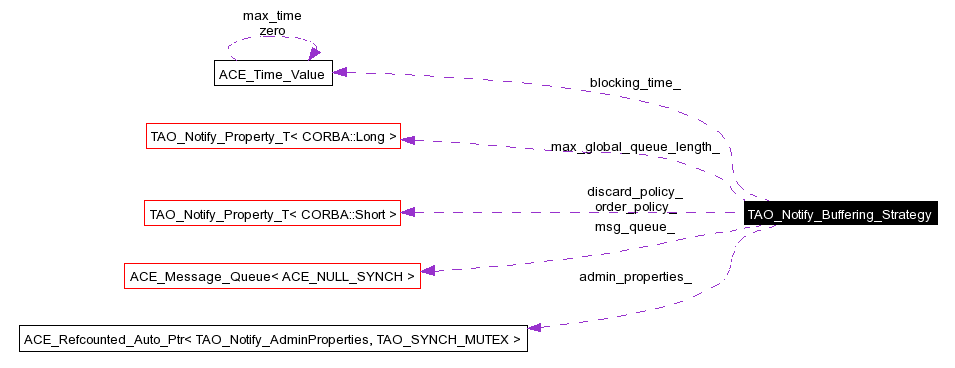

Collaboration diagram for TAO_Notify_Buffering_Strategy:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_Notify_Buffering_Strategy (TAO_Notify_Message_Queue &msg_queue, TAO_Notify_AdminProperties_var &admin_properties, CORBA::Long batch_size)
 Constuctor.
 ~TAO_Notify_Buffering_Strategy ()
 Destructor.
void update_qos_properties (const TAO_Notify_QoSProperties &qos_properties)
int enqueue (TAO_Notify_Method_Request_Queueable &method_request)
int dequeue (TAO_Notify_Method_Request_Queueable *&method_request, const ACE_Time_Value *abstime)
void shutdown (void)
 Shutdown.
void batch_size (CORBA::Long batch_size)
 Set the new batch size.
CORBA::Long batch_size (void)
 Obtain our batch size.
void max_local_queue_length (CORBA::Long length)
 Set the max local queue length.

Protected Member Functions

int queue (TAO_Notify_Method_Request_Queueable &method_request)
 Apply the Order Policy and queue. return -1 on error.
int discard (void)
 Discard as per the Discard Policy.

Protected Attributes

TAO_Notify_Message_Queuemsg_queue_
 = Data Members The local Message Queue
TAO_Notify_AdminProperties_var admin_properties_
 Reference to the properties per event channel.
ACE_SYNCH_MUTEXglobal_queue_lock_
 The shared global lock used by all the queues.
ACE_SYNCH_CONDITIONglobal_queue_not_full_condition_
 The shared Condition for global queue not full.
CORBA::Longglobal_queue_length_
 The global queue length - queue length accross all the queues.
const TAO_Notify_Property_Longmax_global_queue_length_
 The maximum events that can be queued overall.
CORBA::Long max_local_queue_length_
 The maximum queue length for the local queue.
TAO_Notify_Property_Short order_policy_
 Order of events in internal buffers.
TAO_Notify_Property_Short discard_policy_
 Policy to discard when buffers are full.
int use_discarding_
 Flag that we should use discarding(1) or blocking (0).
ACE_Time_Value blocking_time_
ACE_SYNCH_CONDITION local_queue_not_full_condition_
 Condition that the local queue is not full.
CORBA::Long batch_size_
 The batch size that we want to monitor for dequeuing.
ACE_SYNCH_CONDITION batch_size_reached_condition_
 Condition that batch size reached.
int shutdown_
 Flag to shutdown.

Detailed Description

Base Strategy to enqueue and dequeue items from a Message Queue.


Constructor & Destructor Documentation

TAO_Notify_Buffering_Strategy::TAO_Notify_Buffering_Strategy TAO_Notify_Message_Queue msg_queue,
TAO_Notify_AdminProperties_var admin_properties,
CORBA::Long  batch_size


Constuctor.

TAO_Notify_Buffering_Strategy::~TAO_Notify_Buffering_Strategy  )


Destructor.


Member Function Documentation

CORBA::Long TAO_Notify_Buffering_Strategy::batch_size void   )


Obtain our batch size.

void TAO_Notify_Buffering_Strategy::batch_size CORBA::Long  batch_size  )


Set the new batch size.

int TAO_Notify_Buffering_Strategy::dequeue TAO_Notify_Method_Request_Queueable *&  method_request,
const ACE_Time_Value abstime


Dequeue batch. This method will block for abstime if non-zero or else blocks till an item is available. Return -1 on error or if nothing is available, else the number of items actually dequeued (1).

int TAO_Notify_Buffering_Strategy::discard void   )  [protected]


Discard as per the Discard Policy.

int TAO_Notify_Buffering_Strategy::enqueue TAO_Notify_Method_Request_Queueable method_request  )


Enqueue according the enqueing strategy. Return -1 on error else the number of items in the queue.

void TAO_Notify_Buffering_Strategy::max_local_queue_length CORBA::Long  length  )


Set the max local queue length.

int TAO_Notify_Buffering_Strategy::queue TAO_Notify_Method_Request_Queueable method_request  )  [protected]


Apply the Order Policy and queue. return -1 on error.

void TAO_Notify_Buffering_Strategy::shutdown void   )


Shutdown.

void TAO_Notify_Buffering_Strategy::update_qos_properties const TAO_Notify_QoSProperties qos_properties  )


Update state with the following QoS Properties: Order Policy Discard Policy MaxEventsPerConsumer TAO_Notify_Extensions::BlockingPolicy


Member Data Documentation

TAO_Notify_AdminProperties_var TAO_Notify_Buffering_Strategy::admin_properties_ [protected]


Reference to the properties per event channel.

CORBA::Long TAO_Notify_Buffering_Strategy::batch_size_ [protected]


The batch size that we want to monitor for dequeuing.

ACE_SYNCH_CONDITION TAO_Notify_Buffering_Strategy::batch_size_reached_condition_ [protected]


Condition that batch size reached.

ACE_Time_Value TAO_Notify_Buffering_Strategy::blocking_time_ [protected]


The blocking timeout will be used in place of discarding This is a TAO specific extension.

TAO_Notify_Property_Short TAO_Notify_Buffering_Strategy::discard_policy_ [protected]


Policy to discard when buffers are full.

CORBA::Long& TAO_Notify_Buffering_Strategy::global_queue_length_ [protected]


The global queue length - queue length accross all the queues.

ACE_SYNCH_MUTEX& TAO_Notify_Buffering_Strategy::global_queue_lock_ [protected]


The shared global lock used by all the queues.

ACE_SYNCH_CONDITION& TAO_Notify_Buffering_Strategy::global_queue_not_full_condition_ [protected]


The shared Condition for global queue not full.

ACE_SYNCH_CONDITION TAO_Notify_Buffering_Strategy::local_queue_not_full_condition_ [protected]


Condition that the local queue is not full.

const TAO_Notify_Property_Long& TAO_Notify_Buffering_Strategy::max_global_queue_length_ [protected]


The maximum events that can be queued overall.

CORBA::Long TAO_Notify_Buffering_Strategy::max_local_queue_length_ [protected]


The maximum queue length for the local queue.

TAO_Notify_Message_Queue& TAO_Notify_Buffering_Strategy::msg_queue_ [protected]


= Data Members The local Message Queue

TAO_Notify_Property_Short TAO_Notify_Buffering_Strategy::order_policy_ [protected]


Order of events in internal buffers.

int TAO_Notify_Buffering_Strategy::shutdown_ [protected]


Flag to shutdown.

int TAO_Notify_Buffering_Strategy::use_discarding_ [protected]


Flag that we should use discarding(1) or blocking (0).


The documentation for this class was generated from the following files:
