TAO_Notify_QoSProperties Class Reference

#include <QoSProperties.h>

Inheritance diagram for TAO_Notify_QoSProperties:

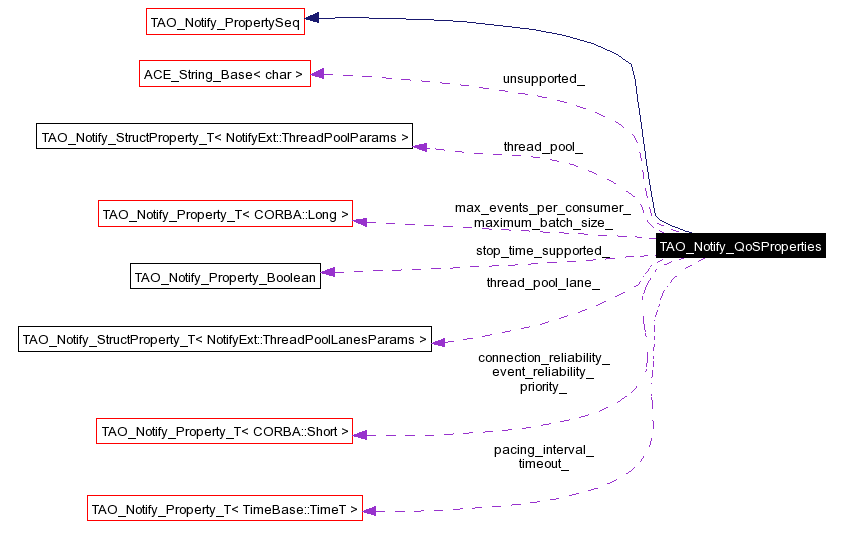

[legend]Collaboration diagram for TAO_Notify_QoSProperties:

[legend]List of all members.

Public Member Functions
	TAO_Notify_QoSProperties (void)
	Constuctor.
	~TAO_Notify_QoSProperties ()
	Destructor.
int	init (const CosNotification::PropertySeq &prop_seq, CosNotification::PropertyErrorSeq &err_seq)
	Return 0 on success, 1 if unsupported properties were detected and -1 on error.
void	init ()
	This version initializes the base from our members.
int	copy (TAO_Notify_QoSProperties &qos_properties)
	Populate <qos_properties> with all properties from this object. Returns -1 on error.
int	transfer (TAO_Notify_QoSProperties &qos_properties)
	Populate <qos_properties> with properties that can be transfered.Returns -1 on error.
const TAO_Notify_Property_ThreadPool &	thread_pool (void) const
const TAO_Notify_Property_ThreadPoolLanes &	thread_pool_lane (void) const
	ThreadPoolLane.
const TAO_Notify_Property_Long &	maximum_batch_size (void) const
	Maximum Batch Size.
const TAO_Notify_Property_Time &	pacing_interval (void) const
	Pacing Interval.
const TAO_Notify_Property_Short &	event_reliability (void) const
	= Accessors
const TAO_Notify_Property_Short &	connection_reliability (void) const
const TAO_Notify_Property_Short &	priority (void) const
const TAO_Notify_Property_Time &	timeout (void) const
const TAO_Notify_Property_Boolean &	stop_time_supported (void) const
const TAO_Notify_Property_Long &	max_events_per_consumer (void) const
TAO_Notify_Property_Short &	event_reliability (void)
TAO_Notify_Property_Short &	connection_reliability (void)
TAO_Notify_Property_Short &	priority (void)
TAO_Notify_Property_Time &	timeout (void)
TAO_Notify_Property_Boolean &	stop_time_supported (void)
TAO_Notify_Property_Long &	maximum_batch_size (void)
TAO_Notify_Property_Time &	pacing_interval (void)
TAO_Notify_Property_Long &	max_events_per_consumer (void)
Protected Types
enum	{ UNSUPPORTED_PROPERTY_COUNT = 1 }
Protected Member Functions
int	unsupported (ACE_CString &name)
	Return 1 if <value> is unsupported.
Protected Attributes
ACE_CString	unsupported_ [UNSUPPORTED_PROPERTY_COUNT]
	= Unsupported Properties.
TAO_Notify_Property_Short	event_reliability_
	= Supported properties Event Reliability
TAO_Notify_Property_Short	connection_reliability_
	Connection Reliability.
TAO_Notify_Property_Short	priority_
	Priority.
TAO_Notify_Property_Time	timeout_
	Timeout.
TAO_Notify_Property_Boolean	stop_time_supported_
	Stop Time Supported.
TAO_Notify_Property_Long	maximum_batch_size_
	Maximum Batch Size.
TAO_Notify_Property_Long	max_events_per_consumer_
	Maximum Events (queue length) Per Consumer.
TAO_Notify_Property_Time	pacing_interval_
	Pacing Interval.
TAO_Notify_Property_ThreadPool	thread_pool_
	ThreadPool Params.
TAO_Notify_Property_ThreadPoolLanes	thread_pool_lane_
	ThreadPoolLane Params.

---

Member Enumeration Documentation

anonymous enum [protected]

Enumeration values: UNSUPPORTED_PROPERTY_COUNT

---

Constructor & Destructor Documentation

TAO_Notify_QoSProperties::TAO_Notify_QoSProperties (  void   )

Constuctor.

TAO_Notify_QoSProperties::~TAO_Notify_QoSProperties (   )

Destructor.

---

Member Function Documentation

TAO_Notify_Property_Short& TAO_Notify_QoSProperties::connection_reliability (  void   )

const TAO_Notify_Property_Short& TAO_Notify_QoSProperties::connection_reliability (  void   )  const

int TAO_Notify_QoSProperties::copy (  TAO_Notify_QoSProperties &  qos_properties  )

Populate <qos_properties> with all properties from this object. Returns -1 on error.

TAO_Notify_Property_Short& TAO_Notify_QoSProperties::event_reliability (  void   )

const TAO_Notify_Property_Short& TAO_Notify_QoSProperties::event_reliability (  void   )  const

= Accessors

void TAO_Notify_QoSProperties::init (   )

This version initializes the base from our members.

int TAO_Notify_QoSProperties::init (  const CosNotification::PropertySeq &  prop_seq, CosNotification::PropertyErrorSeq &  err_seq )

Return 0 on success, 1 if unsupported properties were detected and -1 on error.

TAO_Notify_Property_Long& TAO_Notify_QoSProperties::max_events_per_consumer (  void   )

const TAO_Notify_Property_Long& TAO_Notify_QoSProperties::max_events_per_consumer (  void   )  const

TAO_Notify_Property_Long& TAO_Notify_QoSProperties::maximum_batch_size (  void   )

const TAO_Notify_Property_Long& TAO_Notify_QoSProperties::maximum_batch_size (  void   )  const

Maximum Batch Size.

TAO_Notify_Property_Time& TAO_Notify_QoSProperties::pacing_interval (  void   )

const TAO_Notify_Property_Time& TAO_Notify_QoSProperties::pacing_interval (  void   )  const

Pacing Interval.

TAO_Notify_Property_Short& TAO_Notify_QoSProperties::priority (  void   )

const TAO_Notify_Property_Short& TAO_Notify_QoSProperties::priority (  void   )  const

TAO_Notify_Property_Boolean& TAO_Notify_QoSProperties::stop_time_supported (  void   )

const TAO_Notify_Property_Boolean& TAO_Notify_QoSProperties::stop_time_supported (  void   )  const

const TAO_Notify_Property_ThreadPool& TAO_Notify_QoSProperties::thread_pool (  void   )  const

= Accessors ThreadPool

const TAO_Notify_Property_ThreadPoolLanes& TAO_Notify_QoSProperties::thread_pool_lane (  void   )  const

ThreadPoolLane.

TAO_Notify_Property_Time& TAO_Notify_QoSProperties::timeout (  void   )

const TAO_Notify_Property_Time& TAO_Notify_QoSProperties::timeout (  void   )  const

int TAO_Notify_QoSProperties::transfer (  TAO_Notify_QoSProperties &  qos_properties  )

Populate <qos_properties> with properties that can be transfered.Returns -1 on error.

int TAO_Notify_QoSProperties::unsupported (  ACE_CString &  name  )  [protected]

Return 1 if <value> is unsupported.

---

Member Data Documentation

TAO_Notify_Property_Short TAO_Notify_QoSProperties::connection_reliability_ [protected]

Connection Reliability.

TAO_Notify_Property_Short TAO_Notify_QoSProperties::event_reliability_ [protected]

= Supported properties Event Reliability

TAO_Notify_Property_Long TAO_Notify_QoSProperties::max_events_per_consumer_ [protected]

Maximum Events (queue length) Per Consumer.

TAO_Notify_Property_Long TAO_Notify_QoSProperties::maximum_batch_size_ [protected]

Maximum Batch Size.

TAO_Notify_Property_Time TAO_Notify_QoSProperties::pacing_interval_ [protected]

Pacing Interval.

TAO_Notify_Property_Short TAO_Notify_QoSProperties::priority_ [protected]

Priority.

TAO_Notify_Property_Boolean TAO_Notify_QoSProperties::stop_time_supported_ [protected]

Stop Time Supported.

TAO_Notify_Property_ThreadPool TAO_Notify_QoSProperties::thread_pool_ [protected]

ThreadPool Params.

TAO_Notify_Property_ThreadPoolLanes TAO_Notify_QoSProperties::thread_pool_lane_ [protected]

ThreadPoolLane Params.

TAO_Notify_Property_Time TAO_Notify_QoSProperties::timeout_ [protected]

Timeout.

ACE_CString TAO_Notify_QoSProperties::unsupported_[UNSUPPORTED_PROPERTY_COUNT] [protected]

= Unsupported Properties.

---

The documentation for this class was generated from the following files:

• QoSProperties.h
• QoSProperties.cpp

---
