ACE_Local_WLock Class Reference

Class that acquires, renews, and releases a writer lock that is local to the process. More...

#include <Local_Tokens.h>

Inheritance diagram for ACE_Local_WLock:

Inheritance graph
[legend]

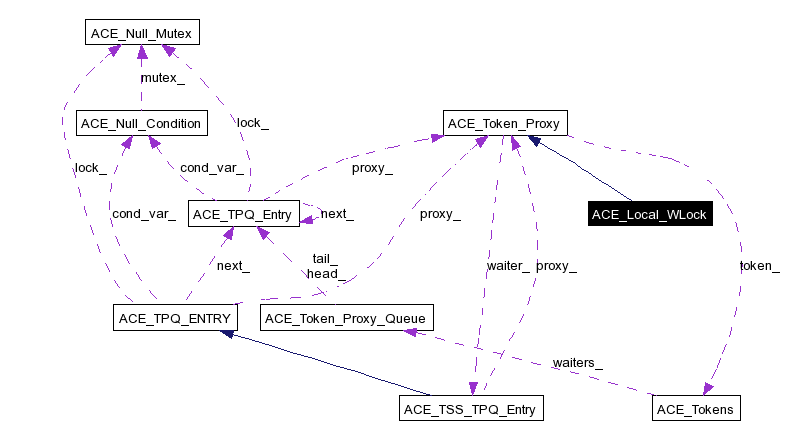

Collaboration diagram for ACE_Local_WLock:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Local_WLock (const ACE_TCHAR *token_name=0, int ignore_deadlock=0, int debug=0)
 ~ACE_Local_WLock (void)
 Destructor.
void dump (void) const
 Dump the state of the class.
virtual int type (void) const
 Returns ACE_RW_Token::WLOCK.
virtual ACE_Token_Proxyclone (void) const
 Return deep copy.

Protected Member Functions

ACE_Tokenscreate_token (const ACE_TCHAR *name)
 Return a new ACE_Local_Mutex.

Detailed Description

Class that acquires, renews, and releases a writer lock that is local to the process.

This class implements the writer interface to canonical readers/writer locks. Multiple readers can hold the lock simultaneously when no writers have the lock. Alternatively, when a writer holds the lock, no other participants (readers or writers) may hold the lock. This class is a more general-purpose synchronization mechanism than SunOS 5.x WLock. For example, it implements "recursive WLock" semantics, where a thread that owns the token can reacquire it without deadlocking. In addition, threads that are blocked awaiting the token are serviced in strict FIFO order as other threads release the token (SunOS 5.x WLocks don't strictly enforce an acquisition order). The interfaces for acquire, tryacquire, renew, release, etc. are defined in ACE_Token_Proxy. The semantics for ACE_Local_WLock are that of a readers/writers lock. Acquire for this class implies a writer acquisition. That is, only one client may hold the lock for writing.


Constructor & Destructor Documentation

ACE_Local_WLock::ACE_Local_WLock const ACE_TCHAR token_name = 0,
int  ignore_deadlock = 0,
int  debug = 0


Constructor.

Parameters:
token_name Uniquely id's the token.
ignore_deadlock Will allow deadlock to occur (useful for testing).
debug Prints a bunch of messages.

ACE_Local_WLock::~ACE_Local_WLock void   )


Destructor.


Member Function Documentation

virtual ACE_Token_Proxy* ACE_Local_WLock::clone void   )  const [virtual]


Return deep copy.

Implements ACE_Token_Proxy.

ACE_Tokens* ACE_Local_WLock::create_token const ACE_TCHAR name  )  [protected, virtual]


Return a new ACE_Local_Mutex.

Implements ACE_Token_Proxy.

void ACE_Local_WLock::dump void   )  const


Dump the state of the class.

Reimplemented from ACE_Token_Proxy.

virtual int ACE_Local_WLock::type void   )  const [virtual]


Returns ACE_RW_Token::WLOCK.

Reimplemented from ACE_Token_Proxy.


The documentation for this class was generated from the following file:
