ACE_Tokens Class Reference

Abstract representation of ACE tokens. More...

#include <Local_Tokens.h>

Inheritance diagram for ACE_Tokens:

Inheritance graph
[legend]

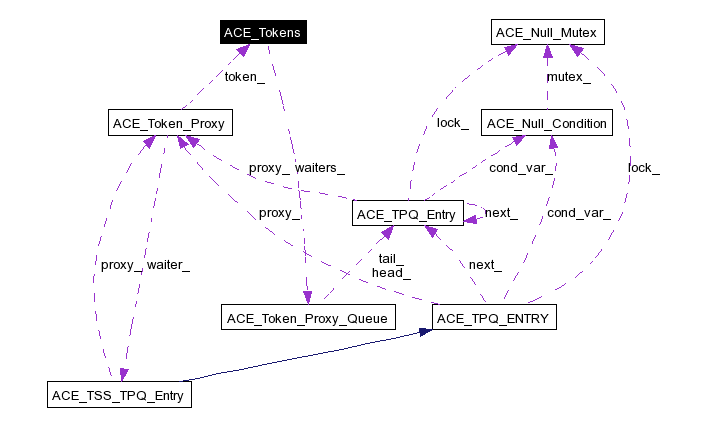

Collaboration diagram for ACE_Tokens:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Unbounded_Stack<
ACE_TPQ_Entry * >
OWNER_STACK
 Stack of owners.
enum  TOKEN_TYPES { MUTEX, RWLOCK }

Public Member Functions

 ACE_Tokens (void)
 Null constructor.
virtual ~ACE_Tokens (void)
 Destructor.
virtual int acquire (ACE_TPQ_Entry *caller, int ignore_deadlock, int notify)=0
 No implementation.
virtual int tryacquire (ACE_TPQ_Entry *caller)=0
 No implementation.
virtual int renew (ACE_TPQ_Entry *caller, int requeue_position)=0
 No implementation.
virtual int release (ACE_TPQ_Entry *caller)=0
 No implementation.
void make_owner (ACE_TPQ_Entry *caller)
void remove (ACE_TPQ_Entry *caller)
 Remove the caller from the waiter list.
virtual int owners (OWNER_STACK &o, const ACE_TCHAR *id)=0
virtual int is_waiting_for (const ACE_TCHAR *id)=0
 Returns 1 if <id> is waiting for this token. 0 otherwise.
virtual int is_owner (const ACE_TCHAR *id)=0
 Returns 1 if <id> is an owner of this token. 0 otherwise.
virtual ACE_Token_Proxy_Queuewaiters (void)
 Return the queue of waiters.
virtual int no_of_waiters (void)
const ACE_TCHARowner_id (void)
 The current owner.
const ACE_TCHARname (void)
 Token name.
void inc_reference (void)
int dec_reference (void)
void dump (void) const
 Dump the state of the class.
virtual int type (void) const =0
void visit (int v)
 Mark or unmark the token as visited.
int visited (void)
 Check if the token has been visited.
ACE_TPQ_Entryowner (void)
 All the data of the current owner.

Protected Attributes

int visited_
 For the deadlock detection algorithm.
int reference_count_
 Reference count.
ACE_Token_Proxy_Queue waiters_
 List of client's owning and waiting the token.
ACE_TCHAR token_name_ [ACE_MAXTOKENNAMELEN]
 Name of token.

Detailed Description

Abstract representation of ACE tokens.

Not a public interface. Currently, I don't see a reason for providing an abstract interface at this level of the library. As of yet, no one uses <ace_tokens> derivatives through this abstract interface except for <ace_token_manager>. It only uses the statistical methods which are shared by all Tokens. For that reason, it still makes since to have a common base class. However, acquire, renew, and release do not need to have matching interfaces throughout all Tokens. To add a new type of token (e.g. semaphore), this class must be subtyped to define the new semantics. See <ace_token_manager> for details.


Member Typedef Documentation

typedef ACE_Unbounded_Stack<ACE_TPQ_Entry *> ACE_Tokens::OWNER_STACK


Stack of owners.


Member Enumeration Documentation

enum ACE_Tokens::TOKEN_TYPES


These are the Token types supported by the library at ship time. There is no restriction on the number of Token types added by "3rd parties." These are only necessary for the Token Server.

Enumeration values:
MUTEX
RWLOCK


Constructor & Destructor Documentation

ACE_Tokens::ACE_Tokens void   )


Null constructor.

virtual ACE_Tokens::~ACE_Tokens void   )  [virtual]


Destructor.


Member Function Documentation

virtual int ACE_Tokens::acquire ACE_TPQ_Entry caller,
int  ignore_deadlock,
int  notify
[pure virtual]


No implementation.

Implemented in ACE_Mutex_Token, and ACE_RW_Token.

int ACE_Tokens::dec_reference void   )


void ACE_Tokens::dump void   )  const


Dump the state of the class.

Reimplemented in ACE_Mutex_Token, and ACE_RW_Token.

void ACE_Tokens::inc_reference void   )


virtual int ACE_Tokens::is_owner const ACE_TCHAR id  )  [pure virtual]


Returns 1 if <id> is an owner of this token. 0 otherwise.

Implemented in ACE_Mutex_Token, and ACE_RW_Token.

virtual int ACE_Tokens::is_waiting_for const ACE_TCHAR id  )  [pure virtual]


Returns 1 if <id> is waiting for this token. 0 otherwise.

Implemented in ACE_Mutex_Token, and ACE_RW_Token.

void ACE_Tokens::make_owner ACE_TPQ_Entry caller  )


Move the caller to the front of the waiter list. This is for use with remote mutexes and shadow mutexes.

const ACE_TCHAR* ACE_Tokens::name void   )


Token name.

virtual int ACE_Tokens::no_of_waiters void   )  [virtual]


Return the number of proxies that are currently waiting to get the token.

ACE_TPQ_Entry* ACE_Tokens::owner void   )


All the data of the current owner.

const ACE_TCHAR* ACE_Tokens::owner_id void   )


The current owner.

virtual int ACE_Tokens::owners OWNER_STACK o,
const ACE_TCHAR id
[pure virtual]


Returns a stack of the current owners. Returns -1 on error, 0 on success. If <id> is non-zero, returns 1 if id is an owner.

Implemented in ACE_Mutex_Token, and ACE_RW_Token.

virtual int ACE_Tokens::release ACE_TPQ_Entry caller  )  [pure virtual]


No implementation.

Implemented in ACE_Mutex_Token, and ACE_RW_Token.

void ACE_Tokens::remove ACE_TPQ_Entry caller  )


Remove the caller from the waiter list.

virtual int ACE_Tokens::renew ACE_TPQ_Entry caller,
int  requeue_position
[pure virtual]


No implementation.

Implemented in ACE_Mutex_Token, and ACE_RW_Token.

virtual int ACE_Tokens::tryacquire ACE_TPQ_Entry caller  )  [pure virtual]


No implementation.

Implemented in ACE_Mutex_Token, and ACE_RW_Token.

virtual int ACE_Tokens::type void   )  const [pure virtual]


Provides a manual RTTI mechanism. This method is used only by ACE_Token_Request so that the type of a token can be sent to a remote Token Server.

Implemented in ACE_Mutex_Token, and ACE_RW_Token.

void ACE_Tokens::visit int  v  )


Mark or unmark the token as visited.

int ACE_Tokens::visited void   )


Check if the token has been visited.

virtual ACE_Token_Proxy_Queue* ACE_Tokens::waiters void   )  [virtual]


Return the queue of waiters.


Member Data Documentation

int ACE_Tokens::reference_count_ [protected]


Reference count.

ACE_TCHAR ACE_Tokens::token_name_[ACE_MAXTOKENNAMELEN] [protected]


Name of token.

int ACE_Tokens::visited_ [protected]


For the deadlock detection algorithm.

ACE_Token_Proxy_Queue ACE_Tokens::waiters_ [protected]


List of client's owning and waiting the token.


The documentation for this class was generated from the following files:
