TAO_UIPMC_Transport Class Reference

Specialization of the base TAO_Transport class to handle the MIOP protocol. More...

#include <UIPMC_Transport.h>

Inheritance diagram for TAO_UIPMC_Transport:

Inheritance graph
[legend]

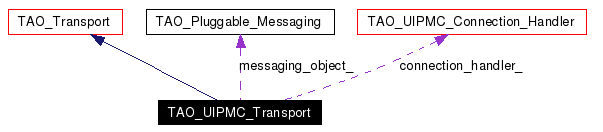

Collaboration diagram for TAO_UIPMC_Transport:

Collaboration graph
[legend]
List of all members.

Overridden Template Methods

These are implementations of template methods declared by TAO_Transport.

virtual int send_request (TAO_Stub *stub, TAO_ORB_Core *orb_core, TAO_OutputCDR &stream, int message_semantics, ACE_Time_Value *max_wait_time)
virtual int send_message (TAO_OutputCDR &stream, TAO_Stub *stub=0, int message_semantics=TAO_Transport::TAO_TWOWAY_REQUEST, ACE_Time_Value *max_time_wait=0)
virtual int messaging_init (CORBA::Octet major, CORBA::Octet minor)
 Initialising the messaging object.
virtual ACE_Event_Handlerevent_handler_i (void)
virtual TAO_Connection_Handlerconnection_handler_i (void)
virtual TAO_Pluggable_Messagingmessaging_object (void)
virtual ssize_t send (iovec *iov, int iovcnt, size_t &bytes_transferred, const ACE_Time_Value *max_wait_time)
 Write the complete Message_Block chain to the connection.
virtual ssize_t recv (char *buf, size_t len, const ACE_Time_Value *s=0)
 Read len bytes from into buf.
virtual int register_handler (void)

Public Member Functions

 TAO_UIPMC_Transport (TAO_UIPMC_Connection_Handler *handler, TAO_ORB_Core *orb_core, CORBA::Boolean flag)
 Constructor.
 ~TAO_UIPMC_Transport (void)
 Default destructor.
virtual int handle_input (TAO_Resume_Handle &rh, ACE_Time_Value *max_wait_time=0, int block=0)
 Look for the documentation in Transport.h.

Private Member Functions

int process_message (void)
 Process the message that we have read.
void write_unique_id (TAO_OutputCDR &miop_hdr, unsigned long unique)
 Construct and write a unique ID to the MIOP header.

Private Attributes

TAO_UIPMC_Connection_Handlerconnection_handler_
TAO_Pluggable_Messagingmessaging_object_
 Our messaging object.

Detailed Description

Specialization of the base TAO_Transport class to handle the MIOP protocol.


Constructor & Destructor Documentation

TAO_UIPMC_Transport::TAO_UIPMC_Transport TAO_UIPMC_Connection_Handler handler,
TAO_ORB_Core orb_core,
CORBA::Boolean  flag


Constructor.

TAO_UIPMC_Transport::~TAO_UIPMC_Transport void   )


Default destructor.


Member Function Documentation

TAO_Connection_Handler * TAO_UIPMC_Transport::connection_handler_i void   )  [protected, virtual]


@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

ACE_Event_Handler * TAO_UIPMC_Transport::event_handler_i void   )  [protected, virtual]


@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

int TAO_UIPMC_Transport::handle_input TAO_Resume_Handle rh,
ACE_Time_Value max_wait_time = 0,
int  block = 0
[virtual]


Look for the documentation in Transport.h.

Reimplemented from TAO_Transport.

int TAO_UIPMC_Transport::messaging_init CORBA::Octet  major,
CORBA::Octet  minor
[virtual]


Initialising the messaging object.

Implements TAO_Transport.

TAO_Pluggable_Messaging * TAO_UIPMC_Transport::messaging_object void   )  [protected, virtual]


@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

int TAO_UIPMC_Transport::process_message void   )  [private]


Process the message that we have read.

ssize_t TAO_UIPMC_Transport::recv char *  buf,
size_t  len,
const ACE_Time_Value s = 0
[protected, virtual]


Read len bytes from into buf.

Implements TAO_Transport.

int TAO_UIPMC_Transport::register_handler void   )  [protected, virtual]


@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Reimplemented from TAO_Transport.

ssize_t TAO_UIPMC_Transport::send iovec iov,
int  iovcnt,
size_t &  bytes_transferred,
const ACE_Time_Value max_wait_time
[protected, virtual]


Write the complete Message_Block chain to the connection.

Implements TAO_Transport.

int TAO_UIPMC_Transport::send_message TAO_OutputCDR stream,
TAO_Stub stub = 0,
int  message_semantics = TAO_Transport::TAO_TWOWAY_REQUEST,
ACE_Time_Value max_time_wait = 0
[virtual]


@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

int TAO_UIPMC_Transport::send_request TAO_Stub stub,
TAO_ORB_Core orb_core,
TAO_OutputCDR stream,
int  message_semantics,
ACE_Time_Value max_wait_time
[virtual]


@TODO: These methods IMHO should have more meaningful names. The names seem to indicate nothing.

Implements TAO_Transport.

void TAO_UIPMC_Transport::write_unique_id TAO_OutputCDR miop_hdr,
unsigned long  unique
[private]


Construct and write a unique ID to the MIOP header.


Member Data Documentation

TAO_UIPMC_Connection_Handler* TAO_UIPMC_Transport::connection_handler_ [private]


The connection service handler used for accessing lower layer communication protocols.

TAO_Pluggable_Messaging* TAO_UIPMC_Transport::messaging_object_ [private]


Our messaging object.


The documentation for this class was generated from the following files:
