TAO_Object_Adapter::Servant_Upcall Class Reference

This class finds out the POA and the servant to perform an upcall. It can only be instantiated without the object adapter's lock held. More...

#include <Object_Adapter.h>

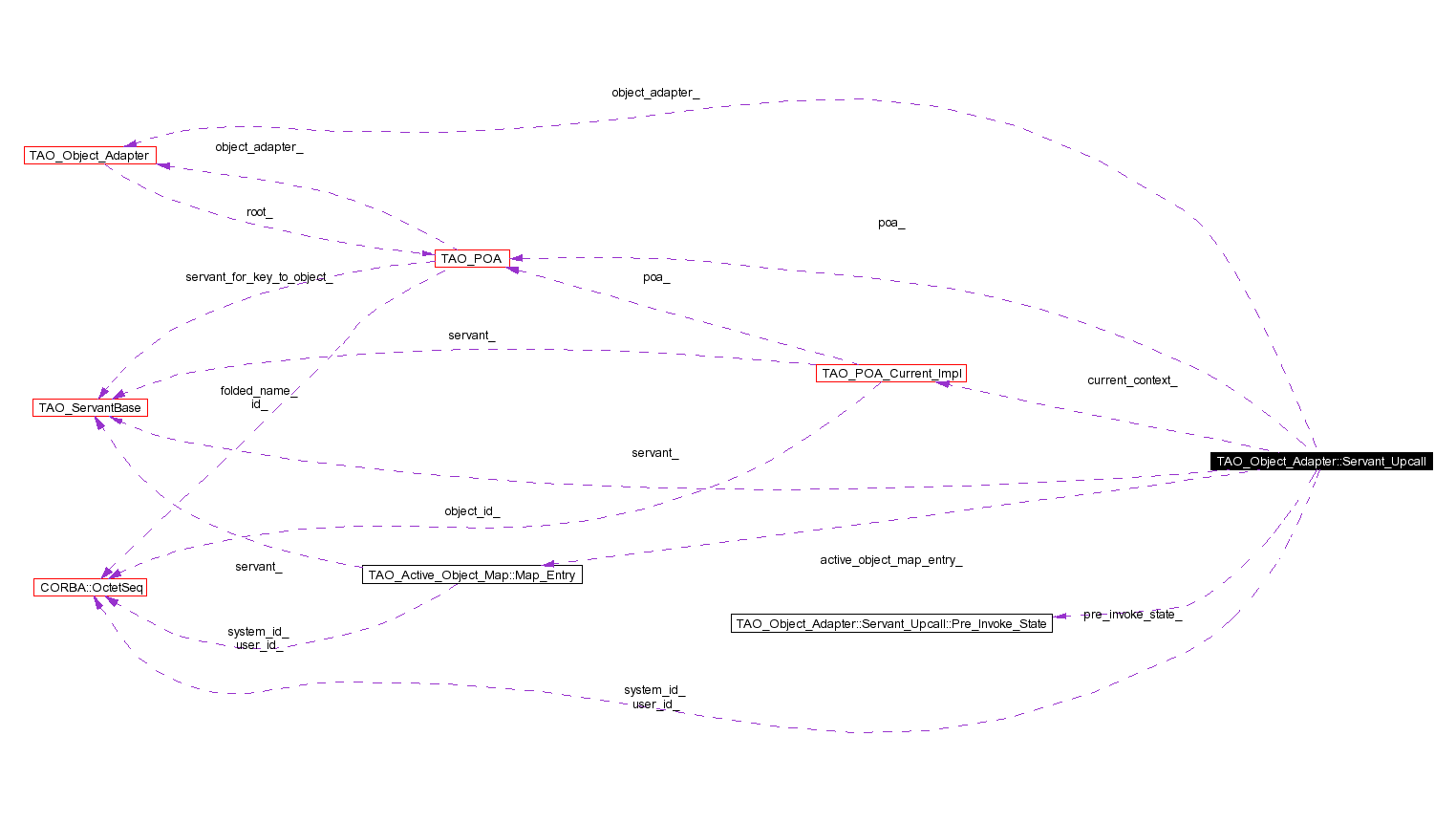

Collaboration diagram for TAO_Object_Adapter::Servant_Upcall:

[legend]List of all members.

Public Types
enum	State {   INITIAL_STAGE, OBJECT_ADAPTER_LOCK_ACQUIRED, POA_CURRENT_SETUP, OBJECT_ADAPTER_LOCK_RELEASED,   SERVANT_LOCK_ACQUIRED }
Public Methods
	Servant_Upcall (TAO_ORB_Core *orb_core)
	Constructor.
	~Servant_Upcall (void)
	Destructor.
int	prepare_for_upcall (const TAO::ObjectKey &key, const char *operation, CORBA::Object_out forward_to ACE_ENV_ARG_DECL_WITH_DEFAULTS)
	Locate POA and servant.
int	prepare_for_upcall_i (const TAO::ObjectKey &key, const char *operation, CORBA::Object_out forward_to, int &wait_occurred_restart_call ACE_ENV_ARG_DECL_WITH_DEFAULTS)
	Helper.
void	pre_invoke_remote_request (TAO_ServerRequest &req ACE_ENV_ARG_DECL)
	Run pre_invoke for a remote request.
void	pre_invoke_collocated_request (ACE_ENV_SINGLE_ARG_DECL)
	Run pre_invoke for a collocated request.
void	post_invoke (void)
	Run post_invoke for a request.
TAO_POA *	lookup_POA (const TAO::ObjectKey &key ACE_ENV_ARG_DECL)
	Locate POA.
TAO_POA &	poa (void) const
	POA accessor.
TAO_Object_Adapter &	object_adapter (void) const
	Object Adapter accessor.
const PortableServer::ObjectId &	id (void) const
	System ID accessor.
void	user_id (const PortableServer::ObjectId *)
const PortableServer::ObjectId &	user_id (void) const
PortableServer::Servant	servant (void) const
	Servant accessor.
PortableServer::ServantLocator::Cookie	locator_cookie (void) const
	Get the Servant Locator's cookie.
void	locator_cookie (PortableServer::ServantLocator::Cookie cookie)
	Set the Servant Locator's cookie.
const char *	operation (void) const
	Get the operation name.
void	operation (const char *)
	Set the operation name.
void	active_object_map_entry (TAO_Active_Object_Map::Map_Entry *entry)
	Set the <active_object_map_entry>.
TAO_Active_Object_Map::Map_Entry *	active_object_map_entry (void) const
	Get the <active_object_map_entry>.
void	using_servant_locator (void)
	We are using the servant locator for this upcall.
CORBA::Short	priority (void) const
	Get the priority for the current upcall.
State	state (void) const
void	state (State)
Protected Methods
void	servant_locator_cleanup (void)
void	single_threaded_poa_setup (ACE_ENV_SINGLE_ARG_DECL)
void	single_threaded_poa_cleanup (void)
void	servant_cleanup (void)
void	poa_cleanup (void)
void	upcall_cleanup (void)
	Clean-up / reset state of this Servant_Upcall object.
Protected Attributes
TAO_Object_Adapter *	object_adapter_
TAO_POA *	poa_
PortableServer::Servant	servant_
State	state_
PortableServer::ObjectId	system_id_
const PortableServer::ObjectId *	user_id_
TAO_POA_Current_Impl	current_context_
PortableServer::ServantLocator::Cookie	cookie_
	Servant Locator's cookie.
const char *	operation_
	Operation name for this current.
TAO_Active_Object_Map::Map_Entry *	active_object_map_entry_
int	using_servant_locator_
	Are we using the servant locator?
Pre_Invoke_State	pre_invoke_state_
	Preinvoke data for the upcall.
Private Methods
	Servant_Upcall (const Servant_Upcall &)
void	operator= (const Servant_Upcall &)
Friends
class	TAO_POA
class	TAO_RT_Collocation_Resolver

---

Detailed Description

This class finds out the POA and the servant to perform an upcall. It can only be instantiated without the object adapter's lock held.

---

Member Enumeration Documentation

enum TAO_Object_Adapter::Servant_Upcall::State

Enumeration values: INITIAL_STAGE  OBJECT_ADAPTER_LOCK_ACQUIRED  POA_CURRENT_SETUP  OBJECT_ADAPTER_LOCK_RELEASED  SERVANT_LOCK_ACQUIRED

---

Constructor & Destructor Documentation

TAO_Object_Adapter::Servant_Upcall::Servant_Upcall (  TAO_ORB_Core *    orb_core )

Constructor.

TAO_Object_Adapter::Servant_Upcall::~Servant_Upcall (  void    )

Destructor.

TAO_Object_Adapter::Servant_Upcall::Servant_Upcall (  const Servant_Upcall &    )  [private]

---

Member Function Documentation

ACE_INLINE TAO_Active_Object_Map::Map_Entry * TAO_Object_Adapter::Servant_Upcall::active_object_map_entry (  void    )  const

Get the <active_object_map_entry>.

ACE_INLINE void TAO_Object_Adapter::Servant_Upcall::active_object_map_entry (  TAO_Active_Object_Map::Map_Entry *    entry )

Set the <active_object_map_entry>.

ACE_INLINE const PortableServer::ObjectId & TAO_Object_Adapter::Servant_Upcall::id (  void    )  const

System ID accessor.

ACE_INLINE void TAO_Object_Adapter::Servant_Upcall::locator_cookie (  PortableServer::ServantLocator::Cookie    cookie )

Set the Servant Locator's cookie.

ACE_INLINE PortableServer::ServantLocator::Cookie TAO_Object_Adapter::Servant_Upcall::locator_cookie (  void    )  const

Get the Servant Locator's cookie.

TAO_POA * TAO_Object_Adapter::Servant_Upcall::lookup_POA (  const TAO::ObjectKey &key    ACE_ENV_ARG_DECL )

Locate POA.

ACE_INLINE TAO_Object_Adapter & TAO_Object_Adapter::Servant_Upcall::object_adapter (  void    )  const

Object Adapter accessor.

ACE_INLINE void TAO_Object_Adapter::Servant_Upcall::operation (  const char *    )

Set the operation name.

ACE_INLINE const char * TAO_Object_Adapter::Servant_Upcall::operation (  void    )  const

Get the operation name.

void TAO_Object_Adapter::Servant_Upcall::operator= (  const Servant_Upcall &    )  [private]

ACE_INLINE TAO_POA & TAO_Object_Adapter::Servant_Upcall::poa (  void    )  const

POA accessor.

void TAO_Object_Adapter::Servant_Upcall::poa_cleanup (  void    )  [protected]

void TAO_Object_Adapter::Servant_Upcall::post_invoke (  void    )

Run post_invoke for a request.

void TAO_Object_Adapter::Servant_Upcall::pre_invoke_collocated_request (  ACE_ENV_SINGLE_ARG_DECL    )

Run pre_invoke for a collocated request.

void TAO_Object_Adapter::Servant_Upcall::pre_invoke_remote_request (  TAO_ServerRequest &req    ACE_ENV_ARG_DECL )

Run pre_invoke for a remote request.

int TAO_Object_Adapter::Servant_Upcall::prepare_for_upcall (  const TAO::ObjectKey &    key, const char *    operation, CORBA::Object_out forward_to    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

Locate POA and servant.

int TAO_Object_Adapter::Servant_Upcall::prepare_for_upcall_i (  const TAO::ObjectKey &    key, const char *    operation, CORBA::Object_out    forward_to, int &wait_occurred_restart_call    ACE_ENV_ARG_DECL_WITH_DEFAULTS )

Helper.

ACE_INLINE CORBA::Short TAO_Object_Adapter::Servant_Upcall::priority (  void    )  const

Get the priority for the current upcall.

ACE_INLINE PortableServer::Servant TAO_Object_Adapter::Servant_Upcall::servant (  void    )  const

Servant accessor.

void TAO_Object_Adapter::Servant_Upcall::servant_cleanup (  void    )  [protected]

void TAO_Object_Adapter::Servant_Upcall::servant_locator_cleanup (  void    )  [protected]

void TAO_Object_Adapter::Servant_Upcall::single_threaded_poa_cleanup (  void    )  [protected]

void TAO_Object_Adapter::Servant_Upcall::single_threaded_poa_setup (  ACE_ENV_SINGLE_ARG_DECL    )  [protected]

ACE_INLINE void TAO_Object_Adapter::Servant_Upcall::state (  State    )

ACE_INLINE TAO_Object_Adapter::Servant_Upcall::State TAO_Object_Adapter::Servant_Upcall::state (  void    )  const

void TAO_Object_Adapter::Servant_Upcall::upcall_cleanup (  void    )  [protected]

Clean-up / reset state of this Servant_Upcall object.

ACE_INLINE const PortableServer::ObjectId & TAO_Object_Adapter::Servant_Upcall::user_id (  void    )  const

ACE_INLINE void TAO_Object_Adapter::Servant_Upcall::user_id (  const PortableServer::ObjectId *    )

User ID accessors. This is the same value returned by PortableServer::Current::get_object_id().

ACE_INLINE void TAO_Object_Adapter::Servant_Upcall::using_servant_locator (  void    )

We are using the servant locator for this upcall.

---

Friends And Related Function Documentation

friend class TAO_POA [friend]

friend class TAO_RT_Collocation_Resolver [friend]

---

Member Data Documentation

TAO_Active_Object_Map::Map_Entry* TAO_Object_Adapter::Servant_Upcall::active_object_map_entry_ [protected]

Pointer to the entry in the TAO_Active_Object_Map corresponding to the servant for this request.

PortableServer::ServantLocator::Cookie TAO_Object_Adapter::Servant_Upcall::cookie_ [protected]

Servant Locator's cookie.

TAO_POA_Current_Impl TAO_Object_Adapter::Servant_Upcall::current_context_ [protected]

TAO_Object_Adapter* TAO_Object_Adapter::Servant_Upcall::object_adapter_ [protected]

const char* TAO_Object_Adapter::Servant_Upcall::operation_ [protected]

Operation name for this current.

TAO_POA* TAO_Object_Adapter::Servant_Upcall::poa_ [protected]

Pre_Invoke_State TAO_Object_Adapter::Servant_Upcall::pre_invoke_state_ [protected]

Preinvoke data for the upcall.

PortableServer::Servant TAO_Object_Adapter::Servant_Upcall::servant_ [protected]

State TAO_Object_Adapter::Servant_Upcall::state_ [protected]

PortableServer::ObjectId TAO_Object_Adapter::Servant_Upcall::system_id_ [protected]

const PortableServer::ObjectId* TAO_Object_Adapter::Servant_Upcall::user_id_ [protected]

int TAO_Object_Adapter::Servant_Upcall::using_servant_locator_ [protected]

Are we using the servant locator?

---

The documentation for this class was generated from the following files:

• Object_Adapter.h
• Object_Adapter.cpp
• Object_Adapter.i

---
