TAO_ServerRequest Class Reference

Class representing a ServerRequest object. More...

#include <TAO_Server_Request.h>

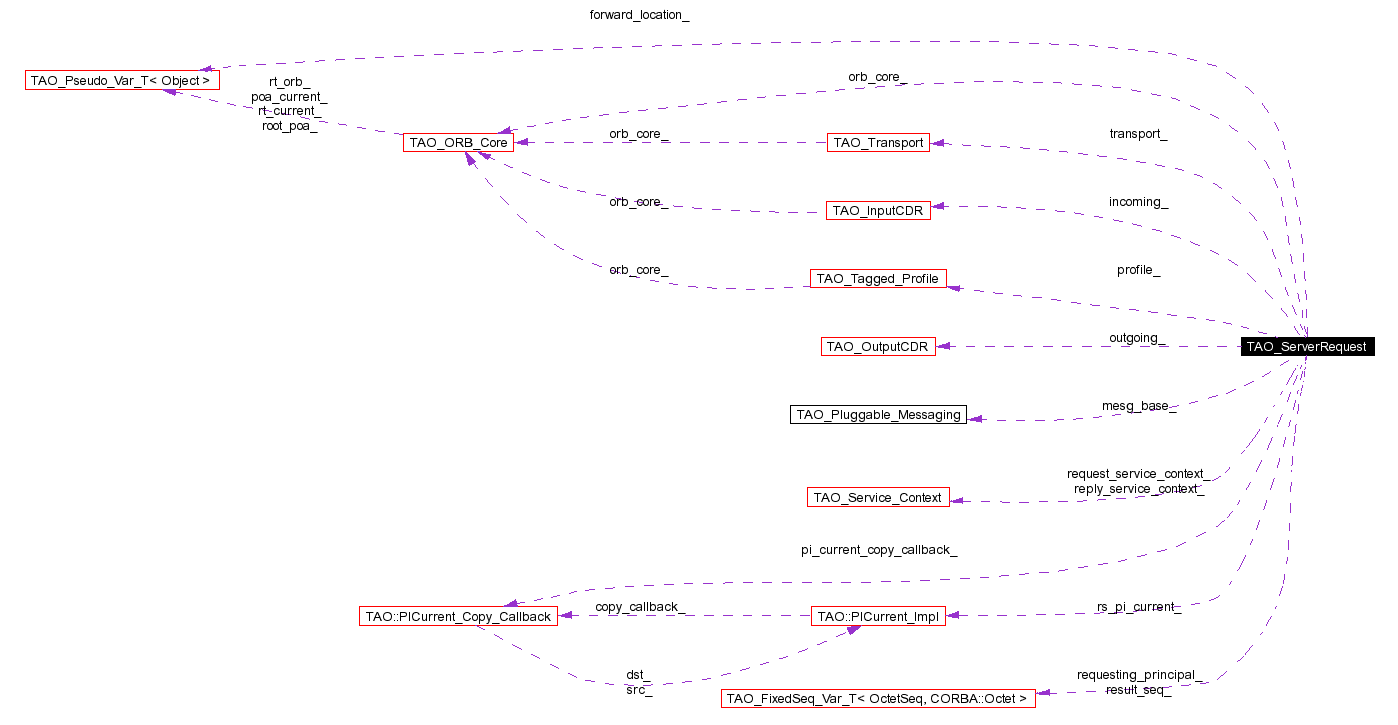

Collaboration diagram for TAO_ServerRequest:

[legend]List of all members.


Public Methods
	TAO_ServerRequest (TAO_Pluggable_Messaging mesg_base, TAO_InputCDR &input, TAO_OutputCDR &output, TAO_Transport transport, TAO_ORB_Core *orb_core)
	TAO_ServerRequest (TAO_Pluggable_Messaging mesg_base, CORBA::ULong request_id, CORBA::Boolean response_expected, CORBA::Boolean deferred_flag, TAO::ObjectKey &object_key, const char operation, TAO_OutputCDR &output, TAO_Transport transport, TAO_ORB_Core orb_core, int &parse_error)
virtual	~TAO_ServerRequest (void)
	Destructor.
CORBA::ORB_ptr	orb (void)
	Return the underlying ORB.
TAO_ORB_Core *	orb_core (void)
	Return the ORB core pointer member.
void	init_reply (void)
	Start a Reply message.
TAO_InputCDR &	incoming (void)
	Retrieve the incoming stream.
TAO_OutputCDR &	outgoing (void)
	Retrieve the outgoing stream.
CORBA::Boolean	response_expected (void) const
	Is the response expected?
CORBA::Boolean	deferred_reply (void) const
	Should the reply be deferred?
void	response_expected (CORBA::Boolean response)
	Set the response expected flag.
CORBA::Boolean	sync_with_server (void) const
	Should we return before dispatching the servant?
void	sync_with_server (CORBA::Boolean sync_flag)
	Set the sync_with_server flag.
void	send_no_exception_reply (void)
	Used with reliable oneway requests.
TAO::ObjectKey &	object_key (void)
TAO_Service_Context &	request_service_context (void)
	Return the TAO_Service_Context.
TAO_Service_Context &	reply_service_context (void)
TAO_Transport *	transport ()
	Return the underlying transport.
void	forward_location (CORBA::Object_ptr forward_reference)
CORBA::Object_ptr	forward_location (void)
	Get the forward_location.
CORBA::ULong	exception_type (void)
	Get the exception type.
void	exception_type (CORBA::ULong except_type)
	Set the exception type.
void	requesting_principal (const CORBA::OctetSeq &principal)
	Set the requesting principal.
TAO_Tagged_Profile &	profile (void)
	Return the reference to the tagged profile.
void	tao_send_reply (void)
void	tao_send_reply_exception (CORBA::Exception &)
void	is_dsi (void)
	Set the boolean member to 1.
void	dsi_nvlist_align (ptrdiff_t alignment)
	Set the member.
void	argument_flag (CORBA::Boolean flag)
	Get/Set operations for the argument_flag.
CORBA::Boolean	argument_flag (void)
void	send_cached_reply (CORBA::OctetSeq &ocs)
void	result_seq (CORBA::OctetSeq &ocs)
int	got_result (void)
	Check whether we got the result.
size_t &	interceptor_count (void)
TAO::PICurrent_Impl &	rs_pi_current (void)
	Return a reference to the "request scope" PICurrent object.
TAO::PICurrent_Copy_Callback &	pi_current_copy_callback (void)
	Return a reference to the PICurrent copy callback object.
Request attributes.
const char *	operation (void) const
	Return the operation name.
void	operation (const char *operation, size_t length, int release)
	Set the operation name.
size_t	operation_length (void) const
	Return the length of the operation.

IOP::ServiceContextList &	request_service_info (void)
IOP::ServiceContextList &	reply_service_info (void)

CORBA::ULong	request_id (void)
void	request_id (CORBA::ULong req)
Private Attributes
TAO_Pluggable_Messaging *	mesg_base_
ACE_CString	operation_
	Operation name.
CORBA::Object_var	forward_location_
TAO_InputCDR *	incoming_
	Incoming stream.
TAO_OutputCDR *	outgoing_
	Outgoing stream.
TAO_Transport *	transport_
	Transport class.
CORBA::Boolean	response_expected_
CORBA::Boolean	deferred_reply_
CORBA::Boolean	sync_with_server_
CORBA::ULong	exception_type_
	Exception type (will be NO_EXCEPTION in the majority of the cases).
TAO_ORB_Core *	orb_core_
TAO_Service_Context	request_service_context_
	Service Context info.
TAO_Service_Context	reply_service_context_
CORBA::ULong	request_id_
	Unique identifier for a request.
TAO_Tagged_Profile	profile_
	The tagged profile that has the addressing information.
CORBA::OctetSeq_var	requesting_principal_
	Identifies the requester.
CORBA::Boolean	is_dsi_
	Did we get passed to a CORBA::ServerRequest?
ptrdiff_t	dsi_nvlist_align_
	Used to pad CDR stream if we have used DSI.
CORBA::Boolean	argument_flag_
size_t	interceptor_count_
TAO::PICurrent_Impl	rs_pi_current_
TAO::PICurrent_Copy_Callback	pi_current_copy_callback_
CORBA::OctetSeq_var	result_seq_
	Used by the FTORB.
Friends
class	TAO_AMH_Response_Handler
	Declare TAO_AMH_Response_Handler a friend.

Detailed Description

Class representing a ServerRequest object.

Encapsulates CDR, transport and pluggable messaging components on the server side.

Constructor & Destructor Documentation

TAO_ServerRequest::TAO_ServerRequest ( TAO_Pluggable_Messaging * mesg_base,

TAO_InputCDR & input,

TAO_OutputCDR & output,

TAO_Transport * transport,

TAO_ORB_Core * orb_core

)

TAO_ServerRequest::TAO_ServerRequest ( TAO_Pluggable_Messaging * mesg_base,

CORBA::ULong request_id,

CORBA::Boolean response_expected,

CORBA::Boolean deferred_flag,

TAO::ObjectKey & object_key,

const char * operation,

TAO_OutputCDR & output,

TAO_Transport * transport,

TAO_ORB_Core * orb_core,

int & parse_error

)

TAO_ServerRequest::~TAO_ServerRequest ( void ) [virtual]

Destructor.

Member Function Documentation

ACE_INLINE CORBA::Boolean TAO_ServerRequest::argument_flag ( void )

ACE_INLINE void TAO_ServerRequest::argument_flag ( CORBA::Boolean flag )

Get/Set operations for the argument_flag.

ACE_INLINE CORBA::Boolean TAO_ServerRequest::deferred_reply ( void ) const

Should the reply be deferred?

ACE_INLINE void TAO_ServerRequest::dsi_nvlist_align ( ptrdiff_t alignment )

Set the member.

ACE_INLINE void TAO_ServerRequest::exception_type ( CORBA::ULong except_type )

Set the exception type.

ACE_INLINE CORBA::ULong TAO_ServerRequest::exception_type ( void )

Get the exception type.

ACE_INLINE CORBA::Object_ptr TAO_ServerRequest::forward_location ( void )

Get the forward_location.

ACE_INLINE void TAO_ServerRequest::forward_location ( CORBA::Object_ptr forward_reference )

Set the reference to the object the request should be forwarded to. This reference will only be used if set prior to calling init_reply().

int TAO_ServerRequest::got_result ( void )

Check whether we got the result.

ACE_INLINE TAO_InputCDR & TAO_ServerRequest::incoming ( void )

Retrieve the incoming stream.

void TAO_ServerRequest::init_reply ( void )

Start a Reply message.

size_t& TAO_ServerRequest::interceptor_count ( void )

Note:
It is a reference since the Portable Interceptor flow stack code must be able to modify this value and use that value at a later time without being forced to use TSS.

ACE_INLINE void TAO_ServerRequest::is_dsi ( void )

Set the boolean member to 1.

ACE_INLINE TAO::ObjectKey & TAO_ServerRequest::object_key ( void )

ACE_INLINE void TAO_ServerRequest::operation ( const char * operation,

size_t length,

int release

)

Set the operation name.

ACE_INLINE const char * TAO_ServerRequest::operation ( void ) const

Return the operation name.

ACE_INLINE size_t TAO_ServerRequest::operation_length ( void ) const

Return the length of the operation.

CORBA::ORB_ptr TAO_ServerRequest::orb ( void )

Return the underlying ORB.

ACE_INLINE TAO_ORB_Core * TAO_ServerRequest::orb_core ( void )

Return the ORB core pointer member.

ACE_INLINE TAO_OutputCDR & TAO_ServerRequest::outgoing ( void )

Retrieve the outgoing stream.

TAO::PICurrent_Copy_Callback& TAO_ServerRequest::pi_current_copy_callback ( void )

Return a reference to the PICurrent copy callback object.

ACE_INLINE TAO_Tagged_Profile & TAO_ServerRequest::profile ( void )

Return the reference to the tagged profile.

ACE_INLINE TAO_Service_Context & TAO_ServerRequest::reply_service_context ( void )

ACE_INLINE IOP::ServiceContextList & TAO_ServerRequest::reply_service_info ( void )

Todo:
This two methods should go away.

ACE_INLINE void TAO_ServerRequest::request_id ( CORBA::ULong req )

To handle System Exceptions at the lowest level, a method returning the request_id_ is needed.

ACE_INLINE CORBA::ULong TAO_ServerRequest::request_id ( void )

To handle System Exceptions at the lowest level, a method returning the request_id_ is needed.

ACE_INLINE TAO_Service_Context & TAO_ServerRequest::request_service_context ( void )

Return the TAO_Service_Context.

ACE_INLINE IOP::ServiceContextList & TAO_ServerRequest::request_service_info ( void )

Todo:
This two methods should go away.

ACE_INLINE void TAO_ServerRequest::requesting_principal ( const CORBA::OctetSeq & principal )

Set the requesting principal.

Note:
Deprecated in CORBA 2.4

ACE_INLINE void TAO_ServerRequest::response_expected ( CORBA::Boolean response )

Set the response expected flag.

ACE_INLINE CORBA::Boolean TAO_ServerRequest::response_expected ( void ) const

Is the response expected?

void TAO_ServerRequest::result_seq ( CORBA::OctetSeq & ocs )

Return the octet sequence pointer through which the FTORB would send the reply back.

TAO::PICurrent_Impl& TAO_ServerRequest::rs_pi_current ( void )

Return a reference to the "request scope" PICurrent object.

void TAO_ServerRequest::send_cached_reply ( CORBA::OctetSeq & ocs )

Send cached reply. Used in scenarios where the FTORB thinks that this request is a duplicate

void TAO_ServerRequest::send_no_exception_reply ( void )

Used with reliable oneway requests.

ACE_INLINE void TAO_ServerRequest::sync_with_server ( CORBA::Boolean sync_flag )

Set the sync_with_server flag.

ACE_INLINE CORBA::Boolean TAO_ServerRequest::sync_with_server ( void ) const

Should we return before dispatching the servant?

void TAO_ServerRequest::tao_send_reply ( void )

void TAO_ServerRequest::tao_send_reply_exception ( CORBA::Exception & )

ACE_INLINE TAO_Transport * TAO_ServerRequest::transport ( )

Return the underlying transport.

Friends And Related Function Documentation

friend class TAO_AMH_Response_Handler [friend]

Declare TAO_AMH_Response_Handler a friend.
The TAO_AMH_Response_Handler class needs to copy part of the state in a TAO_ServerRequest, however, we do not want to expose that state as public members of this class, neither do we want to add modifiers to the TAO_AMH_Response_Handler class that would allow us (the TAO_ServerRequest class) to set the state.
Lucky for us, C++ is a language for adult developers, and allow us to use the evil "friend" declaration.

Member Data Documentation

CORBA::Boolean TAO_ServerRequest::argument_flag_ [private]

An argument flag to indicate whether there is any data that is going to get marshalled along as a reply. The default will be 1 which indicates that we have some data that needs to be sent back to the client.

CORBA::Boolean TAO_ServerRequest::deferred_reply_ [private]

0: Reply would be sent by the object of this class which is the default. 1: Reply would not be prepared by this class and it would be deferred for somebody.

ptrdiff_t TAO_ServerRequest::dsi_nvlist_align_ [private]

Used to pad CDR stream if we have used DSI.

CORBA::ULong TAO_ServerRequest::exception_type_ [private]

Exception type (will be NO_EXCEPTION in the majority of the cases).

CORBA::Object_var TAO_ServerRequest::forward_location_ [private]

TAO_InputCDR* TAO_ServerRequest::incoming_ [private]

Incoming stream.

size_t TAO_ServerRequest::interceptor_count_ [private]

The number of interceptors pushed on to the current interceptor flow stack.

CORBA::Boolean TAO_ServerRequest::is_dsi_ [private]

Did we get passed to a CORBA::ServerRequest?

TAO_Pluggable_Messaging* TAO_ServerRequest::mesg_base_ [private]

ACE_CString TAO_ServerRequest::operation_ [private]

Operation name.

TAO_ORB_Core* TAO_ServerRequest::orb_core_ [private]

A pointer to the ORB Core for the context where the request was created.

TAO_OutputCDR* TAO_ServerRequest::outgoing_ [private]

Outgoing stream.

TAO::PICurrent_Copy_Callback TAO_ServerRequest::pi_current_copy_callback_ [private]

PICurrent callback object responsible for copying slot table between PICurrents in different scopes (i.e. thread or request).

TAO_Tagged_Profile TAO_ServerRequest::profile_ [private]

The tagged profile that has the addressing information.

TAO_Service_Context TAO_ServerRequest::reply_service_context_ [private]

CORBA::ULong TAO_ServerRequest::request_id_ [private]

Unique identifier for a request.

TAO_Service_Context TAO_ServerRequest::request_service_context_ [private]

Service Context info.

CORBA::OctetSeq_var TAO_ServerRequest::requesting_principal_ [private]

Identifies the requester.

CORBA::Boolean TAO_ServerRequest::response_expected_ [private]

0: oneway (SYNC_NONE or SYNC_WITH_TRANSPORT) 1: twoway, or oneway (SYNC_WITH_SERVER or SYNC_WITH_TARGET)

CORBA::OctetSeq_var TAO_ServerRequest::result_seq_ [private]

Used by the FTORB.

TAO::PICurrent_Impl TAO_ServerRequest::rs_pi_current_ [private]

The "Request Scope Current" (RSC) object, as required by Portable Interceptors.

CORBA::Boolean TAO_ServerRequest::sync_with_server_ [private]

1: oneway (SYNC_WITH_SERVER) 0: anything else

TAO_Transport* TAO_ServerRequest::transport_ [private]

Transport class.

The documentation for this class was generated from the following files:

Generated on Fri Apr 2 17:36:55 2004 for TAO by

1.2.18

TAO_ServerRequest Class Reference

Public Methods

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
