TAO_Time_Service_Clerk Class Reference

TimeService Object Implementation. More...

#include <TAO_Time_Service_Clerk.h>

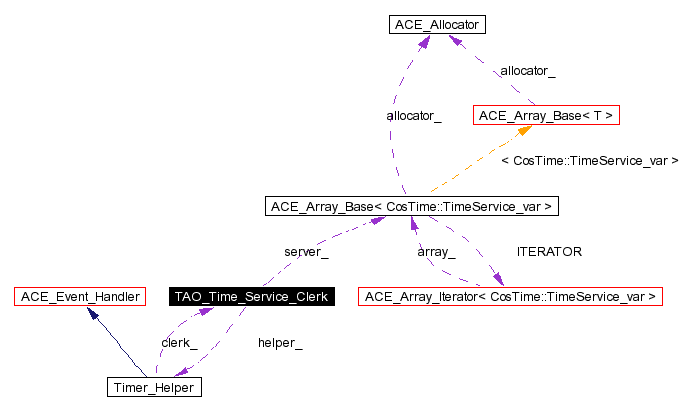

Collaboration diagram for TAO_Time_Service_Clerk:

[legend]List of all members.

Public Types
typedef ACE_Array_Base< CosTime::TimeService_var >	IORS
	Unbounded set of IORs.
Public Methods
	TAO_Time_Service_Clerk (int timer_value, int timer_value_usecs, const IORS &server)
	Constructor.
	~TAO_Time_Service_Clerk (void)
	Destructor.
virtual CosTime::UTO_ptr	universal_time (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException, CosTime::TimeUnavailable)
virtual CosTime::UTO_ptr	secure_universal_time (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException, CosTime::TimeUnavailable)
virtual CosTime::UTO_ptr	new_universal_time (TimeBase::TimeT time, TimeBase::InaccuracyT inaccuracy, TimeBase::TdfT tdf ACE_ENV_ARG_DECL) throw (CORBA::SystemException)
	This creates a new UTO based on the given parameters.
virtual CosTime::UTO_ptr	uto_from_utc (const TimeBase::UtcT &utc ACE_ENV_ARG_DECL) throw (CORBA::SystemException)
	This creates a new UTO given a time in the UtcT form.
virtual CosTime::TIO_ptr	new_interval (TimeBase::TimeT lower, TimeBase::TimeT upper ACE_ENV_ARG_DECL) throw (CORBA::SystemException)
	This creates a new TIO with the given parameters.
virtual CORBA::ULongLong	get_time (void)
	Return the globally synchronized time.
void	name_server (TAO_Naming_Server &server)
CORBA::Short	time_displacement_factor (void)
	Returns the time displacement factor.
void	time_displacement_factor (CORBA::Short)
	Set the TDF.
TimeBase::InaccuracyT	inaccuracy (void)
	Get method for inaccuracy.
void	inaccuracy (TimeBase::InaccuracyT inaccuracy)
	Set method for inaccuracy.
Public Attributes
CORBA::ULongLong	time_
	Clerk's notion of time.
Private Attributes
CORBA::Short	time_displacement_factor_
	Time displacement factor in minutes.
TimeBase::InaccuracyT	inaccuracy_
	Inaccuracy in the time.
IORS	server_
	Set of server Time Server IORs.
CORBA::ULongLong	update_timestamp_
	Time when last global synchronization was done.
Timer_Helper	helper_
Friends
class	Timer_Helper
	Helper class to help in the updation of time.

---

Detailed Description

TimeService Object Implementation.

The Object implementation implements methods to retrieve GLOBAL time as well as secure GLOBAL time. The times are retrieved as UTOs. The object also allows creation of a TIO for a given time interval. In general, the TimeService clerk manages the UTOs and the TIOs. The notion of time returned here is the globally synchronized time.

---

Member Typedef Documentation

typedef ACE_Array_Base<CosTime::TimeService_var> TAO_Time_Service_Clerk::IORS

Unbounded set of IORs.

---

Constructor & Destructor Documentation

TAO_Time_Service_Clerk::TAO_Time_Service_Clerk (  int    timer_value, int    timer_value_usecs, const IORS &    server )

Constructor.

TAO_Time_Service_Clerk::~TAO_Time_Service_Clerk (  void    )

Destructor.

---

Member Function Documentation

CORBA::ULongLong TAO_Time_Service_Clerk::get_time (  void    )  [virtual]

Return the globally synchronized time.

void TAO_Time_Service_Clerk::inaccuracy (  TimeBase::InaccuracyT    inaccuracy )

Set method for inaccuracy.

TimeBase::InaccuracyT TAO_Time_Service_Clerk::inaccuracy (  void    )

Get method for inaccuracy.

void TAO_Time_Service_Clerk::name_server (  TAO_Naming_Server &    server )

This method is called by the driver program to set the Naming Server instance.

CosTime::TIO_ptr TAO_Time_Service_Clerk::new_interval (  TimeBase::TimeT    lower, TimeBase::TimeT upper    ACE_ENV_ARG_DECL )  throw (CORBA::SystemException) [virtual]

This creates a new TIO with the given parameters.

CosTime::UTO_ptr TAO_Time_Service_Clerk::new_universal_time (  TimeBase::TimeT    time, TimeBase::InaccuracyT    inaccuracy, TimeBase::TdfT tdf    ACE_ENV_ARG_DECL )  throw (CORBA::SystemException) [virtual]

This creates a new UTO based on the given parameters.

CosTime::UTO_ptr TAO_Time_Service_Clerk::secure_universal_time (  ACE_ENV_SINGLE_ARG_DECL    )  throw (CORBA::SystemException, CosTime::TimeUnavailable) [virtual]

This operation returns the global time in a UTO only if the time can be guaranteed to have been obtained securely. Currently this operation is not implemented and throws a CORBA::NO_IMPLEMENT exception, if called.

void TAO_Time_Service_Clerk::time_displacement_factor (  CORBA::Short    )

Set the TDF.

CORBA::Short TAO_Time_Service_Clerk::time_displacement_factor (  void    )

Returns the time displacement factor.

CosTime::UTO_ptr TAO_Time_Service_Clerk::universal_time (  ACE_ENV_SINGLE_ARG_DECL    )  throw (CORBA::SystemException, CosTime::TimeUnavailable) [virtual]

This operation returns the global time and an estimate of inaccuracy in a UTO.

CosTime::UTO_ptr TAO_Time_Service_Clerk::uto_from_utc (  const TimeBase::UtcT &utc    ACE_ENV_ARG_DECL )  throw (CORBA::SystemException) [virtual]

This creates a new UTO given a time in the UtcT form.

---

Friends And Related Function Documentation

friend class Timer_Helper [friend]

Helper class to help in the updation of time.

---

Member Data Documentation

Timer_Helper TAO_Time_Service_Clerk::helper_ [private]

This is a friend class that inherits from the Event Handler class. The handle_timeout method of this class is scheduled for periodic invocation by the reactor. This method, in turn, updates the clerks notion of time. Using this class obviates the need for the clerk to multiple inherit from the servant base as well as the event handler.

TimeBase::InaccuracyT TAO_Time_Service_Clerk::inaccuracy_ [private]

Inaccuracy in the time.

IORS TAO_Time_Service_Clerk::server_ [private]

Set of server Time Server IORs.

CORBA::ULongLong TAO_Time_Service_Clerk::time_

Clerk's notion of time.

CORBA::Short TAO_Time_Service_Clerk::time_displacement_factor_ [private]

Time displacement factor in minutes.

CORBA::ULongLong TAO_Time_Service_Clerk::update_timestamp_ [private]

Time when last global synchronization was done.

---

The documentation for this class was generated from the following files:

• TAO_Time_Service_Clerk.h
• TAO_Time_Service_Clerk.cpp

---
