TAO_CORBALOC_Parser Class Reference

Implements the <corbaloc:> IOR format. More...

#include <CORBALOC_Parser.h>

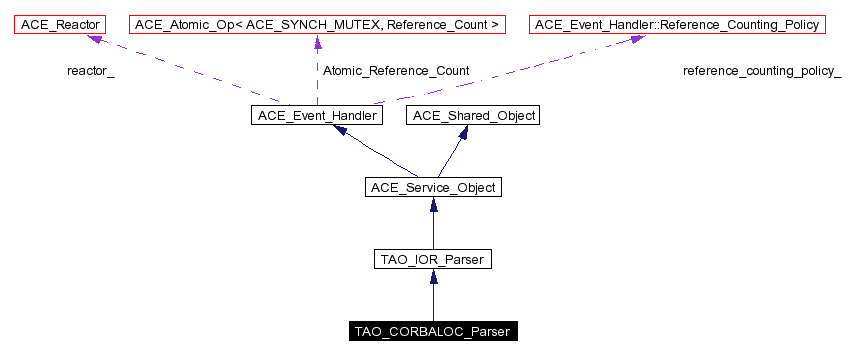

Inheritance diagram for TAO_CORBALOC_Parser:

[legend]Collaboration diagram for TAO_CORBALOC_Parser:

[legend]List of all members.

Public Methods
	TAO_CORBALOC_Parser (void)
	Constructor.
virtual	~TAO_CORBALOC_Parser (void)
	The destructor.
virtual int	match_prefix (const char *ior_string) const
virtual CORBA::Object_ptr	parse_string (const char *ior, CORBA::ORB_ptr orb ACE_ENV_ARG_DECL_NOT_USED) throw (CORBA::SystemException)
	Parse the ior-string that is passed.
Private Methods
virtual int	check_prefix (const char *endpoint ACE_ENV_ARG_DECL) throw (CORBA::SystemException)
	Checks the prefix to see if it is RIR.
virtual void	parse_string_count_helper (const char *corbaloc_name, CORBA::ULong &addr_list_length, CORBA::ULong &count_addr ACE_ENV_ARG_DECL_NOT_USED) throw (CORBA::SystemException)
virtual void	parse_string_mprofile_helper (const char *end_point, CORBA::ORB_ptr orb, TAO_MProfile &mprofile ACE_ENV_ARG_DECL_NOT_USED) throw (CORBA::SystemException)
virtual CORBA::Object_ptr	make_stub_from_mprofile (CORBA::ORB_ptr orb, TAO_MProfile &mprofile ACE_ENV_ARG_DECL_NOT_USED) throw (CORBA::SystemException)
virtual CORBA::Object_ptr	parse_string_rir_helper (const char *&corbaloc_name, CORBA::ORB_ptr orb ACE_ENV_ARG_DECL_NOT_USED) throw (CORBA::SystemException)
	Gets the pointer to the key_string when the protocol used is RIR.
virtual void	parse_string_assign_helper (ACE_CString &key_string, ACE_CString &cloc_name, CORBA::ORB_ptr orb, TAO_MProfile &mprofile ACE_ENV_ARG_DECL_NOT_USED) throw (CORBA::SystemException)
virtual void	assign_key_string (char *&cloc_name_ptr, ACE_CString &key_string, CORBA::ULong &addr_list_length, CORBA::ORB_ptr orb, TAO_MProfile &mprofile ACE_ENV_ARG_DECL_NOT_USED) throw (CORBA::SystemException)

---

Detailed Description

Implements the <corbaloc:> IOR format.

This class implements the <corbaloc:> IOR format. It is dynamically loaded by the ORB and used to parse the string to separate the individual <obj_addr> from the list of object addresses <obj_addr_list>.

---

Constructor & Destructor Documentation

ACE_INLINE TAO_CORBALOC_Parser::TAO_CORBALOC_Parser (  void    )

Constructor.

TAO_CORBALOC_Parser::~TAO_CORBALOC_Parser (  void    )  [virtual]

The destructor.

---

Member Function Documentation

void TAO_CORBALOC_Parser::assign_key_string (  char *&    cloc_name_ptr, ACE_CString &    key_string, CORBA::ULong &    addr_list_length, CORBA::ORB_ptr    orb, TAO_MProfile &mprofile    ACE_ENV_ARG_DECL_NOT_USED )  throw (CORBA::SystemException) [private, virtual]

Helps parse_string_assign_helper by assigning in the case when the protocol name is present and we have to append jsut the key string.

virtual int TAO_CORBALOC_Parser::check_prefix (  const char *endpoint    ACE_ENV_ARG_DECL )  throw (CORBA::SystemException) [private, virtual]

Checks the prefix to see if it is RIR.

CORBA::Object_ptr TAO_CORBALOC_Parser::make_stub_from_mprofile (  CORBA::ORB_ptr    orb, TAO_MProfile &mprofile    ACE_ENV_ARG_DECL_NOT_USED )  throw (CORBA::SystemException) [private, virtual]

Make a stub from the MProfile that is created in parse_string_mprofile_helper. Using this stub, create an object reference which is sent to the application.

int TAO_CORBALOC_Parser::match_prefix (  const char *    ior_string )  const [virtual]

= The IOR_Parser methods, please read the documentation in IOR_Parser.h Implements TAO_IOR_Parser.

CORBA::Object_ptr TAO_CORBALOC_Parser::parse_string (  const char *    ior, CORBA::ORB_ptr orb    ACE_ENV_ARG_DECL_NOT_USED )  throw (CORBA::SystemException) [virtual]

Parse the ior-string that is passed. Implements TAO_IOR_Parser.

void TAO_CORBALOC_Parser::parse_string_assign_helper (  ACE_CString &    key_string, ACE_CString &    cloc_name, CORBA::ORB_ptr    orb, TAO_MProfile &mprofile    ACE_ENV_ARG_DECL_NOT_USED )  throw (CORBA::SystemException) [private, virtual]

Tokenizes the <obj_addr_list> using "," as the seperator. Assigns individual endpoints to the elements of the ACE_Array_Base.

virtual void TAO_CORBALOC_Parser::parse_string_count_helper (  const char *    corbaloc_name, CORBA::ULong &    addr_list_length, CORBA::ULong &count_addr    ACE_ENV_ARG_DECL_NOT_USED )  throw (CORBA::SystemException) [private, virtual]

Helps count the length of the <obj_addr_list> and the number of individual <obj_addr> in the <obj_addr_list>.

void TAO_CORBALOC_Parser::parse_string_mprofile_helper (  const char *    end_point, CORBA::ORB_ptr    orb, TAO_MProfile &mprofile    ACE_ENV_ARG_DECL_NOT_USED )  throw (CORBA::SystemException) [private, virtual]

Creates a MProfile for the endpoint passed and each such mprofile is added to the big mprofile <mprofile_> from which a pointer to the Object represented by the key_string is obtained and passed to the application.

CORBA::Object_ptr TAO_CORBALOC_Parser::parse_string_rir_helper (  const char *&    corbaloc_name, CORBA::ORB_ptr orb    ACE_ENV_ARG_DECL_NOT_USED )  throw (CORBA::SystemException) [private, virtual]

Gets the pointer to the key_string when the protocol used is RIR.

---

The documentation for this class was generated from the following files:

• CORBALOC_Parser.h
• CORBALOC_Parser.cpp
• CORBALOC_Parser.i

---
