TAO_MProfile Class Reference

This class implements the basic interface for supporting multiple profiles. More...

#include <MProfile.h>

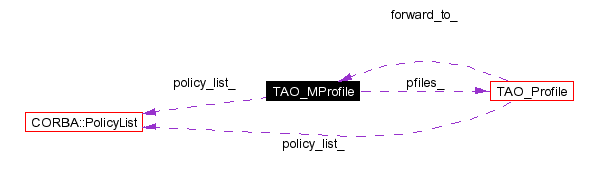

Collaboration diagram for TAO_MProfile:

[legend]List of all members.

Public Methods
	TAO_MProfile (CORBA::ULong sz=0)
	TAO_MProfile (const TAO_MProfile &mprofiles)
TAO_MProfile &	operator= (const TAO_MProfile &mprofiles)
	Assigment operator.
	~TAO_MProfile (void)
int	set (CORBA::ULong sz)
int	set (const TAO_MProfile &mprofile)
int	grow (CORBA::ULong sz)
TAO_Profile *	get_cnext (void)
	Treat as a circular list.
TAO_Profile *	get_next (void)
	Get next profile in list, return 0 at end of list.
TAO_Profile *	get_cprev (void)
	Assume a circular list of profiles.
TAO_Profile *	get_prev (void)
	Get previous profile, stop at beginning of list and return 0.
TAO_Profile *	get_current_profile (void)
TAO_Profile *	get_profile (TAO_PHandle handle)
	Return a pointer to the profile referenced by handle void.
TAO_PHandle	get_current_handle (void)
	Returns the index for the current profile.
TAO_PHandle	get_current_handle (void) const
	Returns the index for the current profile.
CORBA::ULong	profile_count (void) const
	Returns the number of profiles stored in the list (last_+1).
CORBA::ULong	size (void) const
const TAO_Profile *	get_profile (CORBA::ULong slot) const
void	rewind (void)
	Sets the current slot back to 0.
int	add_profile (TAO_Profile *pfile)
int	give_profile (TAO_Profile *pfile)
int	add_profiles (TAO_MProfile *pfiles)
int	remove_profile (const TAO_Profile *pfile)
	remove from this MProfile any profiles which also appear in pfiles.
int	remove_profiles (const TAO_MProfile *pfiles)
	remove from this MProfile any profiles which also appear in pfiles.
void	forward_from (TAO_MProfile *mprofiles)
TAO_MProfile *	forward_from (void)
	Returns a pointer to the profile which was forwarded.
CORBA::Boolean	is_equivalent (const TAO_MProfile *rhs)
CORBA::ULong	hash (CORBA::ULong max ACE_ENV_ARG_DECL)
void	policy_list (CORBA::PolicyList *policy_list)
CORBA::PolicyList *	policy_list (ACE_ENV_SINGLE_ARG_DECL)
Protected Methods
void	create_policy_list (ACE_ENV_SINGLE_ARG_DECL)
void	init_policy_list (ACE_ENV_SINGLE_ARG_DECL)
	Initialize the policy list, demarsharling the policy.
TAO_Profile **	pfiles (void) const
Protected Attributes
CORBA::PolicyList *	policy_list_
CORBA::Boolean	is_policy_list_initialized_
TAO_SYNCH_RECURSIVE_MUTEX	mutex_
Private Methods
void	cleanup (void)
	Helper method to implement the destructor.
Private Attributes
TAO_MProfile *	forward_from_
TAO_Profile **	pfiles_
	Actual list of profiles.
TAO_PHandle	current_
	Points to the next profile to be used. 0 ... size_.
TAO_PHandle	size_
	Max size of array.
TAO_PHandle	last_
	Index plus 1 of last valid entry! May be < size_.
Friends
class	TAO_Profile
	Stores the policy list for the profile of this MProfile.

---

Detailed Description

This class implements the basic interface for supporting multiple profiles.

Multiple profiles can be treated either as a circular queue or a linear array of profiles. It is assumed that locking will only be required when a profile list is associated with a TAO_Stub. Thus when the TAO_Stub accepts ownership of an MProfile it also assumes responsibility for controling access (i.e. locking).

---

Constructor & Destructor Documentation

ACE_INLINE TAO_MProfile::TAO_MProfile (  CORBA::ULong    sz = 0 )

ACE_INLINE TAO_MProfile::TAO_MProfile (  const TAO_MProfile &    mprofiles )

**NOTE: IF mprofiles->last_ > 0, THEN this->size_ will be set to mprofiles->last_. Otherwise this->size_ - mprofiles->size_. Furthermore, current_ is set back to 0! i.e. rewound. The reference count on any profiles in mprofiles is increment when their references (i.e. pointers) are copied.

TAO_MProfile::~TAO_MProfile (  void    )

Destructor: decrements reference count on all references profiles!

---

Member Function Documentation

int TAO_MProfile::add_profile (  TAO_Profile *    pfile )

Return the index of this entry or -1 if it can not be added. reference count on profile in incremented!

int TAO_MProfile::add_profiles (  TAO_MProfile *    pfiles )

append the profiles in pfiles to this object. The count will be incremented on the individual profile objects.

void TAO_MProfile::cleanup (  void    )  [private]

Helper method to implement the destructor.

void TAO_MProfile::create_policy_list (  ACE_ENV_SINGLE_ARG_DECL    )  [protected]

This method handle the dynamic allocation of the data member <policy_list_>.

ACE_INLINE TAO_MProfile * TAO_MProfile::forward_from (  void    )

Returns a pointer to the profile which was forwarded.

ACE_INLINE void TAO_MProfile::forward_from (  TAO_MProfile *    mprofiles )

Set a pointer to the MProfile whose 'current' TAO_Profile was forwarded This object is the set of forwarding profiles.

ACE_INLINE TAO_Profile * TAO_MProfile::get_cnext (  void    )

Treat as a circular list.

ACE_INLINE TAO_Profile * TAO_MProfile::get_cprev (  void    )

Assume a circular list of profiles.

ACE_INLINE TAO_PHandle TAO_MProfile::get_current_handle (  void    )  const

Returns the index for the current profile.

ACE_INLINE TAO_PHandle TAO_MProfile::get_current_handle (  void    )

Returns the index for the current profile.

ACE_INLINE TAO_Profile * TAO_MProfile::get_current_profile (  void    )

Return a pointer to the current profile, will not increment reference pointer.

ACE_INLINE TAO_Profile * TAO_MProfile::get_next (  void    )

Get next profile in list, return 0 at end of list.

ACE_INLINE TAO_Profile * TAO_MProfile::get_prev (  void    )

Get previous profile, stop at beginning of list and return 0.

ACE_INLINE const TAO_Profile * TAO_MProfile::get_profile (  CORBA::ULong    slot )  const

Return the profile at position <slot>. If <slot> is out of range it returns 0.

ACE_INLINE TAO_Profile * TAO_MProfile::get_profile (  TAO_PHandle    handle )

Return a pointer to the profile referenced by handle void.

ACE_INLINE int TAO_MProfile::give_profile (  TAO_Profile *    pfile )

Return the index of this entry or -1 if it can not be added. this object assumes ownership of this profile!!

int TAO_MProfile::grow (  CORBA::ULong    sz )

increase the number of profiles this object can hold. NOT THREAD SAFE

CORBA::ULong TAO_MProfile::hash (  CORBA::ULong max    ACE_ENV_ARG_DECL )

use all registered profiles. The hash() method is called on each profile and the results are averaged together. NON-THREAD SAFE.

void TAO_MProfile::init_policy_list (  ACE_ENV_SINGLE_ARG_DECL    )  [protected]

Initialize the policy list, demarsharling the policy.

CORBA::Boolean TAO_MProfile::is_equivalent (  const TAO_MProfile *    rhs )

Returns true of there is at least one profile in first which is_equivalent with at least one profile in second. NON-THREAD SAFE, relies on some other entity to guarentee the profiles will not change during the call.

ACE_INLINE TAO_MProfile & TAO_MProfile::operator= (  const TAO_MProfile &    mprofiles )

Assigment operator.

ACE_INLINE TAO_Profile ** TAO_MProfile::pfiles (  void    )  const [protected]

return the complete list of profiles, this object retains ownership!

CORBA::PolicyList * TAO_MProfile::policy_list (  ACE_ENV_SINGLE_ARG_DECL    )

Gets the policies list associated with the profiles owned by the TAO_MProfile.

ACE_INLINE void TAO_MProfile::policy_list (  CORBA::PolicyList *    policy_list )

Sets the policies list associated with the profiles owned by the TAO_MProfile.

ACE_INLINE CORBA::ULong TAO_MProfile::profile_count (  void    )  const

Returns the number of profiles stored in the list (last_+1).

int TAO_MProfile::remove_profile (  const TAO_Profile *    pfile )

remove from this MProfile any profiles which also appear in pfiles.

int TAO_MProfile::remove_profiles (  const TAO_MProfile *    pfiles )

remove from this MProfile any profiles which also appear in pfiles.

ACE_INLINE void TAO_MProfile::rewind (  void    )

Sets the current slot back to 0.

int TAO_MProfile::set (  const TAO_MProfile &    mprofile )

Inits this to the values of mprofile. NOTE: We use mprofile->last_ instead of mprofile->size_ to set this->size_. This is so we can use set () to trim a profile list!! NOT THREAD SAFE

int TAO_MProfile::set (  CORBA::ULong    sz )

Inits MProfile to hold sz TAO_Profiles. NOT THREAD SAFE

ACE_INLINE CORBA::ULong TAO_MProfile::size (  void    )  const

return the maximum number of profiles that can be stored in this container, (size_+1)

---

Friends And Related Function Documentation

friend class TAO_Profile [friend]

Stores the policy list for the profile of this MProfile.

---

Member Data Documentation

TAO_PHandle TAO_MProfile::current_ [private]

Points to the next profile to be used. 0 ... size_.

TAO_MProfile* TAO_MProfile::forward_from_ [private]

Used for chaning references when the current profile is forwarded. Note, this will only be valid for an MProfile which contains a list of forward_profiles for some initial or base profile. This is a backward reference to the profile list which received the relocate message. The actual profile what was forwarded will be forward_from_->get_current_profile ()

CORBA::Boolean TAO_MProfile::is_policy_list_initialized_ [protected]

TAO_PHandle TAO_MProfile::last_ [private]

Index plus 1 of last valid entry! May be < size_.

TAO_SYNCH_RECURSIVE_MUTEX TAO_MProfile::mutex_ [protected]

Mutex used to make sure that only one policy list is created.

TAO_Profile** TAO_MProfile::pfiles_ [private]

Actual list of profiles.

CORBA::PolicyList* TAO_MProfile::policy_list_ [protected]

TAO_PHandle TAO_MProfile::size_ [private]

Max size of array.

---

The documentation for this class was generated from the following files:

• MProfile.h
• MProfile.cpp
• MProfile.i

---
