TAO_CDR_Encaps_Codec Class Reference

Implementation of a CDR encapsulation coder/decoder (Codec). More...

#include <CDR_Encaps_Codec.h>

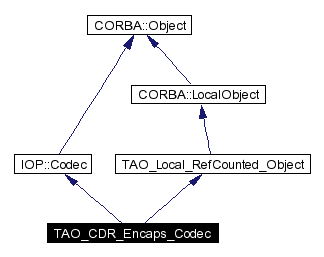

Inheritance diagram for TAO_CDR_Encaps_Codec:

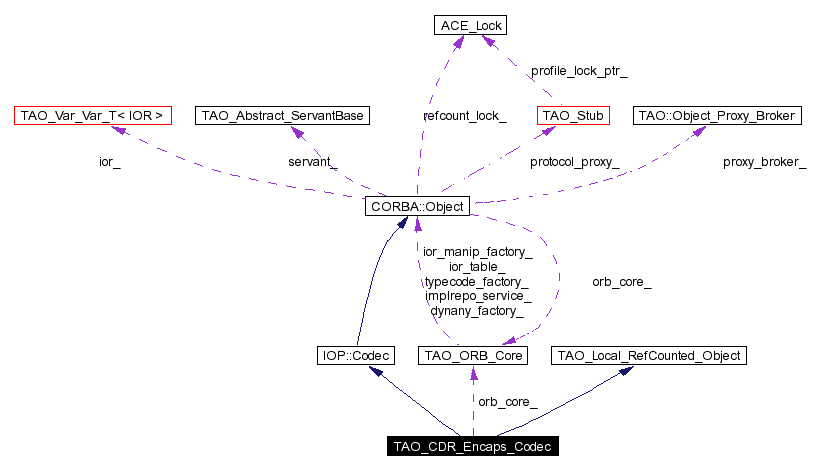

[legend]Collaboration diagram for TAO_CDR_Encaps_Codec:

[legend]List of all members.

Public Methods
	TAO_CDR_Encaps_Codec (CORBA::Octet major, CORBA::Octet minor, TAO_ORB_Core *orb_core)
	Constructor.
virtual CORBA::OctetSeq *	encode (const CORBA::Any &data ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, IOP::Codec::InvalidTypeForEncoding)
virtual CORBA::Any *	decode (const CORBA::OctetSeq &data ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, IOP::Codec::FormatMismatch)
virtual CORBA::OctetSeq *	encode_value (const CORBA::Any &data ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, IOP::Codec::InvalidTypeForEncoding)
virtual CORBA::Any *	decode_value (const CORBA::OctetSeq &data, CORBA::TypeCode_ptr tc ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, IOP::Codec::FormatMismatch, IOP::Codec::TypeMismatch)
Protected Methods
	~TAO_CDR_Encaps_Codec (void)
	Destructor.
void	check_type_for_encoding (const CORBA::Any &data ACE_ENV_ARG_DECL)
Private Methods
	TAO_CDR_Encaps_Codec (const TAO_CDR_Encaps_Codec &)
void	operator= (const TAO_CDR_Encaps_Codec &)
Private Attributes
CORBA::Octet	major_
	The major GIOP version associated with this Codec.
CORBA::Octet	minor_
	The minor GIOP version associated with this Codec.
TAO_ORB_Core *	orb_core_

---

Detailed Description

Implementation of a CDR encapsulation coder/decoder (Codec).

This coder/decoder (Codec) class encodes and decodes data to and from a CDR encapsulation, respectively. It is useful for creation of octet sequences that contain CDR encapsulations. Those octet sequences can then be placed in a IOP::ServiceContext or an IOP::TaggedComponent, for example.

Note:

This Codec should not be used for operations internal to the ORB core since it uses interpretive marshaling rather than compiled marshaling.

---

Constructor & Destructor Documentation

TAO_CDR_Encaps_Codec::TAO_CDR_Encaps_Codec (  CORBA::Octet    major, CORBA::Octet    minor, TAO_ORB_Core *    orb_core )

Constructor.

TAO_CDR_Encaps_Codec::~TAO_CDR_Encaps_Codec (  void    )  [protected]

Destructor. Only allow this class to be instantiated on the heap since it is reference counted.

TAO_CDR_Encaps_Codec::TAO_CDR_Encaps_Codec (  const TAO_CDR_Encaps_Codec &    )  [private]

Prevent copying through the copy constructor and the assignment operator.

---

Member Function Documentation

void TAO_CDR_Encaps_Codec::check_type_for_encoding (  const CORBA::Any &data    ACE_ENV_ARG_DECL )  [protected]

Typical reasons for failure include attempting to encode a type that isn't supported for the version of GIOP associated with this Codec.

CORBA::Any * TAO_CDR_Encaps_Codec::decode (  const CORBA::OctetSeq &data    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, IOP::Codec::FormatMismatch) [virtual]

Extract the TypeCode and the value from the octet sequence and place them into an Any. Implements IOP::Codec.

CORBA::Any * TAO_CDR_Encaps_Codec::decode_value (  const CORBA::OctetSeq &    data, CORBA::TypeCode_ptr tc    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, IOP::Codec::FormatMismatch, IOP::Codec::TypeMismatch) [virtual]

Extract the value from the octet sequence, based on the given TypeCode, and place it into an Any. Implements IOP::Codec.

CORBA::OctetSeq * TAO_CDR_Encaps_Codec::encode (  const CORBA::Any &data    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, IOP::Codec::InvalidTypeForEncoding) [virtual]

Encode the given data, including the TypeCode, into an octet sequence. Implements IOP::Codec.

CORBA::OctetSeq * TAO_CDR_Encaps_Codec::encode_value (  const CORBA::Any &data    ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, IOP::Codec::InvalidTypeForEncoding) [virtual]

Encode the given data, excluding the TypeCode, into an octet sequence. Implements IOP::Codec.

void TAO_CDR_Encaps_Codec::operator= (  const TAO_CDR_Encaps_Codec &    )  [private]

---

Member Data Documentation

CORBA::Octet TAO_CDR_Encaps_Codec::major_ [private]

The major GIOP version associated with this Codec.

CORBA::Octet TAO_CDR_Encaps_Codec::minor_ [private]

The minor GIOP version associated with this Codec.

TAO_ORB_Core* TAO_CDR_Encaps_Codec::orb_core_ [private]

The ORB Core to be used when decoding values from a CDR encapsulation. Reimplemented from CORBA::Object.

---

The documentation for this class was generated from the following files:

• CDR_Encaps_Codec.h
• CDR_Encaps_Codec.cpp

---
