#include <Invocation_Base.h>

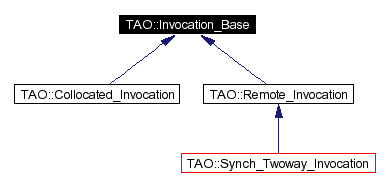

Inheritance diagram for TAO::Invocation_Base:
[NOHEADER] | |
| char * | operation_name (void) |
| Return the name of the operation. | |
| virtual Dynamic::ParameterList * | arguments (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException) |
| Return the list of arguments as a ParameterList. | |
| Dynamic::ExceptionList * | exceptions (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException) |
| Return the list of exceptions declared as a ExceptionList. | |
| CORBA::Any * | result (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException) |
| Return the result of the operation as an Any. | |
| CORBA::Octet | sync_scope (void) const |
| Return the syncscope policy of the operation. | |
| Invocation_Status | send_request_interception (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException) |
| Invocation_Status | receive_reply_interception (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException) |
| Invocation_Status | receive_other_interception (ACE_ENV_SINGLE_ARG_DECL) throw (CORBA::SystemException) |
| PortableInterceptor::ReplyStatus | handle_any_exception (CORBA::Exception *e ACE_ENV_ARG_DECL) |
| PortableInterceptor::ReplyStatus | handle_all_exception (ACE_ENV_SINGLE_ARG_DECL) |
| Return the name of the operation. | |
| ClientRequestInterceptor_Adapter | adapter_ |
| TAO_ClientRequestInfo_i | req_info_ |
| Return the name of the operation. | |
Public Methods | |
| virtual | ~Invocation_Base (void) |
| TAO_ORB_Core * | orb_core (void) const |
| Accessor and mutator methods. | |
| TAO_Stub * | stub (void) const |
| Accessor and mutator methods. | |
| CORBA::Object_ptr | forwarded_reference (void) |
| void | forwarded_reference (CORBA::Object_ptr o) |
| Accessor and mutator methods. | |
| TAO_Service_Context & | request_service_context (void) |
| Accessors for the service context list. | |
| TAO_Service_Context & | reply_service_context (void) |
| Accessor and mutator methods. | |
| CORBA::Object_ptr | steal_forwarded_reference (void) |
| Return the forwarded object location by loosing ownership. | |
| bool | is_forwarded (void) const |
| Did the invocation got forwarded to a new location? | |
| void | reply_received (Invocation_Status s) |
| Mutator to set the reply status of the invocation. | |
| CORBA::Object_ptr | effective_target (void) const |
| Return the effective target of the invocation. | |
| CORBA::Object_ptr | target (void) const |
| Return the target object. | |
| CORBA::Boolean | response_expected (void) const |
| Does this invocation return a response? | |
Protected Methods | |
| Invocation_Base (CORBA::Object_ptr otarget, CORBA::Object_ptr target, TAO_Stub *stub, TAO_Operation_Details &op, bool response_expected) | |
Protected Attributes | |
| TAO_Operation_Details & | details_ |
| The operation details on which we are operating on. | |
| CORBA::Object_var | forwarded_to_ |
| Forwarded object reference. | |
| bool | response_expected_ |
| Is response expected? | |
Private Methods | |
| Invocation_Base & | operator= (const Invocation_Base &) |
Private Attributes | |
| CORBA::Object_ptr | otarget_ |
| The original target on which the invocation was started. | |
| CORBA::Object_ptr | target_ |
| The effective target on which the invocation is on. | |
| TAO_ORB_Core * | orb_core_ |
| Cache the ORB_Core. | |
| TAO_Stub * | stub_ |
| The original target on which the invocation was started. | |
This class is the base of the invocation object hiererachy. This hierarchy is classified based on the type of invocation and the mode of invocation. One of the objects from the hiererachy is created on the stack for every invocation.
In addition this class encapsulates the essential details that are required for PortableInterceptors to function correctly. Further this class also provides some helper and accessor methods that are used by clients.
|
|
|
|
||||||||||||||||||||||||
|
|
|
|
Return the list of arguments as a ParameterList. It is declared virtual so that the DynamicInterface can use its own way of creating the ParameterList. |
|
|
Return the effective target of the invocation. Please see the PortableInterceptor specification in the CORBA spec to understand what effective target means. |
|
|
Return the list of exceptions declared as a ExceptionList.
|
|
|
Accessor and mutator methods.
|
|
|
These access methods have to be public so that the PortableInterceptor can use them |
|
|
Return the name of the operation. Operations invoked by the PortableInterceptor::ClientRequestInfo object to get details about the operation and related stuff. |
|
|
Helper methods to handle interception calls when exceptions are thrown by the PortableInterceptor. |
|
|
Did the invocation got forwarded to a new location?
|
|
|
Return the name of the operation. Operations invoked by the PortableInterceptor::ClientRequestInfo object to get details about the operation and related stuff. |
|
|
|
|
|
Accessor and mutator methods.
|
|
|
Helper method to invoke receive_other interception call to all the registered interceptors. |
|
|
Helper method to invoke receive_reply interception call to all the registered interceptors. |
|
|
Mutator to set the reply status of the invocation.
|
|
|
Accessor and mutator methods.
|
|
|
Accessors for the service context list. The service context lists are actually cached elsewhere. Providing this accessor helps the PI to access this list in both remote and collocated mode. |
|
|
Does this invocation return a response?
|
|
|
Return the result of the operation as an Any.
|
|
|
Helper method to invoke send_request interception call to all the registered interceptors. |
|
|
Return the forwarded object location by loosing ownership.
|
|
|
Accessor and mutator methods.
|
|
|
Return the syncscope policy of the operation.
|
|
|
Return the target object.
|
|
|
The client requestor adapter and the request info object for making calls on all the registered interceptors. |
|
|
The operation details on which we are operating on.
|
|
|
Forwarded object reference.
|
|
|
Cache the ORB_Core.
|
|
|
The original target on which the invocation was started. The following object reference pointers are *not* duplicated. They are cached for portable interceptors, and they just live for the lifetime of the request. Hence there is no point in duplicating the pointers. |
|
|
Return the name of the operation. Operations invoked by the PortableInterceptor::ClientRequestInfo object to get details about the operation and related stuff. |
|
|
Is response expected?
|
|
|
The original target on which the invocation was started. The following object reference pointers are *not* duplicated. They are cached for portable interceptors, and they just live for the lifetime of the request. Hence there is no point in duplicating the pointers. |
|
|
The effective target on which the invocation is on.
|
