AVStreams::FlowEndPoint Interface Reference

import "AVStreams.idl";

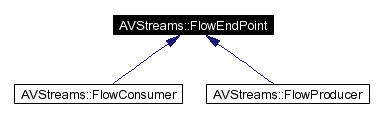

Inheritance diagram for AVStreams::FlowEndPoint:

Inheritance graph
[legend]
Collaboration diagram for AVStreams::FlowEndPoint:

Collaboration graph
[legend]
List of all members.

Public Methods

boolean lock ()
void unlock ()
void stop ()
void start ()
void destroy ()
FlowEndPoint get_connected_fep () raises (notConnected,AVStreams::notSupported)
boolean use_flow_protocol (in string fp_name, in any fp_settings) raises (AVStreams::FPError, AVStreams::notSupported)
 syntax of fp_name is <flowProtocol>

void set_format (in string format) raises (AVStreams::notSupported)
void set_dev_params (in CosPropertyService::Properties new_settings) raises (PropertyException, AVStreams::streamOpFailed)
void set_protocol_restriction (in AVStreams::protocolSpec the_spec) raises (AVStreams::notSupported)
boolean is_fep_compatible (in FlowEndPoint fep) raises (formatMismatch, deviceQosMismatch)
boolean set_peer (in FlowConnection the_fc, in FlowEndPoint the_peer_fep, inout AVStreams::QoS the_qos) raises (AVStreams::QoSRequestFailed, AVStreams::streamOpFailed)
boolean set_Mcast_peer (in FlowConnection the_fc, in AVStreams::MCastConfigIf a_mcastconfigif, inout AVStreams::QoS the_qos) raises (AVStreams::QoSRequestFailed)
boolean connect_to_peer (inout AVStreams::QoS the_qos, in string address, in string use_flow_protocol) raises (failedToConnect,AVStreams::FPError, AVStreams::QoSRequestFailed)
string go_to_listen (inout AVStreams::QoS the_qos, in boolean is_mcast, in FlowEndPoint peer, inout string flowProtocol) raises (failedToListen, AVStreams::FPError, AVStreams::QoSRequestFailed)

Public Attributes

attribute AVStreams::StreamEndPoint related_sep
 Default is a nil object reference.

attribute FlowConnection related_flow_connection

Member Function Documentation

boolean AVStreams::FlowEndPoint::connect_to_peer inout AVStreams::QoS    the_qos,
in string    address,
in string    use_flow_protocol
raises (failedToConnect,AVStreams::FPError, AVStreams::QoSRequestFailed)


void AVStreams::FlowEndPoint::destroy


FlowEndPoint AVStreams::FlowEndPoint::get_connected_fep   raises (notConnected,AVStreams::notSupported)


string AVStreams::FlowEndPoint::go_to_listen inout AVStreams::QoS    the_qos,
in boolean    is_mcast,
in FlowEndPoint    peer,
inout string    flowProtocol
raises (failedToListen, AVStreams::FPError, AVStreams::QoSRequestFailed)


Needs to know its peer to choose its protocol correctly Also to ask for a reverse channel for credit-based flow control, if one is required

boolean AVStreams::FlowEndPoint::is_fep_compatible in FlowEndPoint    fep raises (formatMismatch, deviceQosMismatch)


boolean AVStreams::FlowEndPoint::lock


void AVStreams::FlowEndPoint::set_dev_params in CosPropertyService::Properties    new_settings raises (PropertyException, AVStreams::streamOpFailed)


void AVStreams::FlowEndPoint::set_format in string    format raises (AVStreams::notSupported)


set_format() initializes format as current media format e.g. MPEG.

boolean AVStreams::FlowEndPoint::set_Mcast_peer in FlowConnection    the_fc,
in AVStreams::MCastConfigIf    a_mcastconfigif,
inout AVStreams::QoS    the_qos
raises (AVStreams::QoSRequestFailed)


boolean AVStreams::FlowEndPoint::set_peer in FlowConnection    the_fc,
in FlowEndPoint    the_peer_fep,
inout AVStreams::QoS    the_qos
raises (AVStreams::QoSRequestFailed, AVStreams::streamOpFailed)


void AVStreams::FlowEndPoint::set_protocol_restriction in AVStreams::protocolSpec    the_spec raises (AVStreams::notSupported)


void AVStreams::FlowEndPoint::start


void AVStreams::FlowEndPoint::stop


void AVStreams::FlowEndPoint::unlock


boolean AVStreams::FlowEndPoint::use_flow_protocol in string    fp_name,
in any    fp_settings
raises (AVStreams::FPError, AVStreams::notSupported)


syntax of fp_name is <flowProtocol>


Member Data Documentation

attribute FlowConnection AVStreams::FlowEndPoint::related_flow_connection


attribute AVStreams::StreamEndPoint AVStreams::FlowEndPoint::related_sep


Default is a nil object reference.


The documentation for this interface was generated from the following file:
