AVStreams::StreamEndPoint Interface Reference

import "AVStreams.idl";

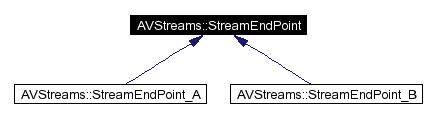

Inheritance diagram for AVStreams::StreamEndPoint:

[legend]List of all members.

Public Methods
void	stop (in flowSpec the_spec) raises (noSuchFlow)
	Stop the stream. Empty the_spec means, for all the flows.
void	start (in flowSpec the_spec) raises (noSuchFlow)
	Start the stream, Empty the_spec means, for all the flows.
void	destroy (in flowSpec the_spec) raises (noSuchFlow)
	Destroy the stream, Empty the_spec means, for all the flows.
boolean	connect (in StreamEndPoint responder, inout streamQoS qos_spec, in flowSpec the_spec) raises (noSuchFlow, QoSRequestFailed, streamOpFailed)
	Called by StreamCtrl. responder is the peer to connect with.
boolean	request_connection (in StreamEndPoint initiator, in boolean is_mcast, inout streamQoS qos, inout flowSpec the_spec) raises (streamOpDenied, noSuchFlow, QoSRequestFailed, FPError)
boolean	modify_QoS (inout streamQoS new_qos, in flowSpec the_flows) raises (noSuchFlow, QoSRequestFailed)
	Change the transport qos on a stream.
boolean	set_protocol_restriction (in protocolSpec the_pspec)
	Used to restrict the set of protocols.
void	disconnect (in flowSpec the_spec) raises (noSuchFlow, streamOpFailed)
	Disconnect the flows.
void	set_FPStatus (in flowSpec the_spec, in string fp_name, in any fp_settings) raises (noSuchFlow, FPError)
	Used to control the SFP parameters.
Object	get_fep (in string flow_name) raises (notSupported, noSuchFlow)
	Not implemented in the light profile, throws notsupported.
string	add_fep (in Object the_fep) raises (notSupported, streamOpFailed)
	Can fail for reasons {duplicateFepName, duplicateRef}.
void	remove_fep (in string fep_name) raises (notSupported, streamOpFailed)
	Not implemented in the light profile, throws notsupported.
void	set_negotiator (in Negotiator new_negotiator)
	Used to "attach" a negotiator to the endpoint.
void	set_key (in string flow_name, in key the_key)
	Used for public key encryption.
void	set_source_id (in long source_id)

---

Member Function Documentation

string AVStreams::StreamEndPoint::add_fep (  in Object    the_fep )  raises (notSupported, streamOpFailed)

Can fail for reasons {duplicateFepName, duplicateRef}.

boolean AVStreams::StreamEndPoint::connect (  in StreamEndPoint    responder, inout streamQoS    qos_spec, in flowSpec    the_spec )  raises (noSuchFlow, QoSRequestFailed, streamOpFailed)

Called by StreamCtrl. responder is the peer to connect with.

void AVStreams::StreamEndPoint::destroy (  in flowSpec    the_spec )  raises (noSuchFlow)

Destroy the stream, Empty the_spec means, for all the flows.

void AVStreams::StreamEndPoint::disconnect (  in flowSpec    the_spec )  raises (noSuchFlow, streamOpFailed)

Disconnect the flows.

Object AVStreams::StreamEndPoint::get_fep (  in string    flow_name )  raises (notSupported, noSuchFlow)

Not implemented in the light profile, throws notsupported.

boolean AVStreams::StreamEndPoint::modify_QoS (  inout streamQoS    new_qos, in flowSpec    the_flows )  raises (noSuchFlow, QoSRequestFailed)

Change the transport qos on a stream.

void AVStreams::StreamEndPoint::remove_fep (  in string    fep_name )  raises (notSupported, streamOpFailed)

Not implemented in the light profile, throws notsupported.

boolean AVStreams::StreamEndPoint::request_connection (  in StreamEndPoint    initiator, in boolean    is_mcast, inout streamQoS    qos, inout flowSpec    the_spec )  raises (streamOpDenied, noSuchFlow, QoSRequestFailed, FPError)

Called by the peer StreamEndPoint. The flow_spec indicates the flows (which contain transport addresses etc.).

void AVStreams::StreamEndPoint::set_FPStatus (  in flowSpec    the_spec, in string    fp_name, in any    fp_settings )  raises (noSuchFlow, FPError)

Used to control the SFP parameters.

void AVStreams::StreamEndPoint::set_key (  in string    flow_name, in key    the_key )

Used for public key encryption.

void AVStreams::StreamEndPoint::set_negotiator (  in Negotiator    new_negotiator )

Used to "attach" a negotiator to the endpoint.

boolean AVStreams::StreamEndPoint::set_protocol_restriction (  in protocolSpec    the_pspec )

Used to restrict the set of protocols.

void AVStreams::StreamEndPoint::set_source_id (  in long    source_id )

Used to set a unique id for packets sent by this streamendpoint.

void AVStreams::StreamEndPoint::start (  in flowSpec    the_spec )  raises (noSuchFlow)

Start the stream, Empty the_spec means, for all the flows.

void AVStreams::StreamEndPoint::stop (  in flowSpec    the_spec )  raises (noSuchFlow)

Stop the stream. Empty the_spec means, for all the flows.

---

The documentation for this interface was generated from the following file:

• AVStreams.idl

---
