TAO_SFP_Object Class Reference

#include <sfp.h>

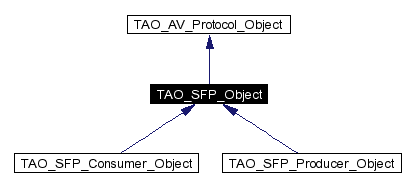

Inheritance diagram for TAO_SFP_Object:

Inheritance graph

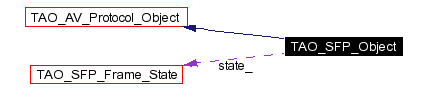

Collaboration diagram for TAO_SFP_Object:

Collaboration graph
List of all members.

Public Methods

 TAO_SFP_Object (TAO_AV_Callback *callback, TAO_AV_Transport *transport)
virtual ~TAO_SFP_Object (void)
virtual int handle_input (void)=0
virtual int send_frame (ACE_Message_Block *frame, TAO_AV_frame_info *frame_info=0)
 send a data frame.

virtual int send_frame (const iovec *iov, int iovcnt, TAO_AV_frame_info *frame_info=0)
 send a frame in iovecs.

virtual int send_frame (const char *buf, size_t len)
virtual int destroy (void)
virtual int set_policies (const TAO_AV_PolicyList &policies)
 set/get policies.

Protected Methods

ACE_Message_Blockget_fragment (ACE_Message_Block *&frame, size_t initial_len, size_t &last_mb_orig_len, size_t &last_mb_current_len)

Protected Attributes

CORBA::ULong sequence_num_
CORBA::ULong source_id_
CORBA::Long max_credit_
CORBA::Long current_credit_
TAO_SFP_Frame_State state_

Constructor & Destructor Documentation

TAO_SFP_Object::TAO_SFP_Object TAO_AV_Callback   callback,
TAO_AV_Transport   transport

TAO_SFP_Object::~TAO_SFP_Object void    [virtual]

Member Function Documentation

int TAO_SFP_Object::destroy void    [virtual]

Implements TAO_AV_Protocol_Object.

ACE_Message_Block * TAO_SFP_Object::get_fragment ACE_Message_Block *&    frame,
size_t    initial_len,
size_t &    last_mb_orig_len,
size_t &    last_mb_current_len

virtual int TAO_SFP_Object::handle_input void    [pure virtual]

Implements TAO_AV_Protocol_Object.

Implemented in TAO_SFP_Producer_Object, and TAO_SFP_Consumer_Object.

int TAO_SFP_Object::send_frame const char *    buf,
size_t    len

Implements TAO_AV_Protocol_Object.

int TAO_SFP_Object::send_frame const iovec   iov,
int    iovcnt,
TAO_AV_frame_info   frame_info = 0

send a frame in iovecs.

Implements TAO_AV_Protocol_Object.

int TAO_SFP_Object::send_frame ACE_Message_Block   frame,
TAO_AV_frame_info   frame_info = 0

send a data frame.

Implements TAO_AV_Protocol_Object.

int TAO_SFP_Object::set_policies const TAO_AV_PolicyList   policies [virtual]

set/get policies.

Reimplemented from TAO_AV_Protocol_Object.

Member Data Documentation

CORBA::Long TAO_SFP_Object::current_credit_ [protected]

CORBA::Long TAO_SFP_Object::max_credit_ [protected]

CORBA::ULong TAO_SFP_Object::sequence_num_ [protected]

CORBA::ULong TAO_SFP_Object::source_id_ [protected]

TAO_SFP_Frame_State TAO_SFP_Object::state_ [protected]

The documentation for this class was generated from the following files:
