TAO_AV_Protocol_Object Class Reference

#include <Protocol_Factory.h>

Inheritance diagram for TAO_AV_Protocol_Object:

Inheritance graph
[legend]

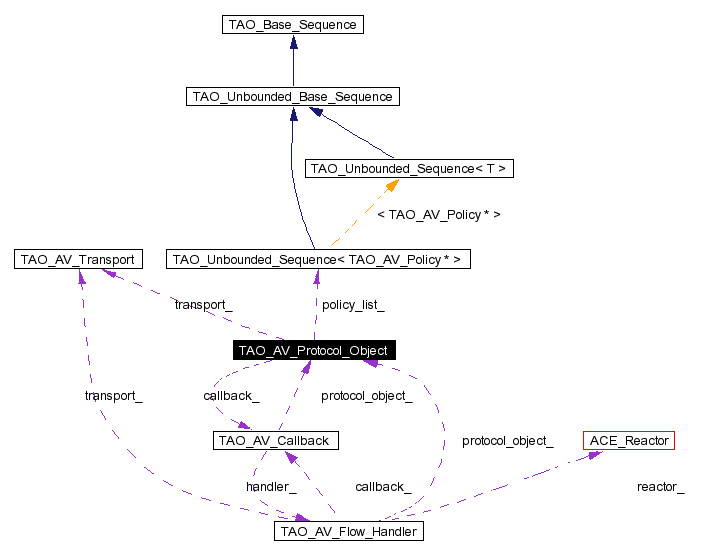

Collaboration diagram for TAO_AV_Protocol_Object:

Collaboration graph
[legend]
List of all members.

Public Methods

 TAO_AV_Protocol_Object (void)
 TAO_AV_Protocol_Object (TAO_AV_Callback *callback, TAO_AV_Transport *transport)
 constructor.

virtual ~TAO_AV_Protocol_Object (void)
 Destructor.

virtual int open (TAO_AV_Callback *callback, TAO_AV_Transport *transport)
virtual int handle_input (void)=0
virtual int handle_control_input (ACE_Message_Block *control_frame, const ACE_Addr &peer_address)
 Called on a control object.

virtual int set_policies (const TAO_AV_PolicyList &policy_list)
 set/get policies.

virtual TAO_AV_PolicyList get_policies (void)
virtual int start (void)
 start/stop the flow.

virtual int stop (void)
virtual int send_frame (ACE_Message_Block *frame, TAO_AV_frame_info *frame_info=0)=0
 send a data frame.

virtual int send_frame (const iovec *iov, int iovcnt, TAO_AV_frame_info *frame_info=0)=0
 send a frame in iovecs.

virtual int send_frame (const char *buf, size_t len)=0
virtual void control_object (TAO_AV_Protocol_Object *object)
 end the stream.

virtual int destroy (void)=0
TAO_AV_Transporttransport (void)

Protected Attributes

TAO_AV_Transporttransport_
TAO_AV_PolicyList policy_list_
TAO_AV_Callbackcallback_

Constructor & Destructor Documentation

TAO_AV_Protocol_Object::TAO_AV_Protocol_Object void


TAO_AV_Protocol_Object::TAO_AV_Protocol_Object TAO_AV_Callback   callback,
TAO_AV_Transport   transport


constructor.

TAO_AV_Protocol_Object::~TAO_AV_Protocol_Object void    [virtual]


Destructor.


Member Function Documentation

void TAO_AV_Protocol_Object::control_object TAO_AV_Protocol_Object *    object [virtual]


end the stream.

Reimplemented in TAO_AV_RTP_Object.

virtual int TAO_AV_Protocol_Object::destroy void    [pure virtual]


Implemented in TAO_AV_RTCP_Object, TAO_AV_RTP_Object, TAO_AV_SCTP_SEQ_Object, TAO_SFP_Object, TAO_AV_TCP_Object, and TAO_AV_UDP_Object.

TAO_AV_PolicyList TAO_AV_Protocol_Object::get_policies void    [virtual]


int TAO_AV_Protocol_Object::handle_control_input ACE_Message_Block   control_frame,
const ACE_Addr   peer_address
[virtual]


Called on a control object.

Reimplemented in TAO_AV_RTCP_Object.

virtual int TAO_AV_Protocol_Object::handle_input void    [pure virtual]


Implemented in TAO_AV_RTCP_Object, TAO_AV_RTP_Object, TAO_AV_SCTP_SEQ_Object, TAO_SFP_Object, TAO_SFP_Producer_Object, TAO_SFP_Consumer_Object, TAO_AV_TCP_Object, and TAO_AV_UDP_Object.

int TAO_AV_Protocol_Object::open TAO_AV_Callback   callback,
TAO_AV_Transport   transport
[virtual]


virtual int TAO_AV_Protocol_Object::send_frame const char *    buf,
size_t    len
[pure virtual]


Implemented in TAO_AV_RTCP_Object, TAO_AV_RTP_Object, TAO_AV_SCTP_SEQ_Object, TAO_SFP_Object, TAO_AV_TCP_Object, and TAO_AV_UDP_Object.

virtual int TAO_AV_Protocol_Object::send_frame const iovec   iov,
int    iovcnt,
TAO_AV_frame_info   frame_info = 0
[pure virtual]


send a frame in iovecs.

Implemented in TAO_AV_RTCP_Object, TAO_AV_RTP_Object, TAO_AV_SCTP_SEQ_Object, TAO_SFP_Object, TAO_AV_TCP_Object, and TAO_AV_UDP_Object.

virtual int TAO_AV_Protocol_Object::send_frame ACE_Message_Block   frame,
TAO_AV_frame_info   frame_info = 0
[pure virtual]


send a data frame.

Implemented in TAO_AV_RTCP_Object, TAO_AV_RTP_Object, TAO_AV_SCTP_SEQ_Object, TAO_SFP_Object, TAO_AV_TCP_Object, and TAO_AV_UDP_Object.

int TAO_AV_Protocol_Object::set_policies const TAO_AV_PolicyList   policy_list [virtual]


set/get policies.

Reimplemented in TAO_AV_RTCP_Object, TAO_AV_RTP_Object, and TAO_SFP_Object.

int TAO_AV_Protocol_Object::start void    [virtual]


start/stop the flow.

Reimplemented in TAO_AV_RTCP_Object, and TAO_AV_RTP_Object.

int TAO_AV_Protocol_Object::stop void    [virtual]


Reimplemented in TAO_AV_RTCP_Object, and TAO_AV_RTP_Object.

TAO_AV_Transport * TAO_AV_Protocol_Object::transport void



Member Data Documentation

TAO_AV_Callback* TAO_AV_Protocol_Object::callback_ [protected]


TAO_AV_PolicyList TAO_AV_Protocol_Object::policy_list_ [protected]


TAO_AV_Transport* TAO_AV_Protocol_Object::transport_ [protected]



The documentation for this class was generated from the following files:
Generated on Fri Apr 2 19:02:00 2004 for TAO_AV by doxygen1.2.18
