TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl > Class Template Reference

Helper class for the child process created in TAO_AV_Endpoint_Process_Strategy. More...

#include <Endpoint_Strategy_T.h>

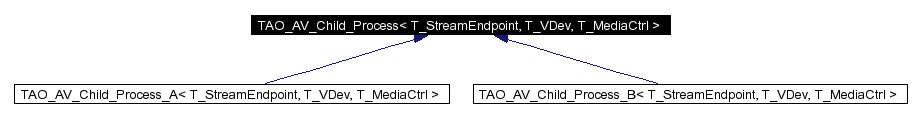

Inheritance diagram for TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >:

Inheritance graph
[legend]

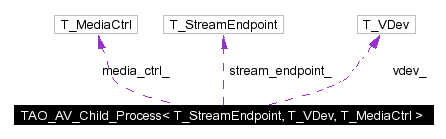

Collaboration diagram for TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >:

Collaboration graph
[legend]
List of all members.

Public Methods

 TAO_AV_Child_Process ()
 Constructor.

virtual ~TAO_AV_Child_Process ()
 Destructor.

int init (int argc, char **argv, CORBA::ORB_ptr orb, PortableServer::POA_ptr poa)
int run (ACE_Time_Value *tv=0)
 runs the ORB event loop


Protected Methods

int activate_objects (int argc, char **argv ACE_ENV_ARG_DECL)
char * activate_with_poa (PortableServer::Servant servant ACE_ENV_ARG_DECL)
 activate the servant with the poa

int unbind_names (void)
 Removes the vdev and streamendpoint names from the naming service.

int bind_to_naming_service (ACE_ENV_SINGLE_ARG_DECL)
 Binds to the naming service.

int register_vdev (ACE_ENV_SINGLE_ARG_DECL)
 Registers vdev with the naming service.

int register_stream_endpoint (ACE_ENV_SINGLE_ARG_DECL)
 Registers stream_endpoint with the naming service.

int release_semaphore ()
 Releases the semaphore on which the parent is waiting on.

virtual int make_vdev (T_VDev *&vdev)
virtual int make_stream_endpoint (T_StreamEndpoint *&stream_endpoint)
virtual int make_mediactrl (T_MediaCtrl *&media_ctrl)

Protected Attributes

CosNaming::NamingContext_var naming_context_
 The root Naming Context of the TAO naming service.

CosNaming::Name vdev_name_
 Name of the vdev.

CosNaming::Name stream_endpoint_name_
 Name of the stream_endpoint.

T_StreamEndpoint * stream_endpoint_
 The stream endpoint member.

T_VDev * vdev_
 The virtual device.

CORBA::Object_var vdev_obj_
 Virtual device CORBA object reference.

T_MediaCtrl * media_ctrl_
 Media controller.

CORBA::Object_var media_ctrl_obj_
pid_t pid_
 pid of this process

char host_ [MAXHOSTNAMELEN]
 Name of the host.

CORBA::ORB_ptr orb_
PortableServer::POA_ptr poa_

Detailed Description

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
class TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >

Helper class for the child process created in TAO_AV_Endpoint_Process_Strategy.


Constructor & Destructor Documentation

template<class T_StreamEndpoint_B, class T_VDev, class T_MediaCtrl>
TAO_AV_Child_Process< T_StreamEndpoint_B, T_VDev, T_MediaCtrl >::TAO_AV_Child_Process


Constructor.

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::~TAO_AV_Child_Process   [virtual]


Destructor.


Member Function Documentation

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::activate_objects int    argc,
char **argv    ACE_ENV_ARG_DECL
[protected]


Creates the objects and inserts them into the Naming Service, so the parent can pick the IOR's and return them to the client

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
char * TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::activate_with_poa PortableServer::Servant servant    ACE_ENV_ARG_DECL [protected]


activate the servant with the poa

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::bind_to_naming_service ACE_ENV_SINGLE_ARG_DECL    [protected]


Binds to the naming service.

template<class T_StreamEndpoint_B, class T_VDev, class T_MediaCtrl>
int TAO_AV_Child_Process< T_StreamEndpoint_B, T_VDev, T_MediaCtrl >::init int    argc,
char **    argv,
CORBA::ORB_ptr    orb,
PortableServer::POA_ptr    poa


Initializes the ORB, creates and activates the T_StreamEndpoint, T_VDev, T_MediaCtrl in the POA

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::make_mediactrl T_MediaCtrl *&    media_ctrl [protected, virtual]


Bridge method to create a media_ctrl, a la Acceptor. Applications can override this

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::make_stream_endpoint T_StreamEndpoint *&    stream_endpoint [protected, virtual]


Bridge method to create a stream_endpoint, a la Acceptor. Applications can override this

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::make_vdev T_VDev *&    vdev [protected, virtual]


Bridge method to create a vdev, a la Acceptor. Applications can override this

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::register_stream_endpoint ACE_ENV_SINGLE_ARG_DECL    [protected]


Registers stream_endpoint with the naming service.

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::register_vdev ACE_ENV_SINGLE_ARG_DECL    [protected]


Registers vdev with the naming service.

template<class T_StreamEndpoint_B, class T_VDev, class T_MediaCtrl>
int TAO_AV_Child_Process< T_StreamEndpoint_B, T_VDev, T_MediaCtrl >::release_semaphore   [protected]


Releases the semaphore on which the parent is waiting on.

template<class T_StreamEndpoint_B, class T_VDev, class T_MediaCtrl>
int TAO_AV_Child_Process< T_StreamEndpoint_B, T_VDev, T_MediaCtrl >::run ACE_Time_Value   tv = 0


runs the ORB event loop

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
int TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::unbind_names void    [protected]


Removes the vdev and streamendpoint names from the naming service.


Member Data Documentation

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
char TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::host_[MAXHOSTNAMELEN] [protected]


Name of the host.

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
T_MediaCtrl* TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::media_ctrl_ [protected]


Media controller.

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
CORBA::Object_var TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::media_ctrl_obj_ [protected]


template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
CosNaming::NamingContext_var TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::naming_context_ [protected]


The root Naming Context of the TAO naming service.

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
CORBA::ORB_ptr TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::orb_ [protected]


template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
pid_t TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::pid_ [protected]


pid of this process

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
PortableServer::POA_ptr TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::poa_ [protected]


template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
T_StreamEndpoint* TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::stream_endpoint_ [protected]


The stream endpoint member.

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
CosNaming::Name TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::stream_endpoint_name_ [protected]


Name of the stream_endpoint.

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
T_VDev* TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::vdev_ [protected]


The virtual device.

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
CosNaming::Name TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::vdev_name_ [protected]


Name of the vdev.

template<class T_StreamEndpoint, class T_VDev, class T_MediaCtrl>
CORBA::Object_var TAO_AV_Child_Process< T_StreamEndpoint, T_VDev, T_MediaCtrl >::vdev_obj_ [protected]


Virtual device CORBA object reference.


The documentation for this class was generated from the following files:
Generated on Fri Apr 2 19:01:40 2004 for TAO_AV by doxygen1.2.18
