TAO_AV_Endpoint_Process_Strategy Class Reference

Process-based strategy for creating endpoints. Abstract base class. More...

#include <Endpoint_Strategy.h>

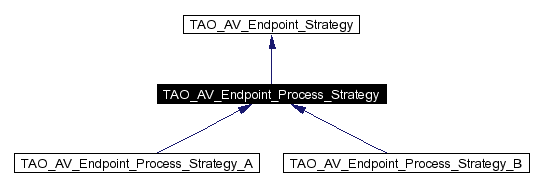

Inheritance diagram for TAO_AV_Endpoint_Process_Strategy:

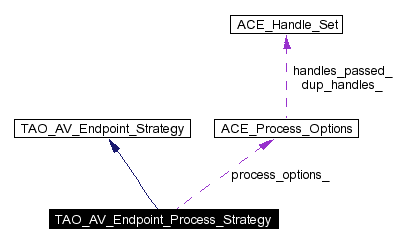

[legend]Collaboration diagram for TAO_AV_Endpoint_Process_Strategy:

[legend]List of all members.

Public Methods
	TAO_AV_Endpoint_Process_Strategy (ACE_Process_Options *process_options)
virtual	~TAO_AV_Endpoint_Process_Strategy (void)
	Destructor.
virtual int	activate (void)
Protected Methods
virtual int	bind_to_naming_service (ACE_ENV_SINGLE_ARG_DECL)
	Bind to the naming service.
virtual int	get_stream_endpoint (ACE_ENV_SINGLE_ARG_DECL)=0
virtual int	get_vdev (ACE_ENV_SINGLE_ARG_DECL)
Protected Attributes
CosNaming::NamingContext_var	naming_context_
	Naming context.
ACE_Process_Options *	process_options_
	Name and arguments for the process to be created.
char	host_ [MAXHOSTNAMELEN]
	name of this host used for resolving unique names.
pid_t	pid_
	My child's process id.

---

Detailed Description

Process-based strategy for creating endpoints. Abstract base class.

---

Constructor & Destructor Documentation

TAO_AV_Endpoint_Process_Strategy::TAO_AV_Endpoint_Process_Strategy (  ACE_Process_Options *    process_options )

Constructor. The process_options contain the name and arguments for the process to be created

TAO_AV_Endpoint_Process_Strategy::~TAO_AV_Endpoint_Process_Strategy (  void    )  [virtual]

Destructor.

---

Member Function Documentation

int TAO_AV_Endpoint_Process_Strategy::activate (  void    )  [virtual]

creates a new child process, and waits on a semaphore until the child process has finished creating the endpoints

int TAO_AV_Endpoint_Process_Strategy::bind_to_naming_service (  ACE_ENV_SINGLE_ARG_DECL    )  [protected, virtual]

Bind to the naming service.

virtual int TAO_AV_Endpoint_Process_Strategy::get_stream_endpoint (  ACE_ENV_SINGLE_ARG_DECL    )  [protected, pure virtual]

Get the object reference for the newly created stream endpoint (which will be in the child process) Subclasses will define the functionality for this Implemented in TAO_AV_Endpoint_Process_Strategy_A, and TAO_AV_Endpoint_Process_Strategy_B.

int TAO_AV_Endpoint_Process_Strategy::get_vdev (  ACE_ENV_SINGLE_ARG_DECL    )  [protected, virtual]

Get the Vdev object reference for the newly created endpoint

---

Member Data Documentation

char TAO_AV_Endpoint_Process_Strategy::host_[MAXHOSTNAMELEN] [protected]

name of this host used for resolving unique names.

CosNaming::NamingContext_var TAO_AV_Endpoint_Process_Strategy::naming_context_ [protected]

Naming context.

pid_t TAO_AV_Endpoint_Process_Strategy::pid_ [protected]

My child's process id.

ACE_Process_Options* TAO_AV_Endpoint_Process_Strategy::process_options_ [protected]

Name and arguments for the process to be created.

---

The documentation for this class was generated from the following files:

• Endpoint_Strategy.h
• Endpoint_Strategy.cpp

---
