ACE_RMCast_UDP_Reliable_Sender Class Reference

#include <RMCast_UDP_Reliable_Sender.h>

Inheritance diagram for ACE_RMCast_UDP_Reliable_Sender:

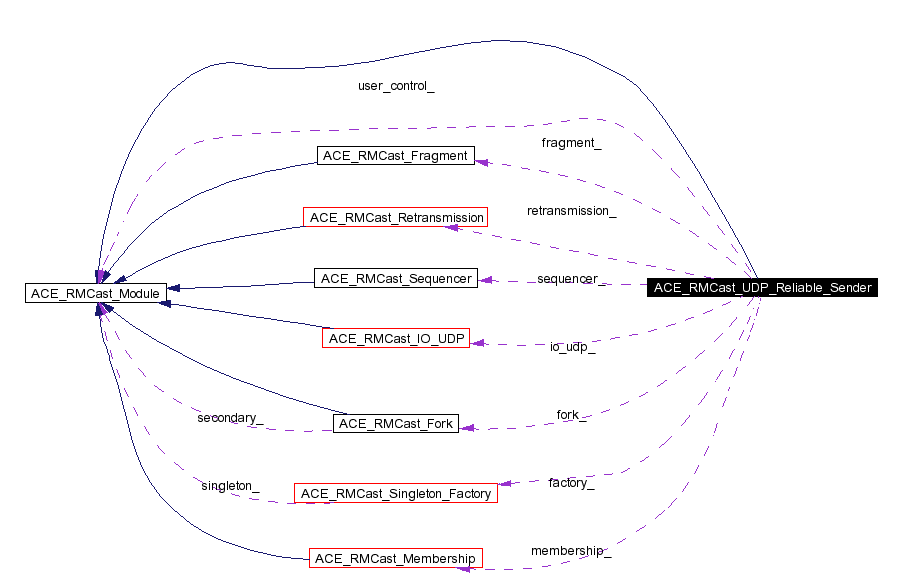

[legend]Collaboration diagram for ACE_RMCast_UDP_Reliable_Sender:

[legend]List of all members.

Public Methods
	ACE_RMCast_UDP_Reliable_Sender (ACE_RMCast_Module *user_control)
	Constructor.
virtual	~ACE_RMCast_UDP_Reliable_Sender (void)
	Destructor.
int	init (const ACE_INET_Addr &mcast_group)
	Open the UDP I/O module.
void	reactive_incoming_messages (ACE_Reactor *reactor)
	Use the reactor to handle incoming messages.
void	reactive_resends (ACE_Reactor *reactor, const ACE_Time_Value &period)
	Use the reactor to periodically resend messages.
int	has_data (void)
	Check if there is still some messages to send, return 0 if not.
int	has_members (void)
	Check if there are any members still connected.
Private Attributes
ACE_RMCast_Module *	user_control_
	The application-level control module.
ACE_RMCast_Sequencer	sequencer_
	Assign sequence numbers.
ACE_RMCast_Retransmission	retransmission_
	The retransmission module.
ACE_RMCast_Singleton_Factory	factory_
	All the proxys give their messages to the retransmission module.
ACE_RMCast_IO_UDP	io_udp_
	Handle all the UDP I/O.
ACE_RMCast_Membership	membership_
	The membership module.
ACE_RMCast_Fragment	fragment_
	The fragmentation module.
ACE_RMCast_Fork	fork_
	Redirect control messages to the user supplied module.

---

Constructor & Destructor Documentation

ACE_RMCast_UDP_Reliable_Sender::ACE_RMCast_UDP_Reliable_Sender (  ACE_RMCast_Module *    user_control )

Constructor.

ACE_RMCast_UDP_Reliable_Sender::~ACE_RMCast_UDP_Reliable_Sender (  void    )  [virtual]

Destructor.

---

Member Function Documentation

ACE_INLINE int ACE_RMCast_UDP_Reliable_Sender::has_data (  void    )

Check if there is still some messages to send, return 0 if not.

ACE_INLINE int ACE_RMCast_UDP_Reliable_Sender::has_members (  void    )

Check if there are any members still connected.

ACE_INLINE int ACE_RMCast_UDP_Reliable_Sender::init (  const ACE_INET_Addr &    mcast_group )

Open the UDP I/O module.

void ACE_RMCast_UDP_Reliable_Sender::reactive_incoming_messages (  ACE_Reactor *    reactor )

Use the reactor to handle incoming messages.

void ACE_RMCast_UDP_Reliable_Sender::reactive_resends (  ACE_Reactor *    reactor, const ACE_Time_Value &    period )

Use the reactor to periodically resend messages.

---

Member Data Documentation

ACE_RMCast_Singleton_Factory ACE_RMCast_UDP_Reliable_Sender::factory_ [private]

All the proxys give their messages to the retransmission module.

ACE_RMCast_Fork ACE_RMCast_UDP_Reliable_Sender::fork_ [private]

Redirect control messages to the user supplied module.

ACE_RMCast_Fragment ACE_RMCast_UDP_Reliable_Sender::fragment_ [private]

The fragmentation module.

ACE_RMCast_IO_UDP ACE_RMCast_UDP_Reliable_Sender::io_udp_ [private]

Handle all the UDP I/O.

ACE_RMCast_Membership ACE_RMCast_UDP_Reliable_Sender::membership_ [private]

The membership module.

ACE_RMCast_Retransmission ACE_RMCast_UDP_Reliable_Sender::retransmission_ [private]

The retransmission module.

ACE_RMCast_Sequencer ACE_RMCast_UDP_Reliable_Sender::sequencer_ [private]

Assign sequence numbers.

ACE_RMCast_Module* ACE_RMCast_UDP_Reliable_Sender::user_control_ [private]

The application-level control module.

---

The documentation for this class was generated from the following files:

• RMCast_UDP_Reliable_Sender.h
• RMCast_UDP_Reliable_Sender.cpp
• RMCast_UDP_Reliable_Sender.i

---
