ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK > Class Template Reference

Provides a simple implementation of timers. More...

#include <Timer_List_T.h>

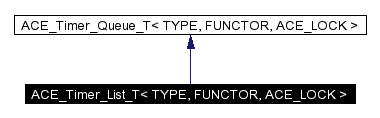

Inheritance diagram for ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >:

Inheritance graph
[legend]

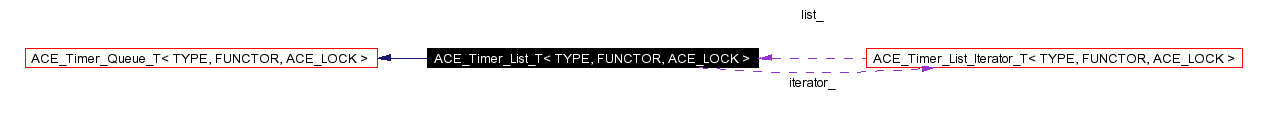

Collaboration diagram for ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Timer_List_Iterator_T<
TYPE, FUNCTOR, ACE_LOCK >
Iterator
 Type of iterator.

typedef ACE_Timer_Node_T<
TYPE >
Node
typedef ACE_Timer_Queue_T<
TYPE, FUNCTOR, ACE_LOCK >
Base
 Type inherited from.

typedef ACE_Free_List< NodeFreeList

Public Methods

 ACE_Timer_List_T (FUNCTOR *upcall_functor=0, FreeList *freelist=0)
virtual ~ACE_Timer_List_T (void)
 Destructor.

virtual int is_empty (void) const
 True if queue is empty, else false.

virtual const ACE_Time_Valueearliest_time (void) const
virtual int reset_interval (long timer_id, const ACE_Time_Value &interval)
virtual int cancel (const TYPE &type, int dont_call_handle_close=1)
virtual int cancel (long timer_id, const void **act=0, int dont_call_handle_close=1)
virtual ACE_Timer_Queue_Iterator_T<
TYPE, FUNCTOR, ACE_LOCK > &
iter (void)
 Returns a pointer to this <ACE_Timer_Queue>'s iterator.

virtual ACE_Timer_Node_T<
TYPE > *
remove_first (void)
 Removes the earliest node from the queue and returns it.

virtual void dump (void) const
 Dump the state of an object.

virtual void reschedule (ACE_Timer_Node_T< TYPE > *)
virtual ACE_Timer_Node_T<
TYPE > *
get_first (void)
 Reads the earliest node from the queue and returns it.


Private Methods

virtual long schedule_i (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval)
void schedule_i (ACE_Timer_Node_T< TYPE > *n, const ACE_Time_Value &exp)
 The shared scheduling functionality between schedule() and reschedule().

ACE_Timer_Node_T< TYPE > * find_node (long timer_id) const
void cancel_i (ACE_Timer_Node_T< TYPE > *n)
 Shared subset of the two cancel() methods.

void unlink (ACE_Timer_Node_T< TYPE > *n)
ACE_Timer_Node_T< TYPE > * get_first_i (void) const
 ACE_Timer_List_T (const ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK > &)
void operator= (const ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK > &)

Private Attributes

ACE_Timer_Node_T< TYPE > * head_
 Pointer to linked list of <ACE_Timer_Handles>.

Iteratoriterator_
 Iterator used to expire timers.

long id_counter_

Friends

class ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK >
 Iterator is a friend.


Detailed Description

template<class TYPE, class FUNCTOR, class ACE_LOCK>
class ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >

Provides a simple implementation of timers.

This implementation uses a linked list of absolute times. Therefore, in the average case, scheduling and canceling timers is O(N) (where N is the total number of timers) and expiring timers is O(K) (where K is the total number of timers that are < the current time of day). More clever implementations could use a delta-list, a heap, or timing wheels, etc. For instance, <ACE_Timer_Heap> is a subclass of <ACE_Timer_List> that implements a heap-based callout queue. For most applications, the <ACE_Timer_Heap> will perform substantially faster than the <ACE_Timer_List>.


Member Typedef Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>
typedef ACE_Timer_Queue_T<TYPE, FUNCTOR, ACE_LOCK> ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::Base


Type inherited from.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
typedef ACE_Free_List<Node> ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::FreeList


template<class TYPE, class FUNCTOR, class ACE_LOCK>
typedef ACE_Timer_List_Iterator_T<TYPE, FUNCTOR, ACE_LOCK> ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::Iterator


Type of iterator.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
typedef ACE_Timer_Node_T<TYPE> ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::Node



Constructor & Destructor Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::ACE_Timer_List_T FUNCTOR *    upcall_functor = 0,
FreeList   freelist = 0


Default constructor. <upcall_functor> is the instance of the FUNCTOR to be used by the list. If <upcall_functor> is 0, a default FUNCTOR will be created. <freelist> the freelist of timer nodes. If 0, then a default freelist will be created.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::~ACE_Timer_List_T void    [virtual]


Destructor.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::ACE_Timer_List_T const ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK > &    [private]



Member Function Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>
int ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::cancel long    timer_id,
const void **    act = 0,
int    dont_call_handle_close = 1
[virtual]


Cancel the single timer that matches the <timer_id> value (which was returned from the <schedule> method). If act is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the timer was registered. This makes it possible to free up the memory and avoid memory leaks. If <dont_call> is 0 then the <functor> will be invoked. Returns 1 if cancellation succeeded and 0 if the <timer_id> wasn't found.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
int ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::cancel const TYPE &    type,
int    dont_call_handle_close = 1
[virtual]


Cancel all timers associated with <type>. If <dont_call> is 0 then the <functor> will be invoked. Returns number of timers cancelled.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::cancel_i ACE_Timer_Node_T< TYPE > *    n [private]


Shared subset of the two cancel() methods.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::dump void    const [virtual]


Dump the state of an object.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
const ACE_Time_Value & ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::earliest_time void    const [virtual]


Returns the time of the earlier node in the <ACE_Timer_List>. Must be called on a non-empty queue.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Node_T< TYPE > * ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::find_node long    timer_id const [private]


template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Node_T< TYPE > * ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::get_first void    [virtual]


Reads the earliest node from the queue and returns it.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Node_T< TYPE > * ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::get_first_i void    const [private]


template<class TYPE, class FUNCTOR, class ACE_LOCK>
int ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::is_empty void    const [virtual]


True if queue is empty, else false.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK > & ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::iter void    [virtual]


Returns a pointer to this <ACE_Timer_Queue>'s iterator.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::operator= const ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK > &    [private]


template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Node_T< TYPE > * ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::remove_first void    [virtual]


Removes the earliest node from the queue and returns it.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::reschedule ACE_Timer_Node_T< TYPE > *    [virtual]


Reschedule an "interval" <ACE_Timer_Node>. This should be private but for now it needs to be public for <ACE_Timer_Hash_T>

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
int ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::reset_interval long    timer_id,
const ACE_Time_Value   interval
[virtual]


Resets the interval of the timer represented by <timer_id> to <interval>, which is specified in relative time to the current <gettimeofday>. If <interval> is equal to <ACE_Time_Value::zero>, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::schedule_i ACE_Timer_Node_T< TYPE > *    n,
const ACE_Time_Value   exp
[private]


The shared scheduling functionality between schedule() and reschedule().

template<class TYPE, class FUNCTOR, class ACE_LOCK>
long ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::schedule_i const TYPE &    type,
const void *    act,
const ACE_Time_Value   future_time,
const ACE_Time_Value   interval
[private, virtual]


Schedule <type> that will expire at <future_time>, which is specified in absolute time. If it expires then <act> is passed in as the value to the <functor>. If <interval> is != to <ACE_Time_Value::zero> then it is used to reschedule the <type> automatically, using relative time to the current <gettimeofday>. This method returns a <timer_id> that uniquely identifies the the <type> entry in an internal list. This <timer_id> can be used to cancel the timer before it expires. The cancellation ensures that <timer_ids> are unique up to values of greater than 2 billion timers. As long as timers don't stay around longer than this there should be no problems with accidentally deleting the wrong timer. Returns -1 on failure (which is guaranteed never to be a valid <timer_id>).

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
void ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::unlink ACE_Timer_Node_T< TYPE > *    n [private]



Friends And Related Function Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>
friend class ACE_Timer_List_Iterator_T< TYPE, FUNCTOR, ACE_LOCK > [friend]


Iterator is a friend.


Member Data Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK>
ACE_Timer_Node_T<TYPE>* ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::head_ [private]


Pointer to linked list of <ACE_Timer_Handles>.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
long ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::id_counter_ [private]


Keeps track of the timer id that uniquely identifies each timer. This id can be used to cancel a timer via the <cancel(long)> method.

template<class TYPE, class FUNCTOR, class ACE_LOCK>
Iterator* ACE_Timer_List_T< TYPE, FUNCTOR, ACE_LOCK >::iterator_ [private]


Iterator used to expire timers.


The documentation for this class was generated from the following files:
Generated on Fri Apr 2 16:54:44 2004 for ACE by doxygen1.2.18
