ACE_Strategy_Connector< SVC_HANDLER, > Class Template Reference

Abstract factory for creating a service handler (SVC_HANDLER), connecting the SVC_HANDLER, and activating the SVC_HANDLER. More...

#include <Connector.h>

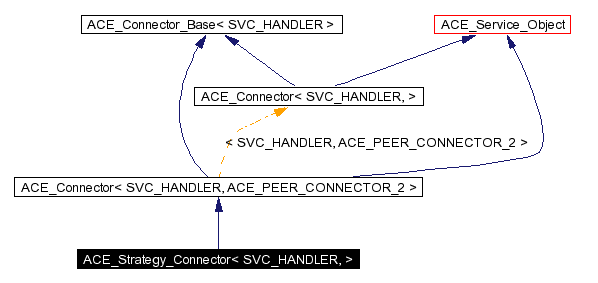

Inheritance diagram for ACE_Strategy_Connector< SVC_HANDLER, >:

Inheritance graph
[legend]

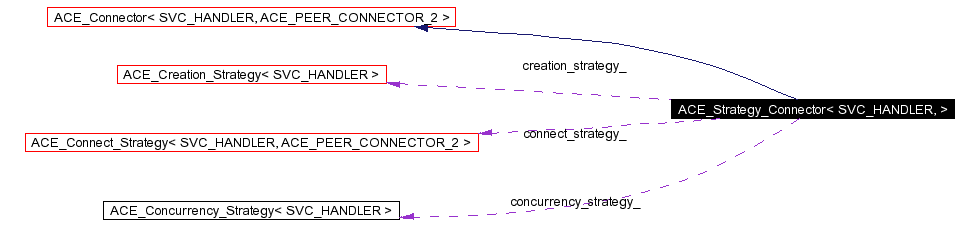

Collaboration diagram for ACE_Strategy_Connector< SVC_HANDLER, >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Creation_Strategy<
SVC_HANDLER >
creation_strategy_type
typedef ACE_Connect_Strategy<
SVC_HANDLER, ACE_PEER_CONNECTOR_2 >
connect_strategy_type
typedef ACE_Concurrency_Strategy<
SVC_HANDLER >
concurrency_strategy_type
typedef ACE_Connector< SVC_HANDLER,
ACE_PEER_CONNECTOR_2 >
base_type
typedef ACE_Creation_Strategy<
SVC_HANDLER >
CREATION_STRATEGY
typedef ACE_Connect_Strategy<
SVC_HANDLER, ACE_PEER_CONNECTOR_2 >
CONNECT_STRATEGY
typedef ACE_Concurrency_Strategy<
SVC_HANDLER >
CONCURRENCY_STRATEGY
typedef ACE_Connector< SVC_HANDLER,
ACE_PEER_CONNECTOR_2 >
SUPER

Public Methods

 ACE_Strategy_Connector (ACE_Reactor *r=ACE_Reactor::instance(), ACE_Creation_Strategy< SVC_HANDLER > *=0, ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 > *=0, ACE_Concurrency_Strategy< SVC_HANDLER > *=0, int flags=0)
virtual int open (ACE_Reactor *r, int flags)
virtual int open (ACE_Reactor *r=ACE_Reactor::instance(), ACE_Creation_Strategy< SVC_HANDLER > *=0, ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 > *=0, ACE_Concurrency_Strategy< SVC_HANDLER > *=0, int flags=0)
virtual ~ACE_Strategy_Connector (void)
 Shutdown a connector and release resources.

virtual int close (void)
 Close down the Connector.

virtual ACE_Creation_Strategy<
SVC_HANDLER > *
creation_strategy (void) const
virtual ACE_Connect_Strategy<
SVC_HANDLER, ACE_PEER_CONNECTOR_2 > *
connect_strategy (void) const
virtual ACE_Concurrency_Strategy<
SVC_HANDLER > *
concurrency_strategy (void) const

Protected Methods

virtual int make_svc_handler (SVC_HANDLER *&sh)
virtual int connect_svc_handler (SVC_HANDLER *&sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value *timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, int reuse_addr, int flags, int perms)
virtual int connect_svc_handler (SVC_HANDLER *&sh, SVC_HANDLER *&sh_copy, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value *timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, int reuse_addr, int flags, int perms)
virtual int activate_svc_handler (SVC_HANDLER *svc_handler)

Protected Attributes

CREATION_STRATEGYcreation_strategy_
 Creation strategy for an <Connector>.

int delete_creation_strategy_
CONNECT_STRATEGYconnect_strategy_
 Connect strategy for a <Connector>.

int delete_connect_strategy_
CONCURRENCY_STRATEGYconcurrency_strategy_
 Concurrency strategy for an <Connector>.

int delete_concurrency_strategy_

Detailed Description

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1>
class ACE_Strategy_Connector< SVC_HANDLER, >

Abstract factory for creating a service handler (SVC_HANDLER), connecting the SVC_HANDLER, and activating the SVC_HANDLER.

Implements a flexible and extensible set of strategies for actively establishing connections with clients. There are three main strategies: (1) creating a SVC_HANDLER, (2) actively initiating a new connection from the client, and (3) activating the SVC_HANDLER with a particular concurrency mechanism after the connection is established.


Member Typedef Documentation

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Connector<SVC_HANDLER, ACE_PEER_CONNECTOR_2> ACE_Strategy_Connector< SVC_HANDLER, >::base_type


template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Concurrency_Strategy<SVC_HANDLER> ACE_Strategy_Connector< SVC_HANDLER, >::CONCURRENCY_STRATEGY


template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Concurrency_Strategy<SVC_HANDLER> ACE_Strategy_Connector< SVC_HANDLER, >::concurrency_strategy_type


template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Connect_Strategy<SVC_HANDLER, ACE_PEER_CONNECTOR_2> ACE_Strategy_Connector< SVC_HANDLER, >::CONNECT_STRATEGY


template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Connect_Strategy<SVC_HANDLER, ACE_PEER_CONNECTOR_2> ACE_Strategy_Connector< SVC_HANDLER, >::connect_strategy_type


template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Creation_Strategy<SVC_HANDLER> ACE_Strategy_Connector< SVC_HANDLER, >::CREATION_STRATEGY


template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Creation_Strategy<SVC_HANDLER> ACE_Strategy_Connector< SVC_HANDLER, >::creation_strategy_type


template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
typedef ACE_Connector<SVC_HANDLER, ACE_PEER_CONNECTOR_2> ACE_Strategy_Connector< SVC_HANDLER, >::SUPER



Constructor & Destructor Documentation

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
ACE_Strategy_Connector< SVC_HANDLER, >::ACE_Strategy_Connector ACE_Reactor   r = ACE_Reactor::instance(),
ACE_Creation_Strategy< SVC_HANDLER > *    = 0,
ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 > *    = 0,
ACE_Concurrency_Strategy< SVC_HANDLER > *    = 0,
int    flags = 0


Initialize a connector. <flags> indicates how <SVC_HANDLER>'s should be initialized prior to being activated. Right now, the only flag that is processed is <ACE_NONBLOCK>, which enabled non-blocking I/O on the <SVC_HANDLER> when it is opened.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
ACE_Strategy_Connector< SVC_HANDLER, >::~ACE_Strategy_Connector void    [virtual]


Shutdown a connector and release resources.


Member Function Documentation

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, >::activate_svc_handler SVC_HANDLER *    svc_handler [protected, virtual]


Bridge method for activating a <SVC_HANDLER> with the appropriate concurrency strategy. The default behavior of this method is to activate the <SVC_HANDLER> by calling its <open> method (which allows the <SVC_HANDLER> to define its own concurrency strategy). However, subclasses can override this strategy to do more sophisticated concurrency activations (such as creating the <SVC_HANDLER> as an "active object" via multi-threading or multi-processing).

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, >::close void    [virtual]


Close down the Connector.

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
ACE_Concurrency_Strategy< SVC_HANDLER > * ACE_Strategy_Connector< SVC_HANDLER, >::concurrency_strategy void    const [virtual]


template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 > * ACE_Strategy_Connector< SVC_HANDLER, >::connect_strategy void    const [virtual]


template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, >::connect_svc_handler SVC_HANDLER *&    sh,
SVC_HANDLER *&    sh_copy,
const ACE_PEER_CONNECTOR_ADDR &    remote_addr,
ACE_Time_Value   timeout,
const ACE_PEER_CONNECTOR_ADDR &    local_addr,
int    reuse_addr,
int    flags,
int    perms
[protected, virtual]


Bridge method for connecting the new connection into the <SVC_HANDLER>. The default behavior delegates to the <PEER_CONNECTOR::connect> in the <Connect_Strategy>. <sh_copy> is used to obtain a copy of the <sh> pointer, but that can be kept in the stack; the motivation is a bit too long to include here, but basically we want to modify <sh> safely, using the internal locks in the Connect_Strategy, while saving a TSS copy in <sh_copy>, usually located in the stack.

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, >::connect_svc_handler SVC_HANDLER *&    sh,
const ACE_PEER_CONNECTOR_ADDR &    remote_addr,
ACE_Time_Value   timeout,
const ACE_PEER_CONNECTOR_ADDR &    local_addr,
int    reuse_addr,
int    flags,
int    perms
[protected, virtual]


Bridge method for connecting the new connection into the <SVC_HANDLER>. The default behavior delegates to the <PEER_CONNECTOR::connect> in the <Connect_Strategy>.

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
ACE_Creation_Strategy< SVC_HANDLER > * ACE_Strategy_Connector< SVC_HANDLER, >::creation_strategy void    const [virtual]


template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, >::make_svc_handler SVC_HANDLER *&    sh [protected, virtual]


Bridge method for creating a <SVC_HANDLER>. The strategy for creating a <SVC_HANDLER> are configured into the Connector via it's <creation_strategy_>. The default is to create a new <SVC_HANDLER> only if <sh> == 0, else <sh> is unchanged. However, subclasses can override this policy to perform <SVC_HANDLER> creation in any way that they like (such as creating subclass instances of <SVC_HANDLER>, using a singleton, dynamically linking the handler, etc.). Returns -1 if failure, else 0.

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, >::open ACE_Reactor   r = ACE_Reactor::instance(),
ACE_Creation_Strategy< SVC_HANDLER > *    = 0,
ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 > *    = 0,
ACE_Concurrency_Strategy< SVC_HANDLER > *    = 0,
int    flags = 0
[virtual]


Initialize a connector. <flags> indicates how <SVC_HANDLER>'s should be initialized prior to being activated. Right now, the only flag that is processed is <ACE_NONBLOCK>, which enabled non-blocking I/O on the <SVC_HANDLER> when it is opened.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, >::open ACE_Reactor   r,
int    flags
[virtual]


Initialize a connector. <flags> indicates how <SVC_HANDLER>'s should be initialized prior to being activated. Right now, the only flag that is processed is <ACE_NONBLOCK>, which enabled non-blocking I/O on the <SVC_HANDLER> when it is opened. Default strategies would be created and used.

Reimplemented from ACE_Connector< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.


Member Data Documentation

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
CONCURRENCY_STRATEGY* ACE_Strategy_Connector< SVC_HANDLER, >::concurrency_strategy_ [protected]


Concurrency strategy for an <Connector>.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
CONNECT_STRATEGY* ACE_Strategy_Connector< SVC_HANDLER, >::connect_strategy_ [protected]


Connect strategy for a <Connector>.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
CREATION_STRATEGY* ACE_Strategy_Connector< SVC_HANDLER, >::creation_strategy_ [protected]


Creation strategy for an <Connector>.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, >::delete_concurrency_strategy_ [protected]


1 if <Connector> created the concurrency strategy and thus should delete it, else 0.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, >::delete_connect_strategy_ [protected]


1 if <Connector> created the connect strategy and thus should delete it, else 0.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 >
int ACE_Strategy_Connector< SVC_HANDLER, >::delete_creation_strategy_ [protected]


1 if <Connector> created the creation strategy and thus should delete it, else 0.


The documentation for this class was generated from the following files:
