ACE_POSIX_Asynch_Transmit_File_Result Class Reference

This is that class which will be passed back to the <handler> when the asynchronous transmit file completes. More...

#include <POSIX_Asynch_IO.h>

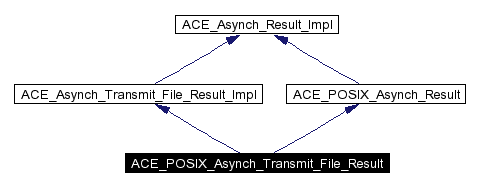

Inheritance diagram for ACE_POSIX_Asynch_Transmit_File_Result:

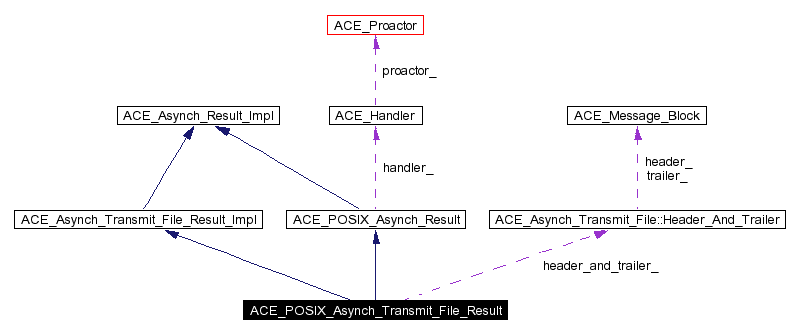

[legend]Collaboration diagram for ACE_POSIX_Asynch_Transmit_File_Result:

[legend]List of all members.

Public Methods
ACE_HANDLE	socket (void) const
	Socket used for transmitting the file.
ACE_HANDLE	file (void) const
	File from which the data is read.
ACE_Asynch_Transmit_File::Header_And_Trailer *	header_and_trailer (void) const
	Header and trailer data associated with this transmit file.
size_t	bytes_to_write (void) const
size_t	bytes_per_send (void) const
u_long	flags (void) const
	Flags which were passed into transmit file.
Protected Methods
	ACE_POSIX_Asynch_Transmit_File_Result (ACE_Handler &handler, ACE_HANDLE socket, ACE_HANDLE file, ACE_Asynch_Transmit_File::Header_And_Trailer *header_and_trailer, size_t bytes_to_write, u_long offset, u_long offset_high, size_t bytes_per_send, u_long flags, const void *act, ACE_HANDLE event, int priority, int signal_number)
virtual void	complete (size_t bytes_transferred, int success, const void *completion_key, u_long error)
	ACE_Proactor will call this method when the write completes.
virtual	~ACE_POSIX_Asynch_Transmit_File_Result (void)
	Destructor.
Protected Attributes
ACE_HANDLE	socket_
	Network I/O handle.
ACE_Asynch_Transmit_File::Header_And_Trailer *	header_and_trailer_
	Header and trailer data associated with this transmit file.
size_t	bytes_per_send_
u_long	flags_
	Flags which were passed into transmit file.
Friends
class	ACE_POSIX_Asynch_Transmit_File
	Factory classes will have special permissions.
class	ACE_POSIX_Asynch_Transmit_Handler
	Handlers do all the job.
class	ACE_POSIX_Proactor
	The Proactor constructs the Result class for faking results.

---

Detailed Description

This is that class which will be passed back to the <handler> when the asynchronous transmit file completes.

This class has all the information necessary for the <handler> to uniquiely identify the completion of the asynchronous transmit file.

---

Constructor & Destructor Documentation

ACE_POSIX_Asynch_Transmit_File_Result::ACE_POSIX_Asynch_Transmit_File_Result (  ACE_Handler &    handler, ACE_HANDLE    socket, ACE_HANDLE    file, ACE_Asynch_Transmit_File::Header_And_Trailer *    header_and_trailer, size_t    bytes_to_write, u_long    offset, u_long    offset_high, size_t    bytes_per_send, u_long    flags, const void *    act, ACE_HANDLE    event, int    priority, int    signal_number )  [protected]

ACE_POSIX_Asynch_Transmit_File_Result::~ACE_POSIX_Asynch_Transmit_File_Result (  void    )  [protected, virtual]

Destructor.

---

Member Function Documentation

size_t ACE_POSIX_Asynch_Transmit_File_Result::bytes_per_send (  void    )  const [virtual]

Number of bytes per send requested at the start of the transmit file. Implements ACE_Asynch_Transmit_File_Result_Impl.

size_t ACE_POSIX_Asynch_Transmit_File_Result::bytes_to_write (  void    )  const [virtual]

The number of bytes which were requested at the start of the asynchronous transmit file. Implements ACE_Asynch_Transmit_File_Result_Impl.

void ACE_POSIX_Asynch_Transmit_File_Result::complete (  size_t    bytes_transferred, int    success, const void *    completion_key, u_long    error )  [protected, virtual]

ACE_Proactor will call this method when the write completes. Implements ACE_Asynch_Result_Impl.

ACE_HANDLE ACE_POSIX_Asynch_Transmit_File_Result::file (  void    )  const [virtual]

File from which the data is read. Implements ACE_Asynch_Transmit_File_Result_Impl.

u_long ACE_POSIX_Asynch_Transmit_File_Result::flags (  void    )  const [virtual]

Flags which were passed into transmit file. Implements ACE_Asynch_Transmit_File_Result_Impl.

ACE_Asynch_Transmit_File::Header_And_Trailer * ACE_POSIX_Asynch_Transmit_File_Result::header_and_trailer (  void    )  const [virtual]

Header and trailer data associated with this transmit file. Implements ACE_Asynch_Transmit_File_Result_Impl.

ACE_HANDLE ACE_POSIX_Asynch_Transmit_File_Result::socket (  void    )  const [virtual]

Socket used for transmitting the file. Implements ACE_Asynch_Transmit_File_Result_Impl.

---

Friends And Related Function Documentation

friend class ACE_POSIX_Asynch_Transmit_File [friend]

Factory classes will have special permissions.

friend class ACE_POSIX_Asynch_Transmit_Handler [friend]

Handlers do all the job.

friend class ACE_POSIX_Proactor [friend]

The Proactor constructs the Result class for faking results.

---

Member Data Documentation

size_t ACE_POSIX_Asynch_Transmit_File_Result::bytes_per_send_ [protected]

Number of bytes per send requested at the start of the transmit file.

u_long ACE_POSIX_Asynch_Transmit_File_Result::flags_ [protected]

Flags which were passed into transmit file.

ACE_Asynch_Transmit_File::Header_And_Trailer* ACE_POSIX_Asynch_Transmit_File_Result::header_and_trailer_ [protected]

Header and trailer data associated with this transmit file.

ACE_HANDLE ACE_POSIX_Asynch_Transmit_File_Result::socket_ [protected]

Network I/O handle.

---

The documentation for this class was generated from the following files:

• POSIX_Asynch_IO.h
• POSIX_Asynch_IO.cpp

---
