ACE_Dev_Poll_Reactor_Notify Class Reference

Event handler used for unblocking the ACE_Dev_Poll_Reactor from its event loop. More...

#include <Dev_Poll_Reactor.h>

Inheritance diagram for ACE_Dev_Poll_Reactor_Notify:

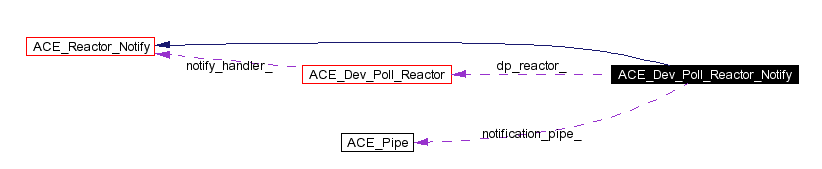

[legend]Collaboration diagram for ACE_Dev_Poll_Reactor_Notify:

[legend]List of all members.

Initialization and Termination Methods
Methods called when initializing and terminating this event handler.
virtual int	open (ACE_Reactor_Impl *, ACE_Timer_Queue *timer_queue=0, int disable_notify=0)
virtual int	close (void)
virtual ssize_t	notify (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *=0)
virtual int	dispatch_notifications (int &number_of_active_handles, ACE_Handle_Set &rd_mask)
virtual ACE_HANDLE	notify_handle (void)
virtual int	is_dispatchable (ACE_Notification_Buffer &buffer)
	Verify whether the buffer has dispatchable info or not.
virtual int	dispatch_notify (ACE_Notification_Buffer &buffer)
virtual int	read_notify_pipe (ACE_HANDLE handle, ACE_Notification_Buffer &buffer)
virtual int	handle_input (ACE_HANDLE handle)
virtual void	max_notify_iterations (int)
virtual int	max_notify_iterations (void)
virtual int	purge_pending_notifications (ACE_Event_Handler *=0, ACE_Reactor_Mask=ACE_Event_Handler::ALL_EVENTS_MASK)
virtual void	dump (void) const
	Dump the state of an object.
ACE_Dev_Poll_Reactor *	dp_reactor_
ACE_Pipe	notification_pipe_
int	max_notify_iterations_
Public Methods
	ACE_Dev_Poll_Reactor_Notify (void)
	Constructor.

---

Detailed Description

Event handler used for unblocking the ACE_Dev_Poll_Reactor from its event loop.

This event handler is used internally by the ACE_Dev_Poll_Reactor as a means to allow a thread other then the one running the event loop to unblock the event loop.

---

Constructor & Destructor Documentation

ACE_Dev_Poll_Reactor_Notify::ACE_Dev_Poll_Reactor_Notify (  void    )

Constructor.

---

Member Function Documentation

int ACE_Dev_Poll_Reactor_Notify::close (  void    )  [virtual]

Implements ACE_Reactor_Notify.

int ACE_Dev_Poll_Reactor_Notify::dispatch_notifications (  int &    number_of_active_handles, ACE_Handle_Set &    rd_mask )  [virtual]

This method's interface is not very compatibile with this Reactor's design. It's not clear why this method is pure virtual either. Implements ACE_Reactor_Notify.

int ACE_Dev_Poll_Reactor_Notify::dispatch_notify (  ACE_Notification_Buffer &    buffer )  [virtual]

Handle one of the notify call on the handle. This could be because of a thread trying to unblock the Reactor_Impl. Implements ACE_Reactor_Notify.

void ACE_Dev_Poll_Reactor_Notify::dump (  void    )  const [virtual]

Dump the state of an object. Implements ACE_Reactor_Notify.

int ACE_Dev_Poll_Reactor_Notify::handle_input (  ACE_HANDLE    handle )  [virtual]

Called back by the ACE_Dev_Poll_Reactor when a thread wants to unblock us. Reimplemented from ACE_Event_Handler.

int ACE_Dev_Poll_Reactor_Notify::is_dispatchable (  ACE_Notification_Buffer &    buffer )  [virtual]

Verify whether the buffer has dispatchable info or not. Implements ACE_Reactor_Notify.

int ACE_Dev_Poll_Reactor_Notify::max_notify_iterations (  void    )  [virtual]

Get the maximum number of times that the handle_input method will iterate and dispatch the ACE_Event_Handlers that are passed in via the notify queue before breaking out of its event loop. Implements ACE_Reactor_Notify.

void ACE_Dev_Poll_Reactor_Notify::max_notify_iterations (  int    )  [virtual]

Set the maximum number of times that the handle_input method will iterate and dispatch the ACE_Event_Handlers that are passed in via the notify queue before breaking out of the event loop. By default, this is set to -1, which means "iterate until the queue is empty." Setting this to a value like "1 or 2" will increase "fairness" (and thus prevent starvation) at the expense of slightly higher dispatching overhead. Implements ACE_Reactor_Notify.

ssize_t ACE_Dev_Poll_Reactor_Notify::notify (  ACE_Event_Handler *    = 0, ACE_Reactor_Mask    = ACE_Event_Handler::EXCEPT_MASK, ACE_Time_Value *    = 0 )  [virtual]

Called by a thread when it wants to unblock the Reactor_Impl. This wakeups the Reactor_Impl if currently blocked. Pass over both the Event_Handler *and* the mask to allow the caller to dictate which Event_Handler method the Reactor_Impl will invoke. The ACE_Time_Value indicates how long to blocking trying to notify the Reactor_Impl. If timeout == 0, the caller will block until action is possible, else will wait until the relative time specified in *timeout elapses). Implements ACE_Reactor_Notify.

ACE_HANDLE ACE_Dev_Poll_Reactor_Notify::notify_handle (  void    )  [virtual]

Returns the ACE_HANDLE of the notify pipe on which the reactor is listening for notifications so that other threads can unblock the Reactor_Impl. Implements ACE_Reactor_Notify.

int ACE_Dev_Poll_Reactor_Notify::open (  ACE_Reactor_Impl *   , ACE_Timer_Queue *    timer_queue = 0, int    disable_notify = 0 )  [virtual]

Implements ACE_Reactor_Notify.

int ACE_Dev_Poll_Reactor_Notify::purge_pending_notifications (  ACE_Event_Handler *    = 0, ACE_Reactor_Mask    = ACE_Event_Handler::ALL_EVENTS_MASK )  [virtual]

Purge any notifications pending in this reactor for the specified ACE_Event_Handler object. Returns the number of notifications purged. Returns -1 on error. Implements ACE_Reactor_Notify.

int ACE_Dev_Poll_Reactor_Notify::read_notify_pipe (  ACE_HANDLE    handle, ACE_Notification_Buffer &    buffer )  [virtual]

Read one of the notify call on the handle into the buffer. This could be because of a thread trying to unblock the Reactor_Impl. Implements ACE_Reactor_Notify.

---

Member Data Documentation

ACE_Dev_Poll_Reactor* ACE_Dev_Poll_Reactor_Notify::dp_reactor_ [protected]

Keep a back pointer to the ACE_Dev_Poll_Reactor. If this value if NULL then the ACE_Dev_Poll_Reactor has been initialized with disable_notify_pipe.

int ACE_Dev_Poll_Reactor_Notify::max_notify_iterations_ [protected]

Keeps track of the maximum number of times that the ACE_Dev_Poll_Reactor_Notify::handle_input method will iterate and dispatch the ACE_Event_Handlers that are passed in via the notify pipe before breaking out of its recv loop. By default, this is set to -1, which means "iterate until the pipe is empty."

ACE_Pipe ACE_Dev_Poll_Reactor_Notify::notification_pipe_ [protected]

Contains the ACE_HANDLE the ACE_Dev_Poll_Reactor is listening on, as well as the ACE_HANDLE that threads wanting the attention of the ACE_Dev_Poll_Reactor will write to.

---

The documentation for this class was generated from the following files:

• Dev_Poll_Reactor.h
• Dev_Poll_Reactor.cpp

---
