Wrapper for the PushConsumer that connect to the EventChannel. More...

#include <PushConsumer.h>

Inheritance diagram for TAO_Notify_PushConsumer:

[legend]

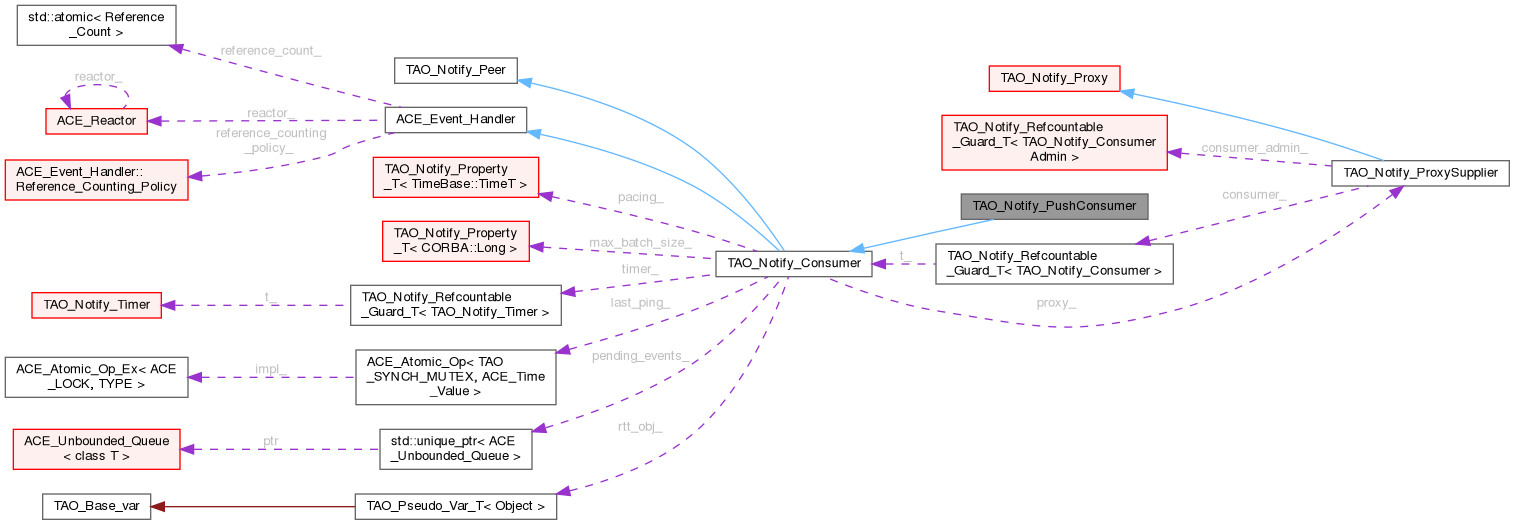

Collaboration diagram for TAO_Notify_PushConsumer:

[legend]

Public Member Functions
	TAO_Notify_PushConsumer (TAO_Notify_ProxySupplier *proxy)
	Constructor.

virtual	~TAO_Notify_PushConsumer ()
	Destructor.

void	init (CosEventComm::PushConsumer_ptr push_consumer)
	Init.

virtual void	push (const CORBA::Any &event)
	Push event to this consumer.

virtual void	push (const CosNotification::StructuredEvent &event)
	Push event to this consumer.

virtual void	push (const CosNotification::EventBatch &event)
	Push a batch of events to this consumer.

virtual ACE_CString	get_ior () const
	Retrieve the ior of this peer.

virtual void	reconnect_from_consumer (TAO_Notify_Consumer *old_consumer)

Public Member Functions inherited from TAO_Notify_Consumer
	TAO_Notify_Consumer (TAO_Notify_ProxySupplier *proxy)
	Constructor.

virtual	~TAO_Notify_Consumer ()
	Destructor.

CORBA::ULong	_incr_refcnt ()
	This method sigantures deliberately match the RefCounting methods required for ESF Proxy.

CORBA::ULong	_decr_refcnt ()

TAO_Notify_ProxySupplier *	proxy_supplier ()
	Access Specific Proxy.

virtual TAO_Notify_Proxy *	proxy ()
	Access Base Proxy.

void	deliver (TAO_Notify_Method_Request_Event *request)
	Dispatch Event to consumer.

DispatchStatus	dispatch_batch (const CosNotification::EventBatch &batch)
	Dispatch the batch of events to the attached consumer.

void	dispatch_pending ()
	Dispatch the pending events.

CORBA::Boolean	is_suspended ()
	Is the connection suspended?

void	suspend ()
	Suspend Connection.

void	resume ()
	Resume Connection.

virtual void	shutdown ()
	Shutdown the consumer.

virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)
	Override, Peer::qos_changed.

void	assume_pending_events (TAO_Notify_Consumer &rhs)

bool	is_alive (bool allow_nil_consumer)
	Is the connected consumer still around?

size_t	pending_count ()

Public Member Functions inherited from TAO_Notify_Peer
	TAO_Notify_Peer ()
	Constructor.

virtual	~TAO_Notify_Peer ()
	Destructor.

CORBA::ULong	_incr_refcnt ()

CORBA::ULong	_decr_refcnt ()

virtual void	dispatch_updates (const TAO_Notify_EventTypeSeq &added, const TAO_Notify_EventTypeSeq &removed)

void	handle_dispatch_exception ()
	Handle dispatch exceptions.

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler ()=default

virtual ACE_HANDLE	get_handle () const

virtual void	set_handle (ACE_HANDLE)

virtual int	priority () const

virtual void	priority (int priority)

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exit (ACE_Process *)

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler ()

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)

virtual ACE_Reactor *	reactor () const

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface () const

virtual Reference_Count	add_reference ()

virtual Reference_Count	remove_reference ()

Reference_Counting_Policy &	reference_counting_policy ()

Protected Member Functions
virtual CORBA::Object_ptr	get_consumer ()

Protected Member Functions inherited from TAO_Notify_Consumer
DispatchStatus	dispatch_request (TAO_Notify_Method_Request_Event *request)

virtual bool	dispatch_from_queue (Request_Queue &requests, ACE_Guard< TAO_SYNCH_MUTEX > &ace_mon)
	Attempt to dispatch event from a queue.

void	enqueue_request (TAO_Notify_Method_Request_Event *request)

virtual bool	enqueue_if_necessary (TAO_Notify_Method_Request_Event *request)

virtual void	dispatch_updates_i (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)
	Implementation of Peer specific dispatch_updates.

TAO_SYNCH_MUTEX *	proxy_lock ()
	Get the shared Proxy Lock.

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

void	schedule_timer (bool is_error=false)
	Schedule timer.

void	cancel_timer ()
	Cancel timer.

Request_Queue &	pending_events ()
	= Protected Data Members

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=nullptr, int priority=ACE_Event_Handler::LO_PRIORITY)

Protected Attributes
CosEventComm::PushConsumer_var	push_consumer_
	The Consumer.

Protected Attributes inherited from TAO_Notify_Consumer
TAO_Notify_ProxySupplier *	proxy_
	The Proxy that we associate with.

CORBA::Boolean	is_suspended_
	Suspended Flag.

CosNotifyComm::NotifyPublish_var	publish_
	Interface that accepts offer_changes.

bool	have_not_yet_verified_publish_

const TAO_Notify_Property_Time &	pacing_
	The Pacing Interval.

TAO_Notify_Property_Long	max_batch_size_
	Max. batch size.

long	timer_id_
	Timer Id.

TAO_Notify_Timer::Ptr	timer_
	The Timer Manager that we use.

ACE_Atomic_Op< TAO_SYNCH_MUTEX, ACE_Time_Value >	last_ping_

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Private Member Functions
virtual void	release ()
	TAO_Notify_Destroy_Callback methods.

Additional Inherited Members
Public Types inherited from TAO_Notify_Consumer
enum	DispatchStatus { DISPATCH_SUCCESS , DISPATCH_RETRY , DISPATCH_DISCARD , DISPATCH_FAIL , DISPATCH_FAIL_TIMEOUT }
	Status returned from dispatch attempts. More...

typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Consumer >	Ptr

Public Types inherited from TAO_Notify_Peer
typedef TAO_Notify_Refcountable_Guard_T< TAO_Notify_Peer >	Ptr

Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)

Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY

	HI_PRIORITY

	NULL_MASK

	READ_MASK

	WRITE_MASK

	EXCEPT_MASK

	ACCEPT_MASK

	CONNECT_MASK

	TIMER_MASK

	QOS_MASK

	GROUP_QOS_MASK

	SIGNAL_MASK

	ALL_EVENTS_MASK

	RWE_MASK

	DONT_CALL

	ACE_EVENT_HANDLER_NOT_RESUMED

	ACE_REACTOR_RESUMES_HANDLER

	ACE_APPLICATION_RESUMES_HANDLER

Protected Types inherited from TAO_Notify_Consumer
typedef ACE_Unbounded_Queue< TAO_Notify_Method_Request_Event_Queueable * >	Request_Queue

Protected Types inherited from ACE_Event_Handler
typedef std::atomic< Reference_Count >	Atomic_Reference_Count

Detailed Description

Wrapper for the PushConsumer that connect to the EventChannel.

Constructor & Destructor Documentation

◆ TAO_Notify_PushConsumer()

TAO_Notify_PushConsumer::TAO_Notify_PushConsumer ( TAO_Notify_ProxySupplier * proxy )

Constructor.

◆ ~TAO_Notify_PushConsumer()

TAO_Notify_PushConsumer::~TAO_Notify_PushConsumer ( )

virtual

Destructor.

Member Function Documentation

◆ get_consumer()

CORBA::Object_ptr TAO_Notify_PushConsumer::get_consumer ( )

protectedvirtual

This method is called by the is_alive() method. It should provide the connected consumer or nil if there is none.

Implements TAO_Notify_Consumer.

◆ get_ior()

ACE_CString TAO_Notify_PushConsumer::get_ior ( ) const

virtual

Retrieve the ior of this peer.

Implements TAO_Notify_Peer.

◆ init()

void TAO_Notify_PushConsumer::init ( CosEventComm::PushConsumer_ptr push_consumer )

Init.

◆ push() [1/3]

void TAO_Notify_PushConsumer::push ( const CORBA::Any & event )

virtual

Push event to this consumer.

Implements TAO_Notify_Consumer.

◆ push() [2/3]

void TAO_Notify_PushConsumer::push ( const CosNotification::EventBatch & event )

virtual

Push a batch of events to this consumer.

Implements TAO_Notify_Consumer.

◆ push() [3/3]

void TAO_Notify_PushConsumer::push ( const CosNotification::StructuredEvent & event )

virtual

Push event to this consumer.

Implements TAO_Notify_Consumer.

◆ reconnect_from_consumer()

void TAO_Notify_PushConsumer::reconnect_from_consumer ( TAO_Notify_Consumer * old_consumer )

virtual

on reconnect we need to move events from the old consumer to the new one

Implements TAO_Notify_Consumer.

◆ release()

void TAO_Notify_PushConsumer::release ( )

privatevirtual

TAO_Notify_Destroy_Callback methods.

Implements TAO_Notify_Peer.

Member Data Documentation

◆ push_consumer_

CosEventComm::PushConsumer_var TAO_Notify_PushConsumer::push_consumer_

protected

The Consumer.
