Extend the default factory to support scheduling. More...

#include <EC_Sched_Factory.h>

Inheritance diagram for TAO_EC_Sched_Factory:

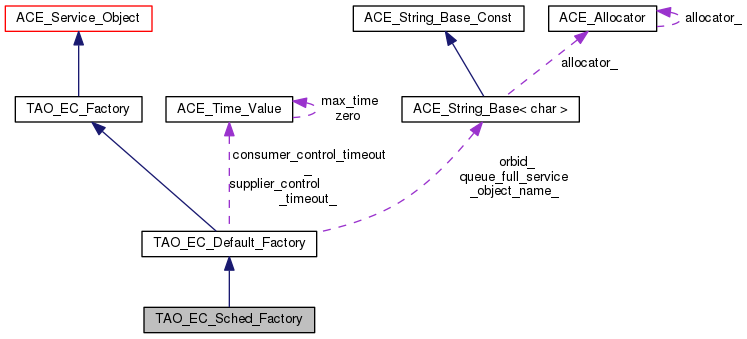

Collaboration diagram for TAO_EC_Sched_Factory:

Public Member Functions
	TAO_EC_Sched_Factory (void)
	Constructor. More...

virtual	~TAO_EC_Sched_Factory (void)
	destructor... More...

virtual int	init (int argc, ACE_TCHAR *argv[])

virtual int	fini (void)

virtual TAO_EC_Dispatching *	create_dispatching (TAO_EC_Event_Channel_Base *)
	Create and destroy the dispatching module. More...

virtual TAO_EC_Filter_Builder *	create_filter_builder (TAO_EC_Event_Channel_Base *)
	Create and destroy the filter builder. More...

virtual TAO_EC_Timeout_Generator *	create_timeout_generator (TAO_EC_Event_Channel_Base *)
	Create and destroy the timer module. More...

virtual TAO_EC_Scheduling_Strategy *	create_scheduling_strategy (TAO_EC_Event_Channel_Base *)
	Create and destroy the observer strategy. More...

Public Member Functions inherited from TAO_EC_Default_Factory
	TAO_EC_Default_Factory (void)
	Constructor. More...

virtual	~TAO_EC_Default_Factory (void)
	destructor... More...

virtual void	destroy_dispatching (TAO_EC_Dispatching *)

virtual void	destroy_filter_builder (TAO_EC_Filter_Builder *)

virtual TAO_EC_Supplier_Filter_Builder *	create_supplier_filter_builder (TAO_EC_Event_Channel_Base *)
	Create and destroy the filter builder. More...

virtual void	destroy_supplier_filter_builder (TAO_EC_Supplier_Filter_Builder *)

virtual TAO_EC_ConsumerAdmin *	create_consumer_admin (TAO_EC_Event_Channel_Base *)
	Create and destroy the consumer admin implementation. More...

virtual void	destroy_consumer_admin (TAO_EC_ConsumerAdmin *)

virtual TAO_EC_SupplierAdmin *	create_supplier_admin (TAO_EC_Event_Channel_Base *)
	Create and destroy the supplier admin implementation. More...

virtual void	destroy_supplier_admin (TAO_EC_SupplierAdmin *)

virtual TAO_EC_ProxyPushSupplier *	create_proxy_push_supplier (TAO_EC_Event_Channel_Base *)
	Create and destroy a ProxyPushSupplier. More...

virtual void	destroy_proxy_push_supplier (TAO_EC_ProxyPushSupplier *)

virtual TAO_EC_ProxyPushConsumer *	create_proxy_push_consumer (TAO_EC_Event_Channel_Base *)
	Create and destroy a ProxyPushConsumer. More...

virtual void	destroy_proxy_push_consumer (TAO_EC_ProxyPushConsumer *)

virtual void	destroy_timeout_generator (TAO_EC_Timeout_Generator *)

virtual TAO_EC_ObserverStrategy *	create_observer_strategy (TAO_EC_Event_Channel_Base *)
	Create and destroy the observer strategy. More...

virtual void	destroy_observer_strategy (TAO_EC_ObserverStrategy *)

virtual void	destroy_scheduling_strategy (TAO_EC_Scheduling_Strategy *)

virtual TAO_EC_ProxyPushConsumer_Collection *	create_proxy_push_consumer_collection (TAO_EC_Event_Channel_Base *)
	Create and destroy a collection of TAO_EC_ProxyPushConsumers. More...

virtual void	destroy_proxy_push_consumer_collection (TAO_EC_ProxyPushConsumer_Collection *)

virtual TAO_EC_ProxyPushSupplier_Collection *	create_proxy_push_supplier_collection (TAO_EC_Event_Channel_Base *)
	Create and destroy a collection of TAO_EC_ProxyPushSuppliers. More...

virtual void	destroy_proxy_push_supplier_collection (TAO_EC_ProxyPushSupplier_Collection *)

virtual ACE_Lock *	create_consumer_lock (void)

virtual void	destroy_consumer_lock (ACE_Lock *)

virtual ACE_Lock *	create_supplier_lock (void)

virtual void	destroy_supplier_lock (ACE_Lock *)

virtual TAO_EC_ConsumerControl *	create_consumer_control (TAO_EC_Event_Channel_Base *)

virtual void	destroy_consumer_control (TAO_EC_ConsumerControl *)

virtual TAO_EC_SupplierControl *	create_supplier_control (TAO_EC_Event_Channel_Base *)

virtual void	destroy_supplier_control (TAO_EC_SupplierControl *)

int	consumer_collection (void) const
	Accessors to consumer collection flags. More...

int	supplier_collection (void) const
	Accessors to supplier collection flags. More...

int	supplier_filtering (void) const
	Accessors to supplier filtering flags. More...

const ACE_CString &	orb_id (void) const
	Accessor to ORBid. More...

Public Member Functions inherited from TAO_EC_Factory
	TAO_EC_Factory (void)
	destructor... More...

virtual	~TAO_EC_Factory (void)

Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)

virtual	~ACE_Service_Object (void)

virtual int	suspend (void)

virtual int	resume (void)

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)

virtual ACE_HANDLE	get_handle (void) const

virtual void	set_handle (ACE_HANDLE)

virtual int	priority (void) const

virtual void	priority (int priority)

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler (void)

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)

virtual ACE_Reactor *	reactor (void) const

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const

virtual Reference_Count	add_reference (void)

virtual Reference_Count	remove_reference (void)

Reference_Counting_Policy &	reference_counting_policy (void)

Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object (void)

virtual	~ACE_Shared_Object (void)

virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Static Public Member Functions inherited from TAO_EC_Default_Factory
static int	init_svcs (void)

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)

Public Attributes inherited from ACE_Service_Object
	ACE_ALLOC_HOOK_DECLARE

Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY

	HI_PRIORITY

	NULL_MASK

	READ_MASK

	WRITE_MASK

	EXCEPT_MASK

	ACCEPT_MASK

	CONNECT_MASK

	TIMER_MASK

	QOS_MASK

	GROUP_QOS_MASK

	SIGNAL_MASK

	ALL_EVENTS_MASK

	RWE_MASK

	DONT_CALL

	ACE_EVENT_HANDLER_NOT_RESUMED

	ACE_REACTOR_RESUMES_HANDLER

	ACE_APPLICATION_RESUMES_HANDLER

Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count

Protected Member Functions inherited from TAO_EC_Default_Factory
void	unsupported_option_value (const ACE_TCHAR option_name, const ACE_TCHAR option_value)

TAO_EC_Queue_Full_Service_Object *	find_service_object (const ACE_TCHAR wanted, const ACE_TCHAR fallback)
	name of ACE_Service_Object which should be invoked when output queue becomes full More...

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)

Protected Attributes inherited from TAO_EC_Default_Factory
int	dispatching_
	Several flags to control the kind of object created. More...

int	filtering_

int	supplier_filtering_

int	timeout_

int	observer_

int	scheduling_

int	consumer_collection_

int	supplier_collection_

int	consumer_lock_

int	supplier_lock_

int	dispatching_threads_
	Flags used by thread-based dispatching strategies. More...

int	dispatching_threads_flags_
	number of threads; may be ignored depending on strategy; default: TAO_EC_DEFAULT_DISPATCHING_THREADS More...

int	dispatching_threads_priority_
	flags for thread creation; default: TAO_EC_DEFAULT_DISPATCHING_THREADS_FLAGS More...

int	dispatching_threads_force_active_
	dispatching thread priority; default: TAO_EC_DEFAULT_DISPATCHING_THREADS_PRIORITY More...

ACE_TString	queue_full_service_object_name_
	create threads with innocuous default values if creation with requested values fails More...

ACE_CString	orbid_
	Use this ORB to locate global resources. More...

int	consumer_control_
	The consumer and supplier control policies. More...

int	supplier_control_

int	consumer_control_period_
	The consumer and supplier control periods in usecs. More...

int	supplier_control_period_

ACE_Time_Value	consumer_control_timeout_
	The consumer control timeout in usecs. More...

ACE_Time_Value	supplier_control_timeout_
	The supplier control timeout in usecs. More...

int	consumer_validate_connection_
	Validate the connection to consumer on connect. More...

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_
