A generic factory for EC experimentation. More...

#include <EC_Default_Factory.h>

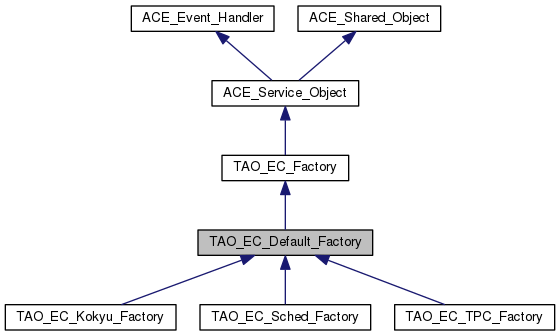

Inheritance diagram for TAO_EC_Default_Factory:

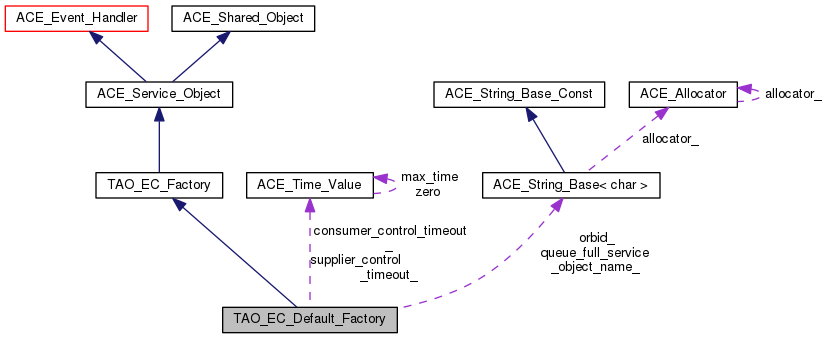

Collaboration diagram for TAO_EC_Default_Factory:

Public Member Functions
	TAO_EC_Default_Factory (void)
	Constructor. More...

virtual	~TAO_EC_Default_Factory (void)
	destructor... More...

virtual int	init (int argc, ACE_TCHAR *argv[])

virtual int	fini (void)

virtual TAO_EC_Dispatching *	create_dispatching (TAO_EC_Event_Channel_Base *)
	Create and destroy the dispatching module. More...

virtual void	destroy_dispatching (TAO_EC_Dispatching *)

virtual TAO_EC_Filter_Builder *	create_filter_builder (TAO_EC_Event_Channel_Base *)
	Create and destroy the filter builder. More...

virtual void	destroy_filter_builder (TAO_EC_Filter_Builder *)

virtual TAO_EC_Supplier_Filter_Builder *	create_supplier_filter_builder (TAO_EC_Event_Channel_Base *)
	Create and destroy the filter builder. More...

virtual void	destroy_supplier_filter_builder (TAO_EC_Supplier_Filter_Builder *)

virtual TAO_EC_ConsumerAdmin *	create_consumer_admin (TAO_EC_Event_Channel_Base *)
	Create and destroy the consumer admin implementation. More...

virtual void	destroy_consumer_admin (TAO_EC_ConsumerAdmin *)

virtual TAO_EC_SupplierAdmin *	create_supplier_admin (TAO_EC_Event_Channel_Base *)
	Create and destroy the supplier admin implementation. More...

virtual void	destroy_supplier_admin (TAO_EC_SupplierAdmin *)

virtual TAO_EC_ProxyPushSupplier *	create_proxy_push_supplier (TAO_EC_Event_Channel_Base *)
	Create and destroy a ProxyPushSupplier. More...

virtual void	destroy_proxy_push_supplier (TAO_EC_ProxyPushSupplier *)

virtual TAO_EC_ProxyPushConsumer *	create_proxy_push_consumer (TAO_EC_Event_Channel_Base *)
	Create and destroy a ProxyPushConsumer. More...

virtual void	destroy_proxy_push_consumer (TAO_EC_ProxyPushConsumer *)

virtual TAO_EC_Timeout_Generator *	create_timeout_generator (TAO_EC_Event_Channel_Base *)
	Create and destroy the timer module. More...

virtual void	destroy_timeout_generator (TAO_EC_Timeout_Generator *)

virtual TAO_EC_ObserverStrategy *	create_observer_strategy (TAO_EC_Event_Channel_Base *)
	Create and destroy the observer strategy. More...

virtual void	destroy_observer_strategy (TAO_EC_ObserverStrategy *)

virtual TAO_EC_Scheduling_Strategy *	create_scheduling_strategy (TAO_EC_Event_Channel_Base *)
	Create and destroy the observer strategy. More...

virtual void	destroy_scheduling_strategy (TAO_EC_Scheduling_Strategy *)

virtual TAO_EC_ProxyPushConsumer_Collection *	create_proxy_push_consumer_collection (TAO_EC_Event_Channel_Base *)
	Create and destroy a collection of TAO_EC_ProxyPushConsumers. More...

virtual void	destroy_proxy_push_consumer_collection (TAO_EC_ProxyPushConsumer_Collection *)

virtual TAO_EC_ProxyPushSupplier_Collection *	create_proxy_push_supplier_collection (TAO_EC_Event_Channel_Base *)
	Create and destroy a collection of TAO_EC_ProxyPushSuppliers. More...

virtual void	destroy_proxy_push_supplier_collection (TAO_EC_ProxyPushSupplier_Collection *)

virtual ACE_Lock *	create_consumer_lock (void)

virtual void	destroy_consumer_lock (ACE_Lock *)

virtual ACE_Lock *	create_supplier_lock (void)

virtual void	destroy_supplier_lock (ACE_Lock *)

virtual TAO_EC_ConsumerControl *	create_consumer_control (TAO_EC_Event_Channel_Base *)

virtual void	destroy_consumer_control (TAO_EC_ConsumerControl *)

virtual TAO_EC_SupplierControl *	create_supplier_control (TAO_EC_Event_Channel_Base *)

virtual void	destroy_supplier_control (TAO_EC_SupplierControl *)

int	consumer_collection (void) const
	Accessors to consumer collection flags. More...

int	supplier_collection (void) const
	Accessors to supplier collection flags. More...

int	supplier_filtering (void) const
	Accessors to supplier filtering flags. More...

const ACE_CString &	orb_id (void) const
	Accessor to ORBid. More...

Public Member Functions inherited from TAO_EC_Factory
	TAO_EC_Factory (void)
	destructor... More...

virtual	~TAO_EC_Factory (void)

Public Member Functions inherited from ACE_Service_Object
	ACE_Service_Object (ACE_Reactor *=0)

virtual	~ACE_Service_Object (void)

virtual int	suspend (void)

virtual int	resume (void)

Public Member Functions inherited from ACE_Event_Handler
virtual	~ACE_Event_Handler (void)

virtual ACE_HANDLE	get_handle (void) const

virtual void	set_handle (ACE_HANDLE)

virtual int	priority (void) const

virtual void	priority (int priority)

virtual int	handle_input (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_output (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_exception (ACE_HANDLE fd=ACE_INVALID_HANDLE)

virtual int	handle_timeout (const ACE_Time_Value &current_time, const void *act=0)

virtual int	handle_exit (ACE_Process *)

virtual int	handle_close (ACE_HANDLE handle, ACE_Reactor_Mask close_mask)

virtual int	handle_signal (int signum, siginfo_t =0, ucontext_t =0)

virtual int	resume_handler (void)

virtual int	handle_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual int	handle_group_qos (ACE_HANDLE=ACE_INVALID_HANDLE)

virtual void	reactor (ACE_Reactor *reactor)

virtual ACE_Reactor *	reactor (void) const

virtual ACE_Reactor_Timer_Interface *	reactor_timer_interface (void) const

virtual Reference_Count	add_reference (void)

virtual Reference_Count	remove_reference (void)

Reference_Counting_Policy &	reference_counting_policy (void)

Public Member Functions inherited from ACE_Shared_Object
	ACE_Shared_Object (void)

virtual	~ACE_Shared_Object (void)

virtual int	info (ACE_TCHAR **info_string, size_t length=0) const

Static Public Member Functions
static int	init_svcs (void)

Static Public Member Functions inherited from ACE_Event_Handler
static ACE_THR_FUNC_RETURN	read_adapter (void *event_handler)

static int	register_stdin_handler (ACE_Event_Handler eh, ACE_Reactor reactor, ACE_Thread_Manager *thr_mgr, int flags=THR_DETACHED)

static int	remove_stdin_handler (ACE_Reactor reactor, ACE_Thread_Manager thr_mgr)

Protected Member Functions
void	unsupported_option_value (const ACE_TCHAR option_name, const ACE_TCHAR option_value)

TAO_EC_Queue_Full_Service_Object *	find_service_object (const ACE_TCHAR wanted, const ACE_TCHAR fallback)
	name of ACE_Service_Object which should be invoked when output queue becomes full More...

Protected Member Functions inherited from ACE_Event_Handler
	ACE_Event_Handler (ACE_Reactor *=0, int priority=ACE_Event_Handler::LO_PRIORITY)

Protected Attributes
int	dispatching_
	Several flags to control the kind of object created. More...

int	filtering_

int	supplier_filtering_

int	timeout_

int	observer_

int	scheduling_

int	consumer_collection_

int	supplier_collection_

int	consumer_lock_

int	supplier_lock_

int	dispatching_threads_
	Flags used by thread-based dispatching strategies. More...

int	dispatching_threads_flags_
	number of threads; may be ignored depending on strategy; default: TAO_EC_DEFAULT_DISPATCHING_THREADS More...

int	dispatching_threads_priority_
	flags for thread creation; default: TAO_EC_DEFAULT_DISPATCHING_THREADS_FLAGS More...

int	dispatching_threads_force_active_
	dispatching thread priority; default: TAO_EC_DEFAULT_DISPATCHING_THREADS_PRIORITY More...

ACE_TString	queue_full_service_object_name_
	create threads with innocuous default values if creation with requested values fails More...

ACE_CString	orbid_
	Use this ORB to locate global resources. More...

int	consumer_control_
	The consumer and supplier control policies. More...

int	supplier_control_

int	consumer_control_period_
	The consumer and supplier control periods in usecs. More...

int	supplier_control_period_

ACE_Time_Value	consumer_control_timeout_
	The consumer control timeout in usecs. More...

ACE_Time_Value	supplier_control_timeout_
	The supplier control timeout in usecs. More...

int	consumer_validate_connection_
	Validate the connection to consumer on connect. More...

Protected Attributes inherited from ACE_Event_Handler
Atomic_Reference_Count	reference_count_

Additional Inherited Members
Public Types inherited from ACE_Event_Handler
typedef long	Reference_Count

Public Attributes inherited from ACE_Service_Object
	ACE_ALLOC_HOOK_DECLARE

Public Attributes inherited from ACE_Event_Handler
	LO_PRIORITY

	HI_PRIORITY

	NULL_MASK

	READ_MASK

	WRITE_MASK

	EXCEPT_MASK

	ACCEPT_MASK

	CONNECT_MASK

	TIMER_MASK

	QOS_MASK

	GROUP_QOS_MASK

	SIGNAL_MASK

	ALL_EVENTS_MASK

	RWE_MASK

	DONT_CALL

	ACE_EVENT_HANDLER_NOT_RESUMED

	ACE_REACTOR_RESUMES_HANDLER

	ACE_APPLICATION_RESUMES_HANDLER

Protected Types inherited from ACE_Event_Handler
typedef ACE_Atomic_Op< ACE_SYNCH_MUTEX, Reference_Count >	Atomic_Reference_Count

Detailed Description

A generic factory for EC experimentation.

This class allows the user to experiment with different EC configurations. Using a command-line like interface the user can specify which strategies will this factory generate. Since the class can be dynamically loaded the strategies can be set in the service configurator file.

Constructor & Destructor Documentation

TAO_EC_Default_Factory::TAO_EC_Default_Factory ( void )

Constructor.

TAO_EC_Default_Factory::~TAO_EC_Default_Factory ( void )

virtual

destructor...

Member Function Documentation

int TAO_EC_Default_Factory::consumer_collection ( void ) const

Accessors to consumer collection flags.

TAO_EC_ConsumerAdmin * TAO_EC_Default_Factory::create_consumer_admin ( TAO_EC_Event_Channel_Base * )

virtual

Create and destroy the consumer admin implementation.
