TAO_CEC_SupplierAdmin Class Reference

ProxyPushSupplier. More...

#include <CEC_SupplierAdmin.h>

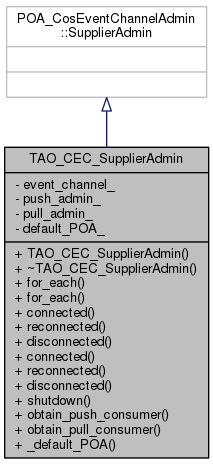

Inheritance diagram for TAO_CEC_SupplierAdmin:

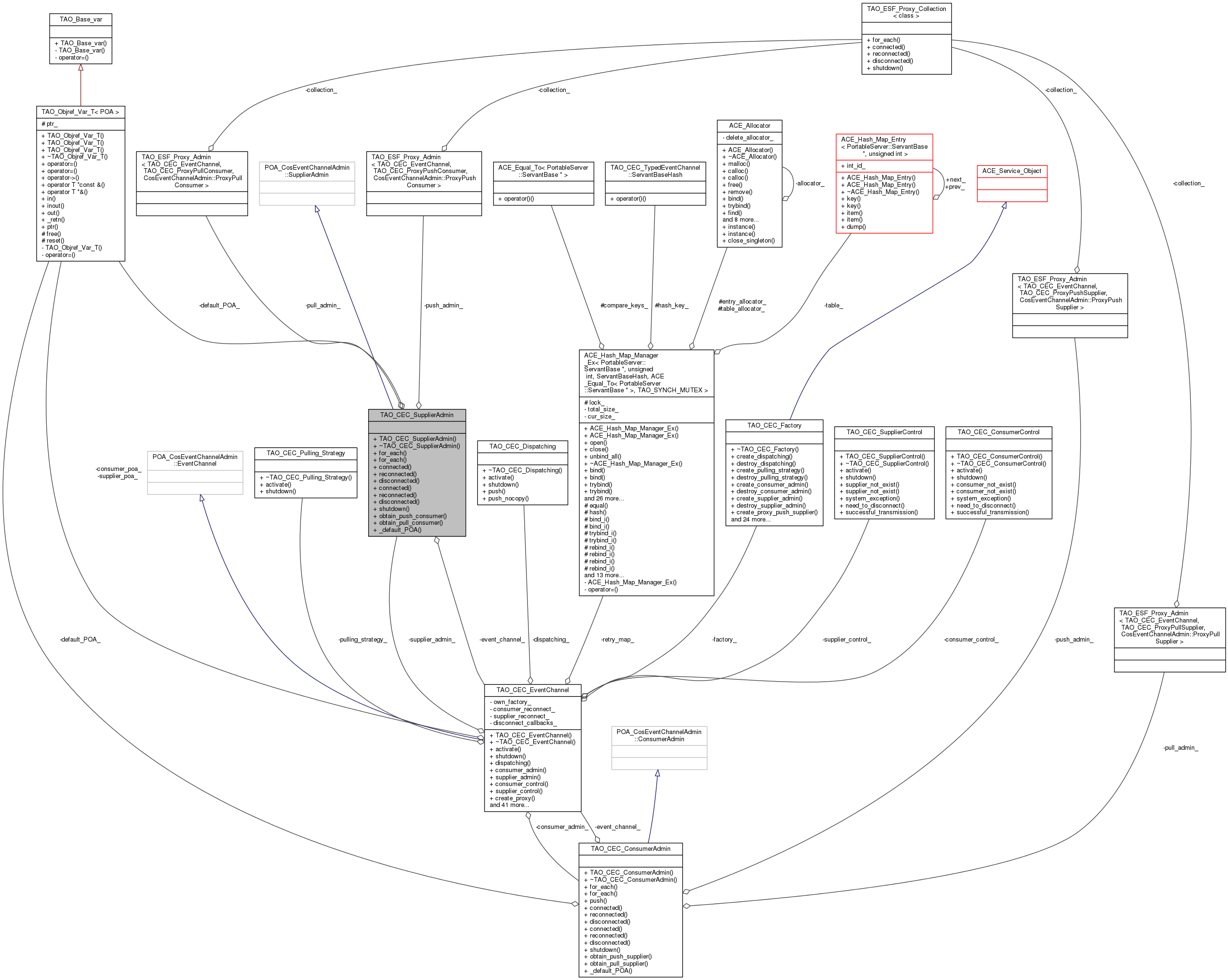

Collaboration diagram for TAO_CEC_SupplierAdmin:

Public Member Functions
	TAO_CEC_SupplierAdmin (TAO_CEC_EventChannel *event_channel)
	constructor... More...
virtual	~TAO_CEC_SupplierAdmin (void)
	destructor... More...
void	for_each (TAO_ESF_Worker< TAO_CEC_ProxyPushConsumer > *worker)
	For each elements call <worker->work()>. More...
void	for_each (TAO_ESF_Worker< TAO_CEC_ProxyPullConsumer > *worker)
	For each elements call <worker->work()>. More...
virtual void	connected (TAO_CEC_ProxyPushConsumer *)
	Keep track of connected consumers. More...
virtual void	reconnected (TAO_CEC_ProxyPushConsumer *)
virtual void	disconnected (TAO_CEC_ProxyPushConsumer *)
virtual void	connected (TAO_CEC_ProxyPullConsumer *)
virtual void	reconnected (TAO_CEC_ProxyPullConsumer *)
virtual void	disconnected (TAO_CEC_ProxyPullConsumer *)
virtual void	shutdown (void)
virtual CosEventChannelAdmin::ProxyPushConsumer_ptr	obtain_push_consumer (void)
virtual CosEventChannelAdmin::ProxyPullConsumer_ptr	obtain_pull_consumer (void)
virtual PortableServer::POA_ptr	_default_POA (void)

Private Attributes
TAO_CEC_EventChannel *	event_channel_
	The Event Channel we belong to. More...
TAO_ESF_Proxy_Admin < TAO_CEC_EventChannel, TAO_CEC_ProxyPushConsumer, CosEventChannelAdmin::ProxyPushConsumer >	push_admin_
	The push and pull aspects are implemented using these classes. More...
TAO_ESF_Proxy_Admin < TAO_CEC_EventChannel, TAO_CEC_ProxyPullConsumer, CosEventChannelAdmin::ProxyPullConsumer >	pull_admin_
PortableServer::POA_var	default_POA_
	Store the default POA. More...

Detailed Description

ProxyPushSupplier.

Implement the CosEventChannelAdmin::SupplierAdmin interface. This class is an Abstract Factory for the TAO_CEC_ProxyPushConsumer. = MEMORY MANAGMENT It does not assume ownership of the TAO_CEC_EventChannel object = LOCKING @ TODO No provisions for locking, access must be serialized externally. = TODO

Constructor & Destructor Documentation

TAO_CEC_SupplierAdmin::TAO_CEC_SupplierAdmin

(

TAO_CEC_EventChannel *

event_channel

)

constructor...

TAO_CEC_SupplierAdmin::~TAO_CEC_SupplierAdmin ( void  )

virtual

destructor...

Member Function Documentation

PortableServer::POA_ptr TAO_CEC_SupplierAdmin::_default_POA ( void  )

virtual

void TAO_CEC_SupplierAdmin::connected ( TAO_CEC_ProxyPushConsumer *  consumer )

virtual

Keep track of connected consumers.

void TAO_CEC_SupplierAdmin::connected ( TAO_CEC_ProxyPullConsumer *  consumer )

virtual

void TAO_CEC_SupplierAdmin::disconnected ( TAO_CEC_ProxyPushConsumer *  consumer )

virtual

void TAO_CEC_SupplierAdmin::disconnected ( TAO_CEC_ProxyPullConsumer *  consumer )

virtual

void TAO_CEC_SupplierAdmin::for_each

(

TAO_ESF_Worker< TAO_CEC_ProxyPushConsumer > *

worker

)

For each elements call <worker->work()>.

void TAO_CEC_SupplierAdmin::for_each

(

TAO_ESF_Worker< TAO_CEC_ProxyPullConsumer > *

worker

)

For each elements call <worker->work()>.

CosEventChannelAdmin::ProxyPullConsumer_ptr TAO_CEC_SupplierAdmin::obtain_pull_consumer ( void  )

virtual

CosEventChannelAdmin::ProxyPushConsumer_ptr TAO_CEC_SupplierAdmin::obtain_push_consumer ( void  )

virtual

void TAO_CEC_SupplierAdmin::reconnected ( TAO_CEC_ProxyPushConsumer *  consumer )

virtual

void TAO_CEC_SupplierAdmin::reconnected ( TAO_CEC_ProxyPullConsumer *  consumer )

virtual

void TAO_CEC_SupplierAdmin::shutdown ( void  )

virtual

The event channel is shutting down, inform all the consumers of this

Member Data Documentation

PortableServer::POA_var TAO_CEC_SupplierAdmin::default_POA_

private

Store the default POA.

TAO_CEC_EventChannel* TAO_CEC_SupplierAdmin::event_channel_

private

The Event Channel we belong to.

TAO_ESF_Proxy_Admin<TAO_CEC_EventChannel, TAO_CEC_ProxyPullConsumer, CosEventChannelAdmin::ProxyPullConsumer> TAO_CEC_SupplierAdmin::pull_admin_

private

TAO_ESF_Proxy_Admin<TAO_CEC_EventChannel, TAO_CEC_ProxyPushConsumer, CosEventChannelAdmin::ProxyPushConsumer> TAO_CEC_SupplierAdmin::push_admin_

private

The push and pull aspects are implemented using these classes.

---

The documentation for this class was generated from the following files:

• CEC_SupplierAdmin.h
• CEC_SupplierAdmin.cpp
• CEC_SupplierAdmin.inl
