ProxyPushConsumer. More...

#include <CEC_ProxyPushConsumer.h>

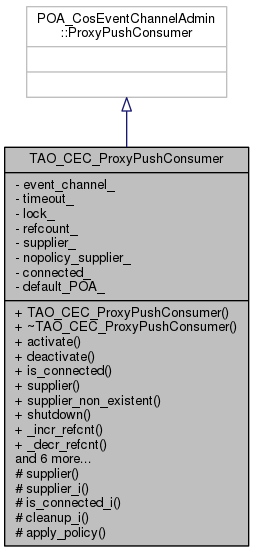

Inheritance diagram for TAO_CEC_ProxyPushConsumer:

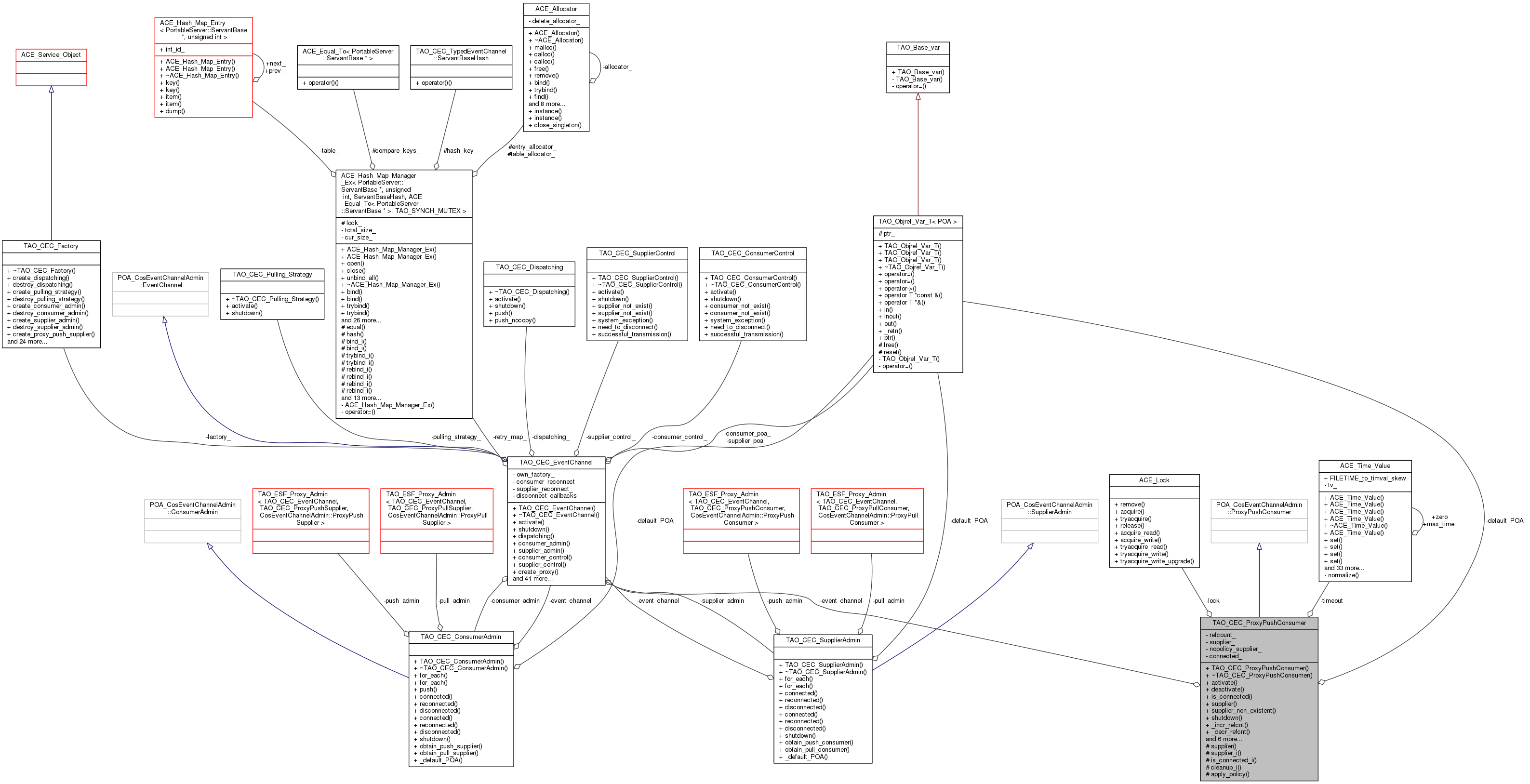

Collaboration diagram for TAO_CEC_ProxyPushConsumer:

Public Types
typedef CosEventChannelAdmin::ProxyPushConsumer_ptr	_ptr_type

typedef CosEventChannelAdmin::ProxyPushConsumer_var	_var_type

Public Member Functions
	TAO_CEC_ProxyPushConsumer (TAO_CEC_EventChannel *event_channel, const ACE_Time_Value &timeout)
	constructor... More...

virtual	~TAO_CEC_ProxyPushConsumer (void)
	destructor... More...

virtual void	activate (CosEventChannelAdmin::ProxyPushConsumer_ptr &activated_proxy)
	Activate in the POA. More...

virtual void	deactivate (void)
	Deactivate from the POA. More...

CORBA::Boolean	is_connected (void) const
	Return false if no supplier is connected... More...

CosEventComm::PushSupplier_ptr	supplier (void) const

CORBA::Boolean	supplier_non_existent (CORBA::Boolean_out disconnected)

virtual void	shutdown (void)
	The event channel is shutting down. More...

CORBA::ULong	_incr_refcnt (void)
	Increment and decrement the reference count. More...

CORBA::ULong	_decr_refcnt (void)

virtual void	connect_push_supplier (CosEventComm::PushSupplier_ptr push_supplier)

virtual void	push (const CORBA::Any &event)

virtual void	disconnect_push_consumer (void)

virtual PortableServer::POA_ptr	_default_POA (void)

virtual void	_add_ref (void)

virtual void	_remove_ref (void)

Protected Member Functions
void	supplier (CosEventComm::PushSupplier_ptr supplier)

void	supplier_i (CosEventComm::PushSupplier_ptr supplier)

CORBA::Boolean	is_connected_i (void) const
	The private version (without locking) of is_connected(). More...

void	cleanup_i (void)
	Release the supplier. More...

CosEventComm::PushSupplier_ptr	apply_policy (CosEventComm::PushSupplier_ptr s)

Private Attributes
TAO_CEC_EventChannel *	event_channel_
	The supplier admin, used for activation and memory managment. More...

ACE_Time_Value	timeout_

ACE_Lock *	lock_
	The locking strategy. More...

CORBA::ULong	refcount_
	The reference count. More...

CosEventComm::PushSupplier_var	supplier_

CosEventComm::PushSupplier_var	nopolicy_supplier_
	The supplier without any policies applied. More...

bool	connected_

PortableServer::POA_var	default_POA_
	Store the default POA. More...

Friends
class	TAO_CEC_ProxyPushConsumer_Guard

Detailed Description

ProxyPushConsumer.

Implement the CosEventChannelAdmin::ProxyPushConsumer interface, remember that this class is used to communicate with a PushSupplier, so, in effect, this is the ambassador for a supplier inside the event channel. = MEMORY MANAGMENT The object commits suicide when disconnect_push_consumer() is called.

Member Typedef Documentation

typedef CosEventChannelAdmin::ProxyPushConsumer_ptr TAO_CEC_ProxyPushConsumer::_ptr_type

typedef CosEventChannelAdmin::ProxyPushConsumer_var TAO_CEC_ProxyPushConsumer::_var_type

Constructor & Destructor Documentation

TAO_CEC_ProxyPushConsumer::TAO_CEC_ProxyPushConsumer	(	TAO_CEC_EventChannel *	event_channel,
		const ACE_Time_Value &	timeout
	)

constructor...

TAO_CEC_ProxyPushConsumer::~TAO_CEC_ProxyPushConsumer ( void )

virtual

destructor...

Member Function Documentation

void TAO_CEC_ProxyPushConsumer::_add_ref ( void )

virtual

CORBA::ULong TAO_CEC_ProxyPushConsumer::_decr_refcnt ( void )

PortableServer::POA_ptr TAO_CEC_ProxyPushConsumer::_default_POA ( void )

virtual

CORBA::ULong TAO_CEC_ProxyPushConsumer::_incr_refcnt ( void )

Increment and decrement the reference count.

void TAO_CEC_ProxyPushConsumer::_remove_ref ( void )

virtual

void TAO_CEC_ProxyPushConsumer::activate ( CosEventChannelAdmin::ProxyPushConsumer_ptr & activated_proxy )

virtual

Activate in the POA.

CosEventComm::PushSupplier_ptr TAO_CEC_ProxyPushConsumer::apply_policy ( CosEventComm::PushSupplier_ptr s )

protected

Assigns the parameter to both supplier_ and nopolicy_supplier_, and applies policies (when appropriate) to supplier_.

void TAO_CEC_ProxyPushConsumer::cleanup_i ( void )

protected

Release the supplier.

void TAO_CEC_ProxyPushConsumer::connect_push_supplier ( CosEventComm::PushSupplier_ptr push_supplier )

virtual

void TAO_CEC_ProxyPushConsumer::deactivate ( void )

virtual

Deactivate from the POA.

void TAO_CEC_ProxyPushConsumer::disconnect_push_consumer ( void )

virtual

CORBA::Boolean TAO_CEC_ProxyPushConsumer::is_connected ( void ) const

Return false if no supplier is connected...

CORBA::Boolean TAO_CEC_ProxyPushConsumer::is_connected_i ( void ) const

protected

The private version (without locking) of is_connected().

void TAO_CEC_ProxyPushConsumer::push ( const CORBA::Any & event )

virtual

void TAO_CEC_ProxyPushConsumer::shutdown ( void )

virtual

The event channel is shutting down.

CosEventComm::PushSupplier_ptr TAO_CEC_ProxyPushConsumer::supplier ( void ) const

Return the consumer object reference. It returns nil() if it has not connected yet.

void TAO_CEC_ProxyPushConsumer::supplier ( CosEventComm::PushSupplier_ptr supplier )

protected

Set the supplier, used by some implementations to change the policies used when invoking operations on the supplier.

void TAO_CEC_ProxyPushConsumer::supplier_i ( CosEventComm::PushSupplier_ptr supplier )

protected

CORBA::Boolean TAO_CEC_ProxyPushConsumer::supplier_non_existent ( CORBA::Boolean_out disconnected )

Invoke the _non_existent() pseudo-operation on the supplier. If it is disconnected then it returns true and sets the <disconnected> flag.

Friends And Related Function Documentation

friend class TAO_CEC_ProxyPushConsumer_Guard

friend

Member Data Documentation

bool TAO_CEC_ProxyPushConsumer::connected_

private

If the flag is true then we are connected, notice that the supplier can be nil.

PortableServer::POA_var TAO_CEC_ProxyPushConsumer::default_POA_

private

Store the default POA.

TAO_CEC_EventChannel* TAO_CEC_ProxyPushConsumer::event_channel_

private

The supplier admin, used for activation and memory managment.

ACE_Lock* TAO_CEC_ProxyPushConsumer::lock_

private

The locking strategy.

CosEventComm::PushSupplier_var TAO_CEC_ProxyPushConsumer::nopolicy_supplier_

private

The supplier without any policies applied.

CORBA::ULong TAO_CEC_ProxyPushConsumer::refcount_

private

The reference count.

CosEventComm::PushSupplier_var TAO_CEC_ProxyPushConsumer::supplier_

private

The supplier – use apply_policy() instead of assigning directly to supplier_. This will keep supplier_ and nopolicy_supplier_ in sync.

ACE_Time_Value TAO_CEC_ProxyPushConsumer::timeout_

private

The documentation for this class was generated from the following files:
