AVStreams::VDev Interface Reference

Implements the VDev interface. One of these is created per connection, and represents device-specific parameters. More...

import"AVStreams.idl";

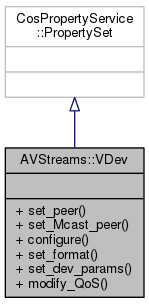

Inheritance diagram for AVStreams::VDev:

Collaboration diagram for AVStreams::VDev:

Public Member Functions
boolean	set_peer (in StreamCtrl the_ctrl, in VDev the_peer_dev, inout streamQoS the_qos, in flowSpec the_spec) raises (noSuchFlow, QoSRequestFailed, streamOpFailed)
	Called to tell the vdev who the streamctrl, peer vdev is. More...
boolean	set_Mcast_peer (in StreamCtrl the_ctrl, in MCastConfigIf a_mcastconfigif, inout streamQoS the_qos, in flowSpec the_spec) raises (noSuchFlow, QoSRequestFailed, streamOpFailed)
	Used to set the streamctrl and multicast device. More...
void	configure (in CosPropertyService::Property the_config_mesg) raises (PropertyException, streamOpFailed)
	Called by the peer VDev to configure the device (catch all). More...
void	set_format (in string flowName, in string format_name) raises (notSupported)
void	set_dev_params (in string flowName, in CosPropertyService::Properties new_params) raises (PropertyException, streamOpFailed)
	Used to set device parameters. More...
boolean	modify_QoS (inout streamQoS the_qos, in flowSpec the_spec) raises (noSuchFlow, QoSRequestFailed)
	Called to change QoS of the device. More...

Detailed Description

Implements the VDev interface. One of these is created per connection, and represents device-specific parameters.

Member Function Documentation

void AVStreams::VDev::configure	(	in CosPropertyService::Property	the_config_mesg	)
raises	(	PropertyException,
		streamOpFailed
	)

Called by the peer VDev to configure the device (catch all).

boolean AVStreams::VDev::modify_QoS	(	inout streamQoS	the_qos,
		in flowSpec	the_spec
	)
raises	(	noSuchFlow,
		QoSRequestFailed
	)

Called to change QoS of the device.

void AVStreams::VDev::set_dev_params	(	in string	flowName,
		in CosPropertyService::Properties	new_params
	)
raises	(	PropertyException,
		streamOpFailed
	)

Used to set device parameters.

void AVStreams::VDev::set_format	(	in string	flowName,
		in string	format_name
	)
raises	(	notSupported
	)

Uses <formatName> standardised by OMG and IETF Used to set a format on a flowname.

boolean AVStreams::VDev::set_Mcast_peer	(	in StreamCtrl	the_ctrl,
		in MCastConfigIf	a_mcastconfigif,
		inout streamQoS	the_qos,
		in flowSpec	the_spec
	)
raises	(	noSuchFlow,
		QoSRequestFailed,
		streamOpFailed
	)

Used to set the streamctrl and multicast device.

boolean AVStreams::VDev::set_peer	(	in StreamCtrl	the_ctrl,
		in VDev	the_peer_dev,
		inout streamQoS	the_qos,
		in flowSpec	the_spec
	)
raises	(	noSuchFlow,
		QoSRequestFailed,
		streamOpFailed
	)

Called to tell the vdev who the streamctrl, peer vdev is.

---

The documentation for this interface was generated from the following file:

• AVStreams.idl
