AVStreams::StreamCtrl Interface Reference

Implementation the A/V StreamCtrl class. this class is used to control the stream. It should be subclassed by applications that want to provide more control features. More...

import"AVStreams.idl";

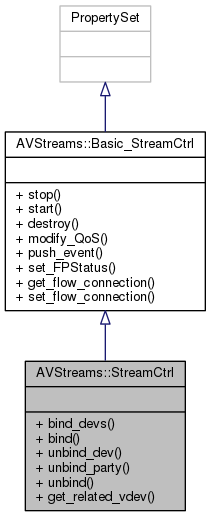

Inheritance diagram for AVStreams::StreamCtrl:

Collaboration diagram for AVStreams::StreamCtrl:

Public Member Functions
boolean	bind_devs (in MMDevice a_party, in MMDevice b_party, inout streamQoS the_qos, in flowSpec the_flows) raises (streamOpFailed, noSuchFlow, QoSRequestFailed)
boolean	bind (in StreamEndPoint_A a_party, in StreamEndPoint_B b_party, inout streamQoS the_qos, in flowSpec the_flows) raises (streamOpFailed, noSuchFlow, QoSRequestFailed)
void	unbind_dev (in MMDevice dev, in flowSpec the_spec) raises (streamOpFailed, noSuchFlow)
void	unbind_party (in StreamEndPoint the_ep, in flowSpec the_spec) raises (streamOpFailed, noSuchFlow)
void	unbind () raises (streamOpFailed)
	unbind the stream. Same effect as Basic_StreamCtrl::destroy () More...
VDev	get_related_vdev (in MMDevice adev, out StreamEndPoint sep) raises (streamOpFailed)
Public Member Functions inherited from AVStreams::Basic_StreamCtrl
void	stop (in flowSpec the_spec) raises (noSuchFlow)
void	start (in flowSpec the_spec) raises (noSuchFlow)
void	destroy (in flowSpec the_spec) raises (noSuchFlow)
boolean	modify_QoS (inout streamQoS new_qos, in flowSpec the_spec) raises (noSuchFlow, QoSRequestFailed)
oneway void	push_event (in streamEvent the_event)
void	set_FPStatus (in flowSpec the_spec, in string fp_name, in any fp_settings) raises (noSuchFlow, FPError)
	Used to control the flow protocol parameters. More...
Object	get_flow_connection (in string flow_name) raises (noSuchFlow, notSupported)
void	set_flow_connection (in string flow_name, in Object flow_connection) raises (noSuchFlow, notSupported)

Detailed Description

Implementation the A/V StreamCtrl class. this class is used to control the stream. It should be subclassed by applications that want to provide more control features.

Member Function Documentation

boolean AVStreams::StreamCtrl::bind	(	in StreamEndPoint_A	a_party,
		in StreamEndPoint_B	b_party,
		inout streamQoS	the_qos,
		in flowSpec	the_flows
	)
raises	(	streamOpFailed,
		noSuchFlow,
		QoSRequestFailed
	)

Establish a stream between a_party and b_party, with qos the_qos, and for the flows in the_flows if the_flows is empty, bind all the flows Causes a connection to be established between the StreamEndpoints. Returns success/failure

boolean AVStreams::StreamCtrl::bind_devs	(	in MMDevice	a_party,
		in MMDevice	b_party,
		inout streamQoS	the_qos,
		in flowSpec	the_flows
	)
raises	(	streamOpFailed,
		noSuchFlow,
		QoSRequestFailed
	)

VDev AVStreams::StreamCtrl::get_related_vdev	(	in MMDevice	adev,
		out StreamEndPoint	sep
	)
raises	(	streamOpFailed
	)

void AVStreams::StreamCtrl::unbind	(		)
raises	(	streamOpFailed
	)

unbind the stream. Same effect as Basic_StreamCtrl::destroy ()

void AVStreams::StreamCtrl::unbind_dev	(	in MMDevice	dev,
		in flowSpec	the_spec
	)
raises	(	streamOpFailed,
		noSuchFlow
	)

Establish a connection between two streamendpoints. This can be used if the streamendpoints have been created independent of a MMDevice

void AVStreams::StreamCtrl::unbind_party	(	in StreamEndPoint	the_ep,
		in flowSpec	the_spec
	)
raises	(	streamOpFailed,
		noSuchFlow
	)

Unbind the_ep from the stream. Empty the_spec means apply to all flows.

---

The documentation for this interface was generated from the following file:

• AVStreams.idl
