Base class for all types of ProxyConsumer implementations. More...

#include <ProxyConsumer.h>

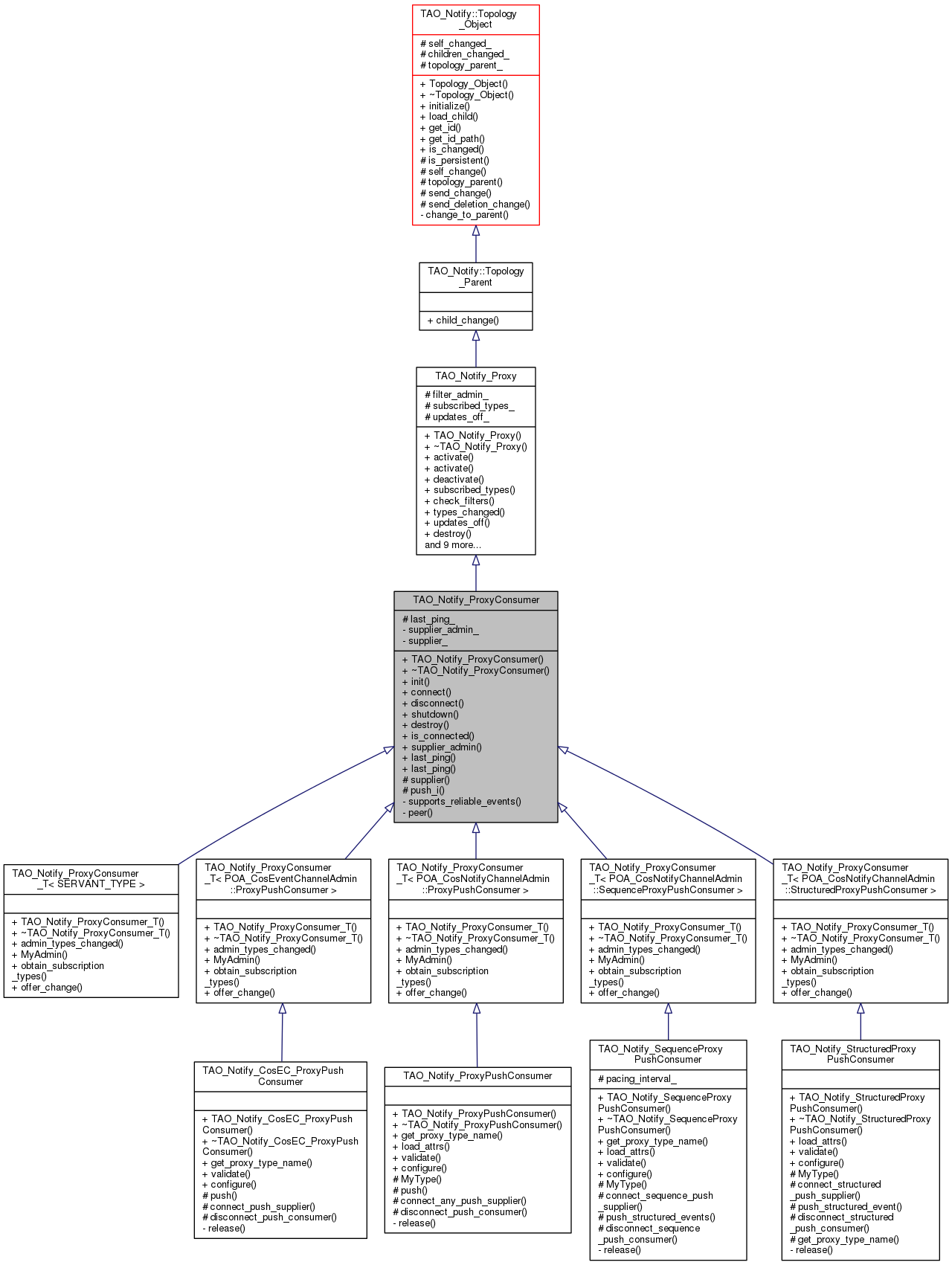

Inheritance diagram for TAO_Notify_ProxyConsumer:

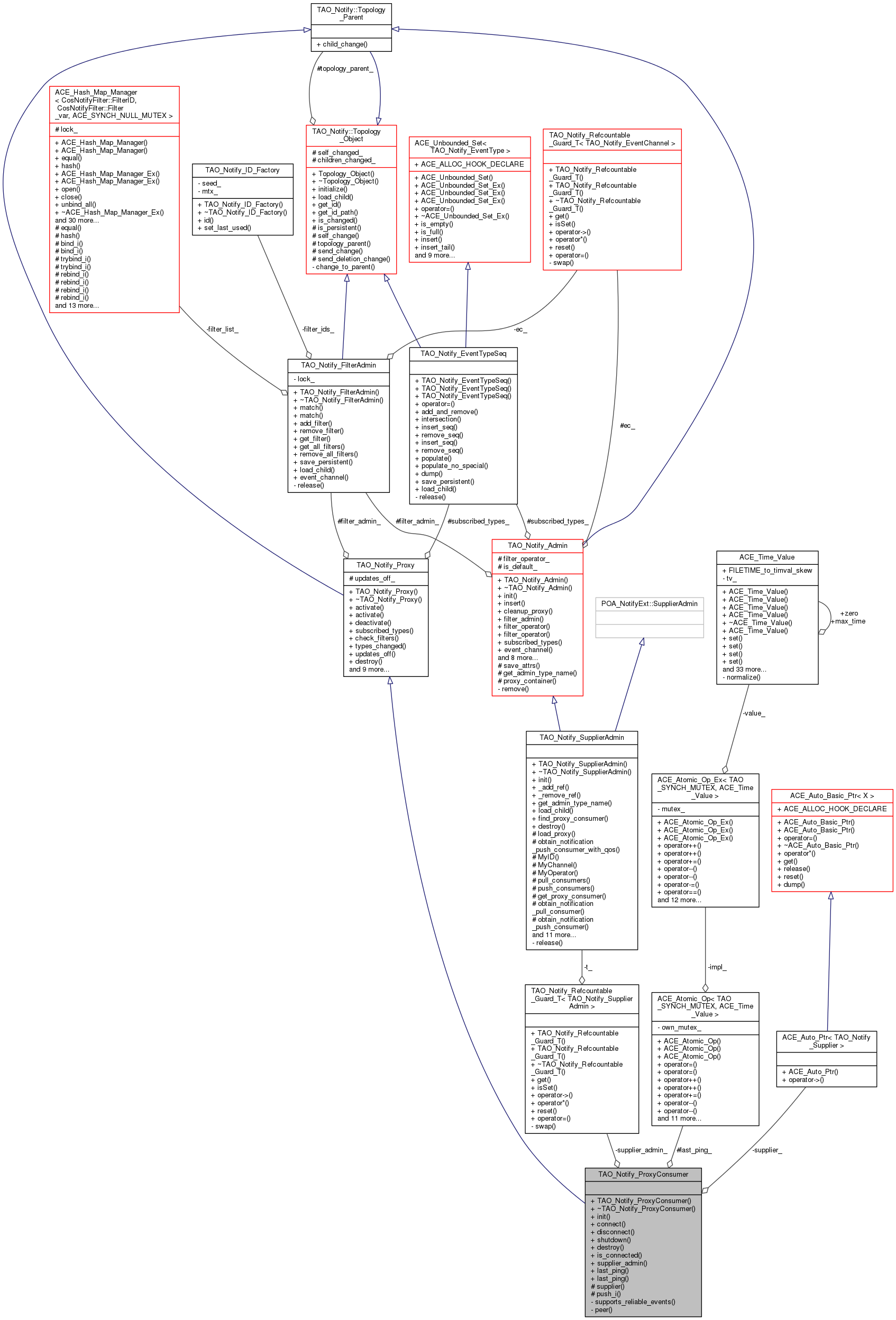

Collaboration diagram for TAO_Notify_ProxyConsumer:

Public Types
typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_ProxyConsumer >	Ptr

Public Types inherited from TAO_Notify_Proxy
typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_Proxy >	Ptr

typedef CosNotifyChannelAdmin::ProxyIDSeq	SEQ

typedef CosNotifyChannelAdmin::ProxyIDSeq_var	SEQ_VAR

Public Types inherited from TAO_Notify_Object
typedef CORBA::Long	ID
	Id for Objects. More...

Public Types inherited from TAO_Notify_Refcountable
typedef TAO_Notify_Refcountable_Guard_T < TAO_Notify_Refcountable >	Ptr

Public Member Functions
	TAO_Notify_ProxyConsumer (void)
	Constructor. More...

virtual	~TAO_Notify_ProxyConsumer (void)
	Destructor. More...

virtual void	init (TAO_Notify::Topology_Parent *topology_parent)
	init: overrides Topology_Object method More...

void	connect (TAO_Notify_Supplier *supplier)
	Connect. More...

void	disconnect (void)
	Disconnect. More...

virtual int	shutdown (void)
	Shutdown (TAO_Notify_Container_T method) More...

virtual void	destroy (void)
	Destroy this object. More...

bool	is_connected (void) const
	Return true if connected. More...

TAO_Notify_SupplierAdmin &	supplier_admin (void)
	The SA parent. More...

ACE_Time_Value	last_ping () const

void	last_ping (const ACE_Time_Value &tv)

Public Member Functions inherited from TAO_Notify_Proxy
	TAO_Notify_Proxy (void)
	Constructor. More...

virtual	~TAO_Notify_Proxy ()
	Destructor. More...

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant)
	Activate. More...

virtual CORBA::Object_ptr	activate (PortableServer::Servant servant, CORBA::Long id)
	Activate with a given ID. More...

void	deactivate (void)
	Deactivate. More...

void	subscribed_types (TAO_Notify_EventTypeSeq &subscribed_types)
	Obtain the Proxy's subscribed types. More...

CORBA::Boolean	check_filters (const TAO_Notify_Event *event, TAO_Notify_FilterAdmin &parent_filter_admin, CosNotifyChannelAdmin::InterFilterGroupOperator filter_operator)
	Check if this event passes the admin and proxy filters. More...

void	types_changed (const TAO_Notify_EventTypeSeq &added, const TAO_Notify_EventTypeSeq &removed)
	Inform this proxy that the following types are being advertised. More...

CORBA::Boolean	updates_off (void)
	Have updates been turned off. More...

virtual CosNotification::EventTypeSeq *	obtain_types (CosNotifyChannelAdmin::ObtainInfoMode mode, const TAO_Notify_EventTypeSeq &types)
	Implement the Obtain Types. More...

virtual void	admin_types_changed (const CosNotification::EventTypeSeq &added, const CosNotification::EventTypeSeq &removed)=0
	Notification of subscriptions/offers set at the admin. More...

virtual void	qos_changed (const TAO_Notify_QoSProperties &qos_properties)
	Override, TAO_Notify_Object::qos_changed. More...

virtual void	save_persistent (TAO_Notify::Topology_Saver &saver)

virtual void	save_attrs (TAO_Notify::NVPList &attrs)

virtual const char *	get_proxy_type_name (void) const =0

virtual TAO_Notify::Topology_Object *	load_child (const ACE_CString &type, CORBA::Long id, const TAO_Notify::NVPList &attrs)
	Create a child of the appropriate type and return it. More...

virtual void	validate ()=0

Public Member Functions inherited from TAO_Notify::Topology_Parent
bool	child_change (void)

Public Member Functions inherited from TAO_Notify::Topology_Object
	Topology_Object ()
	The constructor. More...

virtual	~Topology_Object ()
	The destructor. More...

virtual void	initialize (Topology_Parent *topology_parent)
	Init this object with data from <rhs>. More...

virtual TAO_Notify_Object::ID	get_id (void) const
	Find the id associated with topology object. More...

void	get_id_path (IdVec &id_path) const
	Get the path of id's from the root to this object. More...

bool	is_changed (void) const
	Is there an unsaved change for this object or its children? More...

Public Member Functions inherited from TAO_Notify_Object
virtual	~TAO_Notify_Object (void)
	Destructor. More...

ID	id (void) const
	This Object's ID. More...

void	deactivate (void)
	Deactivate. More...

bool	has_shutdown (void)
	Have we been shutdown. returns true if shutdown. More...

void	execute_task (TAO_Notify_Method_Request &method_request)

CORBA::Object_ptr	ref (void)
	Get CORBA Ref. More...

virtual void	set_qos (const CosNotification::QoSProperties &qos)
	Set the QoS Properties. More...

CosNotification::QoSProperties *	get_qos (void)
	Get the QoS Properties. More...

bool	find_qos_property_value (const char *name, CosNotification::PropertyValue &value) const

virtual TAO_Notify_Timer *	timer (void)
	Obtain the Timer manager associated with this object. More...

TAO_Notify_Event_Manager &	event_manager (void)
	Accessor for the Event Manager. More...

virtual void	load_attrs (const TAO_Notify::NVPList &attrs)

TAO_Notify_Worker_Task *	get_worker_task (void)
	Allow access to the underlying worker task. More...

Public Member Functions inherited from TAO_Notify_Refcountable
	TAO_Notify_Refcountable (void)
	Constructor. More...

virtual	~TAO_Notify_Refcountable ()

CORBA::ULong	_incr_refcnt (void)

CORBA::ULong	_decr_refcnt (void)

Public Member Functions inherited from TAO_Notify::Topology_Savable
virtual	~Topology_Savable (void)
	Destructor. More...

virtual void	reconnect (void)

Protected Member Functions
TAO_Notify_Supplier *	supplier (void)
	Access the Supplier. More...

void	push_i (TAO_Notify_Event *event)
	Accept an event from the Supplier. More...

Protected Member Functions inherited from TAO_Notify::Topology_Object
virtual bool	is_persistent (void) const
	Should this object be saved? More...

bool	self_change (void)
	Method to report change in this object. More...

Topology_Parent *	topology_parent () const
	pointer to our topological parent More...

bool	send_change (void)
	Handle details of propagating change. More...

bool	send_deletion_change ()
	Handle details of propagating change for a deleted object. More...

Protected Member Functions inherited from TAO_Notify_Object
	TAO_Notify_Object (void)
	Constructor. More...

void	initialize (TAO_Notify_Object *parent)
	Init this object with data from <rhs>. More...

void	inherit_poas (TAO_Notify_Object &parent)
	Uses the poas from the supplied object. More...

void	adopt_poa (TAO_Notify_POA_Helper *single)
	Adopts the supplied poa as all are poas. More...

void	set_primary_as_proxy_poa ()
	Changes the primary poa to the current proxy poa. More...

TAO_Notify_POA_Helper *	proxy_poa (void)
	Accessor for the proxy_poa_. More...

TAO_Notify_POA_Helper *	object_poa (void)
	Accessor for the object_poa_. More...

TAO_Notify_POA_Helper *	poa (void)
	Get the POA assigned to us. More...

void	set_event_manager (TAO_Notify_Event_Manager *event_manager)

void	set_admin_properties (TAO_Notify_AdminProperties *admin_properties)

TAO_Notify_AdminProperties &	admin_properties (void)
	Accessor for the Admin Properties. More...

Protected Attributes
ACE_Atomic_Op< TAO_SYNCH_MUTEX, ACE_Time_Value >	last_ping_

Protected Attributes inherited from TAO_Notify_Proxy
TAO_Notify_FilterAdmin	filter_admin_
	Filter Administration. More...

TAO_Notify_EventTypeSeq	subscribed_types_
	The types that we're subscribed with the event manager. More...

CORBA::Boolean	updates_off_
	True if updates have been turned off. More...

Protected Attributes inherited from TAO_Notify::Topology_Object
bool	self_changed_
	true if this object changed since last save_persistent More...

bool	children_changed_
	true of any of this object's children changed since last save_persistent More...

Topology_Parent *	topology_parent_
	A safely-typed copy of parent_;. More...

Protected Attributes inherited from TAO_Notify_Object
TAO_Notify_QoSProperties	qos_properties_
	= Protected data members. More...

TAO_SYNCH_MUTEX	lock_
	The mutex to serialize access to state variables. More...

Private Member Functions
bool	supports_reliable_events () const
	Is this part of a reliable channel. More...

virtual TAO_Notify_Peer *	peer (void)
	Access our Peer. More...

Private Attributes
TAO_Notify_SupplierAdmin::Ptr	supplier_admin_

ACE_Auto_Ptr< TAO_Notify_Supplier >	supplier_
	The Supplier that we're connect to. More...

Detailed Description

Base class for all types of ProxyConsumer implementations.

Member Typedef Documentation

typedef TAO_Notify_Refcountable_Guard_T<TAO_Notify_ProxyConsumer> TAO_Notify_ProxyConsumer::Ptr

Constructor & Destructor Documentation

TAO_Notify_ProxyConsumer::TAO_Notify_ProxyConsumer ( void )

Constructor.

TAO_Notify_ProxyConsumer::~TAO_Notify_ProxyConsumer ( void )

virtual

Destructor.

Member Function Documentation

void TAO_Notify_ProxyConsumer::connect ( TAO_Notify_Supplier * supplier )

Connect.

void TAO_Notify_ProxyConsumer::destroy ( void )

virtual

Destroy this object.

Implements TAO_Notify_Proxy.

void TAO_Notify_ProxyConsumer::disconnect ( void )

Disconnect.

void TAO_Notify_ProxyConsumer::init ( TAO_Notify::Topology_Parent * topology_parent )

virtual

init: overrides Topology_Object method

bool TAO_Notify_ProxyConsumer::is_connected ( void ) const

Return true if connected.

ACE_Time_Value TAO_Notify_ProxyConsumer::last_ping ( ) const

void TAO_Notify_ProxyConsumer::last_ping ( const ACE_Time_Value & tv )

TAO_Notify_Peer * TAO_Notify_ProxyConsumer::peer ( void )

privatevirtual

Access our Peer.

Implements TAO_Notify_Proxy.

void TAO_Notify_ProxyConsumer::push_i ( TAO_Notify_Event * event )

protected

Accept an event from the Supplier.

int TAO_Notify_ProxyConsumer::shutdown ( void )

virtual

Shutdown (TAO_Notify_Container_T method)

Reimplemented from TAO_Notify_Object.

TAO_Notify_Supplier * TAO_Notify_ProxyConsumer::supplier ( void )

protected

Access the Supplier.

TAO_Notify_SupplierAdmin & TAO_Notify_ProxyConsumer::supplier_admin ( void )

The SA parent.

bool TAO_Notify_ProxyConsumer::supports_reliable_events ( ) const

private

Is this part of a reliable channel.

Member Data Documentation

ACE_Atomic_Op<TAO_SYNCH_MUTEX, ACE_Time_Value> TAO_Notify_ProxyConsumer::last_ping_

protected

Last time either push an event or validate connection via _non_exist call.

ACE_Auto_Ptr<TAO_Notify_Supplier> TAO_Notify_ProxyConsumer::supplier_

private

The Supplier that we're connect to.

TAO_Notify_SupplierAdmin::Ptr TAO_Notify_ProxyConsumer::supplier_admin_

private

= Data Members. The SA parent.

The documentation for this class was generated from the following files:
